PixxSplitter DR8+
€139.99*
10 available
Delivery time: on stock (1 day)
- Direct from the manufacturer
- dispatch within 24 hours on weekdays
-
Made in Germany -
Made in Europe - technical support
PayPal
Pay Later
SEPA direct debit
Pay upon invoice
Google Pay
Apple Pay
Credit or debit card
Bancontact
eps
iDEAL
OXXO supported by Paypal
Przelewy24
BLIK
Multibanco
MyBank
Paid in advance
Cash on delivery
Bar
Invoice plus payment extension fee
EC Kartenzahlung Zahlung bei Abholung
Kredit- oder Debitkarte bei Abholung Product information "PixxSplitter DR8+"
 PixxSplitter DR8+ |

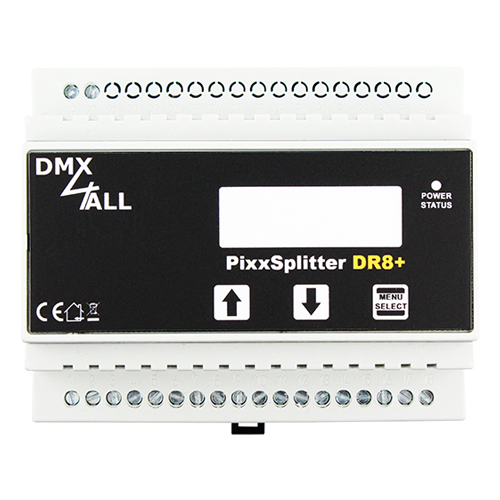

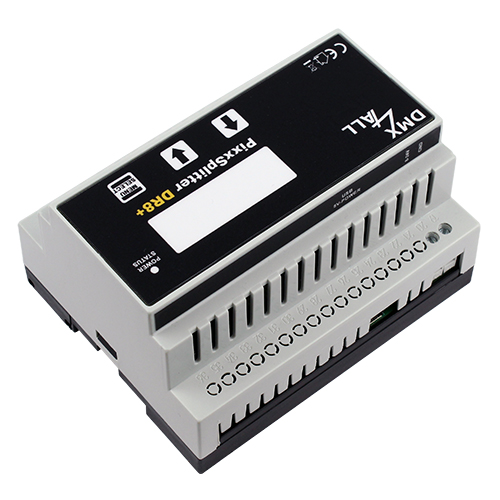

The PixxSplitter DR8+ is a manifold for a digital LED signal to up to 8 connected digital LED-Strips.
Up to 999 RGB or RGBW pixels can be connected to each output.
The input signal, coming from a pixel controller, contains control information for all connected pixels.

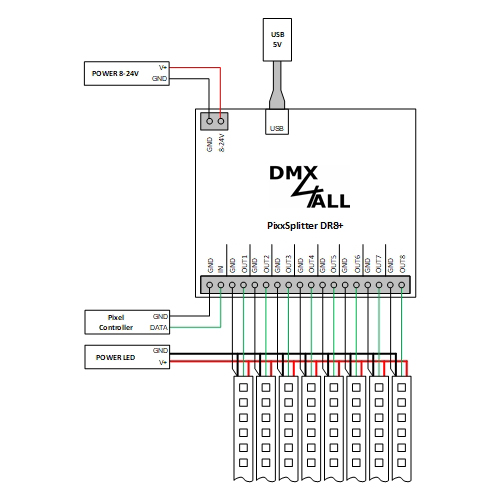

This allows to control up to 8 different digital LED-Strip elements with just one control unit. The wiring is radial.
In the Default-Setting, the number of pixels on each output is set to 100 RGB pixels.
In total a pixel controller drives 800 RGB pixels, whereby the first 100 pixels (pixels 1-100) are connected to output 1,
the second 100 pixels (pixels 101-200) to output 2, etc.
| Specifications |
| Power supply: | 8-24V / 100mA |
| 5V / 100mA via Mini-USB connector | |
| Input: | Control signal for digital LED stripes |
| Output: | 8x control signal for digital LED stripes |
| Compatible LED-Types: | SK6812 |
| GS8208 | |
| WS2811, WS2812(B) | |
| INK1002, INK1003 | |
| Color sequence: | RGB / RGBW (selectable) |
| Number of pixel/output: | 1 - 999 pixel |
| Display: | 4 digit 7 segment display |
| 1x RGB-LED | |
| Controls: | 3 buttons (UP / DOWN / MENU) |
| Dimensions: | 105mm x 90mm x 60mm |
