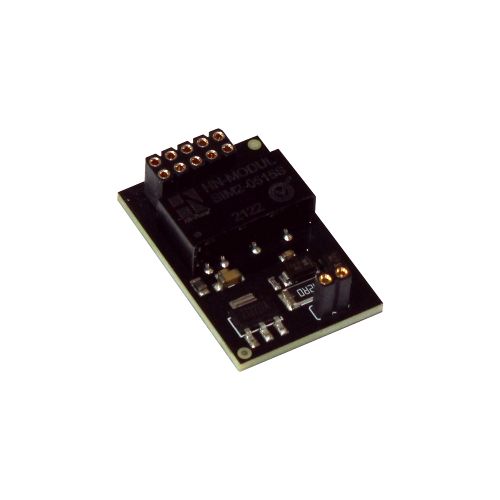

IEC62386 PSU30

 DMX-IEC62386 GatewayThe DMX-IEC62386 gateway is a bidirectional protocol converter combining two devices in onewith its compact design. Depending on the individual application, the DMX-IEC62386 gateway,using a 2-way communication, is able to convert both, the DMX signal into IEC62386 controlcommands and IEC62386 control commands into DMX values.Especially, the reduced size and the “on-board” BUS power supply makes the DMX-IEC62386 gatewaya space-saving and price-optimized all-rounder. There is no need for an external power supply,as the module has an own slot for the specially developed BUS power supply.Overall, the DMX-IEC62386 gateway is a bidirectional protocol converter with an integratedBUS power supply thanks to its clever design, combined with many useful functions that areparameterized exclusively in a decentralized manner via remote device management.Several communicational directionsThe DMX-IEC62386 Gateway can be run as IEC62386-Output device (DMX as input) orDMX-Output device (IEC62386 as input).RDM SupportThe DMX-IEC62386 Gateway allows a RDM configuration via DMX.Supports single-devices and /or device-groups or BroadcastThe protocol converter can send DMX-Signals to IEC62386-Bus-Control-Commands via broadcastor send focused to single devices or groups.Settable DMX-AddressesFor each device or group an own DMX-Starting address can be assigned.Individual DMX-FAIL ActionIn the case of an DMX-Signal fail for each device or each group an individual behavior can be determined.Configurable Working ModeThe working mode defines how to call the connected device or group. The options ARC-Power /%-Power / Color Temperature / RGB / RGB+W / RGB+WA / RGB+WAF are available.OFF as ARC LEVEL or OFF COMMANDWith a dim value of 0% (OFF) the behavior between send an OFF-Command and send an ARC-Level is adjustable.BUS-Command RefreshAn automatic Refresh of the BUS-Command can be activated and is also executed if no DMX signal is present.The execution interval can be change between 10s and 600s.Lockable Device SettingsThe RDM parameters Lock Pin and Lock State allow or prohibit changing saved RDM parametersto prevent unauthorized changes.64 Devices in DMX-ValuesFor all 64 IEC62386-Devices the brightness value is outputted at one DMX-Channel.Free RDM-SoftwareTo set the parameters via RDM, our free RDM Configurator software is availableto download from our website www.dmx4all.de.RGB-LED-DisplayA RGB-LED shows the current device status clearly.Firmware-Update-FunctionTo us future functions the DMX-IEC62386 Gateway offers the Firmware-Update-Function via RDM.Top hat rail housing availableSuitable for the DMX-IEC62386 the DIN rail housing 350 or DIN rail housing 350 flat is availableas accessory. Together with the top-hat rail housing 350 or 350 flat, the interface is optimallysuited for control cabinet installation. Specifications  Power supply:12-48V DC 50mA@12V / 30mA@24V / 15mA@48V  Protocol:DMX512 / RDM IEC62386  Communication direction:DMX - IEC62386 IEC62386 - DMX  Quantity Devices/Groups:Up to a total of 64 devices/groups as SubDevice or Broadcast  Parameter per SubDevice:DMX-Start address Personality (Device 1-64 or Group 1-16) DMX-Fail-Mode (Hold / 0-100%) Working Mode  Working Mode:Brightness level (%) Brightness White CCT (DT8) Tunable level (arc power) RGB (RGBWAF DT8) RGB+W (RGBWAF DT8) RGB+WA (RGBWAF DT8) RGB+WAF (RGBWAF DT8)  DMX-FAIL:Hold / 0-100%  LED-Display:RGB-LED  Internal BUS power supply:attachable, available as accessory  Connections:Screw terminals  Dimensions:29,2mm x 82mm Produkt DownloadsDMX-IEC62386 GatewayBedienungsanleitung DMX-IEC62386 GatewayUser Manual DMX-IEC62386 GatewayFirmware
