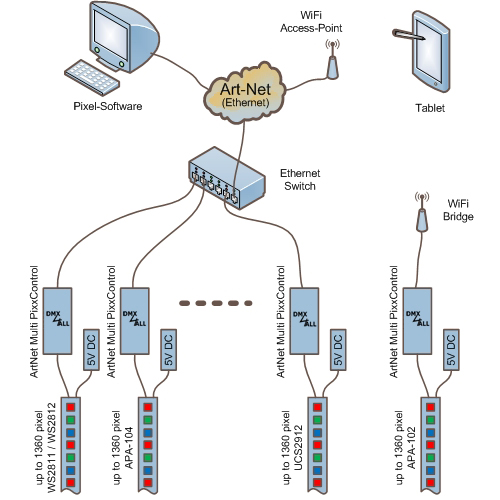

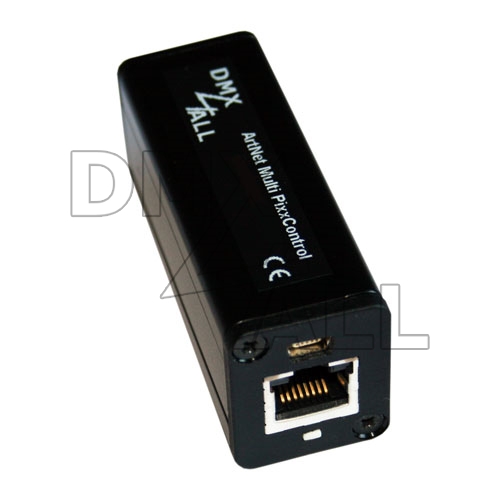

ArtNet Multi PixxControl

 ArtNet PixxControl PX1The ArtNet PixxControl PX1 is a compact ArtNet (DMX over Ethernet) interface,which converts ArtNet directly to a control signals for several digital LEDs.For the ArtNet network connection a standard RJ45 network connector is used.Output with selectable pixel data protocolThe ArtNet PixxControl PX1 has one configurable output. The pixel data protocol (control signal)for different LED pixel types and other parameters can be selected separately.Adjustable color sequenceThe RGB color sequence is adjustable, which allows flexible uses.It is also possible to control RGBW pixels. Furthermore, a SingleColor optioncan be selected, where each pixel needs only one channel.Adjustable pixel groupThe ArtNet PixxControl PX1 supports pixel groups with adjustable length.Each pixel group behaves like a single pixel controlled via 3 DMX channels (RGB)or 4 DMX channels (RGBW). That reduces channels in installations with many pixels.RGB-LED-DisplayThe RGB LED displays the current operation status of the ArtNet PixxControl PX1 clearly.Muteable LED-DisplayThe LED displays on the ArtNet PixxControl PX1 can be switched off via ArtNet command (AcLedMute),RDM (DISPLAY_LEVEL) or time-controlled. This is especially helpful on stages to avoid disturbing "light spots".RDMThe important parameters such as the pixel type, the pixel group size or the color sequencecan be set individually for both data outputs via RDM.Free RDM-SoftwareTo set parameters via RDM our free software RDM-Configurator is available as download on our website www.dmx4all.de .DMX4ALL Communication-InterfaceThe ArtNet PixxControl PX1 has another communication interface which uses the DMX4ALL commands via TCP or UDP.Easy ConfigurationA user-friendly configuration via a web browser allows a quick and uncomplicated setting of all parameters.No special software is needed a normal web browser is enough. This means that the configuration is possibleat any time from a PC, smartphone or tablet.To set the IP address easily, the IP Configurator is offered as free download as PC tool or Android app.This allows the network settings of the PC or Android device to remain unchanged in order to configurethe IP of the ArtNet PixxControl PX1.Combinable with WiFi componentsThe ArtNet PixxControl PX1 can be integrated into WLAN networks in combination with a WLAN bridge.Firmware update functionTo use future functions, the ArtNet PixxControl PX1 offers a firmware update function.The update can be started from a web browser, so no access to the device is necessary!Top hat rail housing availableThe top-hat rail housing 350 or 350flat is available as accessory for the ArtNet PixxControl PX1. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (100mA@12V; 50mA@24V)  Connection:RJ45 Ethernet  5pin screw terminal  Protocol:Art-Net™ 4 (downward compatible) RDM  LED types:APA-101, APA-104, APA-102,max. 1360 pixel DycoLED PB3, DycoLED PB5,  GS8208,  INK1002, INK1003,  LC8808,  LPD1101, LPD8803, LPD6803, LPD8806,  LPD1886 8Bit, LPD1886 12Bit (8Bit controlled),  SK6812, SK6822, SK9822,  SM16703,  TM1804, TM1812, TM1814, TM1829, TM1934,  UCS1903, UCS1912, UCS2903, UCS2912,  WS2801, WS2811, WS2812, WS2812B,  WS2813, WS2815, WS2818, WS2821     LPD1886 12Bit (12Bit controlled),max. 680 pixel UCS9812 (8Bit controlled), UCS9812 (16Bit controlled)   Color Sequence:RGB selectable / RGBW SingleColor white, red, green, blue  Pixel groups:1 up to 127 pixel / all  Gamma correction:Selectable for LPD1886 12Bit (8Bit controlled), UCS9812 (8Bit controlled)  LED-Display:RGB Status-LED Ethernet-Status-LEDs yellow and green  Dimensions:29,2mm x 82mm Product DownloadsArtNet PixxControl PX1Bedienungsanleitung ArtNet PixxControl PX1User Manual ArtNet PixxControl PX1Firmware Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 ArtNet PixxControl PX2The ArtNet PixxControl PX2 is a compact ArtNet (DMX over Ethernet) interface,which converts ArtNet directly to two independent control signals for several digital LEDs.For the ArtNet network connection a standard RJ45 network connector is used.Two independent outputs with selectable pixel data protocolThe ArtNet PixxControl PX2 has two outputs, independently configurable. The pixel data protocol (control signal)for different LED pixel types and other parameters can be selected separately for each output.Selectable color sequenceThe RGB color sequence is adjustable, which allows flexible uses. It is also possible to control RGBW pixels.Furthermore, a SingleColor option can be selected, where each pixel needs only one channel.Adjustable pixel groupThe ArtNet PixxControl PX2 supports pixel groups with adjustable length.Each pixel group behaves like a single pixel controlled via 3 DMX channels (RGB) or 4 DMX channels (RGBW).That reduces channels in installations with many pixels.Voltage monitoringBoth data outputs are equipped with a voltage input, which allows monitoring of the LED voltage supplyvia the network. The voltage values can be called via RDM or with the web interface.CTRL OutputThe CTRL output can be used to switch off the power supply for the LED installation as soon as theArtNet PixxControl PX2 does not receive any data after 5 minutes or the connected digital LEDs don’t light up.RGB-LED-DisplayThe RGB LED displays the current operation status of the ArtNet PixxControl PX2 clearly.Mute able LED-DisplayThe LED displays on the ArtNet PixxControl PX2 can be switched off via ArtNet command (AcLedMute),RDM (DISPLAY_LEVEL) or time-controlled. This is especially helpful on stages to avoid disturbing "light spots".Easy ConfigurationA user-friendly configuration via a web browser allows quick and uncomplicated setting of all parameters.No special software is needed a normal web browser is enough. This means that the configuration ispossible at any time from a PC, smartphone or tablet.To set the IP address easily, the IP Configurator is offered as free download as a PC tool or Android app.This allows the network settings of the PC or Android device to remain unchanged in order to configurethe IP of the ArtNet PixxControl PX2.RDMThe important parameters such as the pixel type, the pixel group size or the color sequence can be set individuallyfor both data outputs via RDM. Also the voltage values of the LED power supply can be called via RDM.Free RDM-SoftwareTo set parameters via RDM our free software RDM-Configurator is available as download on our website www.dmx4all.de .DMX4ALL Communication-InterfaceThe ArtNet PixxControl PX2 has another communication interface which uses the DMX4ALL commands via TCP or UDP.Combinable with WiFi componentsThe ArtNet PixxControl PX2 can be integrated into WLAN networks in combination with a WLAN bridge.Firmware update functionTo use future functions, the ArtNet PixxControl PX2 offers a firmware update function.The update can be started from a web browser, so no access to the device is necessary!Top-hat rail housing availableThe top-hat rail housing 700 is available as accessory for the ArtNet PixxControl PX2. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:RJ45 Ethernet  12pin screw terminal  Ethernet:10 Mbit/s | 100 Mbit/s  Protocol:Art-Net™ 4 (downward compatible) RDM  LED types:APA-101, APA-104, APA-102,max. 1360 pixel per output DycoLED PB3, DycoLED PB5,  GS8208,  INK1002, INK1003,  LC8808,  LPD1101, LPD8803, LPD6803, LPD8806,  LPD1886 8Bit, LPD1886 12Bit (8Bit controlled),  SK6812, SK6822, SK9822,  SM16703,  TM1804, TM1812, TM1814, TM1829, TM1934,  UCS1903, UCS1912, UCS2903, UCS2912,  WS2801, WS2811, WS2812, WS2812B,  WS2813, WS2815, WS2818, WS2821     LPD1886 12Bit (12Bit controlled),max. 680 pixel per output UCS9812 (8Bit controlled), UCS9812 (16Bit controlled)     DMX512max. 512 DMX channels per output  Color Sequence:RGB selectable / RGBW SingleColor white, red, green, blue  Pixel groups:1 up to 127 pixel / all  Gamma correction:Selectable for LPD1886 12Bit (8Bit controlled), UCS9812 (8Bit controlled)  LED-Display:RGB Status-LED Ethernet-Status-LEDs yellow and green  Dimensions:64,2mm x 82mm Product DownloadsArtNet PixxControl PX2Bedienungsanleitung ArtNet PixxControl PX2User Manual ArtNet PixxControl PX2Firmware Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 ArtNet PixxControl PX2+The ArtNet PixxControl PX2+ is a compact ArtNet (DMX over Ethernet) interface,which converts ArtNet directly to two independent control signals for several digital LEDs.For the ArtNet network connection a standard RJ45 network connector is used.Two independent outputs with selectable pixel data protocolThe ArtNet PixxControl PX2+ has two outputs, independently configurable. The pixel data protocol (control signal)for different LED pixel types and other parameters can be selected separately for each output.Selectable color sequenceThe RGB color sequence is adjustable, which allows flexible uses. It is also possible to control RGBW pixels.Furthermore, a SingleColor option can be selected, where each pixel needs only one channel.Adjustable pixel groupThe ArtNet PixxControl PX2+ supports pixel groups with adjustable length.Each pixel group behaves like a single pixel controlled via 3 DMX channels (RGB) or 4 DMX channels (RGBW).That reduces channels in installations with many pixels.Voltage monitoringBoth data outputs are equipped with a voltage input, which allows monitoring of the LED voltage supplyvia the network. The voltage values can be called via RDM or with the web interface.CTRL OutputThe CTRL output can be used to switch off the power supply for the LED installation as soon as theArtNet PixxControl PX2+ does not receive any data after 5 minutes or the connected digital LEDs don’t light up.5 RGB-LED-DisplayFive RGB LEDs display the current operating status of the ArtNet PixxControl PX2+ and the output ports clearly.Muteable LED-DisplayThe LED displays on the ArtNet PixxControl PX2+ can be switched off via ArtNet command (AcLedMute),RDM (DISPLAY_LEVEL) or time-controlled. This is especially helpful on stages to avoid disturbing "light spots".Easy ConfigurationA user-friendly configuration via a web browser allows quick and uncomplicated setting of all parameters.No special software is needed a normal web browser is enough. This means that the configuration ispossible at any time from a PC, smartphone or tablet.To set the IP address easily, the IP Configurator is offered as free download as a PC tool or Android app.This allows the network settings of the PC or Android device to remain unchanged in order toconfigure the IP of the ArtNet PixxControl PX2+.RDMThe important parameters such as the pixel type, the pixel group size or the color sequence can be set individuallyfor both data outputs via RDM. Also the voltage values of the LED power supply can be called via RDM.Combinable with WiFi componentsThe ArtNet PixxControl PX2+ can be integrated into WLAN networks in combination with a WLAN bridge.Firmware update functionTo use future functions, the ArtNet PixxControl PX2+ offers a firmware update function.The update can be started from a web browser, so no access to the device is necessary! Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:RJ45 Ethernet  12pin screw terminal  Protocol:Art-Net™ 4 (downward compatible) RDM  LED types:APA-101, APA-104, APA-102,max. 1360 pixel per output DycoLED PB3, DycoLED PB5,  GS8208,  INK1002, INK1003,  LC8808,  LPD1101, LPD8803, LPD6803, LPD8806,  LPD1886 8Bit, LPD1886 12Bit (8Bit controlled),  SK6812, SK6822, SK9822,  SM16703,  TM1804, TM1812, TM1814, TM1829, TM1934,  UCS1903, UCS1912, UCS2903, UCS2912,  WS2801, WS2811, WS2812, WS2812B,  WS2813, WS2815, WS2818, WS2821     LPD1886 12Bit (12Bit controlled),max. 680 pixel per output UCS9812 (8Bit controlled), UCS9812 (16Bit controlled)     DMX512max. 512 DMX channels per output  Color Sequence:RGB selectable / RGBW SingleColor white, red, green, blue  Pixel groups:1 up to 127 pixel / all  Gamma correction:Selectable for LPD1886 12Bit (8Bit controlled), UCS9812 (8Bit controlled)  LED-Display:5 RGB Status-LED Ethernet-Status-LEDs yellow and green  Dimensions:70mm x 90mm x 60mm Product DownloadsArtNet PixxControl PX2+Bedienungsanleitung ArtNet PixxControl PX2+User Manual ArtNet PixxControl PX2+Firmware Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 MiniPixx 3.5 RDMThe MiniPixx 3.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-104max. 512 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel SK6812 / SK6822max. 512 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 MiniPixx 4.12 RDMThe MiniPixx 4.12 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:12V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 MiniPixx 4.5 RDMThe MiniPixx 4.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 DMX PixxControl DRThe DMX PixxControl DR is especially designed for controlling digital LED-Stripes orPixel-Stripes via DMX.By controlling via DMX 170 Pixel (RGB) / 128 Pixel (RGBW) / 512 Pixel (single color) canbe controlled individually.Selectable LED-ChipThe used LED-Chip within the connected digital LED-Stripe is selectable.So, the usage with several digital LED-Stripes is possible.Adjustable color reproductionThe RGB-Color sequence is adjustable, allowing an universal application.SingleColor-OptionA SingleColor-Option is selectable in which each pixel occupies only one channel.So up to 512 pixel in one color can be controlled via one DMX-Universe.Adjustable pixel groupThe DMX PixxControl DR supports pixel groups with adjustable lengths.Each pixel group behaves like a single pixel which is controlled via3 DMX-Channels (for RGB). That economizes channels in longer installations.Easy ConfigurationAn easy configuration via RDM, USB via DMX-Configurator or DMX allowsthe setting of all parameters.Pixel-SequencerThe Pixel-Sequencer generates several effects.The settings can be made with only a few DMX channelsto fit the effects individually.RDM SupportThe DMX PixxControl DR allows configuration via RDM over DMX.TPM2-ProtocolThe DMX PixxControl DR also supports the TPM2 protocolvia the USB-Interface via Virtual Com Port (VCP).Firmware-Update-FunctionTo use future functions the DMX PixxControl DR offers a Firmware-Update-Function.Top-hat rail housing availableThe top-hat rail housing 350 or 350flat is available as accessory for the DMX PixxControl DR. Specifications  Power supply:5 - 12V DC / 300mA@5V; 150mA@12V or via USB-Connection  Input:DMX512 RDM  Output:Digital control signal for up to 170 RGB-Pixel, single controlable 128 RGBW-Pixel, single controlable  Supported LED types:APA101, APA102, APA104 DycoLED PB3, DycoLED PC5 GS8208 INK1002, INK1003 LPD6803, LPD6806, LPD8803 LPD1886 8Bit, LPD1886 12Bit SK6812, SK6822, SK9822 TM1804, TM1812, TM1814, TM1829 UCS1903, UCS1912, UCS2912, UCS9812 WS2801, WS2811, WS2812(B), WS2813 WS2815, WS2818  Color sequence:RGB (adjustable) SingleColor white SingleColor red SingleColor green SingleColor blue RGBW with UCS2912, SK6812, TM1814  Pixel groups:adjustable  Max. Pixel count:RGB: 170 Pixel/Pixelgroups; RGBW: 128 Pixel/Pixelgroups SingleColor: 512 Pixel/Pixelgroups  Dimensions:29,2mm x 82mm Product DownloadsDMX PixxControl DRBedienungsanleitung DMX PixxControl DRUser Manual DMX PixxControl DRUSB Driver 32 & 64bit - Version 6.0.0.0 DMX PixxControl DRFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 Adam Hall 7850 XLR3 SteckerXLR Plug male black Specifications  Manufactor:Adam Hall  Part number:7850  Color:black  Model:XLR male  Pole number:3  Material:Metal / cap plastic  Type of contact:Soldering  Mounting:Cable  Cable diameter:8mm

 Adam Hall 7849 XLR3 BuchseXLR Plug female black Specifications  Manufactor:Adam Hall  Part number:7848  Color:black  Model:XLR female  Pole number:3  Material:Metal / cap plastic  Type of contact:Soldering  Mounting:Cable  Cable diameter:8mm

 Adam Hall DMX-Kabel (Meterware)The Adam Hall 4 STAR D 234 is perfectly suited for transmission of DMX signals.Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances,thanks to its bigger cross-section. This highly flexible cable is easy to wind,and thanks to its larger diameter also very robust and therefore also well suitedfor hard road applications.- Adam Hall 4 Star "Standard" Series- Highly flexible, easy to reel- Good shielding thanks to dense copper spiral shielding- Larger inner conductor of 2 x 0.34 mm²- PVC jacket of 6.5 mm diameterDelivery as a section (yard goods) or 100m on a drum. Technische Daten  Type:DMX & AES/EBU Cable  Color:Black  Overall diameter:6,5 mm  AWG:22  Center conductor cross section:0,34mm²  Center conductor material:OFC  Number of internal conductors:2  Shield:Tin-plated copper braided shield  Line surge impedance:120 Ohm  Temperature range:-20 - +70°C  Application:DMX  Sales unit:Sold by the meter as a section or 100 meters on drum  Manufacturer:Adam Hall

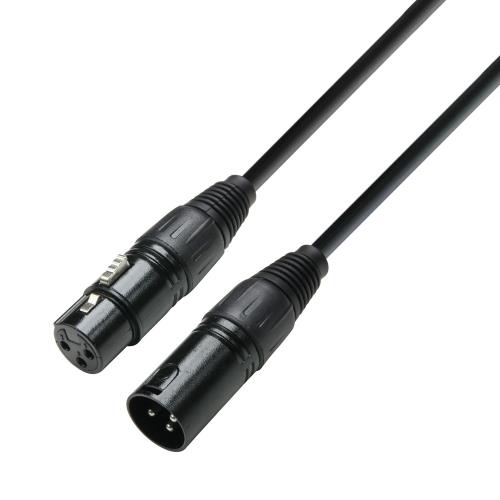

 Adam Hall DMX-Kabel 1,5m XLR3Adam Hall - DMX-Cable (K3DMF0150)Highly flexible 110 Ohm data cable according to the DMX specification, provided with three-pin XLR connectors. Specifications  Product type:Cable Assembled  Typ:110 Ohm DMX & AES/EBU-Cable  Cable length:1,5 m  Color:black  Cable diameter:5,8 mm  Inner conductor cross-section:0,22 mm²  Capacity:<90 pF/m  Connection 1:XLR male 3pol  Connection 2:XLR female 3pol  Brand:Adam Hall

 Adam Hall DMX-Kabel 6m XLR3Adam Hall - DMX-Cable (K3DMF0600)Highly flexible 110 Ohm data cable according to the DMX specification, provided with three-pin XLR connectors. Specifications  Product type:Cable Assembled  Typ:110 Ohm DMX & AES/EBU-Cable  Cable length:6 m  Color:black  Cable diameter:5,8 mm  Inner conductor cross-section:0,22 mm²  Capacity:<90 pF/m  Connection 1:XLR male 3pol  Connection 2:XLR female 3pol  Brand:Adam Hall

 Adam Hall DMX-Kabel 10m XLR3Adam Hall - DMX-Cable (K3DMF1000)Highly flexible 110 Ohm data cable according to the DMX specification, provided with three-pin XLR connectors. Specifications  Product type:Cable Assembled  Typ:110 Ohm DMX & AES/EBU-Cable  Cable length:10 m  Color:black  Cable diameter:5,8 mm  Inner conductor cross-section:0,22 mm²  Capacity:<90 pF/m  Connection 1:XLR male 3pol  Connection 2:XLR female 3pol  Brand:Adam Hall
