Kredit- oder Debitkarte bei Abholung Product information "DMX PixxControl DR"

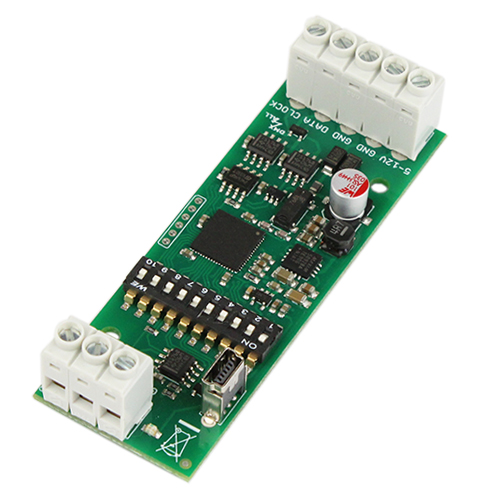

 DMX PixxControl DR |
The DMX PixxControl DR is especially designed for controlling digital LED-Stripes or
Pixel-Stripes via DMX.
By controlling via DMX 170 Pixel (RGB) / 128 Pixel (RGBW) / 512 Pixel (single color) can
be controlled individually.
Selectable LED-Chip
The used LED-Chip within the connected digital LED-Stripe is selectable.
So, the usage with several digital LED-Stripes is possible.
Adjustable color reproduction
The RGB-Color sequence is adjustable, allowing an universal application.
SingleColor-Option
A SingleColor-Option is selectable in which each pixel occupies only one channel.
So up to 512 pixel in one color can be controlled via one DMX-Universe.
Adjustable pixel group
The DMX PixxControl DR supports pixel groups with adjustable lengths.
Each pixel group behaves like a single pixel which is controlled via
3 DMX-Channels (for RGB). That economizes channels in longer installations.
Easy Configuration
An easy configuration via RDM, USB via DMX-Configurator or DMX allows
the setting of all parameters.
Pixel-Sequencer
The Pixel-Sequencer generates several effects.
The settings can be made with only a few DMX channels
to fit the effects individually.
RDM Support
The DMX PixxControl DR allows configuration via RDM over DMX.
TPM2-Protocol
The DMX PixxControl DR also supports the TPM2 protocol
via the USB-Interface via Virtual Com Port (VCP).
Firmware-Update-Function
To use future functions the DMX PixxControl DR offers a Firmware-Update-Function.
Top-hat rail housing available
The top-hat rail housing 350 or 350flat is available as accessory for the DMX PixxControl DR.
| Specifications |
| Power supply: | 5 - 12V DC / 300mA@5V; 150mA@12V |
| or via USB-Connection | |
| Input: | DMX512 |
| RDM | |
| Output: | Digital control signal for up to |
| 170 RGB-Pixel, single controlable | |
| 128 RGBW-Pixel, single controlable | |
| Supported LED types: | APA101, APA102, APA104 |
| DycoLED PB3, DycoLED PC5 | |
| GS8208 | |
| INK1002, INK1003 | |
| LPD6803, LPD6806, LPD8803 | |
| LPD1886 8Bit, LPD1886 12Bit | |
| SK6812, SK6822, SK9822 | |
| TM1804, TM1812, TM1814, TM1829 | |
| UCS1903, UCS1912, UCS2912, UCS9812 | |
| WS2801, WS2811, WS2812(B), WS2813 | |
| WS2815, WS2818 | |
| Color sequence: | RGB (adjustable) |
| SingleColor white | |
| SingleColor red | |
| SingleColor green | |
| SingleColor blue | |
| RGBW with UCS2912, SK6812, TM1814 | |
| Pixel groups: | adjustable |
| Max. Pixel count: | RGB: 170 Pixel/Pixelgroups; |
| RGBW: 128 Pixel/Pixelgroups | |
| SingleColor: 512 Pixel/Pixelgroups | |
| Dimensions: | 29,2mm x 82mm |
