Digital LED-Stripe RGB SK9822 60BL

 ArtNet Player X16The ArtNet Player X16, in the following only called ArtNet Player X,is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitiveand user-friendly despite numerous and new functions in the handling.This is possible by the well-structured user interface of the device's own web interface, available for the settings.An overview of the current status is provided by the integrated RGB LED.Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player Xcan be used to play lighting programs from SD card. Different file formats can be used, which can be created withthe DMX Configurator or used as TPM2 files from freely available software.With up to 16 universes, a maximum of 8192 channels can be output via the network with just one ArtNet Player X.Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 16 configurable timerscan be defined individually. For each timer one or several days can be assigned as well as the start time.Furthermore, the playback duration as well as the hourly playback with adjustable time window can be set optionally.The current time is needed for the correct processing the timers. This setting is done either via the device's ownweb interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specificationvia network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause anyproblems when mounting the switching elements.The ArtNet Player X is convincing and combines a multitude of useful and innovative functions undera top-hat rail housing in its space-saving, compact design.Replay up to 16 DMX UniversesThe ArtNet Player X can output up to 16 DMX universes via Art-Net / sACN.Output via Art-Net or sACNThe DMX universes to be output can be output via Art-Net or sACN.Synchronization of sveral devicesIf more DMX universes are needed, several ArtNet Player X can be synchronized.Two galvanically separate DMX connectionsOn the ArtNet Player X there are 2 galvanically isolated DMX connections.These can be configured as DMX-OUT or DMX-IN.Remote-FunctionThe ArtNet Player X has a configurable remote function. Remote control ispossible via DMX, Art-Net, sACN, HTTP request or DMX4ALL Commands.8 LongDistance inputs8 configurable digital inputs are available for connecting buttons or switches.The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.Switchable LED DisplayThe LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,to avoid disturbing "light spots " especially on stage.RGB-FilterA quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.The selected colors can be filtered as needed without editing the previously created program.Firmware-Update-FunctionThe firmware update function enables to use always the free, current device software.Different data files for lighting programsThe ArtNet Player X plays the lighting programs from the SD card.The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.Easy ConfigurationFast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,due to the user-friendly configuration via any web browser.DIN rail housing availableThe DIN rail housing 700 is available as accessory for the ArtNet Player X.Free SoftwareFor creating the programs our free software DMX-Configurator can be used, which is availablein the current FREE version as download on our website www.dmx4all.de. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connections:RJ45 Ethernet Screw terminals  Ethernet:10 Mbit/s | 100 Mbit/s  Art-Net™ / sACN:16 universes up to 8192 channels  DMX2x galvanically isolated Switchable DMX OUTPUT / DMX INPUT DMX OUTPUT: DMX512 DMX INPUT: DMX512 / RDM  Device-Sync:Synchronisation of several devices  Remote-Options:DMX Art-Net™ sACN HTTP-Request DMX4ALL Commands  Digital Input:8 configurable Long Distance-Inputs  Timer:Up to 16 configurable timer for executing programs Hourly execution with adjustable time slot  SD Card:microSD up to 16GB  Playback format:DMX4ALL program files TPM2 files TPM2NET files  Status display:RGB-LED, network status LEDs all disengageable  Features:RGB-Filter Firmware-Update-Function Silent without a fan  Optional Equipment:DCF77 receiver  Dimension:62mm x 88mm x 29mm Product DownloadsArtNet Player X16Bedienungsanleitung ArtNet Player X16User Manual ArtNet Player X16Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note Application NotesArtNet Player X mit ArtNet-DMX MUX fernsteuernAppNote Remote control Player X with ArtNet-DMX MUXAppNote

 ArtNet Player X16+The ArtNet Player X16+, in the following only called ArtNet Player X,is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitiveand user-friendly despite numerous and new functions in the handling.This is possible by the well-structured user interface of the device's own web interface, available for the settings.The essential actions can be set directly on the device, thanks to the clearly designed touch paneland an external access is not needed. An overview of the current status is provided by the integrated RGB LED.Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player Xcan be used to play lighting programs from SD card. Different file formats can be used, which can be created withthe DMX Configurator or used as TPM2 files from freely available software.With up to 16 universes, a maximum of 8192 channels can be output via the network with just one ArtNet Player X.Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 16 configurable timerscan be defined individually. For each timer one or several days can be assigned as well as the start time.Furthermore, the playback duration as well as the hourly playback with adjustable time window can be set optionally.The current time is needed for the correct processing the timers. This setting is done either via the device's ownweb interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specificationvia network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause anyproblems when mounting the switching elements.The ArtNet Player X is convincing and combines a multitude of useful and innovative functions undera top-hat rail housing in its space-saving, compact design.Replay up to 16 DMX UniversesThe ArtNet Player X can output up to 16 DMX universes via Art-Net / sACN.Output via Art-Net or sACNThe DMX universes to be output can be output via Art-Net or sACN.Synchronization of sveral devicesIf more DMX universes are needed, several ArtNet Player X can be synchronized.Two galvanically separate DMX connectionsOn the ArtNet Player X there are 2 galvanically isolated DMX connections.These can be configured as DMX-OUT or DMX-IN.Remote-FunctionThe ArtNet Player X has a configurable remote function. Remote control ispossible via DMX, Art-Net, sACN, HTTP request or DMX4ALL Commands.8 LongDistance inputs8 configurable digital inputs are available for connecting buttons or switches.The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.Touch HandlingThere are 7 touch fields for operation on the ArtNet Player X as well as an RGB display LED.Switchable LED DisplayThe LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,to avoid disturbing "light spots " especially on stage.RGB-FilterA quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.The selected colors can be filtered as needed without editing the previously created program.Firmware-Update-FunctionThe firmware update function enables to use always the free, current device software.Different data files for lighting programsThe ArtNet Player X plays the lighting programs from the SD card.The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.Easy ConfigurationFast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,due to the user-friendly configuration via any web browser.Free SoftwareFor creating the programs our free software DMX-Configurator can be used, which is availablein the current FREE version as download on our website www.dmx4all.de. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connections:RJ45 Ethernet Screw terminals  Ethernet:10 Mbit/s | 100 Mbit/s  Art-Net™ / sACN:16 universes up to 8192 channels  DMX2x galvanically isolated Switchable DMX OUTPUT / DMX INPUT DMX OUTPUT: DMX512 DMX INPUT: DMX512 / RDM  Device-Sync:Synchronisation of several devices  Remote-Options:DMX Art-Net™ sACN HTTP-Request DMX4ALL Commands  Digital Input:8 configurable Long Distance-Inputs  Timer:Up to 16 configurable timer for executing programs Hourly execution with adjustable time slot  TOUCH-Control:7 sensor buttons directly on the device for quick operation and RGB status display  SD Card:microSD up to 16GB  Playback format:DMX4ALL program files TPM2 files TPM2NET files  Status display:RGB-LED, network status LEDs all disengageable  Features:RGB-Filter Firmware-Update-Function Silent without a fan  Optional Equipment:DCF77 receiver  Dimension:70mm x 90mm x 60mm Product DownloadsArtNet Player XBedienungsanleitung ArtNet Player XUser Manual ArtNet Player XFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note Application NotesArtNet Player X mit ArtNet-DMX MUX fernsteuernAppNote Remote control Player X with ArtNet-DMX MUXAppNote

 ArtNet Player X8The ArtNet Player X8, in the following only called ArtNet Player X,is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitiveand user-friendly despite numerous and new functions in the handling.This is possible by the well-structured user interface of the device's own web interface, available for the settings.An overview of the current status is provided by the integrated RGB LED.Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player Xcan be used to play lighting programs from SD card. Different file formats can be used, which can be created withthe DMX Configurator or used as TPM2 files from freely available software.With up to 8 universes, a maximum of 4096 channels can be output via the network with just one ArtNet Player X.Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 16 configurable timerscan be defined individually. For each timer one or several days can be assigned as well as the start time.Furthermore, the playback duration as well as the hourly playback with adjustable time window can be set optionally.The current time is needed for the correct processing the timers. This setting is done either via the device's ownweb interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specificationvia network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause anyproblems when mounting the switching elements.The ArtNet Player X is convincing and combines a multitude of useful and innovative functions undera top-hat rail housing in its space-saving, compact design.Replay up to 8 DMX UniversesThe ArtNet Player X can output up to 8 DMX universes via Art-Net / sACN.Output via Art-Net or sACNThe DMX universes to be output can be output via Art-Net or sACN.Synchronization of sveral devicesIf more DMX universes are needed, several ArtNet Player X can be synchronized.Two galvanically separate DMX connectionsOn the ArtNet Player X there are 2 galvanically isolated DMX connections.These can be configured as DMX-OUT or DMX-IN.Remote-FunctionThe ArtNet Player X has a configurable remote function. Remote control ispossible via DMX, Art-Net, sACN, HTTP request or DMX4ALL Commands.8 LongDistance inputs8 configurable digital inputs are available for connecting buttons or switches.The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.Switchable LED DisplayThe LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,to avoid disturbing "light spots " especially on stage.RGB-FilterA quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.The selected colors can be filtered as needed without editing the previously created program.Firmware-Update-FunctionThe firmware update function enables to use always the free, current device software.Different data files for lighting programsThe ArtNet Player X plays the lighting programs from the SD card.The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.Easy ConfigurationFast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,due to the user-friendly configuration via any web browser.DIN rail housing availableThe DIN rail housing 700 is available as accessory for the ArtNet Player X.Free SoftwareFor creating the programs our free software DMX-Configurator can be used, which is availablein the current FREE version as download on our website www.dmx4all.de. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connections:RJ45 Ethernet Screw terminals  Ethernet:10 Mbit/s | 100 Mbit/s  Art-Net™ / sACN:8 universes up to 4096 channels  DMX2x galvanically isolated Switchable DMX OUTPUT / DMX INPUT DMX OUTPUT: DMX512 DMX INPUT: DMX512 / RDM  Device-Sync:Synchronisation of several devices  Remote-Options:DMX Art-Net™ sACN HTTP-Request DMX4ALL Commands  Digital Input:8 configurable Long Distance-Inputs  Timer:Up to 16 configurable timer for executing programs Hourly execution with adjustable time slot  SD Card:microSD up to 16GB  Playback format:DMX4ALL program files TPM2 files TPM2NET files  Status display:RGB-LED, network status LEDs all disengageable  Features:RGB-Filter Firmware-Update-Function Silent without a fan  Optional Equipment:DCF77 receiver  Dimension:62mm x 88mm x 29mm Product DownloadsArtNet Player X8Bedienungsanleitung ArtNet Player X8User Manual ArtNet Player X8Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note Application NotesArtNet Player X mit ArtNet-DMX MUX fernsteuernAppNote Remote control Player X with ArtNet-DMX MUXAppNote

 Kabel 2x 2,5mm², rot/schwarz (Meterware)- Cross section 2x 2,5 mm²- Cable construction: 2x 50/0,25 mm- External dimensions: 4,0 x 8,0 mm- Plus/minus pole marking- Manufacturer: various Delivery as a section (yard goods) or 100m as a ring.

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 JST-Buchse 4 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 4-pin connector orwith our analog RGB LED stripes.Compatible with: - Digital LED-Stripe SK9822- Digital LED-Stripe LPD8806 Specifications  Implementation:JST SM  Connection:4 pin female connector  Length:~ 25cm

 JST-Stecker 4 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 4-pin connector orwith our analog RGB LED stripes.Compatible with: - Digital LED-Stripe SK9822- Digital LED-Stripe LPD8806 Specifications  Implementation:JST SM  Connection:4 pin male connector  Length:~ 25cm

 MEANWELL GST60A05-P1J (5V/6A/30W)- Desktop Power Supply- Universal input- Protected against short circuit, overload, overvoltage- Insulation class I- Low idle power- Energy efficiency level VI (DOE)- Manufacturer: MEANWELL- Manufacturer description: GST60A05-P1J Specifications  Input voltage range:90...264V AC (47...63Hz) 135...370V DC  Inrush, max.:65A  Idle power, max.:0,075W  Operating temperature range:-30...+70°C  Cable length :1m  Input connector:C14 (EN60320-1)  Output connector:2,1x5,5mm  Weight:305g Product DownloadsGST60ADatasheet

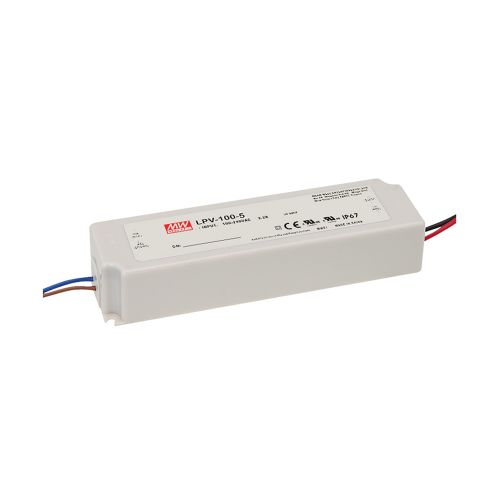

 MEANWELL LPV-100-5 (5V/12A/60W)- Universal input- Plastic enclosure IP67- Overload protection, pulsing hiccup shutdown, auto recovery- Protections: short circuit/over load/over voltage- Fixed output voltage- Manufactor: MEANWELL- Manufactor order code: LPV-100-5Note:Devices only for use in equipment with another primary purpose such as photocopiers,overhead projectors and slide projectors or for scale illumination or indication purposes.Suitable for indoor use and outdoor use without direct sunlight exposure.Please avoid immerse in the water over 30 minutes. Specifications  Output voltage:5V  Output current, max:12A (0...12A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:75A  Over Current Protection:110...150%  Operating Temperature:-25...+70°C  Weight:630g Produkt DownloadsLPV-100User Manual

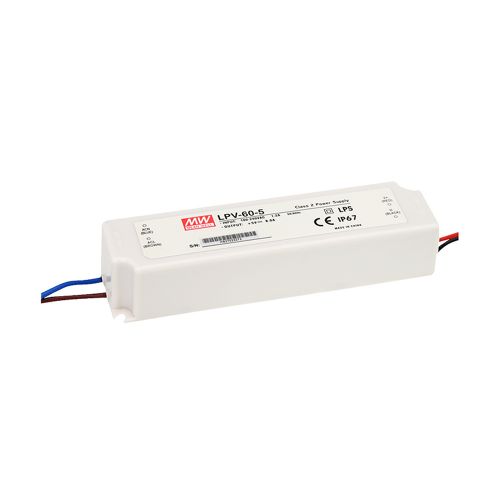

 MEANWELL LPV-60-5 (5V/8A/40W)- Universal input- Plastic enclosure IP67- Overload protection, pulsing hiccup shutdown, auto recovery- Protections: short circuit/over load/over voltage- Fixed output voltage- Manufactor: MEANWELL- Manufactor order code: LPV-60-5Note:Devices only for use in equipment with another primary purpose such as photocopiers,overhead projectors and slide projectors or for scale illumination or indication purposes.Suitable for indoor use and outdoor use without direct sunlight exposure.Please avoid immerse in the water over 30 minutes. Specifications  Output voltage:5V  Output current, max:8A (0...8A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:60A  Over Current Protection:110...150%  Operating Temperature:-30...+70°C  Weight:400g Produkt DownloadsLPV-60User Manual

 MEANWELL RS-25-5 (5V/5A/25W)- Enclosed case, screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Long life 105°C electrolytic capacitors- Manufactor: MEANWELL- Manufactor order code: RS-25-5Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Output voltage:5V  Output current, max:5A (0...5A)  Input voltage:88...264V AC (47...63Hz) 125...373V DC  Input Inrush Current, max.:30A  Over Current Protection:110...180%  Operating Temperature:-20...+70°C  Weight:200g Produkt DownloadsRS-25Datasheet

 MEANWELL RSP-150-5 (5V/30A/150W)- Enclosed case, screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Built-in active PFC function- Low profile- Built-in remote On/Off control- Manufactor: MEANWELL- Manufactor order code: RSP-150-5Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Output voltage:5V  Output current, max:30A (0...30A)  Input voltage:85...264V AC (47...63Hz) 120...370V DC  Input Inrush Current, max.:40A  Over Current Protection:105...135%  Operating Temperature:-10...+70°C  Weight:600g Produkt DownloadsRSP-150Datasheet

 MEANWELL RSP-500-5 (5V/90A/450W)- Enclosed case, built-in fan, screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Built-in active PFC function- Low profile- Built-in remote On/Off control- Built-in remote sense- Manufactor: MEANWELL- Manufactor order code: RSP-500-5Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Output voltage:5V  Output current, max:90A (0...90A)  Input voltage:85...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:40A  Over Current Protection:105...130%  Operating Temperature:-30...+70°C  Weight:1300g Produkt DownloadsRSP-500Datasheet

 MEANWELL UHP-200-5 (5V/40A/200W)- Enclosed case (U-bracket)- Universal input- Overload protection, pulsing hiccup shutdown, auto recovery- Protections: short circuit, over load, over voltage, over temperature- Built-in active PFC function- EN61000-3-2,-3, EN55032, EN60950-1- Manufactor: MEANWELL- Manufactor order code: UHP-200-5Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Output voltage:5V  Output current, max:40A (0...40A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:80A  Over Current Protection:110...140%  Operating Temperature:-30...+70°C  Weight:670g Produkt DownloadsUHP-200-5Datasheet
