DMX PixxControl DR

€98.40*

Content: 1 Stck.

39 at stock.

Das Versandversprechen gilt nur für Artikel, die im Online Shop als DMX4ALL GmbH - DMX und RDM-Technik Made in Germany

angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).

Delivery time: 1-3 days

Piece

Product number: 90-3611

Manufacturer: DMX4ALL GmbH

Manufacturer product number: 90-3611

Weight: 0.2 kg

Delivery time: 1-3 days

Our benefits

Direct from the manufacturer
dispatch within 24 hours
Made in Germany
technical support

Our payment methods:

Product information "DMX PixxControl DR"

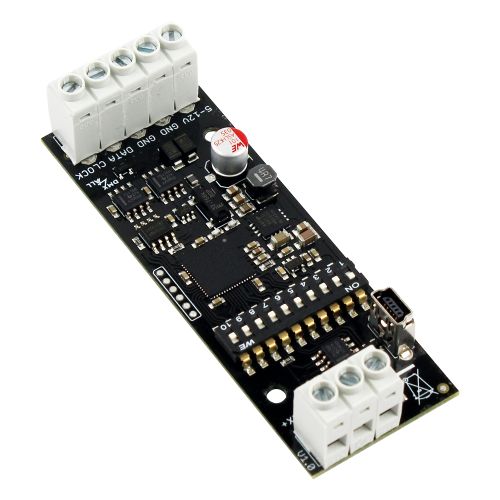

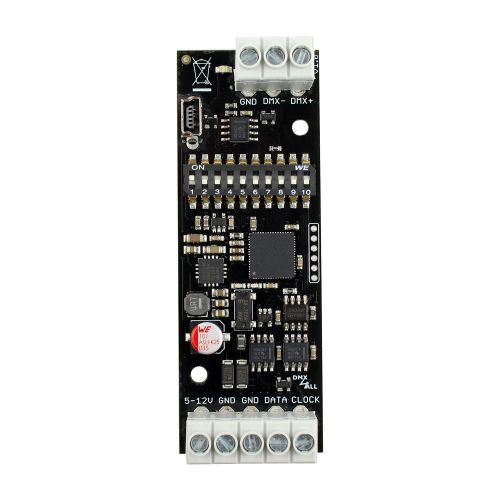

DMX PixxControl DR

The DMX PixxControl DR is especially designed for controlling digital LED-Stripes or
Pixel-Stripes via DMX.

By controlling via DMX 170 Pixel (RGB) / 128 Pixel (RGBW) / 512 Pixel (single color) can
be controlled individually.

Selectable LED-Chip
The used LED-Chip within the connected digital LED-Stripe is selectable.
So, the usage with several digital LED-Stripes is possible.

Adjustable color reproduction
The RGB-Color sequence is adjustable, allowing an universal application.

SingleColor-Option
A SingleColor-Option is selectable in which each pixel occupies only one channel.
So up to 512 pixel in one color can be controlled via one DMX-Universe.

Adjustable pixel group
The DMX PixxControl DR supports pixel groups with adjustable lengths.
Each pixel group behaves like a single pixel which is controlled via
3 DMX-Channels (for RGB). That economizes channels in longer installations.

Easy Configuration
An easy configuration via RDM, USB via DMX-Configurator or DMX allows
the setting of all parameters.

Pixel-Sequencer
The Pixel-Sequencer generates several effects.
The settings can be made with only a few DMX channels
to fit the effects individually.

RDM Support
The DMX PixxControl DR allows configuration via RDM over DMX.

TPM2-Protocol
The DMX PixxControl DR also supports the TPM2 protocol
via the USB-Interface via Virtual Com Port (VCP).

Firmware-Update-Function
To use future functions the DMX PixxControl DR offers a Firmware-Update-Function.

Top-hat rail housing available
The top-hat rail housing 350 or 350flat is available as accessory for the DMX PixxControl DR.

Specifications


Power supply:	5 - 12V DC / 300mA@5V; 150mA@12V
	or via USB-Connection

Input:	DMX512
	RDM

Output:	Digital control signal for up to
	170 RGB-Pixel, single controlable
	128 RGBW-Pixel, single controlable

Supported LED types:	APA101, APA102, APA104
	DycoLED PB3, DycoLED PC5
	GS8208
	INK1002, INK1003
	LPD6803, LPD6806, LPD8803
	LPD1886 8Bit, LPD1886 12Bit
	SK6812, SK6822, SK9822
	TM1804, TM1812, TM1814, TM1829
	UCS1903, UCS1912, UCS2912, UCS9812
	WS2801, WS2811, WS2812(B), WS2813
	WS2815, WS2818

Color sequence:	RGB (adjustable)
	SingleColor white
	SingleColor red
	SingleColor green
	SingleColor blue
	RGBW with UCS2912, SK6812, TM1814

Pixel groups:	adjustable

Max. Pixel count:	RGB: 170 Pixel/Pixelgroups;
	RGBW: 128 Pixel/Pixelgroups
	SingleColor: 512 Pixel/Pixelgroups

Dimensions:	29,2mm x 82mm

Product Downloads

DMX PixxControl DR
Bedienungsanleitung
DMX PixxControl DR
User Manual
DMX PixxControl DR
USB Driver 32 & 64bit - Version 6.0.0.0
DMX PixxControl DR
Firmware

Software & Tools

DMX-Configurator V2
Windows 32 & 64bit
DMX-Configurator V2
Bedienungsanleitung
DMX-Configurator V2
User Manual

Manufacturer "DMX4ALL GmbH"

Wir bieten
professional space with a human face

Die DMX4ALL GmbH ist ein Ingenieurbüro mit dem Produktschwerpunkt der Licht- und Steuerungs- technik basierend auf dem ARTNET,DMX512 und RDM Protokoll. Der Familienbetrieb entwickelt und produziert seit 2004 elektronische Schaltungen für Clubs, Bühne und Beleuchtung. Die Produktpalette ist mit den Bedürfnissen der Kunden gewachsen und reicht heute vom einfachen DMX-Dekoder über verschiedene Abspieler und ArtNet PoE Interfaces bis hin zu modernen LED-Dimmern Stepper und innovativen LED Pixel-Kontrollern.

You might also be interested in:

Digital LED-Stripe KALTWEIß SK6812 60WS

Digital LED-Stripe KALTWEIß SK6812 60WSThe digital LED-Stripe has 300 single controllable LED's (pixel) by a length of 5m (60 Pixel/m).Due to the usage of cold lighting LEDs there is no RGB-colour mixing neccessary which allows a brilliant white.- easy separable between each LED - assembled with 300 intelligent COOLWHITE SMD-LEDs- self-adhesive backside- LED-Stripe carrier in white- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player Specifications Spannungsversorgung:5V DC Power:max. 18 W/m LED Typ:SMD5050 Color temperature:8000K - 10000K Number of LEDs:300 Brightness values:3x256 per LED LED view angle:120° LED-Controller:SK6812 (with WS2811 / APA104 compatible) Length / Wide:5m / 10mm Carrier material:white / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0641

Delivery time: 1-3 days

Content: 300.0003 Pixel (€0.36* / 1 Pixel)

€109.00*

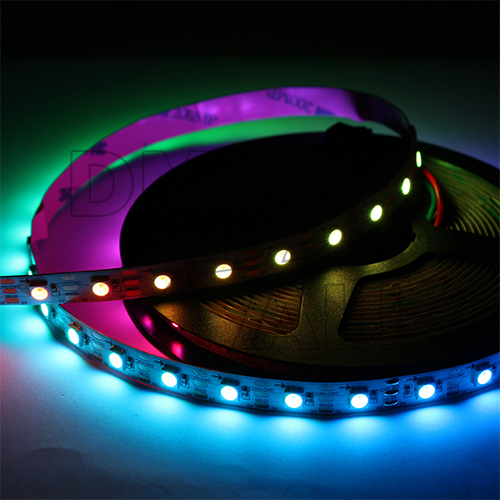

Digital LED-Stripe RGB SK6812 144WS

Digital LED-Stripe RGB SK6812 144WSThe digital LED-Stripe has 144 single controllable RGB-LED's (pixel) by a length of 1m (144 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 144 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in white- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with WS2811/WS2812(B)/APA104 Specifications Voltage:5V DC Power:max. 43,2 W/m LED Typ:SMD5050 RGB Number of Pixel:144 pices Brightness values:256 per colour LED view angle:120° LED-Controller:SK6812 (with WS2811/WS2812/APA104 compatible) Length / Wide:1m / 12mm Carrier material:white / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0670

Delivery time: 1-3 days

Content: 144 Pixel (€0.45* / 1 Pixel)

€64.95*

Digital LED-Stripe RGB SK6812 30BL

Digital LED-Stripe RGB SK6812 30BLThe digital LED-Stripe has 150 single controllable RGB-LED's (pixel) by a length of 5m (30 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 150 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in black- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with WS2811/WS2812/APA-104 Specifications Spannungsversorgung:5V DC Power:max. 9 W/m LED Typ:SMD5050 RGB Number of Pixel:150 pices (30 Pixel/m) Brightness values:256 per colour LED view angle:120° LED-Controller:SK6812 (with WS2811/WS2812/APA-104 compatible) Length / Wide:5m / 10mm Carrier material:black / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0672

Delivery time: 1-3 days

Content: 150 Pixel (€0.40* / 1 Pixel)

€59.50*

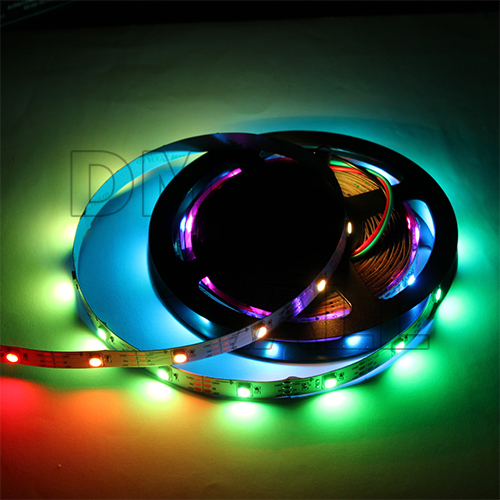

Digital LED-Stripe RGB SK6812 30WS

Digital LED-Stripe RGB SK6812 30WSThe digital LED-Stripe has 150 single controllable RGB-LED's (pixel) by a length of 5m (30 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 150 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in white- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with WS2811/WS2812/APA-104 Specifications Spannungsversorgung:5V DC Power:max. 9 W/m LED Typ:SMD5050 RGB Number of Pixel:150 pices (30 Pixel/m) Brightness values:256 per colour LED view angle:120° LED-Controller:SK6812 (with WS2811/WS2812/APA-104 compatible) Length / Wide:5m / 10mm Carrier material:white / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0673

Delivery time: 1-3 days

Content: 150 Pixel (€0.40* / 1 Pixel)

€59.50*

Digital LED-Stripe RGB SK6812 60BL

Digital LED-Stripe RGB SK6812 60BLThe digital LED-Stripe has 300 single controllable RGB-LED's (pixel) by a length of 5m (60 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 300 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in black- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with WS2811/WS2812/APA-104 Specifications Spannungsversorgung:5V DC Power:max. 18 W/m LED Typ:SMD5050 RGB Number of Pixel:300 pices Brightness values:256 per colour LED view angle:120° LED-Controller:SK6812 (with WS2811/WS2812/APA-104 compatible) Length / Wide:5m / 10mm Carrier material:black / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0676

Delivery time: 1-3 days

Content: 300 Pixel (€0.32* / 1 Pixel)

€94.80*

Digital LED-Stripe RGB SK6812 60WS

Digital LED-Stripe RGB SK6812 60WSThe digital LED-Stripe has 300 single controllable RGB-LED's (pixel) by a length of 5m (60 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 300 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in white- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with WS2811/WS2812/APA-104 Specifications Spannungsversorgung:5V DC Power:max. 18 W/m LED Typ:SMD5050 RGB Number of Pixel:300 pices Brightness values:256 per colour LED view angle:120° LED-Controller:SK6812 (with WS2811/WS2812/APA-104 compatible) Length / Wide:5m / 10mm Carrier material:white / self-adhesive backside Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female

Product number: 52-0675

Delivery time: 1-3 days

Content: 300 Pixel (€0.32* / 1 Pixel)

€94.80*

Digital LED-Stripe RGB SK9822 30BL

Digital LED-Stripe RGB SK9822 30BLThe digital LED-Stripe has 150 single controllable RGB-LED's (pixel) by a length of 5m (30 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 150 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in black- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with APA-102 Specifications Spannungsversorgung:5V DC Power:max. 9 W/m LED Typ:SMD5050 RGB Number of Pixel:150 pices (30 Pixel/m) Brightness values:256 per colour LED view angle:120° LED-Controller:SK9822 (with APA-102 compatible) Length / Wide:5m / 10mm Carrier material:black / self-adhesive backside Connectors:Input: JST-SM4 male / DC-Connector Output: JST-SM4 female

Product number: 52-0623

Delivery time: 1-3 days

Content: 150 Pixel (€0.67* / 1 Pixel)

€99.99*

Digital LED-Stripe RGB SK9822 60BL

Digital LED-Stripe RGB SK9822 60BLThe digital LED-Stripe has 300 single controllable RGB-LED's (pixel) by a length of 5m (60 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable between each LED - assembled with 300 intelligent RGB-SMD-LEDs- self-adhesive backside- LED-Stripe carrier in black- divided connection for power supply and data line - controlling e.g. with our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player- compatible with APA-102 Specifications Spannungsversorgung:5V DC Power:max. 18 W/m LED Typ:SMD5050 RGB Number of Pixel:300 pices Brightness values:256 per colour LED view angle:120° LED-Controller:SK9822 (with APA-102 compatible) Length / Wide:5m / 12mm Carrier material:black / self-adhesive backside Connectors:Input: JST-SM4 male / DC-Connector Output: JST-SM4 female

Product number: 52-0624

Delivery time: 1-3 days

Content: 300 Pixel (€0.50* / 1 Pixel)

€149.00*

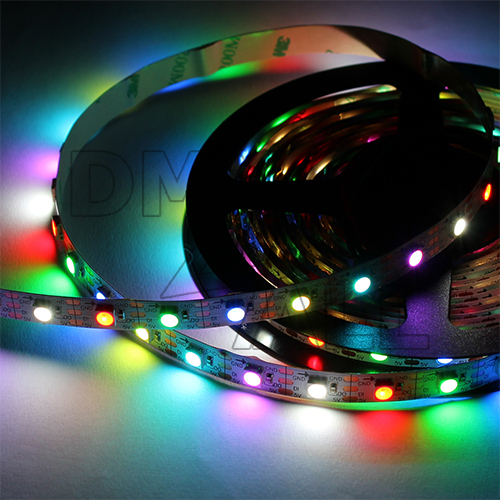

Digital LED-Stripe RGBW SK6812 60WS
