SD-Player 8
€109.00*
19 at stock.
angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).
Delivery time: 1-3 days
Product information "SD-Player 8"

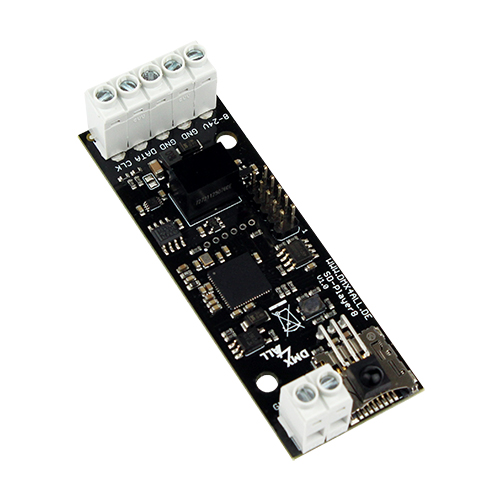

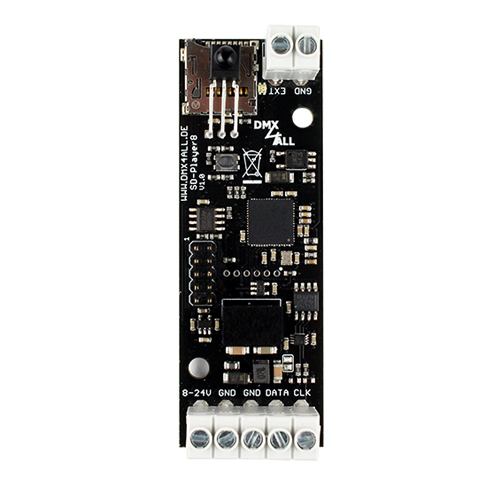

 SD-Player 8 |
The SD-Player 8, in the following only called ArtNet Player X,
is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.
Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.
As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitive
and user-friendly despite numerous and new functions in the handling.
This is possible by the well-structured user interface of the device's own web interface, available for the settings.
An overview of the current status is provided by the integrated RGB LED.
Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player X
can be used to play lighting programs from SD card. Different file formats can be used, which can be created with
the DMX Configurator or used as TPM2 files from freely available software.
With up to 4 universes, a maximum of 2048 channels can be output via the network with just one ArtNet Player X.
Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.
The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 4 configurable timers
can be defined individually. For each timer one or several days can be assigned as well as the start time.
Furthermore, the playback duration can be set optionally.
The current time is needed for the correct processing the timers. This setting is done either via the device's own
web interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specification
via network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.
The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,
making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause any
problems when mounting the switching elements.
The ArtNet Player X is convincing and combines a multitude of useful and innovative functions under
a top-hat rail housing in its space-saving, compact design.
Replay up to 4 DMX Universes
The ArtNet Player X can output up to 4 DMX universes via Art-Net.
Output via Art-Net
The DMX universes to be output can be output via Art-Net.
Synchronization of sveral devices
If more DMX universes are needed, several ArtNet Player X can be synchronized.
Two galvanically separate DMX connections
On the ArtNet Player X there are 2 galvanically isolated DMX connections,
one DMX-OUT and one DMX-IN.
Remote-Function
The ArtNet Player X has a configurable remote function. Remote control is
possible via DMX, Art-Net, HTTP request or DMX4ALL Commands.
8 LongDistance inputs
8 configurable digital inputs are available for connecting buttons or switches.
The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.
Switchable LED Display
The LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,
to avoid disturbing "light spots " especially on stage.
RGB-Filter
A quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.
The selected colors can be filtered as needed without editing the previously created program.
Firmware-Update-Function
The firmware update function enables to use always the free, current device software.
Different data files for lighting programs
The ArtNet Player X plays the lighting programs from the SD card.
The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.
Easy Configuration
Fast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,
due to the user-friendly configuration via any web browser.
DIN rail housing available
The DIN rail housing 700 is available as accessory for the ArtNet Player X.
Free Software
For creating the programs our free software DMX-Configurator can be used, which is available
in the current FREE version as download on our website www.dmx4all.de.
| Specifications |
| Power supply: | 8-24V DC |
| (150mA@12V; 100mA@24V) | |
| Connections: | RJ45 Ethernet |
| Screw terminals | |
| Ethernet: | 10 Mbit/s | 100 Mbit/s |
| Art-Net™ / sACN: | 4 universes up to 2048 channels |
| DMX | 2x galvanically isolated |
| 1x DMX OUTPUT: DMX512 | |
| 1x DMX INPUT: DMX512 | |
| Device-Sync: | Synchronisation of several devices |
| Remote-Options: | DMX |
| Art-Net™ | |
| HTTP-Request | |
| DMX4ALL Commands | |
| Digital Input: | 8 configurable Long Distance-Inputs |
| Timer: | Up to 4 configurable timer for executing programs |
| SD Card: | microSD up to 16GB |
| Playback format: | DMX4ALL program files |
| TPM2 files | |
| TPM2NET files | |
| Status display: | RGB-LED, network status LEDs |
| all disengageable | |
| Features: | RGB-Filter |
| Firmware-Update-Function | |
| Silent without a fan | |
| Optional Equipment: | DCF77 receiver |
| Dimension: | 62mm x 88mm x 29mm |
| Product Downloads |
| Software & Tools |
