DMX-Splitter 4 RDM

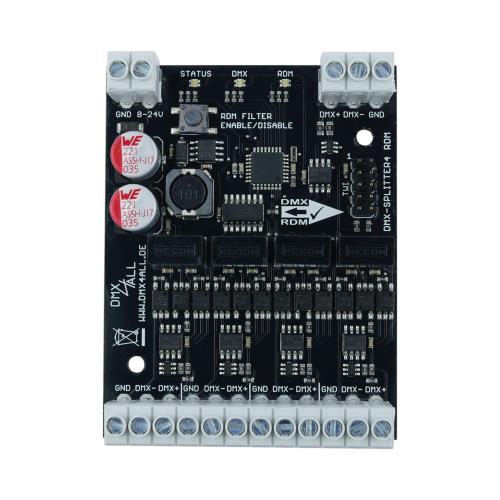

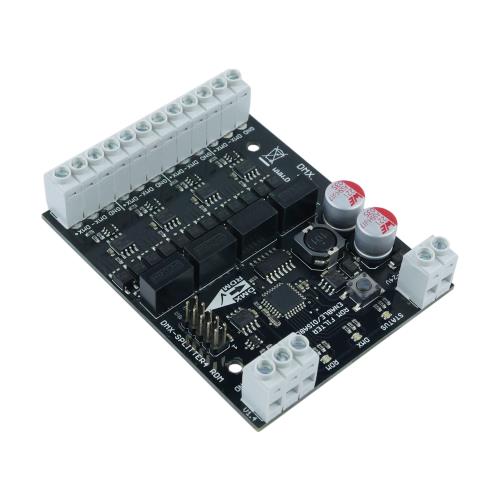

 DMX-Splitter 4The DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit.The voltage range is between 8V up to 24V.Compact design for top hat rail mountingThe DMX-Splitter 4 is suitable for installation in top hat rail mountingswith a width of 7cm due to its small size.LED-DisplayTwo LEDs show clearly the current operation mode.Top hat rail mounting availableSuitable for the DMX Splitter 4 the DIN rail housing 700 is available as accessory. Specifications  Power supply:8-24V DC (350mA@12V; 200mA@24V)  Input:512 channels  Output:4x 512 channels galvanically isolated  Connections:screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-Splitter 4Bedienungsanleitung DMX-Splitter 4User Manual

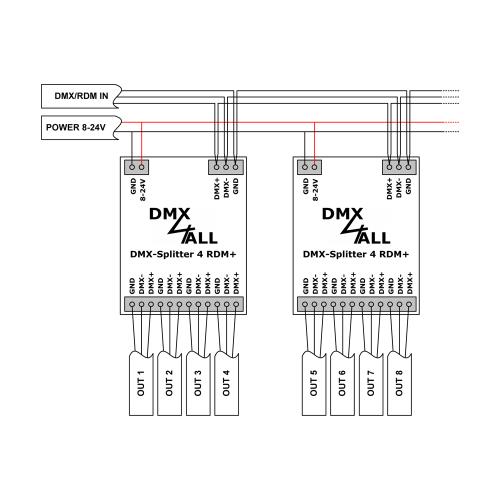

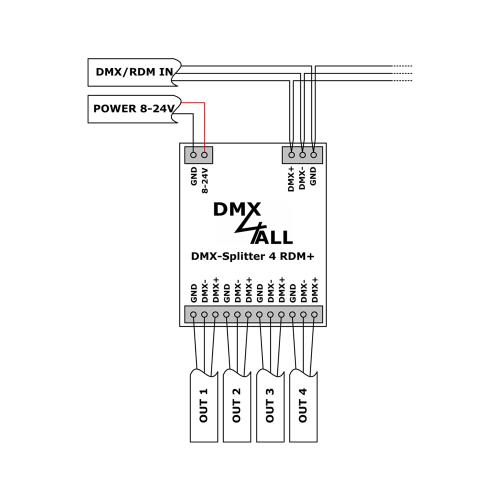

 DMX-Splitter 4 RDM+The DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.DMX and RDMIn contrast to pure DMX splitters, the RDM information is passed in bothdirections in addition to the DMX signal.RDM filterWhen the RDM filter is switched on, all RDM information are filtered out and no longer passedon to the outputs. This can prevent malfunction / flickering of non-RDM-capable devices.Settings possible via RDMThe DMX-Splitter 4 RDM is recognized as an independent RDM device and settings can be made via RDM.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit. The voltage range is between 8V up to 24V.3 RGB-LEDsThree RGB LEDs clearly indicate the current operating status.Touch-ControlThe DMX-Splitter 4 RDM+ has an integrated touch control field to turn on/off the RDM filter. Switchable LED-DisplayThe LED-Display at the DMX-Splitter 4 RDM+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation. Specifications  Power supply:8-24V DC  Power consumption:200mA@12V / 130mA@24V (no load)  Protocol:DMX512 RDM  Input:1x DMX512 / RDM  Output:4x DMX512 / RDM galvanically isolated  RDM filter:Can be switched on / off  TOUCH-Control:1 sensor button directly on the device and 3 RGB status LEDs  Connections:screw terminals  Dimensions:70mm x 90mm x 60mm Product DownloadsDMX-Splitter 4 RDM+Bedienungsanleitung DMX-Splitter 4 RDM+User Manual

 DMX-Splitter 6The DMX-Splitter 6 is a compact DMX-Divider with one DMX-Input signal which providesthese at six galvanically isolated outputs.6 galvanically isolated outputsThe DMX-Splitter 6 is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit.The voltage range is between 8V up to 24V.Compact design for top hat rail mountingThe DMX-Splitter 6 is suitable for installation in top hat rail mountingswith a width of 10,5cm due to its small size.LED-DisplayA multicolor LED clearly indicates the current operating status.Top hat rail mounting availableSuitable for the DMX Splitter 6 the DIN rail housing 1050 is available as accessory. Specifications  Power supply:8-24V DC (350mA@12V; 200mA@24V)  Input:512 channels  Output:6x 512 channels galvanically isolated  Status Display:Multi-color LED  Connections:screw terminals  Dimensions:99mm x 82mm Product DownloadsDMX-Splitter 6Bedienungsanleitung DMX-Splitter 6User Manual

 DMX-Splitter 6+The DMX-Splitter 6+ is a compact DMX-Divider with one DMX-Input signal which providesthese at six galvanically isolated outputs.6 galvanically isolated outputsThe DMX-Splitter 6+ is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit.The voltage range is between 8V up to 24V.Compact design for top hat rail mountingDue to its small size, the DMX Splitter 6+ is suitable for installationon DIN rails with a width of 10.5 cm.LED-DisplayA multicolor LED clearly indicates the current operating status. Specifications  Power supply:8-24V DC (350mA@12V; 200mA@24V)  Input:512 channels  Output:6x 512 channels galvanically isolated  Status Display:Multi-color LED  Connections:screw terminals  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX-Splitter 6+Bedienungsanleitung DMX-Splitter 6+User Manual
