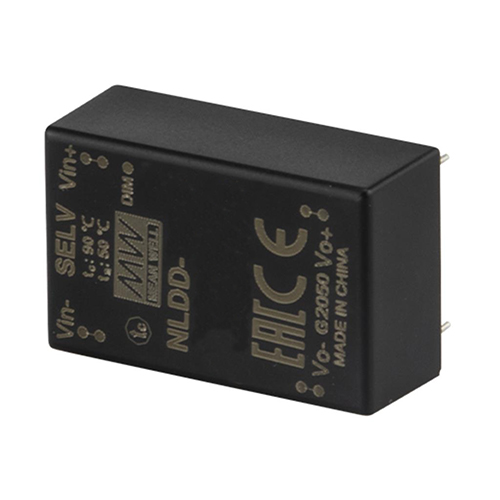

MEANWELL NLDD-350H Konstantstrom LED-TreiberLED driver from the NLDD-H series:- Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage:10-56V DC Output voltage:6-52 V DC Output current:350mA +-5% Dimension:32,1mm x 20,5mm x 12,24mm Produkt DownloadsMEANWELL NLDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

MEANWELL NLDD-500H Konstantstrom LED-TreiberLED driver from the NLDD-H series:- Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage:10-56V DC Output voltage:6-52 V DC Output current:500mA +-5% Dimension:32,1mm x 20,5mm x 12,24mm Produkt DownloadsMEANWELL NLDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

MEANWELL NLDD-700H Konstantstrom LED-TreiberLED driver from the NLDD-H series:- Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage:10-56V DC Output voltage:6-52 V DC Output current:700mA +-5% Dimension:32,1mm x 20,5mm x 12,24mm Produkt DownloadsMEANWELL NLDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

MEANWELL NLDD-1050H Konstantstrom LED-TreiberLED driver from the NLDD-H series:- Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage:10-56V DC Output voltage:6-52 V DC Output current:1050mA +-5% Dimension:32,1mm x 20,5mm x 12,24mm Produkt DownloadsMEANWELL NLDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

MEANWELL NLDD-1200H Konstantstrom LED-Treiber LED driver from the NLDD-H series: - Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage: 10-56V DC Output voltage: 6-46 V DC Output current: 1200mA +-5% Dimension: 32,1mm x 20,5mm x 12,24mm Produkt Downloads MEANWELL NLDD LED-Treiber Datasheet
Delivery time: On stock (estimated 1 day)

MEANWELL NLDD-1400H Konstantstrom LED-TreiberLED driver from the NLDD-H series:- Enlosed design- Constant current output- Wide input voltage range (10...56V)- Efficiency up to 96%- Remote Function and Dimmable- Protections: short circuit and overtemperature- Suitable for controlling LED lighting- Safety standards: IEC 61547- EMC standards: EN 55015- Suitable for controlling LED lighting The minimum output voltage of the NLDD series is 6V! Note that the LED forward voltage is greater than/equal to 6V! Specifications Input voltage:10-56V DC Output voltage:6-46 V DC Output current:1400mA +-5% Dimension:32,1mm x 20,5mm x 12,24mm Produkt DownloadsMEANWELL NLDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

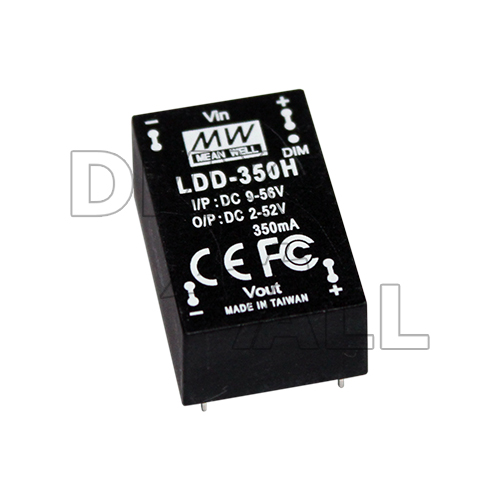

LED-Treiber LDD-350HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:300mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

LED-Treiber LDD-500HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:500mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

LED-Treiber LDD-600HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:600mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

LED-Treiber LDD-700HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:700mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

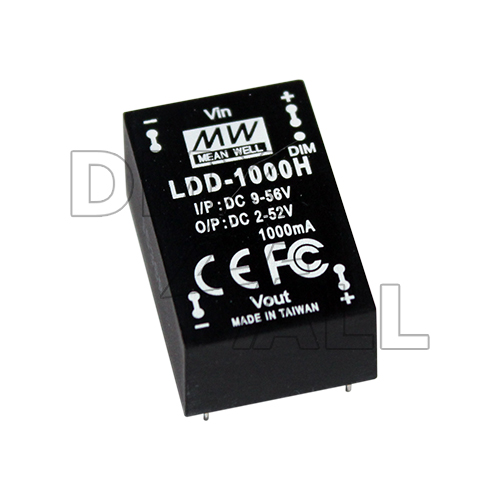

LED-Treiber LDD-1000HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:1000mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

LED-Treiber LDD-1200HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-36 V DC Output current:1200mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

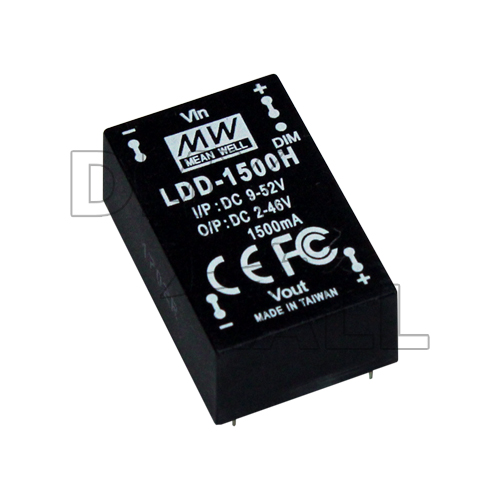

LED-Treiber LDD-1500HLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting Specifications Input voltage:9-56V DC Output voltage:2-36 V DC Output current:1500mA Dimension:31,8 x 20,3 x 12,2 mm Produkt DownloadsMEANWELL LDD LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)

MEANWELL LDD-300H Konstantstrom LED-TreiberLED driver from the LDD-H series:- Step-down DC/DC converter- Constant current output- Wide input voltage range- Built-in EMI filter (in accordance with EN55015 and FCC Part 15)- Integrated PWM and remote ON/OFF controller- Protected against: short circuit and over-temperature- Compact design (IP67)- Casting material: epoxy (UL94-V0)- Suitable for controlling LED lighting[TAB:Specifications] Specifications Input voltage:9-56V DC Output voltage:2-52 V DC Output current:300mA Dimension:31,8 x 20,3 x 12,2 mm[TAB:Produkt Downloads] Produkt DownloadsMEANWELL LDD-300H Konstantstrom LED-TreiberDatasheet
Delivery time: On stock (estimated 1 day)
