5 Port Ethernet Switch NS200

Product information "5 Port Ethernet Switch NS200"

kategorie-head.png 5 Port Ethernet Switch NS200


The unmanaged Industrial Ethernet switches from LogiLink are particularly suitable
for use in harsh environments thanks to the extended temperature range of -40°C to 80°C.

These robust and compact devices enable the connection of several end devices.

Due to their flexibility and simplicity, these switches are not only suitable for industrial applications.

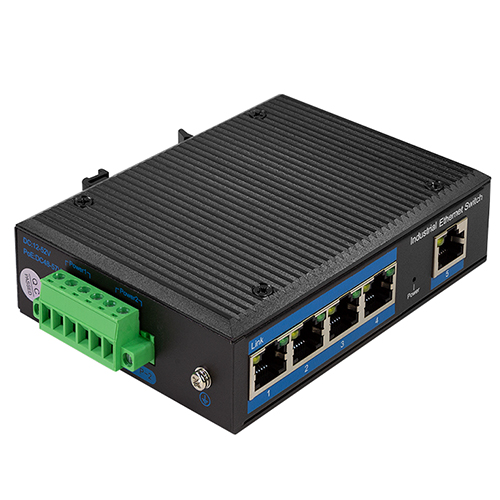

- Industrial switch, 5-port, 10/100Base-TX RJ45
- Unmanaged, easy installation, plug-and-play
- Compact and rugged metal housing, IP40
- Free fall, shock and vibration stability
- Power input: 12 to 52 V DC redundant power

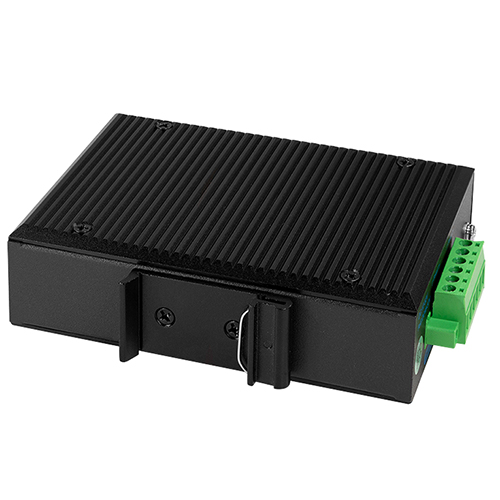

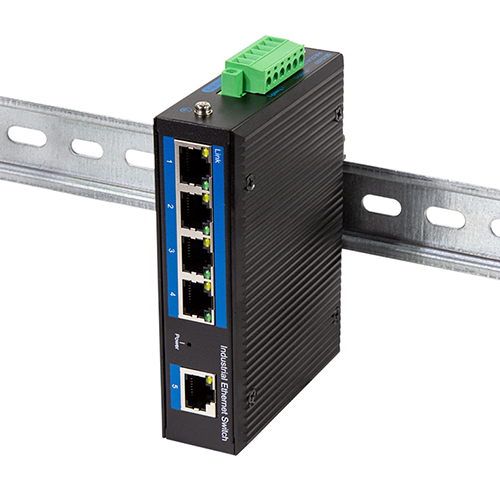

- Suitable for DIN-rail mounting
- Extended operation temperature: -40 °C - +80 °C


Manufacturer "LOGILINK"
