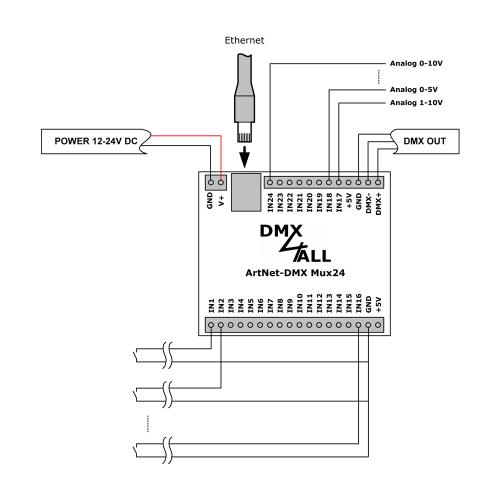

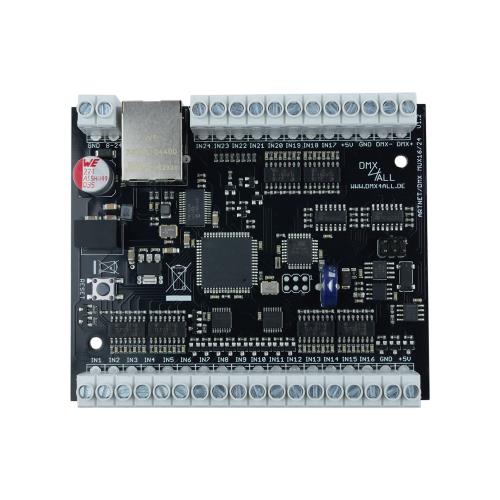

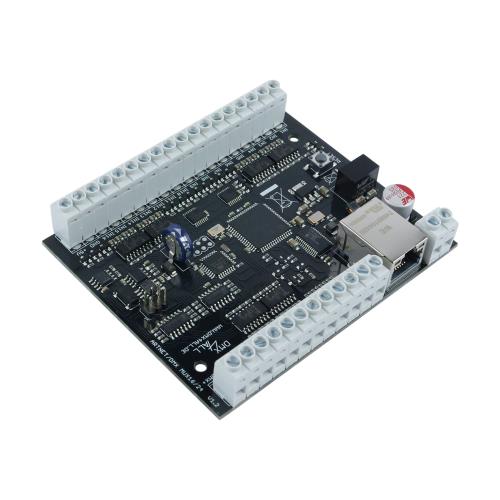

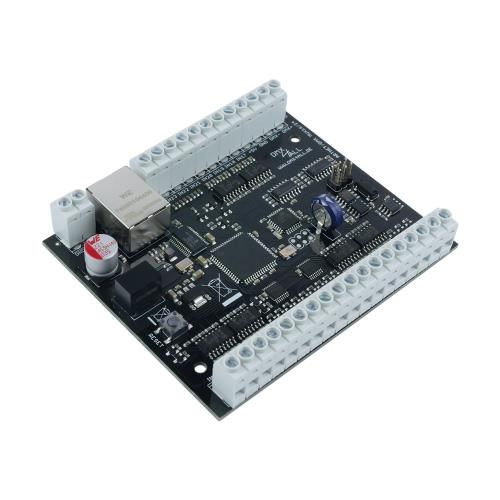

ArtNet-DMX Mux24

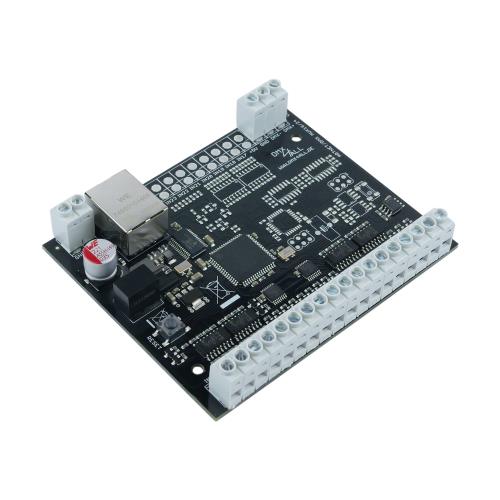

 ArtNet-DMX Mux16The ArtNet-DMX Mux16 has 16 digital inputs which are given to a ArtNet and DMX output..Each input can act to one or more output channels and the mode is selectable.A user-friendly configuration by using the webinterface allows a fast and uncomplicated setting of all parameters.The firmware of the ArtNet-DMX Mux16 can be update easy over the network. Specifications  Power supply:7-24V DC / 0,5A  Ethernet:1x RJ45  DMX-OUT:1x 512 channels  Inputs:16x Long Distance Digital Input  Mode:Switch Button On Button Off Button On/Off Dimmer Up/Down Dimmer Up Dimmer Down Button On + Dimmer Up Button Off + Dimmer Down Button On/Off + Dimmer Up/Down  Dimensions:99 x 82 x 20mm Product DownloadsArtNet-DMX Mux16Bedienungsanleitung ArtNet-DMX Mux16User Manual ArtNet-DMX Mux16Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

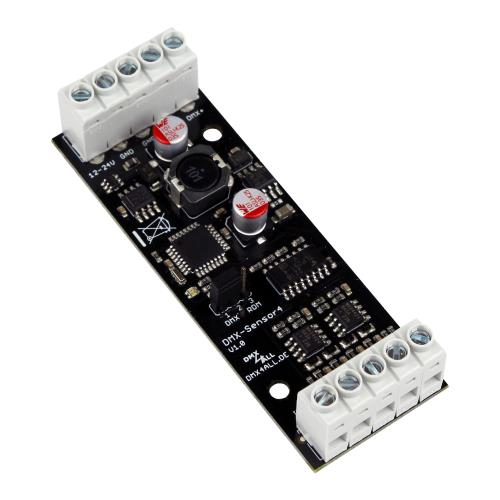

<table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DMX/RDM-Sensor 4</strong></span></td>  </tr></table><br>The DMX/RDM-Sensor 4 is a converter with 4 signal inputs and can be used both as a DMX output device / DMX source or as an RDM device.<br><br><strong>Different Operation Modes</strong><br>The DMX/RDM-Sensor 4 can be run as DMX output device (inputs to DMX channels) or RDM device (inputs to sensor values).<br><br><strong>Four Analog- or Digital Inputs</strong><br> Each of the 4 inputs can be set independently as analog input (0-5V or 0-10V) or as digital input (Active Low or Active High).<br><br><strong>RDM Support</strong><br>The DMX/RDM-Sensor 4 can be configured via RDM using DMX.<br><br><strong>Sensor Values</strong><br>Via the RDM-Parameter SENSOR_VALUE for each of the 4 inputs the sensor values can be requested.<br><br><strong>Settable Average-Filter</strong><br>The average filter can be set for each input and can be used to create an average value that compensates for fluctuations in the input signal.<br><br><strong>Settable Slope Correction</strong><br>The output curve can be set for each input using the adjustable slope correction.<br><br><strong>Settable DMX-Addresses</strong><br>The DMX addresses can be set for each input, allowing the input signal to be output on up to 8 DMX channels.<br><br><strong>Settable Device Label</strong><br>The device label can be set for each input to name each sensor uniquely via RDM.<br><br><strong>Lockable Device settings</strong><br>The RDM parameters Lock Pin and Lock State allow or avoid changing saved RDM parameters to prevent unauthorized changes.<br><br><strong>Free RDM-Software</strong><br>For setting the parameters via RDM, our free RDM Configurator software is available for download on our website www.dmx4all.de.<br><br><strong>Top hat rail housing available</strong><br>The top-hat rail housing 350 or the top-hat rail housing 350 flat are available as accessories for the DMX/RDM-Sensor 4.<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br>  <!-- Specifications --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" border="0" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Specifications</strong></span></td>  </tr></table><table border="0" cellspacing="1" cellpadding="1">  <tr>    <td width="300">&nbsp;</td>    <td width="500">&nbsp;</td>  </tr>  <tr>    <td>Power supply:</td>    <td>12-24V DC</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>(150mA@12V / 100mA@24V)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Protocol:</td>    <td>DMX512</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>RDM</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Operation modes:</td>    <td>DMX (Inputs to DMX channels)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>RDM (Inputs to RDM sensor values)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Inputs:</td>    <td>4 Analog (0-10V) or Digital Inputs</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Connection:</td>    <td>Screw terminals</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Dimensions:</td>    <td>29,2mm x 82mm</td>  </tr></table><br><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Product Downloads</strong></span></td>  </tr></table><div id="dmx4all-buttons">  <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/dmx_rdm_sensor4_german.pdf" target="_blank">DMX/RDM-Sensor 4<br>  <span><span class="german-lang">Bedienungsanleitung</span></span></a>  <br>  <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/dmx_rdm_sensor4_english.pdf" target="_blank">DMX/RDM-Sensor 4<br>  <span><span class="english-lang">User Manual</span></span></a></div>

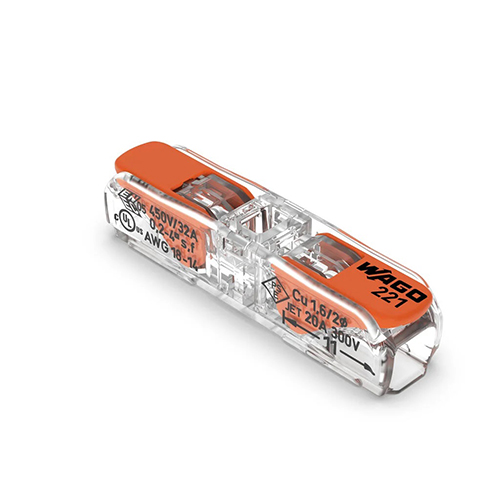

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

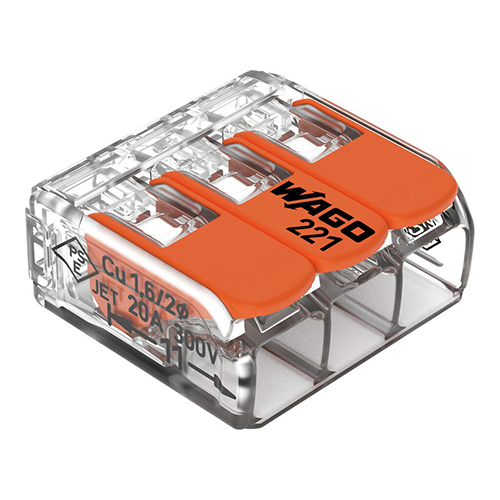

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

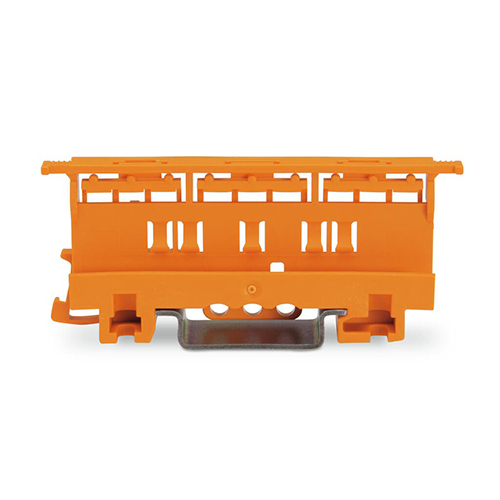

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 Netzwerkkabel 0,5m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:0,5m  Color:black

 Netzwerkkabel 10m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:10m  Color:black

 Netzwerkkabel 1m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:1m  Color:black

 Netzwerkkabel 30m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:30m  Color:black

 RJ45 Netzwerkkabel 5m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:5m  Color:black

 MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-15-24 (24V/0,63A/15,2W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-24 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...0,63AOutput Power:15,2WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-150-12 (12V/11,3A/135,6W)- Direct assembly on DIN Rail- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit, over load, over voltage- Low no load power consumption- Power-on LED display- Insulation Class II- Manufactor: MEANWELL- Manufactor order code: HDR-150-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...11,3AOutput Power:135,6WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:70ARated Output Power:105...135%Operating Temperature Range:-30°C to +70°CUnit Weight:310gLength/Width/Height:54.5mm/105mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-150-24 (24V/6,25A/150W)- Direct assembly on DIN Rail- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit, over load, over voltage- Low no load power consumption- Power-on LED display- Insulation Class II- Manufactor: MEANWELL- Manufactor order code: HDR-150-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...6.25AOutput Power:150WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:70ARated Output Power:105...135%Operating Temperature Range:-30°C to +70°CUnit Weight:310gLength/Width/Height:54.5mm/105mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

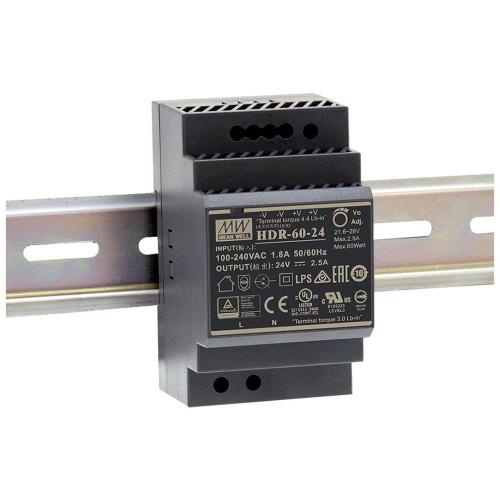

 MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-5 (5V/6,5A/32,5W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-5Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:5VDCOutput Current:0...6.5AOutput Power:32,5WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet
