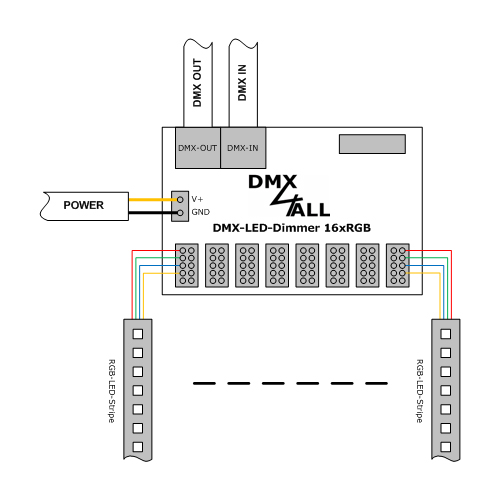

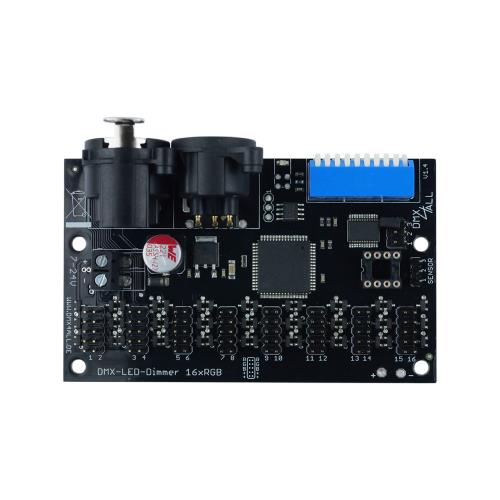

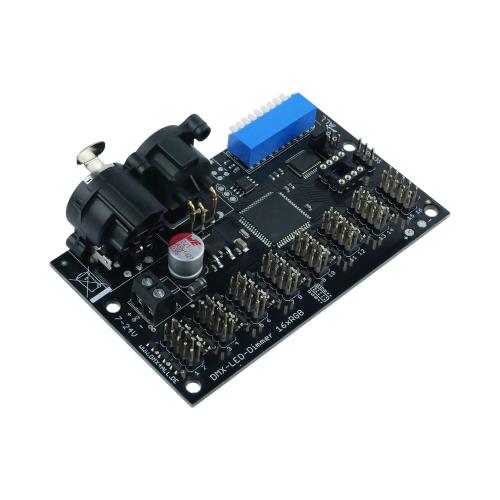

DMX-LED-Dimmer 16xRGB

 DMX-LED-Dimmer MaxiRGBThe DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes. Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Solder points  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGBBedienungsanleitung DMX-LED-Dimmer MaxiRGBUser Manual

 DMX-LED-Dimmer MaxiRGB (SR)The DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes.SR-Version: With screw connectors Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Screw connectors  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGB (SR)Bedienungsanleitung DMX-LED-Dimmer MaxiRGB (SR)User Manual

 DMX-LED-Dimmer X9The DMX-LED-Dimmer X9 is especially designed for controlling RGB LED-Stripes.The dimmer has 9 PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9 has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9 operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9 can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.RDM supportThe DMX-LED-Dimmer X9 allows configuration by RDM via DMX.LED-State DisplayThe DMX state is indicated via the LED status.Stand-Alone FunctionAs an alternative to DMX control, internal color sequences can be called upvia the address switch without external DMX control.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without connected LED load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling  DMX-FAIL:Hold / 0%-100%  Output:9 PWM-signal with 8Bit-resolution Common supply voltage  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  PWM-Frequency:244 Hz  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Product DownloadsDMX-LED-Dimmer X9Bedienungsanleitung DMX-LED-Dimmer X9User Manual

 DMX-LED-Dimmer X9HRThe DMX-LED-Dimmer X9HR is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs)or one master dimmer per RGB group. The global master dimmer is fixed atDMX address 1 and can be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR allows configuration by RDM via DMX.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.LED-State DisplayThe DMX state is indicated via the LED status.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR offers a firmware update function.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9HR. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-Mode 18 channels with 16Bit-Mode + optional Master-Dimmer-Channels  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Output:9 PWM-signal common supply voltage anode (PLUS)  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Produkt DownloadsDMX-LED-Dimmer X9HRBedienungsanleitung DMX-LED-Dimmer X9HRUser Manual DMX-LED-Dimmer X9HRUSB Driver (ab V2.2)Version 6.0.0.0 DMX-LED-Dimmer X9HRFirmware (ab V2.2) Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 Kabelset CCable set to connect the RGB-outputs of the DMX-LED-Dimmer 16xRGB.Included are 16 pcs. of the RGB connection cable.Compatible with: - DMX-Dimmer 16xRGB Specifications  Implementation:AWG20  Connection:4 pin male  Length:~ 25cm  Delivery:16 pcs.

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 MEANWELL HLG-120H-12A (12V/10A/120W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-120H-12A Specifications  Output voltage:12V (einstellbar: 10,8...13,5V)  Output current, max:10A (adjustable 5...10A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:60A  Operating Temperature:-40...+70°C  Weight:1120g Produkt DownloadsHLG-120HDatasheet

 MEANWELL HLG-120H-24A (24V/5A/120W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-120H-24A Specifications  Output voltage:24V (einstellbar: 22...27V)  Output current, max:5A (adjustable 2,5...5A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:60A  Operating Temperature:-40...+70°C  Weight:1120g Produkt DownloadsHLG-120HDatasheet

 MEANWELL HLG-240H-24A (24V/10A/240W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-240H-24A Specifications  Output voltage:24V (adjustable: 22,4...25,6V)  Output current, max:10A (adjustable 5...10A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:75A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:1300g Produkt DownloadsHLG-240HDatasheet

 MEANWELL HLG-80H-12A (12V/5A/60W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-80H-12A Specifications  Output voltage:12V (adjustable: 10,8...13,5V)  Output current, max:5A (adjustable 3...5A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Operating Temperature:-40...+70°C  Weight:840g Produkt DownloadsMEANWELL HLG-80HDatasheet
