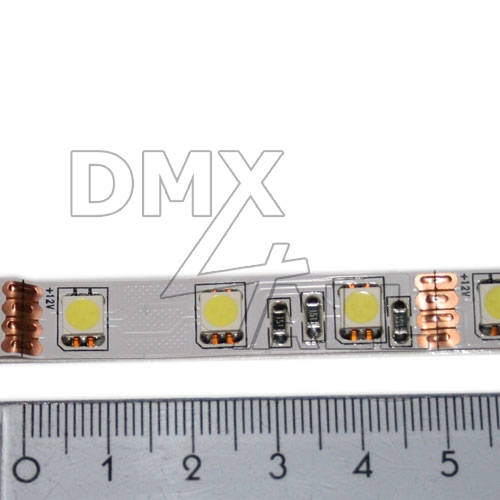

LED-Stripe WHITE 8000-10000K 12V 5m 60WS

 DMX-LED-Dimmer X9The DMX-LED-Dimmer X9 is especially designed for controlling RGB LED-Stripes.The dimmer has 9 PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9 has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9 operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9 can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.RDM supportThe DMX-LED-Dimmer X9 allows configuration by RDM via DMX.LED-State DisplayThe DMX state is indicated via the LED status.Stand-Alone FunctionAs an alternative to DMX control, internal color sequences can be called upvia the address switch without external DMX control.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without connected LED load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling  DMX-FAIL:Hold / 0%-100%  Output:9 PWM-signal with 8Bit-resolution Common supply voltage  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  PWM-Frequency:244 Hz  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Product DownloadsDMX-LED-Dimmer X9Bedienungsanleitung DMX-LED-Dimmer X9User Manual

<table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DMX-LED-Dimmer X9HR</strong></span></td>  </tr></table><br>The DMX-LED-Dimmer X9HR is especially designed for controlling RGB LED-Stripes.<br>The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.<br><br><strong>9 Outputs</strong><br>The DMX-LED-Dimmer X9HR has 9 outputs to which LEDs can be connected.<br>All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.<br><br><strong>High Power Outputs</strong><br>The outputs can drive a current up to 10A.<br>So it is possible to connect a maximum load of 120W (12V) / 240W (24V)<br><br><strong>0% bis 100% dimmable</strong><br>The connected LEDs are dimmed by PWM from 0% to 100%.<br><br><strong>For voltages from 12V up to 24V</strong><br>The DMX-LED-Dimmer X9HR operates with supply voltages from 12V up to 24V. The LED voltage can<br>be different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.<br><br><strong>DMX-FAIL Function</strong><br>An adjustable DMX FAIL function offers the option to get in case of lost<br>DMX signal the current state (HOLD) or assuming a preset value.<br><br><strong>DMX-Master Dimmer</strong><br>Optionally, another DMX channel can be activated as Master Dimmer (all outputs)<br>or one master dimmer per RGB group. The global master dimmer is fixed at<br>DMX address 1 and can be used as system master dimmer.<br><br><strong>Adjustable dimming curve</strong><br>The dimming curves can be configured individually for each output.<br><br><strong>RDM support</strong><br>The DMX-LED-Dimmer X9HR allows configuration by RDM via DMX.<br><br><strong>SubDevice-Mode</strong><br>In SubDevice mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.<br><br><strong>LED-State Display</strong><br>The DMX state is indicated via the LED status.<br><br><strong>Firmware-Update-Function</strong><br>To use future functions, the DMX-LED-Dimmer X9HR offers a firmware update function.<br><br><strong>Top hat rail housing available</strong><br>The top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9HR.<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br><!-- Specifications --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" border="0" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Specifications</strong></span></td>  </tr></table><table border="0" cellspacing="1" cellpadding="1">  <tr>    <td width="300">&nbsp;</td>    <td width="500">&nbsp;</td>  </tr>  <tr>    <td>Power supply:</td>    <td>7-24V DC</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>80mA@12V / 100mA@24V (without load)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>LED voltage:</td>    <td>7-24V DC (no AC voltage !)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Protocol:</td>    <td>DMX512</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>RDM<br></td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>DMX channels:</td>    <td>9 channels with 8Bit-Mode</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>18 channels with 16Bit-Mode</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>+ optional Master-Dimmer-Channels</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Masterdimmer:</td>    <td>None / Global / RGB / System</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>DMX-FAIL:</td>    <td>Hold / 0%-100%</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>8bit Mode</td>    <td>PWM-Frequency</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>488 Hz with LookUp-Table</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>2 kHz or 4 kHz without LookUp-Table</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>16bit Mode</td>    <td>PWM-Frequency</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>488 Hz without LookUp-Table</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Output:</td>    <td>9 PWM-signal</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>common supply voltage anode (PLUS)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Output current:</td>    <td>max. 10A each output</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>In sum 90A with all GND connections</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Output power:</td>    <td>9x 120W (12V)  /  9x 240W (24V)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Energy-Save output:</td>    <td>Control output for switching off the load power supply units</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>StandAlone function:</td>    <td>9 internal StandAlone programs</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Connections:</td>    <td>Screw terminals</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Dimensions:</td>    <td>99mm x 82 mm</td>  </tr></table><br><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Produkt Downloads</strong></span></td>  </tr></table><div id="dmx4all-buttons"> <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/dmx_led_dimmer_x9hr_german.pdf" target="_blank">DMX-LED-Dimmer X9HR<br>    <span><span class="german-lang">Bedienungsanleitung</span></span></a>    <br>    <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/dmx_led_dimmer_x9hr_english.pdf" target="_blank">DMX-LED-Dimmer X9HR<br>    <span><span class="english-lang">User Manual</span></span></a>    <br>    <a class="drivers-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/drivers/driver_x32_x64_dmx_led_dimmer_x9hr.zip">DMX-LED-Dimmer X9HR<br>    <span><span class="windows-os">USB Driver (ab V2.2)</span>Version 6.0.0.0</span></a>    <br>    <a class="firmware-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/firmware/firmware_dmx_dimmer_x9hr.zip">DMX-LED-Dimmer X9HR<br>    <span><span class="firmware-os">Firmware (ab V2.2)</span></span></a></div><!-- Software & Tools --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Software &amp; Tools</strong></span></td>  </tr></table><div id="dmx4all-buttons"> <a class="software-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/software/dmx4all_software_pack.zip">DMX-Configurator V2<br>    <span><span class="software-os">Windows 32 &amp; 64bit</span></span></a>    <br>    <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/dmx4all_dmx_configurator_german.pdf" target="_blank">DMX-Configurator V2<br>    <span><span class="german-lang">Bedienungsanleitung</span></span></a>    <br>    <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/dmx4all_dmx_configurator_english.pdf" target="_blank">DMX-Configurator V2<br>    <span><span class="english-lang">User Manual</span></span></a></div>

 DMX-LED-Dimmer X9HR+The DMX-LED-Dimmer X9HR+ is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR+ has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V).0% to 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR+ operates with supply voltages from 12V up to 24V.The LED voltage can be different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lost DMX signal thecurrent state (HOLD) or to adopt a predefined value if the DMX signal fails.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs) orone master dimmer per RGB group. The global master dimmer is fixed at DMX address 1 andcan be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR+ allows configuration by RDM via DMX.SubDevice-ModeWithin the SubDevice Mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.Touch-ControlThe DMX-LED-Dimmer X9HR+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR+ offers a firmware update function. Specifications  Power supply:7-24V DC 100mA@12V / 150mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling and LookUp-Table 18 channels with 16Bit-controlling + optional Master-Dimmer-Channels  Output:9 PWM-signal common supply voltage anode (PLUS)  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  CTRL output:Control output for switching off the load power supply units (Energy-Save)  StandAlone function:9 internal StandAlone programs  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:Screw terminals  Dimensions:105mm x 90mm x 60mm Produkt DownloadsDMX-LED-Dimmer X9 HR+Bedienungsanleitung DMX-LED-Dimmer X9 HR+User Manual DMX-LED-Dimmer X9 HR+USB DriverVersion 6.0.0.0 DMX-LED-Dimmer X9 HR+Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 ArtNet-LED-Dimmer 4 MK2The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 54mm x 23mm DMX4ALL Commands  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2Bedienungsanleitung ArtNet-LED Dimmer 4 MK2User Manual ArtNet-LED Dimmer 4 MK2Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-LED-Dimmer 4 MK2+The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.High quality and compact design The ArtNet-LED-Dimmer 4+ MK2 is manufactured with removable clamps.Furthermore, the ArtNet LED Dimmer 4+ MK2 is mounted in a compact aluminum housing.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 74mm x 23mm  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2+Bedienungsanleitung ArtNet-LED Dimmer 4 MK2+User Manual ArtNet-LED Dimmer 4 MK2+Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

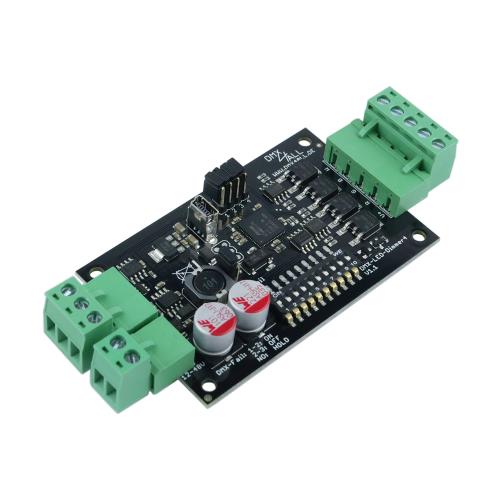

 DMX-LED-Dimmer 4The DMX-LED-Dimmer 4 is a compact LED-Dimmer with 4 seperate LED-outputs.These can be used for RGB/ RGB+W or for single color stripes.The connectors for LED,power supply and DMX are made with removable screw terminals.Can be used from 12V to 48VThe DMX-LED Dimmer 4 can be used in a wide power supply range from 12V to 48V.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V) / 240W (48V).Customizable LookUp tablesThe DMX-LED-Dimmer 4 has one LookUp-Table per output.The definition of the LookUp tables is done via the USB port using theprogram DMX-Configurator, which is available as a free download.Removable screw terminalsThe DMX-LED Dimmer 4 is designed with removable screw terminals.16 Million ColorsWith the RGB-LED-Stripe up to 16 million colours can be adjusted.By using an additional single color white stripe it is possible to makecolor neutral illuminations or pastel colours.Firmware-Update-FunctionIn order to take advantage of future features, the DMX-LED-Dimmer 4 has a firmware update function. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-48V DC / 50mA without load (=LED voltage)  LED voltage:12-48V DC (no AC voltage !) (=power supply voltage)  DMX-IN:4 channels + optional Master-Dimmer-Channel  DMX-Fail:Hold / Off / On  Ausgang:4 PWM-Signal with 16 Bit resolution common supply voltage  Output current:max. 10A each output with 12V or 24V max. 5A each output with 48V max. 10A in sum through all outputs  Output :120W (12V) / 240W (24V) / 240W (48V)  PWM-Frequency:244 Hz / 4kHz  Master-Dimmer:None / Masterdimmer / System-Masterdimmer  StandAlone-Function:9 internal StandAlone-Programs  Dimensions:80mm x 50,5mm Product DownloadsDMX-LED-Dimmer 4Bedienungsanleitung DMX-LED-Dimmer 4User Manual DMX-LED-Dimmer 4USB Driver - Version 6.0.0.0 DMX-LED-Dimmer 4Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 DMX-LED-Dimmer MaxiRGBThe DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes. Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Solder points  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGBBedienungsanleitung DMX-LED-Dimmer MaxiRGBUser Manual

 DMX-LED-Dimmer MaxiRGB (SR)The DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes.SR-Version: With screw connectors Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Screw connectors  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGB (SR)Bedienungsanleitung DMX-LED-Dimmer MaxiRGB (SR)User Manual
