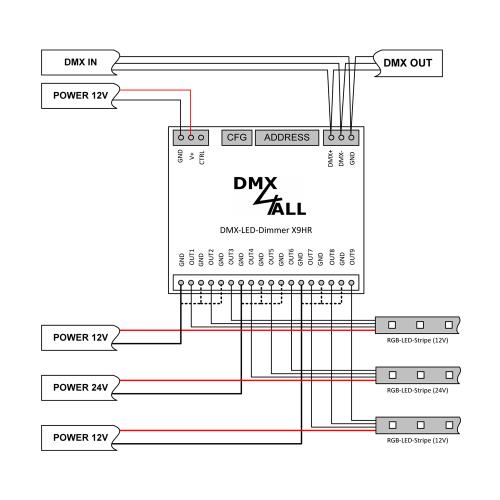

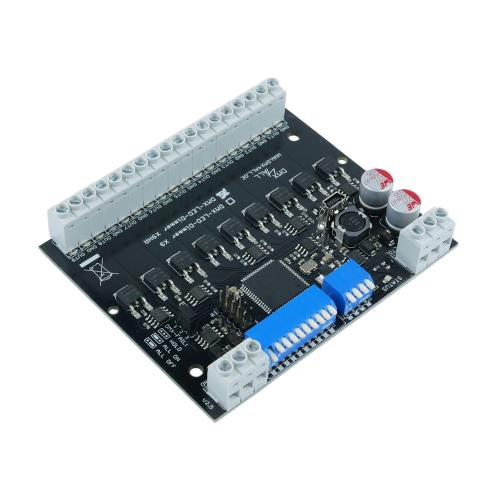

DMX-LED-Dimmer X9HR

 ArtNet-LED-Dimmer 4 MK2The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 54mm x 23mm DMX4ALL Commands  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2Bedienungsanleitung ArtNet-LED Dimmer 4 MK2User Manual ArtNet-LED Dimmer 4 MK2Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-LED-Dimmer 4 MK2+The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.High quality and compact design The ArtNet-LED-Dimmer 4+ MK2 is manufactured with removable clamps.Furthermore, the ArtNet LED Dimmer 4+ MK2 is mounted in a compact aluminum housing.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 74mm x 23mm  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2+Bedienungsanleitung ArtNet-LED Dimmer 4 MK2+User Manual ArtNet-LED Dimmer 4 MK2+Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-LED-Dimmer 6The ArtNet Dimmer 6 is a compact LED-Dimmer with 6 seperate LED-outputs.These can be used for RGB/ RGB+W / RGB + W WW or for single color stripes.High Power OutputsEach output can drive a current up to 10A.So it is possible to connect a maximum load on ecah output of 120W (12V) or 240W (24V).16 Million ColorsWith the RGB-LED-Stripe up to 16 million colours can be adjusted.By using an additional single color white stripe it is possible to makecolor neutral illuminations or pastel colours.NEW: User Configurable Color ProgrammsThe ArtNet-LED Dimmer 6 has also 10 user configurable color programms whichcan be defined via the webbrowsr or the Android App „DMX4ALL Remote“.User-friendly ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.Power Supply for WiFi BridgeIn addition the ArtNet-Dimmer 6 has a USB connector providing a power supplywith 5V/500mA for external devices e.x. a WiFi-bridge.As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802NControll with AppThe controll of this device is possible by using the free Android-App "DMX Remote".Firmware-Update-FunctionIn order to take advantage of future features, the ArtNet-LED-Dimmer 6 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe ArtNet-LED-Dimmer 6 has another TCP communication interface.This interface uses the DMX4ALL-commands via TCP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:6 outputs max. 10A per output (in total 60A) common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250Hz / 500Hz / 1000Hz / 2000 Hz  Dimensions:64,2 x 82 x 20 mm  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 6Bedienungsanleitung ArtNet-LED Dimmer 6User Manual ArtNet-LED Dimmer 6Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Devolopment

 DMX-LED-Dimmer 4The DMX-LED-Dimmer 4 is a compact LED-Dimmer with 4 seperate LED-outputs.These can be used for RGB/ RGB+W or for single color stripes.The connectors for LED,power supply and DMX are made with removable screw terminals.Can be used from 12V to 48VThe DMX-LED Dimmer 4 can be used in a wide power supply range from 12V to 48V.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V) / 240W (48V).Customizable LookUp tablesThe DMX-LED-Dimmer 4 has one LookUp-Table per output.The definition of the LookUp tables is done via the USB port using theprogram DMX-Configurator, which is available as a free download.Removable screw terminalsThe DMX-LED Dimmer 4 is designed with removable screw terminals.16 Million ColorsWith the RGB-LED-Stripe up to 16 million colours can be adjusted.By using an additional single color white stripe it is possible to makecolor neutral illuminations or pastel colours.Firmware-Update-FunctionIn order to take advantage of future features, the DMX-LED-Dimmer 4 has a firmware update function. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-48V DC / 50mA without load (=LED voltage)  LED voltage:12-48V DC (no AC voltage !) (=power supply voltage)  DMX-IN:4 channels + optional Master-Dimmer-Channel  DMX-Fail:Hold / Off / On  Ausgang:4 PWM-Signal with 16 Bit resolution common supply voltage  Output current:max. 10A each output with 12V or 24V max. 5A each output with 48V max. 10A in sum through all outputs  Output :120W (12V) / 240W (24V) / 240W (48V)  PWM-Frequency:244 Hz / 4kHz  Master-Dimmer:None / Masterdimmer / System-Masterdimmer  StandAlone-Function:9 internal StandAlone-Programs  Dimensions:80mm x 50,5mm Product DownloadsDMX-LED-Dimmer 4Bedienungsanleitung DMX-LED-Dimmer 4User Manual DMX-LED-Dimmer 4USB Driver - Version 6.0.0.0 DMX-LED-Dimmer 4Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 DMX-LED-Dimmer X9HR+The DMX-LED-Dimmer X9HR+ is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR+ has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V).0% to 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR+ operates with supply voltages from 12V up to 24V.The LED voltage can be different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lost DMX signal thecurrent state (HOLD) or to adopt a predefined value if the DMX signal fails.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs) orone master dimmer per RGB group. The global master dimmer is fixed at DMX address 1 andcan be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR+ allows configuration by RDM via DMX.SubDevice-ModeWithin the SubDevice Mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.Touch-ControlThe DMX-LED-Dimmer X9HR+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR+ offers a firmware update function. Specifications  Power supply:7-24V DC 100mA@12V / 150mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling and LookUp-Table 18 channels with 16Bit-controlling + optional Master-Dimmer-Channels  Output:9 PWM-signal common supply voltage anode (PLUS)  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  CTRL output:Control output for switching off the load power supply units (Energy-Save)  StandAlone function:9 internal StandAlone programs  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:Screw terminals  Dimensions:105mm x 90mm x 60mm Produkt DownloadsDMX-LED-Dimmer X9 HR+Bedienungsanleitung DMX-LED-Dimmer X9 HR+User Manual DMX-LED-Dimmer X9 HR+USB DriverVersion 6.0.0.0 DMX-LED-Dimmer X9 HR+Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 Kabel 2x 2,5mm², rot/schwarz (Meterware)- Cross section 2x 2,5 mm²- Cable construction: 2x 50/0,25 mm- External dimensions: 4,0 x 8,0 mm- Plus/minus pole marking- Manufacturer: various Delivery as a section (yard goods) or 100m as a ring.

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HLG-120H-12A (12V/10A/120W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-120H-12A Specifications  Output voltage:12V (einstellbar: 10,8...13,5V)  Output current, max:10A (adjustable 5...10A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:60A  Operating Temperature:-40...+70°C  Weight:1120g Produkt DownloadsHLG-120HDatasheet

 MEANWELL HLG-120H-24A (24V/5A/120W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-120H-24A Specifications  Output voltage:24V (einstellbar: 22...27V)  Output current, max:5A (adjustable 2,5...5A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:60A  Operating Temperature:-40...+70°C  Weight:1120g Produkt DownloadsHLG-120HDatasheet

 MEANWELL HLG-240H-12A (12V/16A/192W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-240H-12A Specifications  Output voltage:12V (adjustable: 11,2...12,8V)  Output current, max:16A (adjustable 8...16A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:75A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:1300g Produkt DownloadsHLG-240HDatasheet

 MEANWELL HLG-240H-24A (24V/10A/240W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-240H-24A Specifications  Output voltage:24V (adjustable: 22,4...25,6V)  Output current, max:10A (adjustable 5...10A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:75A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:1300g Produkt DownloadsHLG-240HDatasheet

 MEANWELL HLG-320H-12A (12V/22A/264W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-320H-12A Specifications  Output voltage:12V (adjustable: 10,8...13,5V)  Output current, max:22A (adjustable 11...22A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:1880g Produkt DownloadsHLG-320HDatasheet

 MEANWELL HLG-320H-24A (24V/13,3A/319W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-320H-24A Specifications  Output voltage:24V (adjustable: 21...26V)  Output current, max:13,3A (adjustable 6,67...13,34A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:1880g Produkt DownloadsHLG-320HDatasheet

 MEANWELL HLG-600H-12A (12V/40A/480W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-600H-12A Specifications  Output voltage:12V (adjustable: 10,2...12,6V)  Output current, max:40A (adjustable 20...40A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:3900g Produkt DownloadsHLG-600HDatasheet

 MEANWELL HLG-600H-24A (24V/25A/600W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-600H-24A Specifications  Output voltage:24V (adjustable: 20,4...25,2V)  Output current, max:25A (adjustable 12,5...25A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Over Current Protection:95...108%  Operating Temperature:-40...+70°C  Weight:3900g Produkt DownloadsHLG-600HDatasheet

 MEANWELL HLG-80H-12A (12V/5A/60W)- Universal input- Aluminium enclosure_ Overload protection, current limiting, auto recovery_ Protections: short circuit/over load/over voltage- Built-in active PFC function- Suitable for LED lighting and moving sign applications- EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13- IP65- Adjustable output voltage with internal potentiometer- Adjustable output current with internal potentiometer- Manufactor: MEANWELL- Order code: HLG-80H-12A Specifications  Output voltage:12V (adjustable: 10,8...13,5V)  Output current, max:5A (adjustable 3...5A)  Input voltage:90...305V AC (47...63Hz) 127...431V DC  Input Inrush Current, max.:70A  Operating Temperature:-40...+70°C  Weight:840g Produkt DownloadsMEANWELL HLG-80HDatasheet
