ArtNet-LED-Dimmer 6
€236.81*
13 at stock.
angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).
Delivery time: 1-3 days
Product information "ArtNet-LED-Dimmer 6"
 ArtNet-LED-Dimmer 6 |

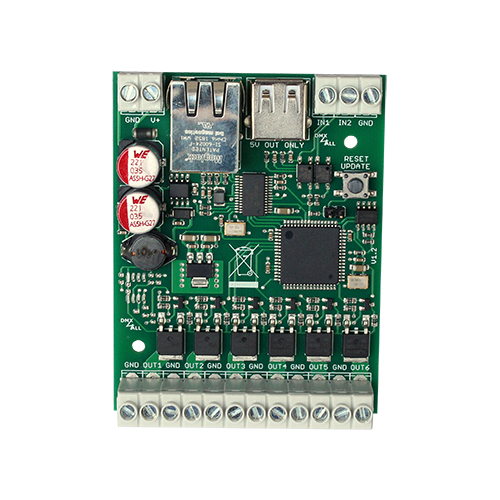

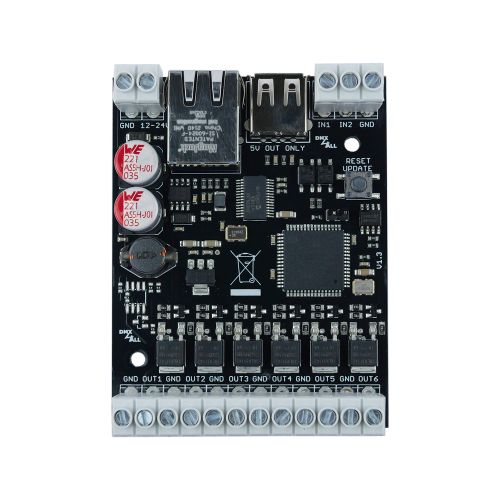

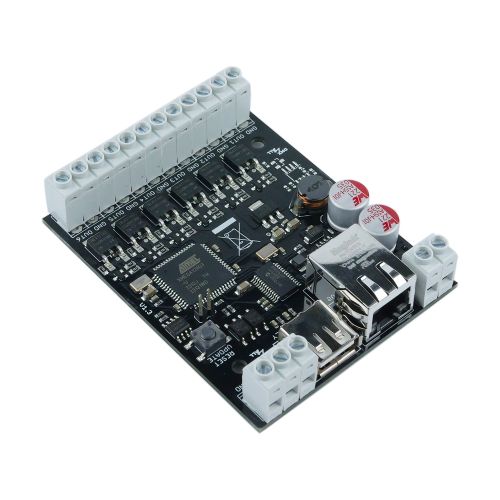

The ArtNet Dimmer 6 is a compact LED-Dimmer with 6 seperate LED-outputs.
These can be used for RGB/ RGB+W / RGB + W WW or for single color stripes.
High Power Outputs
Each output can drive a current up to 10A.
So it is possible to connect a maximum load on ecah output of 120W (12V) or 240W (24V).
16 Million Colors
With the RGB-LED-Stripe up to 16 million colours can be adjusted.
By using an additional single color white stripe it is possible to make
color neutral illuminations or pastel colours.
NEW: User Configurable Color Programms
The ArtNet-LED Dimmer 6 has also 10 user configurable color programms which
can be defined via the webbrowsr or the Android App „DMX4ALL Remote“.
User-friendly Configuration
A user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.
Power Supply for WiFi Bridge
In addition the ArtNet-Dimmer 6 has a USB connector providing a power supply
with 5V/500mA for external devices e.x. a WiFi-bridge.
As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802N
Controll with App
The controll of this device is possible by using the free Android-App "DMX Remote".
Firmware-Update-Function
In order to take advantage of future features, the ArtNet-LED-Dimmer 6 has a firmware update function.
This can be launched from the browser so that no access to the device is necessary!
DMX4ALL-Command interface
The ArtNet-LED-Dimmer 6 has another TCP communication interface.
This interface uses the DMX4ALL-commands via TCP packets.
Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd.
| Specifications |
| Power supply: | 12-24V DC / 100mA |
| LED voltage: | 12-24V DC (no AC voltage !) |
| Connection: | RJ45 Ethernet |
| LED-connection: | 6 outputs |
| max. 10A per output (in total 60A) | |
| common anode (+) | |
| USB-connection: | 5V / 500mA |
| for power supply external devices (e.g. WLAN-bridge) | |
| PWM-Frequency: | 250Hz / 500Hz / 1000Hz / 2000 Hz |
| Dimensions: | 64,2 x 82 x 20 mm |
| Protocol: | Art-Net 3 ™ |
| DMX4ALL Commands |
