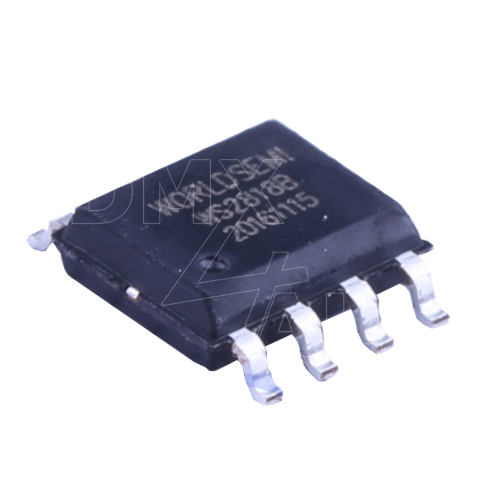

WS2818 Controller IC3 channel LED driver with constant current output Specifications  Supply voltage:3 - 5,3V  LED output current:18,5 mA (typ.)  Protocol:Serial control signal  Housing:SO8

 Specifications  Version:Closed  Color:Black  RM:2,54mm  Contents:10 pcs

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 SN75176 BPThe SN75176BP differential bus transceiver is designed for bidirectional data communication on multipoint bus transmission lines. Specifications  Factory number:SN75176BP  Manufacturer:Texas Instruments  Housing:DIP-8

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 DC-EinbaubuchseBarrel connector panel jack 2,1mmCompatible with: - DC-Y-Cable- DC Power Supply Extension Cable 3m Technische Daten  Typ:Panel jack  Type:internal 2,1mm  Type of contact:Soldering  max. current:3A

 LPD1886 Controller ICLPD1886 is single-line three-channel with 4096 levels PWM programmable constantcurrent LED driver chip. It is a three-channel dedicated circuit for LED driving and control,internally integrated the bandgap reference, digital interface, PWM control and constantcurrent driving circuit. It can achieve multicolor emitting system of the outdoor led displays,led guardrail tubes and led strips, via the control of peripheral circuit. Specifications  Supply voltage:5-24 V  LED voltage:5-12 V  Max. drive current:18mA  PWM levels:4096  Dimension:SO8 Product DownloadsLPD1886 DatasheetDatasheet

 Systemklemme 2polig 3,5mm2 pole 3,5mm plug-in terminal block as replacementWR-TBL Serie 3611 - 3.50 mm Specifications  Number of poles:2  Distance:3,5mm  Serie:WR-TBL 3611 - 3.50 mm  Part number:691 361 100 002  Manufactor:Würth Electronic

 Systemklemme 2polig 5mm2 pole 5mm plug-in terminal block as replacementWR-TBL Serie 3527 - 5.00 mm Specifications  Number of poles:2  Distance:5mm  Serie:WR-TBL 3527 - 5.00 mm  Part number:691 352 710 002  Manufactor:Würth Electronic

 Neutrik NDFThe dummyPLUG NDF for Neutrik female XLR receptacles enable you to simplify cabling. Unused in- and outputs can be covered to avoid miss wiring and protect against dust additionally.

 Neutrik DBA-BLDummy-plate to cover D-shape cutouts

 Blechschraube Kreuzschlitz 2.2x6.5mm 10erSelf-tapping screw slot 2.2 x 6.5 mm, 10 pcs Specifications  Diameter:2.2mmDimensions:(Ø x L) 2.2mm x 6.5mmDrive:Cross-recessShank:Without shankLength:6.5mmMaterial:Galvanised steelTip style:Raised head

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 XLR-Kabelbuchse 5pol- XLR panel socket, 5pins female- With locking mechanism- Metal housing- with rubber anti-kink sleeve Specifications  Connection:XLR 5 female  Color:Silver

 Schrauben 2,9x6,5mm für Hutschienengehäuse 10erScrew slot 2.9 x 6.5 mm, 10 pcsCompatible with: - DIN-rail Module enclosure 350- DIN-rail Module enclosure 350 flat- DIN-rail Module enclosure 700- DIN-rail Module enclosure 1050 Specifications  Diameter:2.9mmDimensions:(Ø x L) 2.2mm x 6.5mmDrive:Cross-recess Z (Pozidriv)Shank:Without shankLength:6.5mmMaterial:Galvanised steelTip style:Raised head

 Systemklemme 3polig 3,5mm3 pole 3,5mm plug-in terminal block as replacementWR-TBL Serie 3611 - 3.50 mm Specifications  Number of poles:3  Distance:3,5mm  Serie:WR-TBL 3611 - 3.50 mm  Part number:691 361 100 003  Manufactor:Würth Electronic

 JST-Stecker 3 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 3-pin connector.Compatible with: - Digital LED-Stripe SK6812- Digital LED-Stripe APA104- Digital LED-Stripe WS2811- Digital LED-Stripe WS2812- Digital LED-Stripe INK1003- Digital LED-Stripe RGB TM1804- Digital LED-Stripe RGB UCS9812- Digital LED-Stab RGB WS2811 Specifications  Implementation:JST SM  Connection:3 pin male connector  Length:~ 25cm

 JST-Buchse 3 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 3-pin connector.Compatible with: - Digital LED-Stripe SK6812- Digital LED-Stripe APA104- Digital LED-Stripe WS2811- Digital LED-Stripe WS2812- Digital LED-Stripe INK1003- Digital LED-Stripe RGB TM1804- Digital LED-Stripe RGB UCS9812- Digital LED-Stab RGB WS2811 Specifications  Implementation:JST SM  Connection:3 pin female connector  Length:~ 25cm

 Leergehäuse 2x10pol RM2,54 schwarzThe empty housing is suitable for cables with crimp contacts. Specifications  Version:Empty housing  Color:Black  Number of poles:20 (2x10)  RM:2,54mm  Contents:1 pcs

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 Systemklemme 3polig 5mm3 pole 5mm plug-in terminal block as replacementWR-TBL Serie 3527 - 5.00 mm Specifications  Number of poles:3  Distance:5mm  Serie:WR-TBL 3527 - 5.00 mm  Part number:691 352 710 003  Manufactor:Würth Electronic

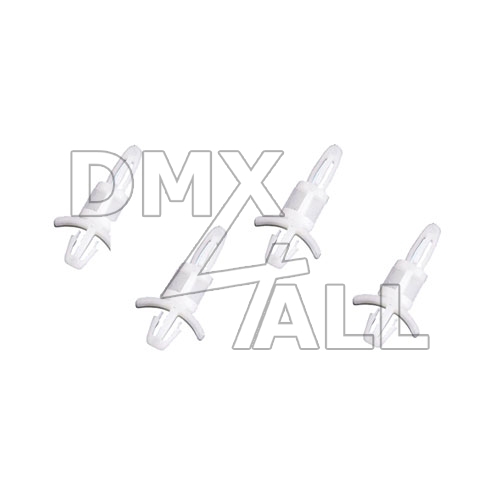

 Platinen-Abstandshalter- for PCB mounting- Set of 4 pieces Technische Daten  Material:Polyamid  Pitch:6mm  Mounting Hole Diameter:4.8 mm  Hole diameter board:4 mm  Package contents:4 pieces

 Neutrik NC3MAH3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mountThe 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component. Specifications  Manufactor:NEUTRIK  Part number:NC3MAH  Color:black  Model:XLR male  Pole number:3  Mounting:PCB mount

 Systemklemme 4polig 3,5mm4 pole 3,5mm plug-in terminal block as replacementWR-TBL Serie 3611 - 3.50 mm Specifications  Number of poles:4  Distance:3,5mm  Serie:WR-TBL 3611 - 3.50 mm  Part number:691 361 100 004  Manufactor:Würth Electronic

 Neutrik NC3FAH23 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mountThe `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component. Specifications  Manufactor:NEUTRIK  Part number:NC3FAH2  Color:black  Model:XLR female  Pole number:3  Mounting:PCB mount

 Kabel 2x 2,5mm², rot/schwarz (Meterware)- Cross section 2x 2,5 mm²- Cable construction: 2x 50/0,25 mm- External dimensions: 4,0 x 8,0 mm- Plus/minus pole marking- Manufacturer: various Delivery as a section (yard goods) or 100m as a ring.

 JST-Stecker 4 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 4-pin connector orwith our analog RGB LED stripes.Compatible with: - Digital LED-Stripe SK9822- Digital LED-Stripe LPD8806 Specifications  Implementation:JST SM  Connection:4 pin male connector  Length:~ 25cm

 JST-Buchse 4 mit AnschlusskabelConnection cable for use with our digital LED Stripes with 4-pin connector orwith our analog RGB LED stripes.Compatible with: - Digital LED-Stripe SK9822- Digital LED-Stripe LPD8806 Specifications  Implementation:JST SM  Connection:4 pin female connector  Length:~ 25cm

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

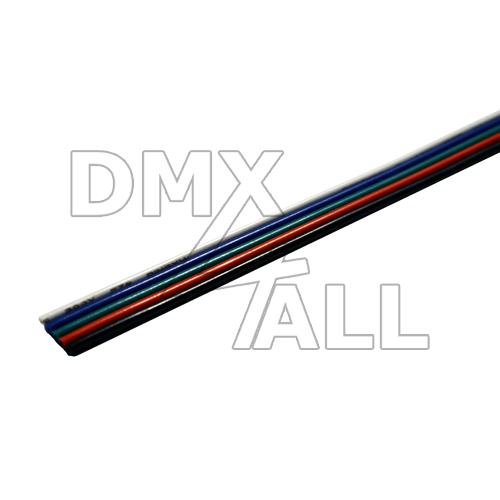

 Kabel für RGBW-LED-Stripes 1mColour coded five-core connecting cable for RGB+W LED lighting applications.Ribbon cable for easy installation of RGB+W LED technology such LED Stripes RGB+W, and more.20 AWG - section = 5 x 0.5 mm²This line is used on the low-voltage side of the supply of LED technology.Supplied as a section (in meter). Specifications  Execution:20 AWG  Item:1 meter as a section (meter) max. 50m We deliver the ordered RGB+W LED cable straight.  Color coding sequence:Black, Red , Green, Blue , White  Cross-section:5 x 0,5mm²

 Netzwerkkabel 0,5m- shielded LAN/network cable to connect network components with 2 x RJ45 connectors- outer shield: foil screening- with 3µ gold plated PINs- with length indication on the slimline strain relief- with latch protection- pair-sequence acc. to EIA/TIA 568B Specifications  Specification:CAT 5e  Connector:RJ45 male (8P8C), both sides  Kink protection:both sides  Length:0,5m  Color:black

 Adam Hall DMX-Kabel (Meterware)The Adam Hall 4 STAR D 234 is perfectly suited for transmission of DMX signals.Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances,thanks to its bigger cross-section. This highly flexible cable is easy to wind,and thanks to its larger diameter also very robust and therefore also well suitedfor hard road applications.- Adam Hall 4 Star "Standard" Series- Highly flexible, easy to reel- Good shielding thanks to dense copper spiral shielding- Larger inner conductor of 2 x 0.34 mm²- PVC jacket of 6.5 mm diameterDelivery as a section (yard goods) or 100m on a drum. Technische Daten  Type:DMX & AES/EBU Cable  Color:Black  Overall diameter:6,5 mm  AWG:22  Center conductor cross section:0,34mm²  Center conductor material:OFC  Number of internal conductors:2  Shield:Tin-plated copper braided shield  Line surge impedance:120 Ohm  Temperature range:-20 - +70°C  Application:DMX  Sales unit:Sold by the meter as a section or 100 meters on drum  Manufacturer:Adam Hall

 Sommer Cable DMX-Kabel 110 Ohm (Meterware)Das DMX-Kabel ist eine hervorragende Leitung zur Übertragung von Digitalsignalenim 110 Ω AES/EBU und DMX Datenformat. Es besitzt eine Schirmung aus einem aluminiumbedampften Vlies und einem Cu-Spiralwendelschirm mit 100 % Bedeckung.Es ist dadurch sehr gut gegen elektrische Einflüse geschüzt.Vorteile:- Optimale Schirmung durch die Verwendung eines dichten Cu-Wendelschirms + AL/PT-Folie bzw. AL-Vlies- Kompakt und dadurch platzsparendAnwendung:- Professionelle Studio- und Mikrofontechnik- Verbindung von Effektgeräten und Steuereinheiten, bei denen ein Return-Signal benötigt wird- Industrie- und Medizintechnik- Professionelle MIDI-Technik, Überspielkabel- High-End Verbindung von HiFi-Geräten- Steuerung von Licht- und Scanneranlagen und DisplaysLieferung als Abschnitt (Meterware) oder 100m auf Trommel. Technische Daten  Eigenschaften:Digital 110 Ω AES / EBU OFC hochreines Kupfer  Anwendung:DMX  Farbe:Schwarz  Signalübertragung:symmetrisch  Aufbau:(2LI2Y0,22mm²)(ST)DY  Bauform:Rund  Durchmesser:5 mm  Verkaufseinheit:Meterware als Abschnitt oder 100 Meter auf Trommel  BPVo-Euroklasse:Fca  Hersteller:Sommer Cable

 Systemklemme 5polig 3,5mm5 pole 3,5mm plug-in terminal block as replacementWR-TBL Serie 3611 - 3.50 mm Specifications  Number of poles:5  Distance:3,5mm  Serie:WR-TBL 3611 - 3.50 mm  Part number:691 361 100 005  Manufactor:Würth Electronic

 Systemklemme 5polig 5mm5 pole 5mm plug-in terminal block as replacementWR-TBL Serie 3527 - 5.00 mm Specifications  Number of poles:5  Distance:5mm  Serie:WR-TBL 3527 - 5.00 mm  Part number:691 352 710 005  Manufactor:Würth Electronic

 Litze 10m GelbInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:yellow  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m GrünInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:green  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m BlauInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:blue  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m RotInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:red  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m WeißInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:white  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m SchwarzInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:black  Outer diameter:~ 1,1 mm  Length:10m

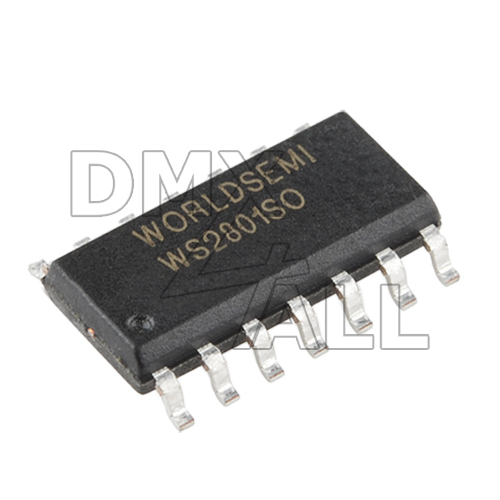

 WS2801 Controller ICThe WS2801 is a constant current LED driver. It is designed for indoor/ outdoor LED displays and decorative LED lighting system. Specifications  Supply voltage:3,3 - 5 V  Protocol:Serial control signal  Housing:SOP14

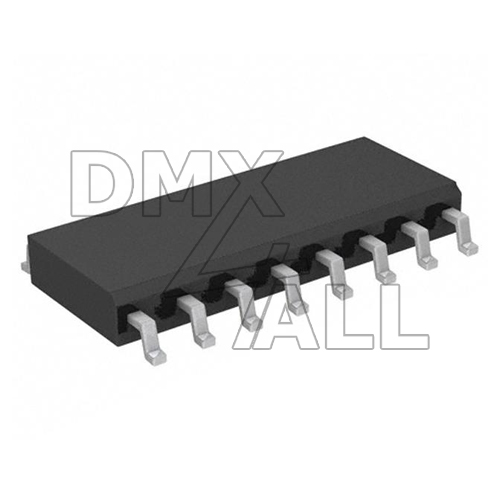

 UCS1912 Controller IC4 channel LED driver Specifications  Supply voltage:5 V  LED voltage:3-40 V  Protocol:Serial control signal  Housing:SOP16

 Specifications  Version:Cable with crimp contact  Color:Yellow  Length:~ 20cm  Contents:10 pcs

 Specifications  Version:Cable with crimp contact  Color:Black  Length:~ 20cm  Contents:10 pcs

 Specifications  Version:Cable with crimp contact  Color:Red  Length:~ 20cm  Contents:10 pcs

 DC-Y-KabelDC-Y-Cable to connect 2 devices (e.g. LED stripes) on one power supply.Compatible with: - Power supply extension cable 3m- Power supply 5V/6A- Power supply 12V / 5A- Digital LED stripes Specifications  Cable:AWG22  Connection:1x DC FEMALE ->2x DC MALE  Length:~ 30cm
