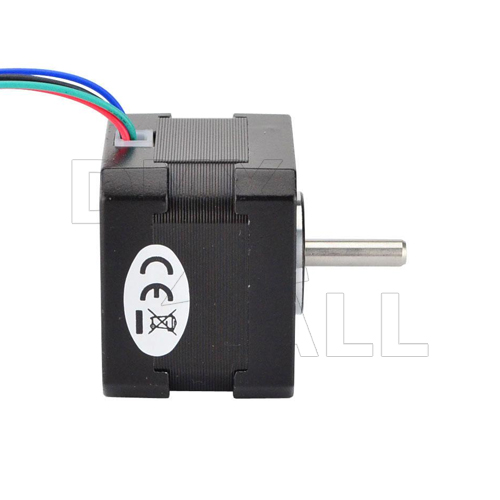

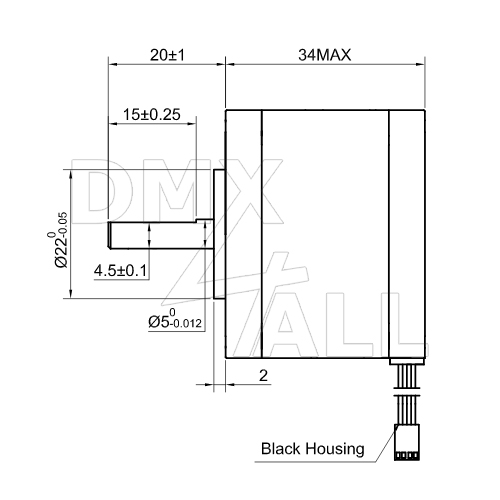

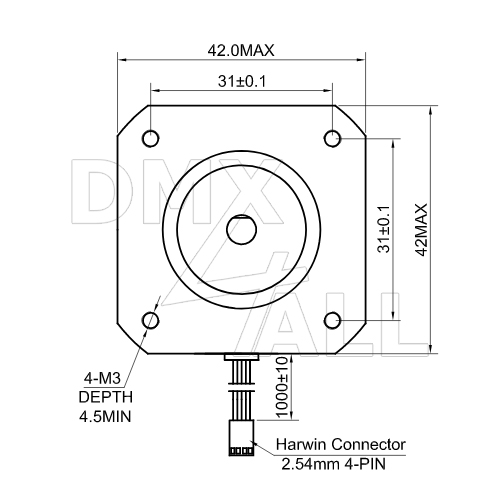

Stepper NEMA17 12V/400mA

 DMX-Stepper-ControlThe DMX-Stepper-Control is designed for controlling a stepping motor (Stepper) via DMX.The extensive configuration is done via RDM.Several operating modesSeveral operating modes allow a continuous operation with variable speed or the starting of defined positions. The minimum and maximum step speed as well as the number of steps and number of positions can be set individually.RDM Support The DMX stepper control allows settings via RDM over DMX.Free RDM-SoftwareTo set the parameters via RDM, our free RDM Configurator software is available as download from our website www.dmx4all.de.Lockable Device SettingsThe RDM parameters Lock Pin and Lock State allow or avoid changings of saved RDM parameters in order to prevent unauthorized changes.Replaceable stepping motor driverThe standard Pololu A4988 step motor driver is suitable for power supplies from 8-24V and can control a current of 2A per phase.Alternatively, the stepper motor driver can also be replaced with a SilentStepStick with Trinamic TMC2100 / TMC2208 or, alternatively, an external stepper motor driver can be used with the BRIDGE stepper motor driver.Micro step operating modesThe following micro step operation modes are supported Full-Step (1/1) / Half-Step (1/2) / Quarter-Step (1/4) / Eighth-Step (1/8) / Sixteenth-Step (1/16)Left and Right End-SwitchInputs for a left and right end-switch allow the travel distance to be limited.These can optionally be deactivated after initialization.Activate / Deactivate the Step Motor DriverThe stepper motor driver can optionally be activated or deactivated via DMX.Settable Initialization processOptionally, initialization can be carried out after switching on. The number of steps left and right as well as step speed can be set for this process. The motor then moves left and right until the end switch is reached and saves this position as the initial point.Reset per DMXDuring operation the initialization process (Reset) can optionally be started via DMX. Specifications  Power supply:8-24V DC / 50 mA (without connected stepper)  Protocol:DMX512 RDM  DMX channels:1-5 DMX-channels (depending on adjusted mode)  Output driver:Pololu A4988 stepper driver (default) TMC2100 SilentStepStick (Optional accessory) TMC2208 (Optional accessory) Bridge for external Stepper Driver (Optional accessory)  Stepper-Voltage:8-24V DC (is equal to the power supply voltage)  Stepper-Current:max. 2A with Pololu A4988 stepper motor driver  Connection:Screw terminals  Dimensions:80mm x 39mm Product DownloadsDMX-Stepper-ControlBedienungsanleitung DMX-Stepper-ControlUser Manual DMX-Stepper-ControlUSB DriverVersion 6.0.0.0 DMX-Stepper-ControlFirmware

 NEMA 17 HalterungNEMA 17 mount for stepper motors
