 DMX/RDM-Sensor 4 |

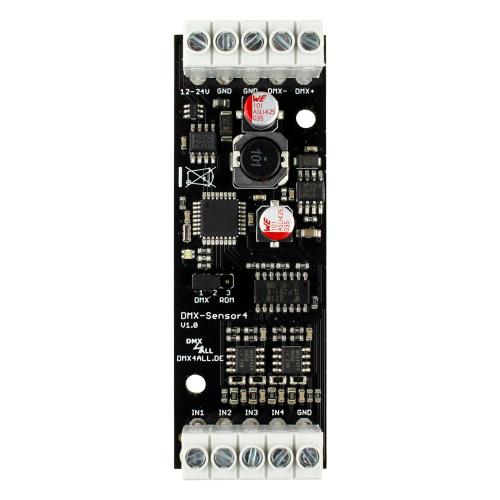

The DMX/RDM-Sensor 4 is a converter with 4 signal inputs and can be used both as a DMX output device / DMX source or as an RDM device.
Different Operation Modes
The DMX/RDM-Sensor 4 can be run as DMX output device (inputs to DMX channels) or RDM device (inputs to sensor values).
Four Analog- or Digital Inputs
Each of the 4 inputs can be set independently as analog input (0-5V or 0-10V) or as digital input (Active Low or Active High).
RDM Support
The DMX/RDM-Sensor 4 can be configured via RDM using DMX.
Sensor Values
Via the RDM-Parameter SENSOR_VALUE for each of the 4 inputs the sensor values can be requested.
Settable Average-Filter
The average filter can be set for each input and can be used to create an average value that compensates for fluctuations in the input signal.
Settable Slope Correction
The output curve can be set for each input using the adjustable slope correction.
Settable DMX-Addresses
The DMX addresses can be set for each input, allowing the input signal to be output on up to 8 DMX channels.
Settable Device Label
The device label can be set for each input to name each sensor uniquely via RDM.
Lockable Device settings
The RDM parameters Lock Pin and Lock State allow or avoid changing saved RDM parameters to prevent unauthorized changes.
Free RDM-Software
For setting the parameters via RDM, our free RDM Configurator software is available for download on our website www.dmx4all.de.
Top hat rail housing available
The top-hat rail housing 350 or the top-hat rail housing 350 flat are available as accessories for the DMX/RDM-Sensor 4.
| Specifications |
| Power supply: | 12-24V DC |
| (150mA@12V / 100mA@24V) | |
| Protocol: | DMX512 |
| RDM | |
| Operation modes: | DMX (Inputs to DMX channels) |
| RDM (Inputs to RDM sensor values) | |
| Inputs: | 4 Analog (0-10V) or Digital Inputs |
| Connection: | Screw terminals |
| Dimensions: | 29,2mm x 82mm |
