DIY-Board 1050
€14.28*
6 at stock.
angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).
Delivery time: 1-3 days
Product information "DIY-Board 1050"

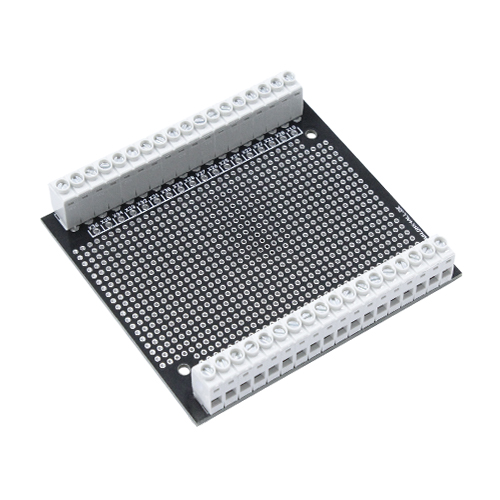

 DIY-Board 1050 |
The DIY-Board 1050 can be used to realize your own circuits for example as fuse boards.
The DIY board is a universal circuit board and can be equipped with components and connections as needed.
The holes of the breadboard are arranged in RM2.54, which means in 2.54mm grid.
To connect cables with the components installed on the board, the enclosed screw terminals
can be soldered into the holes provided if required (above or below the X1-X36 labeling on the PCB wheel).
The labeled contacts X1-X36 are connected to the screw terminal contacts next to them.
The size of the board allows mounting in a top-hat rail housing 1050 (available as accessories).
| Specifications |
| Dimensions: | 82mm x 99mm |
| Circuit board thickness: | 1,6mm |
| Circuit board color: | Black |
| Copper thickness: | 35um |
| Material: | FR-4 |
| Grid dimension: | RM 2,54 (2,54mm) |
| Hole diameter: | 1mm |
| Design: | Dot matrix, double-sided, connected through and lead-free |
