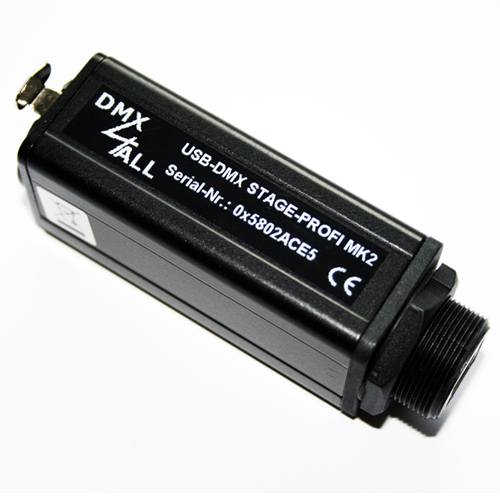

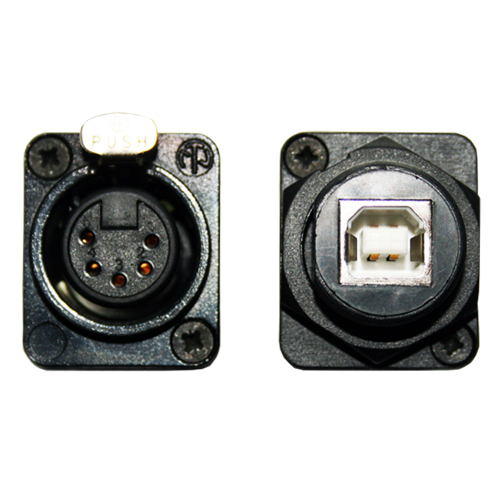

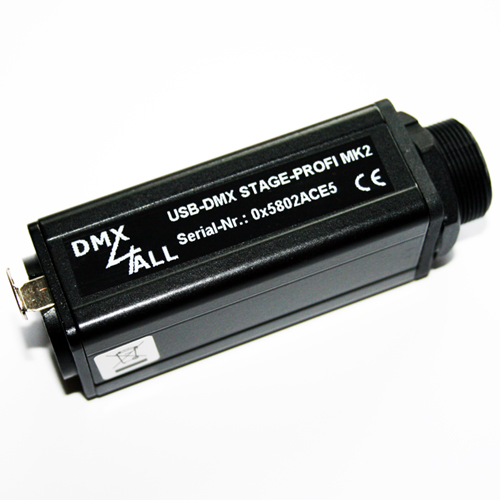

USB-DMX STAGE-PROFI MK2 XLR5

 DMX STAGE-PROFI 1.1 RDM (XLR3)The DMX STAGE-PROFI 1.1 RDM is a compact Ethernet Interface (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Disengageable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAMDMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR3)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR3)User Manual DMX STAGE-PROFI 1.1 RDM (XLR3)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR3)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR3)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 DMX STAGE-PROFI 1.1 RDM (XLR5)The DMX STAGE-PROFI 1.1 RDM is a compact Ethernet Interface (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Disengageable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR5  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR5)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR5)User Manual DMX STAGE-PROFI 1.1 RDM (XLR5)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR5)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR5)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Devolopment

 DMX STAGE-PROFI 1.1 PoE (XLR3)The DMX STAGE-PROFI 1.1 PoE is a compact Ethernet Interface (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected PoE devices to be configured via Art-Net™ using corresponding software.Muteable LED DisplayThe LED-Display at the DMX STAGE-PROFI 1.1 PoE is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 PoE is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 PoE can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 PoE offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 PoE has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:PoE according to IEEE 802.af   or 5V DC via attached external power supplyConnection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s DHCP PoE  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal programs:User-configurable stand-alone programs  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 PoEBedienungsanleitung DMX STAGE-PROFI 1.1 PoEUser Manual DMX STAGE-PROFI 1.1 PoEEthernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 PoEUSB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 PoEFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 DMX STAGE-PROFI 1.1 PoE (XLR5)The DMX STAGE-PROFI 1.1 PoE is a compact Ethernet Interface (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected PoE devices to be configured via Art-Net™ using corresponding software.Disengageable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 PoE is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 PoE is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 PoE can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 PoE offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 PoE has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:PoE according to IEEE 802.af   or 5V DC via attached external power supplyConnection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s DHCP PoE  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal programs:User-configurable stand-alone programs  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 PoEBedienungsanleitung DMX STAGE-PROFI 1.1 PoEUser Manual DMX STAGE-PROFI 1.1 PoEEthernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 PoEUSB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 PoEFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 Neutrik NC5FD-L-15 pole female receptacle, solder cups, Nickel housing, silver contactsUniversal D-size metal body XLR panel mount series. UL recognized component.Robust "D" metal shellStandardized D sized 24 mm panel cutout Specifications  Manufactor:NEUTRIK  Part number:NC5FD-L-1  Color:silver  Model:XLR female  Pole number:5  Material:Metal  Type of contact:Soldering  Mounting:Mounting

 Neutrik NC5FX5 pole female cable connector with Nickel housing and silver contacts.The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. Specifications  Manufactor:NEUTRIK  Part number:NC5FX  Model:XLR female  Pole number:5  Mounting:Cable

 Neutrik NC5MD-L-15 pole male receptacle, solder cups, Nickel housing, silver contactsUniversal D-size metal body XLR panel mount series. UL recognized component.Robust "D" metal shellStandardized D sized 24 mm panel cutout Specifications  Manufactor:NEUTRIK  Part number:NC5MD-L-1  Color:silver  Model:XLR male  Pole number:5  Material:Metal  Type of contact:Soldering  Mounting:Mounting

 Neutrik NC5MX5 pole male cable connector with Nickel housing and silver contacts.The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. Specifications  Manufactor:NEUTRIK  Part number:NC5MX  Model:XLR male  Pole number:5  Mounting:Cable

 DMX-Configurator FREE-VersionThe controlling software DMX-Configurator 4PIXX represents a user friendly surface to create light scenes (programs). Up to 8 DMX-universes can be used which can be represented as pixel-matrix.A live operation with a connected DMX4ALL DMX- or Pixel-Interfaces will be possible as well as an export to DMX4ALL DMX-Player and SD-Card-Player. All in all, in many areas an application will be possible.The FREE-Version is available as download for free and has the following functions.Range of function:1 DMX OUT universeArtNet SupportCue-ListRecord FunctionArtNet Sync RecordingLoop Find FunctionDevice Manager to create LED-Pixel screensPreview for LED-Pixel screensRemote Manager (MIDI / TIMER / DMX)Secutity functions: Password protected programming fileExport/Import of scenesExport/Import of stepsExport for NanoSD Player / ArtNet-Player 4 / DMX-Player S/L/ONELimits of FREE-Version:Multi Interface Support with 16 DMX universes can be used with up to 2 scenesTOUCH-Mode (Time limited)No secutity functionsNo hardware secutity functions ArtNet Player 4  Operating system:Windows® 7, Windows® 8  Software-Updates:Available as download Produkt DownloadsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual Application NotesAufnahme von Art-NetAppNote Importieren von Jinx! SzenenAppNote Aufnahme eines DMX SignalsAppNote

 DMX-Configurator PRO-VersionThe controlling software DMX-Configurator represents a user friendly surface to create light scenes (programs). Up to 16 DMX-universes can be used which can be represented as pixel-matrix. A live operationwith a connected DMX4ALL DMX- or Pixel-Interfaces will be possible as well as an export toDMX-Player and SD-Card-Player. All in all, in many areas an application will be possible. The BASIC-Version use a USB-Dongle needing a free USB-slot. The Dongle can be used on several computer and is easy usable for service tasks. Range of functions:16 DMX OUT + 16 DMX-IN universesMulti Interface SupportCuelistArtNet SupportRecord FunctionArtNet Sync RecordingLoop Find FunctionDevice Manager to generate LED-Pixel for lines and screensPreview for LED-Pixel for lines and screensTOUCH-ModeRemote Manager (MIDI / TIMER / DMX)Export/Import of scenesExport/Import of stepsExport for AvengerSD / NanoSD Player / ArtNet-Player 4 / ArtNet MultiPixxPlyer 16 / DMX-Player S/L/ONESecurity functions: Optional password for programming fileHardware secutity functions: Program execution can be limited by using the hardware serial number Important InformationPlease note that the software is excluded from change and return ! ArtNet Player 4  Operating system:Windows® 7, Windows® 8, Windows® 10  PC-connections:USB 1.1 / USB 2.0  Scope of delivery:USB-Dongle with PRO-Licence DMX4ALL lanyard with dongle holder  Software-Updates:Available as download Produkt DownloadsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX-Configurator PRO-VersionUSB Driver Application NotesAufnahme von Art-NetAppNote Importieren von Jinx! SzenenAppNote Aufnahme eines DMX SignalsAppNote
