DMX STAGE-PROFI 1.1 PoE (XLR5)

€299.62*

Content: 1 Stck.

13 at stock.

Das Versandversprechen gilt nur für Artikel, die im Online Shop als DMX4ALL GmbH - DMX und RDM-Technik Made in Germany

angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).

Delivery time: 1-3 days

Piece

Product number: 99-0475

Manufacturer: DMX4ALL GmbH

Manufacturer product number: 99-0475

Weight: 0.35 kg

Delivery time: 1-3 days

Our payment methods:

Product information "DMX STAGE-PROFI 1.1 PoE (XLR5)"

DMX STAGE-PROFI 1.1 PoE (XLR5)

The DMX STAGE-PROFI 1.1 PoE is a compact Ethernet Interface (DMX via Ethernet), which
can be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.

Via a standard RJ45 net work connection the connection to ethernet net work occurs.

Switchable DMX direction
The DMX direction can be switched according to usage.

Settable DMX frame rate
In the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.

RDM via Art-Net™
Supports RDM via Art-Net™ and thus enables connected PoE devices to be configured via Art-Net™ using corresponding software.

Disengageable LED display
The LED-Display at the DMX STAGE-PROFI 1.1 PoE is disengageable via Art-Net™-Command (AcLedMute)
or time controlled. This is very helpful to avoid disturbing “light points” on stage.

Easy Configuration

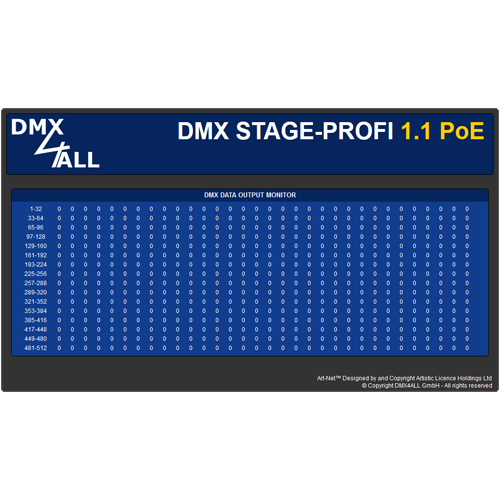

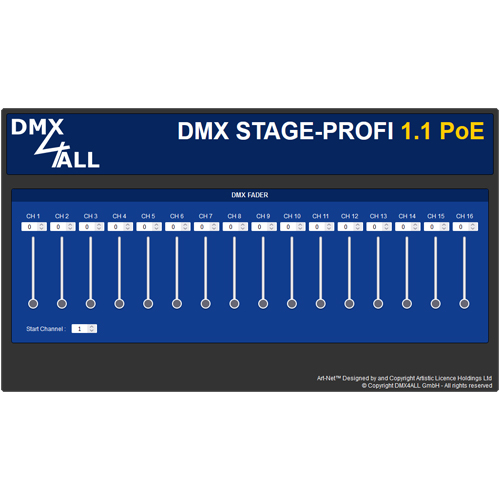

A user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.
No special software is required, a normal web browser is sufficient. Thus, the configuration at any time
from your PC, smartphone or tablet device.
For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.
This allows you to leave the network settings unchanged and can easily configure the IP.

High quality and Compact Design
The DMX STAGE-PROFI 1.1 PoE is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.

Art-Net™ Merge-Function
Two Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.

Combinable with WiFi components
In combination with a WLAN bridge the DMX STAGE-PROFI 1.1 PoE can also be integrated into WLAN net works.

Firmware update function
To use future functions the DMX STAGE-PROFI 1.1 PoE offers a Firmware-Update-Function.
This can be started with any web browser, so no direct access to the device is necessary!

DMX4ALL Communication-Interface
The DMX STAGE-PROFI 1.1 PoE has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages.

Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd.

Specifications

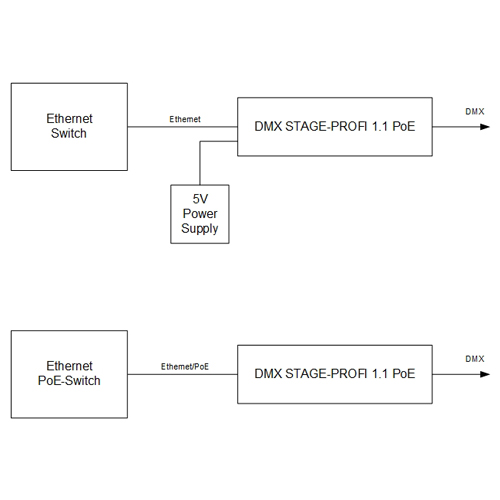

Power supply:	PoE according to IEEE 802.af

	or 5V DC via attached external power supply
Connection:	RJ45 Ethernet
	USB Mini-B
	Neutrik® XLR3

Ethernet:	10 Mbit/s \| 100 Mbit/s
	DHCP
	PoE

DMX:	Selectable:
	- 512 channels OUT
	- 512 channels IN

DMX-Framerate:	Adjustable (5 - 44 fps)

RDM:	RDM via Art-Net™ (switchable on/off)

ArtDmx Fail:	HOLD last data
(DMX-OUT)	CLEAR all to 0%
	SET all to 100%
	NO OUTPUT
	DEFAULT VALUES
	INTERNAL PROGRAM

DMX Fail:	HOLD last data
(DMX-IN)	CLEAR all to 0%
	SET all to 100%
	NO OUTPUT
	DEFAULT VALUES

Protocol:	Art-Net™ (downwards compatiblel)
	Ethernet-VCP (Virtual COM Port)
	USB-VCP (Virtual COM Port)
	TPM2
	sACN (Unicast)
	DMX4ALL-Commands via TCP, UDP, VCP

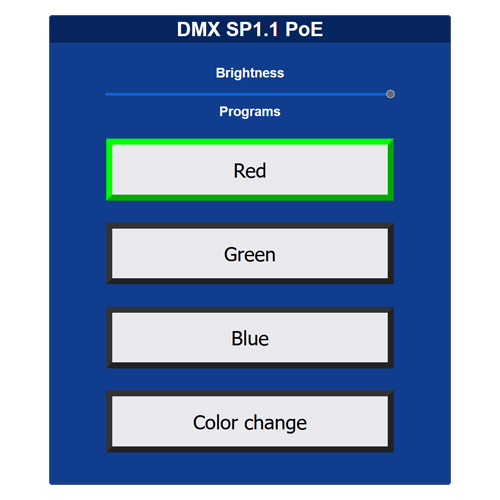

Internal programs:	User-configurable stand-alone programs

Status LED:	Green: Ethernet Connection
	Yellow: Datatransfer

Dimensions:	75mm x 26mm x 35 mm

Produkt Downloads

DMX STAGE-PROFI 1.1 PoE
Bedienungsanleitung
DMX STAGE-PROFI 1.1 PoE
User Manual
DMX STAGE-PROFI 1.1 PoE
Ethernet VCP Driver 32 & 64bit - Version 1.10
DMX STAGE-PROFI 1.1 PoE
USB VCP Driver 32 & 64bit - Version 42.0.1.0
DMX STAGE-PROFI 1.1 PoE
Firmware

Software & Tools

DMX-Configurator V2
Windows 32 & 64bit
DMX-Configurator V2
Bedienungsanleitung
DMX-Configurator V2
User Manual
IP Configurator (ArtNet Produkte)
Windows 32 & 64bit
IP Configurator
Anwendungshinweis
IP Configurator
Application Note
