DMX-Splitter 4 RDM+

 DMX-RELAIS 8 INRUSH+The DMX-RELAIS 8 INRUSH+ is designed for several control tasks.8 potential free switching outputsThe DMX-RELAIS 8 INRUSH has 8 potential free switching outputs (Closer / NO) up to 8A switching capacity.Switching contact for direct and alternating voltageThe relay interface is suitable to direct current (DC) or alternating current (AC).DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD) orto adopt a predefined value if the DMX signal fails.RDM supportThe DMX-RELAIS 8 INRUSH+ allows the configuration via RDM or DMX.Free RDM softwareFor setting the parameters via RDM, our free RDM Configurator softwareis available for download on our website www.dmx4all.de.Lockable device settingsThe RDM parameters Lock Pin and Lock State allow or prohibit changingsaved RDM parameters to prevent unauthorized changes.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address,operating mode and DMX FAIL behavior via RDM.Touch-ControlThe DMX-RELAIS 8 INRUSH+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Mute able LED-DisplayThe LED-Display at the DMX-RELAIS 8 INRUSH+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation.Several operation modesThe DMX-RELAIS 8 INRUSH+ offers various operation modes. Specifications  Power supply:12-24V DC (300mA @ 12V / 200mA @ 24V)  Protocol:DMX512 RDM  DMX-Channels:up to 8 DMX-channels  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second  Output:8 potential-free switching output (closer / NO) each max. 8A 165A@20ms Switch-on peak current  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:screw terminals  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX-RELAIS 8 INRUSH+Bedienungsanleitung DMX-RELAIS 8 INRUSH+User Manual

 ArtNet-Relais/Analog 4The ArtNet Relais/Analog Interface 4 is designed for switching loads of several kinds.4 relay and 4 analog outputsFour potential free contacts with up to 8A switching power are available.Additional four analog outputs with 0-10V or 1-10V can be used to control systems with analog inputs.DMX or Art-NetThe ArtNet Relais/Analog Interface 4 can controlled by a DMX signal or by an Art-Net (DMX over Ethernet) signal.DMX-HOLD functionA DMX-HOLD function can be activated. Then, the state of the relay and analog outputs is hold after losing the DMX signal. User-friendly ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.Power Supply for WiFi BridgeIn addition the ArtNet Relais/Analog Interface 4 has a USB connector providing a power supplywith 5V/500mA for external devices e.x. a WiFi-bridge.As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802NControll with AppThe controll of this device is possible by using the free Android-App "DMX Remote".Firmware-Update-FunctionIn order to take advantage of future features, the ArtNet Relais/Analog Interface 4 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe ArtNet Relais/Analog Interface 4 has another TCP communication interface.This interface uses the DMX4ALL-commands via TCP packets. Specifications  Power supply:12-24V DC / 250mA  Ethernet:RJ45  Input:4 up to 12 DMX-channels  Output:4 switching contacts each max. 8A / 250V~ (165A/20ms Switch-on peak current) 4x analog output 0-10V / 1-10V  DMX-FAIL:Hold / Off  Connectors:screw terminals  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  Dimensions:99 x 82mm  Protocol:Art-Net ™ DMX4ALL Commands Product DownloadsArtNet-Relais/Analog Interface 4Bedienungsanleitung ArtNet-Relais/Analog Interface 4User Manual ArtNet-Relais/Analog Interface 4Firmware

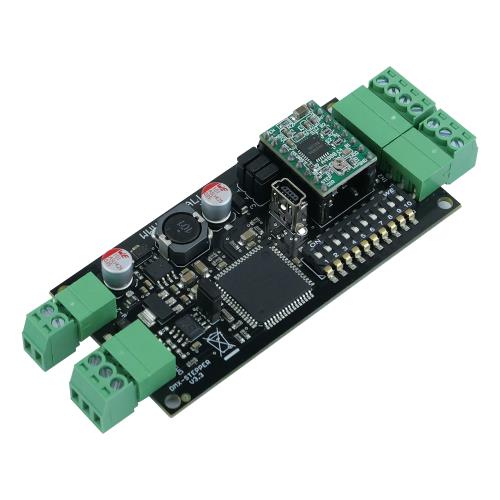

 DMX-Stepper-ControlThe DMX-Stepper-Control is designed for controlling a stepping motor (Stepper) via DMX.Several operating modesSeveral operating modes allow a continuous operation with variable speed or the starting of defined positions. The minimum and maximum step speed as well as the number of steps and number of positions can be set individually.RDM SupportThe DMX stepper control allows settings via RDM over DMX.Free RDM-SoftwareTo set the parameters via RDM, our free RDM Configurator software is available as download from our website www.dmx4all.de.Lockable Device SettingsThe RDM parameters Lock Pin and Lock State allow or avoid changings of saved RDM parameters in order to prevent unauthorized changes.Replaceable stepping motor driverThe standard Pololu A4988 step motor driver is suitable for power supplies from 8-24V and can control a current of 2A per phase.Alternatively, the stepper motor driver can also be replaced with a SilentStepStick with Trinamic TMC2100 / TMC2208 or, alternatively, an external stepper motor driver can be used with the BRIDGE stepper motor driver.Micro step operating modesThe following micro step operation modes are supported Full-Step (1/1) / Half-Step (1/2) / Quarter-Step (1/4) / Eighth-Step (1/8) / Sixteenth-Step (1/16)Left and Right End-SwitchInputs for a left and right end-switch allow the travel distance to be limited.These can optionally be deactivated after initialization.Activate / Deactivate the Step Motor DriverThe stepper motor driver can optionally be activated or deactivated via DMX.Settable Initialization processOptionally, initialization can be carried out after switching on. The number of steps left and right as well as step speed can be set for this process. The motor then moves left and right until the end switch is reached and saves this position as the initial point.Reset per DMXDuring operation the initialization process (Reset) can optionally be started via DMX. Specifications  Power supply:8-24V DC / 50 mA (without connected stepper)  Protocol:DMX512 RDM  DMX channels:1-5 DMX-channels (depending on adjusted mode)  Output driver:Pololu A4988 stepper driver (default) TMC2100 SilentStepStick (Optional accessory) TMC2208 (Optional accessory) Bridge for external Stepper Driver (Optional accessory)  Stepper-Voltage:8-24V DC (is equal to the power supply voltage)  Stepper-Current:max. 2A with Pololu A4988 stepper motor driver  Connection:Screw terminals  Dimensions:80mm x 39 mm Product DownloadsDMX-Stepper-ControlBedienungsanleitung DMX-Stepper-ControlUser Manual DMX-Stepper-ControlFirmware

 DMX STAGE-PROFI 1.1 PoE (XLR3)The DMX STAGE-PROFI 1.1 PoE is a compact Ethernet Interface (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected PoE devices to be configured via Art-Net™ using corresponding software.Muteable LED DisplayThe LED-Display at the DMX STAGE-PROFI 1.1 PoE is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 PoE is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 PoE can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 PoE offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 PoE has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:PoE according to IEEE 802.af   or 5V DC via attached external power supplyConnection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s DHCP PoE  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal programs:User-configurable stand-alone programs  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 PoEBedienungsanleitung DMX STAGE-PROFI 1.1 PoEUser Manual DMX STAGE-PROFI 1.1 PoEEthernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 PoEUSB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 PoEFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO
