Product number:
90-3908
Manufacturer:
DMX4ALL GmbH
Manufacturer product number:
90-3908
Weight:
0.12 kg
Delivery time:
1-3 days
Our payment methods:

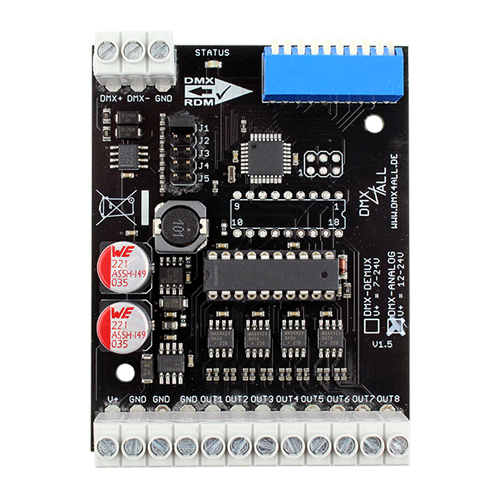

Product information "DMX-Analog 0-10V 8 channel"
DMX-Analog 0-10V 8-Kanal |

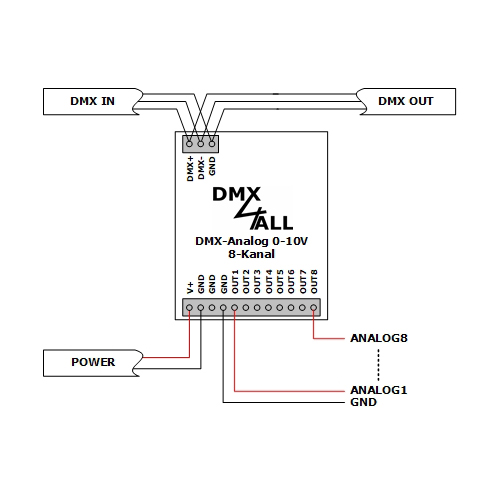

The DMX 0-10V Interface is especially designed to switch not-DMX-suitable devices with an analog input.
On the output 8 analog signals with 0-10V output voltage are available.
Each output is controllable via a DMX-channel and divided in 256 steps.
A output driver on each channel allows loads up to 10mA.
Specifications |
Power supply: | 12-24V DC |
Current consumption: | 50mA@12V; 40mA@24V |
(without connected load) | |
Protocol: | DMX512 |
RDM | |
DMX channels: | 8 channels |
DMX-FAIL | Hold / 0-100% |
Output: | 8 outputs with driver |
each max. 10mA | |
Resolution: | 256 steps (8-Bit), linear |
Connections: | screw terminals |
Dimensions: | 64mm x 82 mm |
Product Downloads |
