Wireless ArtNet-DMX 1.1
- Direct from the manufacturer
- dispatch within 24 hours
- Made in Germany
- technical support
Product information "Wireless ArtNet-DMX 1.1"
 Wireless ArtNet-DMX 1.1 |

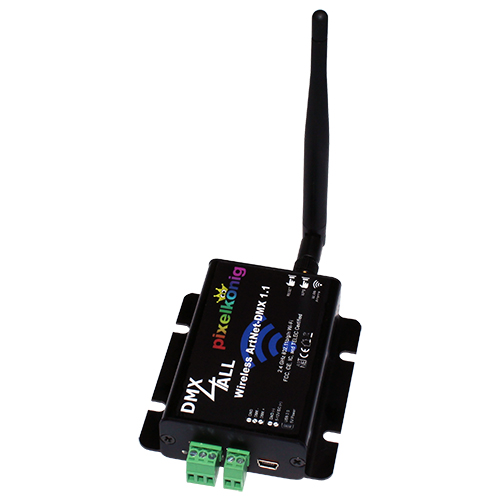

The Wireless ArtNet-DMX 1.1 is a compact Art-Net (DMX via Ethernet) interface which
includes a modern ARM® microcontroller.
Additional the Wireless ArtNet-DMX 1.1 has a certified 2.4GHz 802.11 b/g/n Wi-Fi (FCC, CE, IC, and TELEC)
for a direct connection to a Wi-Fi network.
Switchable DMX-line
The DMX-line is switchable according to usage. So Art-Net can be realized to DMX or DMX to Art-Net.
Adjustable DMX-Frame rate
Within the DMX-OUTPUT-MODE the frame rate is adjustable, so this interface is compatible to “slow” DMX-Devices.
Art-Net Merge-Function
Two Art-Net-sources will be joined outputted via LTP (Latest) or http (Highest) to the DMX-Output.
Switched off LED
The LEDs at the Wireless ArtNet-DMX 1.1 are suppressible via ArtNet-Command (AcLedMute) or time-controlled.
This is helpful on stages to avoid disturbing “light points”.

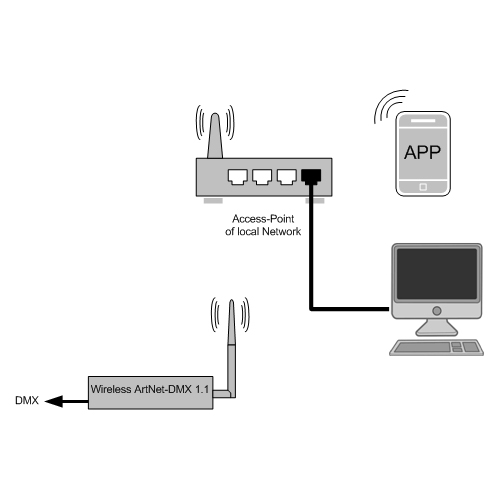

Fast launch with WPS
With the WPS-Function the registration to an Access-Point is possible at the touch of a button.
Without an additional installation of encodings, controllings can be integrated in existing networks
and allows an easy possibility of usage without additional network activities.
Easy Configuration
For an easy IP-Setting we provide free the IP-Configurator as PC-Tool or Android-App.
Supports IEEE 802.11 WEP/WPA/WPA2
For a secure Wi-Fi connection it is possible to use WEP/WPA/WPA2.
A OPEN connection is also possible.
High-quality and compact performance
The Wireless ArtNet-DMX 1.1 is built in compact aluminium housing.
Firmware-Update-Function
To use prospective and further functions the Wireless ArtNet-DMX 1.1
provides an integrated Firmware-Update-Function.
Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd
| Specifications |
| Power supply: | 5V/1A DC via included power supply |
| or 5-12V/1A via screw terminals | |
| Connection: | 2.4GHz 802.11 b/g/n Wi-Fi (FCC, CE, IC, and TELEC) |
| DMX: | Selectable: |
| - 512 channels OUT | |
| - 512 channels IN | |
| DMX-Framerate: | Adjustable |
| Protocol: | Art-Net ™ |
| Dimensions: | 100 x 55 x 25 mm (without antenna) |
| Product Downloads |
| Software & Tools |
