 DMX UNIVERSE DR6 RDM+The DMX UNIVERSE DR6 RDM+ is an Ethernet to DMX gateway with up to 6 bidirectionalDMX universes (DMX over Ethernet) and RDM functionality.6 DMX portsThe DMX UNIVERSE DR6 RDM+ offers 6 bidirectional DMX ports to which the DMX/RDM devices can be connected.The individual DMX ports can be configured independently.Galvanically decoupled DMX connectionsAll 6 DMX connections are each designed with their own galvanic isolation.Art-Net™ to DMX / DMX to Art-Net™The DMX direction can be switched per DMX port, depending on the usage.Adjustable FAIL functionEach DMX port offers a configurable FAIL function. This specifies the behavior if DMX or ArtNet data is missing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Synchronous DMX outputThe DMX output is synchronized by receiving ArtSync packets.RGB status displayThe RGB status display clearly shows the device status.RGB status display for DMX and RDMFor each DMX port, the DMX and RDM status is clearly displayed using RGB displays.Muteable LED displayThe LED-Display at the DMX UNIVERSE DR6 RDM+ is muteable via Art-Net™-Command (AcLedMute) ortime controlled. This is very helpful to avoid disturbing “light points” on stage.Easy Webbrowser-ConfigurationA user friendly configuration via web browser allows a fast and uncomplicated setting of all parameters.No special software is necessary, a standard web browser is enough. So, the configuration is possible anytime from PC, Smartphone or tablet.DMX-MonitorThe DMX monitor is available via the web interface. This means that the current DMX values can be displayedand checked simultaneously without any additional software.DMX-FaderThe DMX fader is available via the web interface. This allows the DMX values to be outputto be set without additional software.DHCPThe DMX UNIVERSE DR6 RDM+ has a DHCP function for automatic addressing in the network.Easy Network ConfigurationFor an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The net work settings can be leaved unchanged and the IP can be configured without any problems.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX UNIVERSE DR6 RDM+ can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX UNIVERSE DR6 RDM+ offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX UNIVERSE DR6 RDM+ has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages.For DIN Rail MountingThe design in a DIN rail housing with a width of 10.5cm / 6TE makes it easy to install in a control cabinet. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:Ethernet: RJ45 Power: Screw terminal DMX: Screw terminal  DMX:6 galvanically isolated ports each 512 channels OUT or 512 channels IN  RDM:RDM via Art-Net™  Data Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT  DMX-IN Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT  Protocol:Art-Net™ sACN (Unicast) DMX4ALL Commands  Status LED:Ethernet-Status (Green / Yellow) Device-Status (1x RGB) DMX-Status (6x RGB) RDM-Status (6x RGB)  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX UNIVERSE DR6 RDM+Bedienungsanleitung DMX UNIVERSE DR6 RDM+User Manual DMX UNIVERSE DR6 RDM+Firmware DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual

 DMX UNIVERSE DR6 RDMThe DMX UNIVERSE DR6 RDM is an Ethernet to DMX gateway with up to 6 bidirectionalDMX universes (DMX over Ethernet) and RDM functionality.6 DMX portsThe DMX UNIVERSE DR6 RDM offers 6 bidirectional DMX ports to which the DMX/RDM devices can be connected.The individual DMX ports can be configured independently.Galvanically decoupled DMX connectionsAll 6 DMX connections are each designed with their own galvanic isolation.Art-Net™ to DMX / DMX to Art-Net™The DMX direction can be switched per DMX port, depending on the usage.Adjustable FAIL functionEach DMX port offers a configurable FAIL function. This specifies the behavior if DMX or ArtNet data is missing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Synchronous DMX outputThe DMX output is synchronized by receiving ArtSync packets.RGB status displayThe RGB status display clearly shows the device status.Muteable LED displayThe LED-Display at the DMX UNIVERSE DR6 RDM is muteable via Art-Net™-Command (AcLedMute) ortime controlled. This is very helpful to avoid disturbing “light points” on stage.Easy Webbrowser-ConfigurationA user friendly configuration via web browser allows a fast and uncomplicated setting of all parameters.No special software is necessary, a standard web browser is enough. So, the configuration is possible anytime from PC, Smartphone or tablet.DMX-MonitorThe DMX monitor is available via the web interface. This means that the current DMX values can be displayedand checked simultaneously without any additional software.DMX-FaderThe DMX fader is available via the web interface. This allows the DMX values to be outputto be set without additional software.DHCPThe DMX UNIVERSE DR6 RDM has a DHCP function for automatic addressing in the network.Easy Network ConfigurationFor an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The net work settings can be leaved unchanged and the IP can be configured without any problems.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX UNIVERSE DR6 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX UNIVERSE DR6 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX UNIVERSE DR6 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX UNIVERSE DR6 RDM and thereforeideally suited for switch cabinet installation. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:Ethernet: RJ45 Power: Screw terminal DMX: Screw terminal  DMX:6 galvanically isolated ports each 512 channels OUT or 512 channels IN  RDM:RDM via Art-Net™  Data Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT  DMX-IN Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT  Protocol:Art-Net™ sACN (Unicast) DMX4ALL Commands  Status LED:Ethernet-Status (Green / Yellow) Device-Status (RGB)  Dimensions:99mm x 82mm Product DownloadsDMX UNIVERSE DR6 RDMBedienungsanleitung DMX UNIVERSE DR6 RDMUser Manual DMX UNIVERSE DR6 RDMFirmware DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual

<table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DMX/RDM-Sensor 4</strong></span></td>  </tr></table><br>The DMX/RDM-Sensor 4 is a converter with 4 signal inputs and can be used both as a DMX output device / DMX source or as an RDM device.<br><br><strong>Different Operation Modes</strong><br>The DMX/RDM-Sensor 4 can be run as DMX output device (inputs to DMX channels) or RDM device (inputs to sensor values).<br><br><strong>Four Analog- or Digital Inputs</strong><br> Each of the 4 inputs can be set independently as analog input (0-5V or 0-10V) or as digital input (Active Low or Active High).<br><br><strong>RDM Support</strong><br>The DMX/RDM-Sensor 4 can be configured via RDM using DMX.<br><br><strong>Sensor Values</strong><br>Via the RDM-Parameter SENSOR_VALUE for each of the 4 inputs the sensor values can be requested.<br><br><strong>Settable Average-Filter</strong><br>The average filter can be set for each input and can be used to create an average value that compensates for fluctuations in the input signal.<br><br><strong>Settable Slope Correction</strong><br>The output curve can be set for each input using the adjustable slope correction.<br><br><strong>Settable DMX-Addresses</strong><br>The DMX addresses can be set for each input, allowing the input signal to be output on up to 8 DMX channels.<br><br><strong>Settable Device Label</strong><br>The device label can be set for each input to name each sensor uniquely via RDM.<br><br><strong>Lockable Device settings</strong><br>The RDM parameters Lock Pin and Lock State allow or avoid changing saved RDM parameters to prevent unauthorized changes.<br><br><strong>Free RDM-Software</strong><br>For setting the parameters via RDM, our free RDM Configurator software is available for download on our website www.dmx4all.de.<br><br><strong>Top hat rail housing available</strong><br>The top-hat rail housing 350 or the top-hat rail housing 350 flat are available as accessories for the DMX/RDM-Sensor 4.<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br>  <!-- Specifications --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" border="0" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Specifications</strong></span></td>  </tr></table><table border="0" cellspacing="1" cellpadding="1">  <tr>    <td width="300">&nbsp;</td>    <td width="500">&nbsp;</td>  </tr>  <tr>    <td>Power supply:</td>    <td>12-24V DC</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>(150mA@12V / 100mA@24V)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Protocol:</td>    <td>DMX512</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>RDM</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Operation modes:</td>    <td>DMX (Inputs to DMX channels)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>RDM (Inputs to RDM sensor values)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Inputs:</td>    <td>4 Analog (0-10V) or Digital Inputs</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Connection:</td>    <td>Screw terminals</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Dimensions:</td>    <td>29,2mm x 82mm</td>  </tr></table><br><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Product Downloads</strong></span></td>  </tr></table><div id="dmx4all-buttons">  <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/dmx_rdm_sensor4_german.pdf" target="_blank">DMX/RDM-Sensor 4<br>  <span><span class="german-lang">Bedienungsanleitung</span></span></a>  <br>  <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/dmx_rdm_sensor4_english.pdf" target="_blank">DMX/RDM-Sensor 4<br>  <span><span class="english-lang">User Manual</span></span></a></div>

 MiniPixx 4.12 RDMThe MiniPixx 4.12 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:12V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 MiniPixx 4.5 RDMThe MiniPixx 4.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 MiniPixx 3.5 RDMThe MiniPixx 3.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-104max. 512 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel SK6812 / SK6822max. 512 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 DMX UNIVERSE DR1.1 RDMThe DMX UNIVERSE DR1.1 RDM is a compact bidirectional Ethernet Gateway whichcan be used for Art-Net™/TPM2/sACN to DMX/RDM or DMX to Art-Net™.With a standard RJ45 network connector the connection to the ArtNet is made.DMX direction selectableThe DMX direction can be switched depending on use.Adjustable DMX-FramerateIn DMX OUTPUT mode, the DMX framerate is adjustable so that this interface is compatible with "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™, which enables connected RDM devices to be configured via Art-Net™ with the appropriate software.Free RDM-SoftwareTo set parameters via RDM our free software RDM-Configurator is available as download on our website www.dmx4all.de .Muteable LED indicatorThe LED indicators on the DMX UNIVERSE DR1.1 RDM are muteable by Art-Net™ command (AcLedMute) or time-controlled.This is helpful to disturbing "points of light" especially on stages.DHCPThe DMX UNIVERSE DR1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX UNIVERSE DR1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy Webbrowser-ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.Compact designThe DMX UNIVERSE DR1.1 RDM is designed for mounting in a 350mm DIN rail housing.Use together with WiFi componentsIn conjunction with a WiFi-bridge the DMX UNIVERSE DR1.1 RDM can be integrated into standard WiFi networks.Firmware-Update-FunctionIn order to take advantage of future features, the DMX UNIVERSE DR1.1 RDM has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe DMX UNIVERSE DR1.1 RDM has another communication interface that is compatible withthe LAN-DMX STAGE-PROFI. This interface uses the DMX4ALL commands via TCP or UDP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:Ethernet: RJ45 Power/DMX: Screw terminal  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™  Data Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX-IN Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ TPM2 sACN (Unicast) DMX4ALL commands (as well as the LAN-DMX STAGE-PROFI)  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:29,2mm x 82mm Product DownloadsDMX UNIVERSE DR1.1 RDMBedienungsanleitung DMX UNIVERSE DR1.1 RDMUser Manual DMX UNIVERSE DR1.1 RDMEthernet VCP Driver 32 & 64bit - Version 1.10 DMX UNIVERSE DR1.1 RDMFirmware DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual

 DMX TwinPOE AP RDMThe DMX TwinPOE AP RDM is a compact ethernet interface (DMX via Ethernet),which can be used for Art-Net™/TPM2/sACN to DMX/RDM or DMX to Art-Net™.Two galvanically separated DMX UniversesThe DMX TwinPOE AP RDM offers two separated DMX connections which can be used as DMX-OUT or DMX-IN.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devicesto be configured via Art-Net™ using corresponding software.Multi-color LED displayThe LED-Display at the DMX TwinPOE AP RDM can be switched off via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.LSA-PLUS Quick connection technologyThe LSA insulation displacement technology allows the individual wires to beattached quickly (e.g. for network installation cables).Easy ConfigurationA user-friendly configuration via web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible any time from PC, Smartphone or tablet. Compact designThe DMX TwinPOE AP RDM with a size of 66mm x 66mm is suitable forinstallation in the optionally available wall-mounted housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Firmware-Update-FunctionTo be able to use future functions, DMX TwinPOE AP RDM offers a firmware update function.This can be started from the web browser, so no access to the device is necessary!DMX4ALL communication interfaceThe DMX TwinPOE AP RDM has an additional communication interface that uses DMX4ALL commands via TCP or UDP.Surface housing availableA surface-mounted housing suitable for the DMX TwinPOE AP RDM is available as an accessory. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:PoE with IEEE 802.af or 8-48V DC (200mA@12V; 110mA@24V; 65mA@48V)  Connection:Ethernet: LSA-PLUS connection Power: Screw terminals DMX: Pin header RM2,54  DMX:adjustable each DMX connection: - 512 channels OUT - 512 channels IN  DMX-Framerate:adjustable (5 - 44 fps)  RDMRDM via Art-Net™ on-/off switchable  DATA FAIL (DMX-OUT):HOLD last data CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX-IN FAIL (DMX-IN):NO DATA HOLD last data CLEAR all to 0% SET all to 100%  Protocol:Art-Net™ TPM2 sACN (Unicast) DMX4ALL commands  Internal program:User configurable Stand-Alone program  LED-Display:Multi-Color-LED (RGB)  Dimensions:66mm x 66mm Product DownloadsDMX TwinPOE AP RDMBedienungsanleitung DMX TwinPOE AP RDMUser Manual DMX TwinPOE AP RDMEthernet VCP Driver 32 & 64bit - Version 1.10 DMX TwinPOE AP RDMFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 DMX-Splitter 4 RDM+The DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.DMX and RDMIn contrast to pure DMX splitters, the RDM information is passed in bothdirections in addition to the DMX signal.RDM filterWhen the RDM filter is switched on, all RDM information are filtered out and no longer passedon to the outputs. This can prevent malfunction / flickering of non-RDM-capable devices.Settings possible via RDMThe DMX-Splitter 4 RDM is recognized as an independent RDM device and settings can be made via RDM.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit. The voltage range is between 8V up to 24V.3 RGB-LEDsThree RGB LEDs clearly indicate the current operating status.Touch-ControlThe DMX-Splitter 4 RDM+ has an integrated touch control field to turn on/off the RDM filter. Switchable LED-DisplayThe LED-Display at the DMX-Splitter 4 RDM+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation. Specifications  Power supply:8-24V DC  Power consumption:200mA@12V / 130mA@24V (no load)  Protocol:DMX512 RDM  Input:1x DMX512 / RDM  Output:4x DMX512 / RDM galvanically isolated  RDM filter:Can be switched on / off  TOUCH-Control:1 sensor button directly on the device and 3 RGB status LEDs  Connections:screw terminals  Dimensions:70mm x 90mm x 60mm Product DownloadsDMX-Splitter 4 RDM+Bedienungsanleitung DMX-Splitter 4 RDM+User Manual

 DMX-Splitter 4 RDMThe DMX-Splitter 4 RDM is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 RDM is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.DMX and RDMIn contrast to pure DMX splitters, the RDM information is passed in bothdirections in addition to the DMX signal.RDM filterWhen the RDM filter is switched on, all RDM information are filtered out and no longer passedon to the outputs. This can prevent malfunction / flickering of non-RDM-capable devices.Settings possible via RDMThe DMX-Splitter 4 RDM is recognized as an independent RDM device and settings can be made via RDM.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit. The voltage range is between 8V up to 24V.RGB-LED-DisplayThree RGB LEDs clearly indicate the current operating status.Top hat rail mounting availableSuitable for the DMX-Splitter 4 RDM the DIN rail housing 700 is available as accessory. Specifications  Power supply:8-24V DC  Power consumption:200mA@12V / 130mA@24V (no load)  Protocol:DMX512 RDM  Output:4x DMX512 / RDM galvanically isolated  RDM filter:Can be switched on / off  Connections:screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-Splitter 4 RDMBedienungsanleitung DMX-Splitter 4 RDMUser Manual

 USB-DMX STAGE-PROFI MK2 XLR3The USB-DMX STAGE-PROFI MK2 is designed for the rough stage environment.Housed in an aluminium housing with a Neutrik-XLR-female and screwable USB-und connecting-malethis interface offers all you need in a robust opeartion.The galvanic isolated DMX-output protects against dangerous electrical signals on the DMX-Bus.An external power supply during the operation is not necessarybecause the USB-interface can be used as power supply.To run this USB-DMX STAGE-PROFI MK2 Interface with existing softwarea virtual COM-Port applied in the system is needed.This allows a data transfer as well as the usage of a conventionally serial interface.Alternatively a direct access to the USB-driver from the user software is possible.Special features of the version USB-DMX STAGE-PROFI MK2:Galvanically isolated DMX-outputAluminium housingNeutrik XLR-feamle 3 pinScrewable USB connectionStandAlone function for replaying the light scenes without PC8k Byte memory for the StandAlone-light sceneThis interface will be supportet iuter alia: DMX-ConfiguratorFreeStyler (2nd Generation interface)DMXControl (Version2)PC_DimmerIP-SymconTLC (Theater Light Control)Light@NightVVVVMagicQ Specifications  Power supply:5V / 500mA via USB  PC-connection:USB 1.1 / USB 2.0  DMX-output:512 channels galvanicallly isolated DMX output 3 pin XLR-female  Dimensions:32mm x 27mm x 90mm  USB-driver:FTDI D2XX & VCP (virtaul COM-Port)  Operating system:Windows® 7,Windows® 8 Product DownloadsUSB-DMX STAGE-PROFI MK2Bedienungsanleitung USB-DMX STAGE-PROFI MK2User Manual USB-DMX STAGE-PROFI MK2USB Driver Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

 USB-DMX STAGE-PROFI MK2 XLR5The USB-DMX STAGE-PROFI MK2 Interface is designed for the rough stage environment.Housed in an aluminium housing with a Neutrik-XLR-female and screwable USB-und connecting-male this interface offers all you need in a robust opeartion.The galvanic isolated DMX-output protects against dangerous electrical signals on the DMX-Bus. An external power supply during the operation is not necessarybecause the USB-interface can be used as power supply. To run this USB-DMX STAGE-PROFI MK2 Interface with existing softwarea virtual COM-Port applied in the system is needed.This allows a data transfer as well as the usage of a conventionally serial interface.Alternatively a direct access to the USB-driver from the user software is possible.Special features of the version USB-DMX STAGE-PROFI MK2:Galvanically isolated DMX-outputAluminium housingNeutrik XLR-feamle 5 pinScrewable USB connectionStandAlone function for replaying the light scenes without PC8k Byte memory for the StandAlone-light sceneThis interface will be supportet iuter alia: DMX-ConfiguratorFreeStyler (2nd Generation interface)DMXControl (Version2)PC_DimmerIP-SymconTLC (Theater Light Control)Light@NightVVVVMagicQ Specifications  Power supply:5V / 500mA via USB  PC-connection:USB 1.1 / USB 2.0  DMX-output:512 channels galvanicallly isolated DMX output 5 pin XLR-female  Dimensions:32x27x90 mm  USB-driver:FTDI D2XX & VCP (virtaul COM-Port)  Operating system:Windows® 7,Windows® 8 Product DownloadsUSB-DMX STAGE-PROFI MK2Bedienungsanleitung USB-DMX STAGE-PROFI MK2User Manual USB-DMX STAGE-PROFI MK2USB Driver Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

 DMX-RELAIS 8 INRUSHThe DMX-RELAIS 8 INRUSH is designed for several control tasks.8 potential free switching outputsThe DMX-RELAIS 8 INRUSH has 8 potential free switching outputs (closer / NO) up to 8A switching capacity.Switching contact for direct and alternating voltageThe relay interface is suitable to direct voltage (DC) or alternating voltage (AC).DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD)or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-RELAIS 8 INRUSH allows the configuration via RDM or DMX.Free RDM softwareFor setting the parameters via RDM, our free RDM Configurator softwareis available for download on our website www.dmx4all.de.Lockable device settingsThe RDM parameters Lock Pin and Lock State allow or prohibit changingsaved RDM parameters to prevent unauthorized changes.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address,operating mode and DMX FAIL behavior via RDM.LED-State DisplayThe DMX state is indicated via the LED status.Several operation modesThe DMX-RELAIS 8 INRUSH offers several operating modes which can be set via RDM:- Hysteresis 127/128- Hysteresis 0/1- Hysteresis 100/150- Exclusive- Monostable 1SecondTop hat rail mounting availableSuitable for the DMX-RELAIS 8 INRUSH the DIN rail housing 1050 is available as accessory.Together with the top-hat rail housing 1050, the interface is optimally suited for control cabinet installation. Specifications  Power supply:12-24V DC (280mA @ 12V / 180mA @ 24V)  Protocol:DMX512 RDM  DMX-Channels:8 DMX-channels  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second  Output:8 potential-free switching output (closer / NO) each max. 8A 165A@20ms Switch-on peak current  Connectors:screw terminals  Dimensions:99mm x 82mm Product DownloadsDMX-RELAIS 8 INRUSHBedienungsanleitung DMX-RELAIS 8 INRUSHUser Manual

 DMX-Splitter 4The DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit.The voltage range is between 8V up to 24V.Compact design for top hat rail mountingThe DMX-Splitter 4 is suitable for installation in top hat rail mountingswith a width of 7cm due to its small size.LED-DisplayTwo LEDs show clearly the current operation mode.Top hat rail mounting availableSuitable for the DMX Splitter 4 the DIN rail housing 700 is available as accessory. Specifications  Power supply:8-24V DC (350mA@12V; 200mA@24V)  Input:512 channels  Output:4x 512 channels galvanically isolated  Connections:screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-Splitter 4Bedienungsanleitung DMX-Splitter 4User Manual

 ArtNet-DMX Mux24The ArtNet-DMX Mux24 has 16 digital inputs and 8 additional inputs which are adaptableanalog or digital. The output occurs via ArtNet and DMX. For each input the function (Mode) as well as the channels to control are adjustable. A user-friendly configuration via a web browser allows a fast an uncomplicatedsetting for all parameters. The firmware of the ArtNet-DMX Mux24 can be update easy over the network. Specifications  Power supply:7-24V DC / 0,5A  Ethernet:1x RJ45  DMX-OUT:1x 512 channels  Inputs:16x Long Distance Digital Input 8x Analog Eingang or Long Distance Digital Eingang  Mode:Switch Button On Button Off Button On/Off Dimmer Up/Down Dimmer Up Dimmer Down Button On + Dimmer Up Button Off + Dimmer Down Button On/Off + Dimmer Up/Down Analog 0-10V Analog 0-5V Analog 1-10V  Timer:4 configureable timer  Dimensions:99 x 82 x 20mm Product DownloadsArtNet-DMX Mux24Bedienungsanleitung ArtNet-DMX Mux24User Manual ArtNet-DMX Mux24Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-DMX Mux16The ArtNet-DMX Mux16 has 16 digital inputs which are given to a ArtNet and DMX output..Each input can act to one or more output channels and the mode is selectable.A user-friendly configuration by using the webinterface allows a fast and uncomplicated setting of all parameters.The firmware of the ArtNet-DMX Mux16 can be update easy over the network. Specifications  Power supply:7-24V DC / 0,5A  Ethernet:1x RJ45  DMX-OUT:1x 512 channels  Inputs:16x Long Distance Digital Input  Mode:Switch Button On Button Off Button On/Off Dimmer Up/Down Dimmer Up Dimmer Down Button On + Dimmer Up Button Off + Dimmer Down Button On/Off + Dimmer Up/Down  Dimensions:99 x 82 x 20mm Product DownloadsArtNet-DMX Mux16Bedienungsanleitung ArtNet-DMX Mux16User Manual ArtNet-DMX Mux16Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 DMX-Adressmodul mit LED-DisplayThe DMX-Address module with LED-Display is a helpful additionalmodule which is grinded in the DMX-Line.The DMX-Channels can be shift up as well as down within the DMX-Universes (shiften).The usage occurs via two buttons. The operation mode as well asthe value (DMX-Address) can be adjusted. Specifications  Power supply:5V DC / 50mA  DMX-Input:512 channels  DMX-Output:up to 512 channels  DMX-Output LOAD:Driver for 32 devices (LOAD-UNITs)  Signal delay:~ 0,1µs (Adress-Mode / Shift-Down) ~ 25ms (ChannelAdd-Mode / Shift-Up)  Dimensions:60mm x 30mm Product DownloadsDMX-Adressmodul mit LED-DisplayBedienungsanleitung DMX-Adressmodul mit LED-DisplayUser Manual

 DMX STAGE-PROFI 1.1 RDM (XLR3)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAMDMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR3)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR3)User Manual DMX STAGE-PROFI 1.1 RDM (XLR3)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR3)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR3)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual

 HUB75E Dot-Matrix ControlThe HUB75E Dot-Matrix Control is a controller for controlling several Dot-Matrix-Displays.Up to 5440 RGB-PixelUp to 5440 RGB pixels can be controlled by the HUB75E Dot-Matrix Control.Adjustable Dot-Matrix ParameterThe parameters for the dot matrix are adjustable. So, different dot-matrixdisplays can be controlled via the HUB75E Dot-Matrix Control.Art-Net™ or TPM2.netThe data transfer occurs per Art-Net™ or TPM2.net.Muteable Status-LEDsThe LED-Display on the HUB75E Dot-Matrix Control is disengageable via ArtNet-Command (AcLedMute)or via time control. This is very helpful on stages to avoid disturbing “light points”.Easy Configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible any time by PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems. Combinable with WiFi-ComponentsIn connection with a WLAN-Bridge the HUB75E Dot-Matrix Control can be integrated in a WLAN-Network.Firmware-Update-FunctionTo use future functions the HUB75E Dot-Matrix Control provides a Firmware-Update-Function.This can be started from a web browser, so no direct access to the device is necessary!This Interface will be supported from:Madrix - LED Lighting Control SolutionsDMX-ConfiguratorJinx!or any other software with ArtNet-output Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC (200mA@5V)  Connection:Ethernet: RJ45 Power: pin screw clamp HUB75E: 16pin connector  Data Fail:Hold Blackout Saved Picture  Dot-Matrix Parameter:Panel number (1-10) Panel width (32, 64, 96, 128) Panel height (8, 16, 32, 64) Panel Scan Rate (1/4, 1/8, 1/16, 1/32) Panel RGB Groups (1, 2) Color depth (3-24 Bit)  Protocol:Art-Net™ 4 (max 32 universes) TPM2.net (max 16384 channels)  Color sequence:RGB  User Picture:User configurable output which is outputted after power on or after data fail  Status LED:Green: Ethernet-Connection available Yellow: Data are transferred  Dimensions:80mm x 50,5mm (without screw clamps)  Delivery includes:1x HUB75E Dot-Matrix Control 1x Screw connection clamps 2 pin 1x Quick guide german / english Product DownloadsHUB75E Dot-Matrix ControlBedienungsanleitung HUB75E Dot-Matrix ControlUser Manual HUB75E Dot-Matrix ControlFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 DMX STAGE-PROFI 1.1 RDM (XLR5)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR5  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR5)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR5)User Manual DMX STAGE-PROFI 1.1 RDM (XLR5)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR5)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR5)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual

 DMX-RELAIS 8 INRUSH+The DMX-RELAIS 8 INRUSH+ is designed for several control tasks.8 potential free switching outputsThe DMX-RELAIS 8 INRUSH has 8 potential free switching outputs (Closer / NO) up to 8A switching capacity.Switching contact for direct and alternating voltageThe relay interface is suitable to direct current (DC) or alternating current (AC).DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD) orto adopt a predefined value if the DMX signal fails.RDM supportThe DMX-RELAIS 8 INRUSH+ allows the configuration via RDM or DMX.Free RDM softwareFor setting the parameters via RDM, our free RDM Configurator softwareis available for download on our website www.dmx4all.de.Lockable device settingsThe RDM parameters Lock Pin and Lock State allow or prohibit changingsaved RDM parameters to prevent unauthorized changes.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address,operating mode and DMX FAIL behavior via RDM.Touch-ControlThe DMX-RELAIS 8 INRUSH+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Mute able LED-DisplayThe LED-Display at the DMX-RELAIS 8 INRUSH+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation.Several operation modesThe DMX-RELAIS 8 INRUSH+ offers various operation modes. Specifications  Power supply:12-24V DC (300mA @ 12V / 200mA @ 24V)  Protocol:DMX512 RDM  DMX-Channels:up to 8 DMX-channels  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second  Output:8 potential-free switching output (closer / NO) each max. 8A 165A@20ms Switch-on peak current  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:screw terminals  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX-RELAIS 8 INRUSH+Bedienungsanleitung DMX-RELAIS 8 INRUSH+User Manual

 DMX-LED-Dimmer X9HR+The DMX-LED-Dimmer X9HR+ is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR+ has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V).0% to 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR+ operates with supply voltages from 12V up to 24V.The LED voltage can be different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lost DMX signal thecurrent state (HOLD) or to adopt a predefined value if the DMX signal fails.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs) orone master dimmer per RGB group. The global master dimmer is fixed at DMX address 1 andcan be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR+ allows configuration by RDM via DMX.SubDevice-ModeWithin the SubDevice Mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.Touch-ControlThe DMX-LED-Dimmer X9HR+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR+ offers a firmware update function. Specifications  Power supply:7-24V DC 100mA@12V / 150mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling and LookUp-Table 18 channels with 16Bit-controlling + optional Master-Dimmer-Channels  Output:9 PWM-signal common supply voltage anode (PLUS)  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  CTRL output:Control output for switching off the load power supply units (Energy-Save)  StandAlone function:9 internal StandAlone programs  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:Screw terminals  Dimensions:105mm x 90mm x 60mm Produkt DownloadsDMX-LED-Dimmer X9 HR+Bedienungsanleitung DMX-LED-Dimmer X9 HR+User Manual DMX-LED-Dimmer X9 HR+USB DriverVersion 6.0.0.0 DMX-LED-Dimmer X9 HR+Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 DMX-Splitter 6+The DMX-Splitter 6+ is a compact DMX-Divider with one DMX-Input signal which providesthese at six galvanically isolated outputs.6 galvanically isolated outputsThe DMX-Splitter 6+ is a compact DMX-Divider with one DMX-Input signal which providesthese at four galvanically isolated outputs.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit.The voltage range is between 8V up to 24V.Compact design for top hat rail mountingDue to its small size, the DMX Splitter 6+ is suitable for installationon DIN rails with a width of 10.5 cm.LED-DisplayA multicolor LED clearly indicates the current operating status. Specifications  Power supply:8-24V DC (350mA@12V; 200mA@24V)  Input:512 channels  Output:6x 512 channels galvanically isolated  Status Display:Multi-color LED  Connections:screw terminals  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX-Splitter 6+Bedienungsanleitung DMX-Splitter 6+User Manual

 ArtNet PixxControl PX2+The ArtNet PixxControl PX2+ is a compact ArtNet (DMX over Ethernet) interface,which converts ArtNet directly to two independent control signals for several digital LEDs.For the ArtNet network connection a standard RJ45 network connector is used.Two independent outputs with selectable pixel data protocolThe ArtNet PixxControl PX2+ has two outputs, independently configurable. The pixel data protocol (control signal)for different LED pixel types and other parameters can be selected separately for each output.Selectable color sequenceThe RGB color sequence is adjustable, which allows flexible uses. It is also possible to control RGBW pixels.Furthermore, a SingleColor option can be selected, where each pixel needs only one channel.Adjustable pixel groupThe ArtNet PixxControl PX2+ supports pixel groups with adjustable length.Each pixel group behaves like a single pixel controlled via 3 DMX channels (RGB) or 4 DMX channels (RGBW).That reduces channels in installations with many pixels.Voltage monitoringBoth data outputs are equipped with a voltage input, which allows monitoring of the LED voltage supplyvia the network. The voltage values can be called via RDM or with the web interface.CTRL OutputThe CTRL output can be used to switch off the power supply for the LED installation as soon as theArtNet PixxControl PX2+ does not receive any data after 5 minutes or the connected digital LEDs don’t light up.5 RGB-LED-DisplayFive RGB LEDs display the current operating status of the ArtNet PixxControl PX2+ and the output ports clearly.Muteable LED-DisplayThe LED displays on the ArtNet PixxControl PX2+ can be switched off via ArtNet command (AcLedMute),RDM (DISPLAY_LEVEL) or time-controlled. This is especially helpful on stages to avoid disturbing "light spots".Easy ConfigurationA user-friendly configuration via a web browser allows quick and uncomplicated setting of all parameters.No special software is needed a normal web browser is enough. This means that the configuration ispossible at any time from a PC, smartphone or tablet.To set the IP address easily, the IP Configurator is offered as free download as a PC tool or Android app.This allows the network settings of the PC or Android device to remain unchanged in order toconfigure the IP of the ArtNet PixxControl PX2+.RDMThe important parameters such as the pixel type, the pixel group size or the color sequence can be set individuallyfor both data outputs via RDM. Also the voltage values of the LED power supply can be called via RDM.Combinable with WiFi componentsThe ArtNet PixxControl PX2+ can be integrated into WLAN networks in combination with a WLAN bridge.Firmware update functionTo use future functions, the ArtNet PixxControl PX2+ offers a firmware update function.The update can be started from a web browser, so no access to the device is necessary! Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:RJ45 Ethernet  12pin screw terminal  Protocol:Art-Net™ 4 (downward compatible) RDM  LED types:APA-101, APA-104, APA-102,max. 1360 pixel per output DycoLED PB3, DycoLED PB5,  GS8208,  INK1002, INK1003,  LC8808,  LPD1101, LPD8803, LPD6803, LPD8806,  LPD1886 8Bit, LPD1886 12Bit (8Bit controlled),  SK6812, SK6822, SK9822,  SM16703,  TM1804, TM1812, TM1814, TM1829, TM1934,  UCS1903, UCS1912, UCS2903, UCS2912,  WS2801, WS2811, WS2812, WS2812B,  WS2813, WS2815, WS2818, WS2821     LPD1886 12Bit (12Bit controlled),max. 680 pixel per output UCS9812 (8Bit controlled), UCS9812 (16Bit controlled)     DMX512max. 512 DMX channels per output  Color Sequence:RGB selectable / RGBW SingleColor white, red, green, blue  Pixel groups:1 up to 127 pixel / all  Gamma correction:Selectable for LPD1886 12Bit (8Bit controlled), UCS9812 (8Bit controlled)  LED-Display:5 RGB Status-LED Ethernet-Status-LEDs yellow and green  Dimensions:70mm x 90mm x 60mm Product DownloadsArtNet PixxControl PX2+Bedienungsanleitung ArtNet PixxControl PX2+User Manual ArtNet PixxControl PX2+Firmware

 PixxSplitter DR8+The PixxSplitter DR8+ is a manifold for a digital LED signal to up to 8 connected digital LED-Strips.Up to 999 RGB or RGBW pixels can be connected to each output.The input signal, coming from a pixel controller, contains control information for all connected pixels.This allows to control up to 8 different digital LED-Strip elements with just one control unit. The wiring is radial.In the Default-Setting, the number of pixels on each output is set to 100 RGB pixels.In total a pixel controller drives 800 RGB pixels, whereby the first 100 pixels (pixels 1-100) are connected to output 1,the second 100 pixels (pixels 101-200) to output 2, etc. Specifications  Power supply:8-24V / 100mA 5V / 100mA via Mini-USB connector  Input:Control signal for digital LED stripes  Output:8x control signal for digital LED stripes  Compatible LED-Types:SK6812 GS8208 WS2811, WS2812(B) INK1002, INK1003  Color sequence:RGB / RGBW (selectable)  Number of pixel/output:1 - 999 pixel  Display:4 digit 7 segment display 1x RGB-LED  Controls:3 buttons (UP / DOWN / MENU)  Dimensions:105mm x 90mm x 60mm Produkt DownloadsPixxSplitter DR8+Bedienungsanleitung PixxSplitter DR8+User Manual PixxSplitter DR8+USB Driver PixxSplitter DR8+Firmware

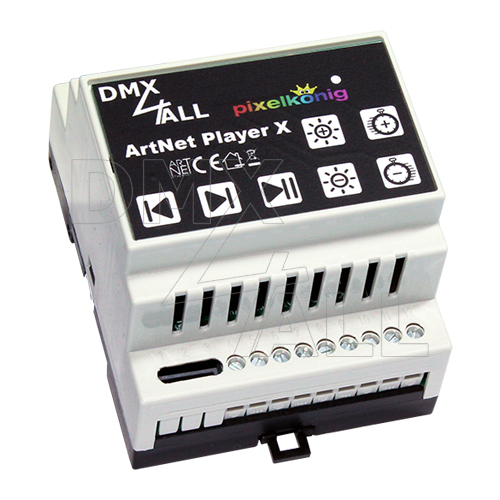

 ArtNet Player X16+The ArtNet Player X16+, in the following only called ArtNet Player X,is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitiveand user-friendly despite numerous and new functions in the handling.This is possible by the well-structured user interface of the device's own web interface, available for the settings.The essential actions can be set directly on the device, thanks to the clearly designed touch paneland an external access is not needed. An overview of the current status is provided by the integrated RGB LED.Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player Xcan be used to play lighting programs from SD card. Different file formats can be used, which can be created withthe DMX Configurator or used as TPM2 files from freely available software.With up to 16 universes, a maximum of 8192 channels can be output via the network with just one ArtNet Player X.Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 16 configurable timerscan be defined individually. For each timer one or several days can be assigned as well as the start time.Furthermore, the playback duration as well as the hourly playback with adjustable time window can be set optionally.The current time is needed for the correct processing the timers. This setting is done either via the device's ownweb interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specificationvia network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause anyproblems when mounting the switching elements.The ArtNet Player X is convincing and combines a multitude of useful and innovative functions undera top-hat rail housing in its space-saving, compact design.Replay up to 16 DMX UniversesThe ArtNet Player X can output up to 16 DMX universes via Art-Net / sACN.Output via Art-Net or sACNThe DMX universes to be output can be output via Art-Net or sACN.Synchronization of sveral devicesIf more DMX universes are needed, several ArtNet Player X can be synchronized.Two galvanically separate DMX connectionsOn the ArtNet Player X there are 2 galvanically isolated DMX connections.These can be configured as DMX-OUT or DMX-IN.Remote-FunctionThe ArtNet Player X has a configurable remote function. Remote control ispossible via DMX, Art-Net, sACN, HTTP request or DMX4ALL Commands.8 LongDistance inputs8 configurable digital inputs are available for connecting buttons or switches.The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.Touch HandlingThere are 7 touch fields for operation on the ArtNet Player X as well as an RGB display LED.Switchable LED DisplayThe LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,to avoid disturbing "light spots " especially on stage.RGB-FilterA quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.The selected colors can be filtered as needed without editing the previously created program.Firmware-Update-FunctionThe firmware update function enables to use always the free, current device software.Different data files for lighting programsThe ArtNet Player X plays the lighting programs from the SD card.The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.Easy ConfigurationFast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,due to the user-friendly configuration via any web browser.Free SoftwareFor creating the programs our free software DMX-Configurator can be used, which is availablein the current FREE version as download on our website www.dmx4all.de. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connections:RJ45 Ethernet Screw terminals  Ethernet:10 Mbit/s | 100 Mbit/s  Art-Net™ / sACN:16 universes up to 8192 channels  DMX2x galvanically isolated Switchable DMX OUTPUT / DMX INPUT DMX OUTPUT: DMX512 DMX INPUT: DMX512 / RDM  Device-Sync:Synchronisation of several devices  Remote-Options:DMX Art-Net™ sACN HTTP-Request DMX4ALL Commands  Digital Input:8 configurable Long Distance-Inputs  Timer:Up to 16 configurable timer for executing programs Hourly execution with adjustable time slot  TOUCH-Control:7 sensor buttons directly on the device for quick operation and RGB status display  SD Card:microSD up to 16GB  Playback format:DMX4ALL program files TPM2 files TPM2NET files  Status display:RGB-LED, network status LEDs all disengageable  Features:RGB-Filter Firmware-Update-Function Silent without a fan  Optional Equipment:DCF77 receiver  Dimension:70mm x 90mm x 60mm Product DownloadsArtNet Player XBedienungsanleitung ArtNet Player XUser Manual ArtNet Player XFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note Application NotesArtNet Player X mit ArtNet-DMX MUX fernsteuernAppNote Remote control Player X with ArtNet-DMX MUXAppNote

 DMX-Splitter 4 RDM+The DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.4 galvanically isolated outputsThe DMX-Splitter 4 RDM+ is a compact DMX and RDM distributor that makes a DMX input signalavailable again at four galvanically isolated outputs.DMX and RDMIn contrast to pure DMX splitters, the RDM information is passed in bothdirections in addition to the DMX signal.RDM filterWhen the RDM filter is switched on, all RDM information are filtered out and no longer passedon to the outputs. This can prevent malfunction / flickering of non-RDM-capable devices.Settings possible via RDMThe DMX-Splitter 4 RDM is recognized as an independent RDM device and settings can be made via RDM.Extremely light constructionExtremely light DC/DC converters are used for galvanic isolation.Power supply via one power supply unitThe power supply occurs via one power supply unit. The voltage range is between 8V up to 24V.3 RGB-LEDsThree RGB LEDs clearly indicate the current operating status.Touch-ControlThe DMX-Splitter 4 RDM+ has an integrated touch control field to turn on/off the RDM filter. Switchable LED-DisplayThe LED-Display at the DMX-Splitter 4 RDM+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation. Specifications  Power supply:8-24V DC  Power consumption:200mA@12V / 130mA@24V (no load)  Protocol:DMX512 RDM  Input:1x DMX512 / RDM  Output:4x DMX512 / RDM galvanically isolated  RDM filter:Can be switched on / off  TOUCH-Control:1 sensor button directly on the device and 3 RGB status LEDs  Connections:screw terminals  Dimensions:70mm x 90mm x 60mm Product DownloadsDMX-Splitter 4 RDM+Bedienungsanleitung DMX-Splitter 4 RDM+User Manual

 NanoDMX USB InterfaceThe NanoDMX USB Interface is an "adapter-cable" which allows an easy controlling of DMX-capable devices via PC.By using the USB-port no power supply is neccessary.Each interface is equipped with a micro-controller serving the values for all 512 channels andgenerating a DMX-signal without loading the PC.To run this NanoDMX USB Interface with an existing software a virtual COM-Port will be applied.This allows that the data transfer takes place such by using a conventionally serial interface.This interface will be supported inter alia:DMX-ConfiguratorFreeStyler (3rd Generation interface)DMXControl V2PC_DimmerIP-SymconTLC (Theater Light Control)Light@NightVVVVMagicQLumiDMX Specifications  Voltage power:5V / 250mA over USBPC Connection:USB 1.1 / USB 2.0DMX Output:512 channels fast mode: 44 frames/sec slow mode: 33 frames/secConnection:3 pin XLR-female connectorCable length:ca. 1mUSB-Driver:CDC-driver (virtual Com Port)Operation system:Windows 7, Windows 8/8.1 Product DownloadsNanoDMX USB InterfaceBedienungsanleitung NanoDMX USB InterfaceUser Manual NanoDMX USB InterfaceUSB Driver Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

 Digital LED Tube RGB WS2811LED-Stab mit 16 einzeln ansteuerbaren LED-Pixeln und 360° Abstrahlung.Je Pixel sind 2 LEDs vorhanden, insgesamt 32 LEDs (5050) pro Stab.Für die Befestigung ist eine Metallöse vorhanden.Einfacher Anschluss durch 3poligen Steckeranschluß und 2 Litzen für die Spannungsversorgung.Mehrere Stäbe müssen in einer Linie hintereinandergeschaltet werden.Die Spannung muss nach jedem 2. Stab neu zugeführt werden. Technische Daten  Spannungsversorgung:5V  Leistungsaufnahme:max. 9,6W pro Stab  LED:32x 5050 RGB  LED Controller:WS2811 oder WS2812(B)  Pixelanzahl:16  Helligkeitsstufen:256 je Farbe  Ausführung:IP54  Betriebstemperatur:0 – 45°C  Länge:0,5m  Durchmesser:18mm Produkt DownloadsDigital LED Tube RGB WS2811Bedienungsanleitung

 Adam Hall 7850 XLR3 SteckerXLR Plug male black Specifications  Manufactor:Adam Hall  Part number:7850  Color:black  Model:XLR male  Pole number:3  Material:Metal / cap plastic  Type of contact:Soldering  Mounting:Cable  Cable diameter:8mm

 Adam Hall 7849 XLR3 BuchseXLR Plug female black Specifications  Manufactor:Adam Hall  Part number:7848  Color:black  Model:XLR female  Pole number:3  Material:Metal / cap plastic  Type of contact:Soldering  Mounting:Cable  Cable diameter:8mm

HICON SGHN-0500-SW XLR-Kabel 5m 3polSommer Cable SGHN-0500-SWThe Stage 22 Highflex is a high-quality, very reasonably priced cable with awire gauge of 2 x 0,22 mm² (AWG 24) and a 6.4 mm thick supersoft PVC jacket.It is filled with PVC almost all the way to the core and allows for excellent reeling.We supply it with HICON HI-X3CM or HI-X3CF XLR connectors, with a 6-fold strain relief.- Outside diameter 6,4 mm, 2x 0,12 mm²- 1 XLR-plug 3pin to 1 XLR-jack 3pin- Length: 5 m Specifications  Length:5m  Manufactor:Sommer cable  Partnumber:SGHN-0500-SW  Name:Stage 22 Highflex  Inner conductor:2x 0,22 mm²  Connector:HICON  Type:XLR 3-pol female / XLR 3-pol male

HICON SGHN-0100-SW XLR-Kabel 1m 3polSommer Cable SGHN-0100-SWThe Stage 22 Highflex is a high-quality, very reasonably priced cable with awire gauge of 2 x 0,22 mm² (AWG 24) and a 6.4 mm thick supersoft PVC jacket.It is filled with PVC almost all the way to the core and allows for excellent reeling.We supply it with HICON HI-X3CM or HI-X3CF XLR connectors, with a 6-fold strain relief.- Outside diameter 6,4 mm, 2x 0,12 mm²- 1 XLR-plug 3pin to 1 XLR-jack 3pin- Length: 1 m Specifications  Length:1m  Manufactor:Sommer cable  Partnumber:SGHN-0100-SW  Name:Stage 22 Highflex  Inner conductor:2x 0,22 mm²  Connector:HICON  Type:XLR 3-pol female / XLR 3-pol male

 NeoPixel SK6812 RGBW 1/4 60 RingWith four of these you can make a huge ring with 60 ultra bright smart LED NeoPixelsare arranged in a circle with a 6.2" diameter. Each order comes with just the quarter ring.Four of this item are required to make a large ring. You will have to solder them together as well,so for the full ring of 60 LEDs, buy four and solder them together! Also, you'll need to give thesemechanical backing, the solder joints are only for electrical signal, not strong enough to hold it together.The rings are 'chainable' - connect the output pin of one to the input pin of another.Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constantcurrent drive so the color will be very consistent even if the voltage varies, and no externalchoke resistors are required making the design slim. Power the whole thing with 5VDC and you're ready to rock.Comes with one quarter ring of 15x individually addressable RGB LEDs assembled and tested.We recommend you buy four to build the full circle as this is just the 1/4 of the circle.To control the following devices can be used:- ArtNet PixxControl PX1- ArtNet PixxControl PX2- ArtNet PixxControl PX2+- ArtNet Multi PixxControl- DMX PixxControl DR- SD-Player 8 Specifications  Power supply:5V DC  Leistungsaufnahme:max. 0,4W pro LED  LED:5050 4in1 RGBW (5500-6000K)  LED Controller:SK6812  Pixelanzahl:15  Brightness levels:256 for each color  Distance between LEDs:10mm  Input:3 solder joints  Output:3 solder joints  Outer diameter of the whole ring (four together):15,8cm / 6.2"  Inner diameter of the whole ring (four together):14,3cm / 5,625"

 Digital LED-Stripe RGB LPD8806!!! Discontinued - while stocks last !!!The LED-Stripe LPD8806 has 260 single controllable LED's (Pixel) by a length of 5m (52 Pixel/m).There are running lights up to rainbow effects possible. Easy to install and perfect as striking decoration lighting!- easy separable between every 2 LEDs- assembled with 260 RGB LEDs - self-adhesive backside- divided connection for power supply and data line To control the following devices can be used:- ArtNet PixxControl PX1- ArtNet PixxControl PX2- ArtNet PixxControl PX2+- ArtNet Multi PixxControl- DMX PixxControl DR- SD-Player 8 Specifications  Power supply:5V DC  max. Power:15,6 W/m  LED Typ:260x RGB  Number of Pixel:260  Pixel-Pitch:19,23 mm  Brightness values:256 per colour  Angle of radiation:per LED ca. 120°  LED-Controller:LPD8806  Length / Wide:5m / 16mm  Carrier material:white / self-adhesive backside  Connectors:Input: JST-SM4 female / DC-Connector Output: JST-SM4 male

 Digital LED-Stripe RGB UCS9812This new high-resolution digital LED Stripe with 16-bit resolution per color and offering 65536 levels of brightness!The LED stripe has on a length of 5m 280 individually controllable LEDs (pixels) which is 56Pixel/m. There are running lights, color moves or rainbow effects possible. Easy to install and perfect as striking decoration lighting! - easy separable after 4 LEDs- assembled with 280 RGB SMD5050-LEDs with UCS9812 LED-Controller- 65536 brightness leverl for each color- self-adhesive backside- Controlling via our ArtNet Multi PixxControl / MultiPixx DMX-Controller / NanoPixx DMX-Controller / NanoSD Player Specifications  Power supply:5V DC  max. Power:16,8 W/m  LED Typ:SMD5050 RGB  Number of Pixel:280 pices  Pixel-Pitch:17,86 mm  Cutable:after 4 LEDs (7,2cm)  Brightness value:65536 per colour  Angle of radiation:per LED ca. 120°  LED-Controller:UCS9812 with 16Bit resolution  Length / Wide:5m / 14mm  Carrier material:white / self-adhesive backside  Connectors:Input: JST-SM3 male / DC-Connector Output: JST-SM3 female Product DownloadsDigital LED-Stripe RGB UCS9812Digitale LED-Stripes

 XLR-Kabelbuchse 5pol- XLR panel socket, 5pins female- With locking mechanism- Metal housing- with rubber anti-kink sleeve Specifications  Connection:XLR 5 female  Color:Silver

 MEANWELL LPV-100-5 (5V/12A/60W)- Universal input- Plastic enclosure IP67- Overload protection, pulsing hiccup shutdown, auto recovery- Protections: short circuit/over load/over voltage- Fixed output voltage- Manufactor: MEANWELL- Manufactor order code: LPV-100-5Note:Devices only for use in equipment with another primary purpose such as photocopiers,overhead projectors and slide projectors or for scale illumination or indication purposes.Suitable for indoor use and outdoor use without direct sunlight exposure.Please avoid immerse in the water over 30 minutes. Specifications  Output voltage:5V  Output current, max:12A (0...12A)  Input voltage:90...264V AC (47...63Hz) 127...370V DC  Input Inrush Current, max.:75A  Over Current Protection:110...150%  Operating Temperature:-25...+70°C  Weight:630g Produkt DownloadsLPV-100User Manual

 DMX-Stepper-ControlThe DMX-Stepper-Control is designed for controlling a stepping motor (Stepper) via DMX.The extensive configuration is done via RDM.Several operating modesSeveral operating modes allow a continuous operation with variable speed or the starting of defined positions. The minimum and maximum step speed as well as the number of steps and number of positions can be set individually.RDM Support The DMX stepper control allows settings via RDM over DMX.Free RDM-SoftwareTo set the parameters via RDM, our free RDM Configurator software is available as download from our website www.dmx4all.de.Lockable Device SettingsThe RDM parameters Lock Pin and Lock State allow or avoid changings of saved RDM parameters in order to prevent unauthorized changes.Replaceable stepping motor driverThe standard Pololu A4988 step motor driver is suitable for power supplies from 8-24V and can control a current of 2A per phase.Alternatively, the stepper motor driver can also be replaced with a SilentStepStick with Trinamic TMC2100 / TMC2208 or, alternatively, an external stepper motor driver can be used with the BRIDGE stepper motor driver.Micro step operating modesThe following micro step operation modes are supported Full-Step (1/1) / Half-Step (1/2) / Quarter-Step (1/4) / Eighth-Step (1/8) / Sixteenth-Step (1/16)Left and Right End-SwitchInputs for a left and right end-switch allow the travel distance to be limited.These can optionally be deactivated after initialization.Activate / Deactivate the Step Motor DriverThe stepper motor driver can optionally be activated or deactivated via DMX.Settable Initialization processOptionally, initialization can be carried out after switching on. The number of steps left and right as well as step speed can be set for this process. The motor then moves left and right until the end switch is reached and saves this position as the initial point.Reset per DMXDuring operation the initialization process (Reset) can optionally be started via DMX. Specifications  Power supply:8-24V DC / 50 mA (without connected stepper)  Protocol:DMX512 RDM  DMX channels:1-5 DMX-channels (depending on adjusted mode)  Output driver:Pololu A4988 stepper driver (default) TMC2100 SilentStepStick (Optional accessory) TMC2208 (Optional accessory) Bridge for external Stepper Driver (Optional accessory)  Stepper-Voltage:8-24V DC (is equal to the power supply voltage)  Stepper-Current:max. 2A with Pololu A4988 stepper motor driver  Connection:Screw terminals  Dimensions:80mm x 39mm Product DownloadsDMX-Stepper-ControlBedienungsanleitung DMX-Stepper-ControlUser Manual DMX-Stepper-ControlUSB DriverVersion 6.0.0.0 DMX-Stepper-ControlFirmware

 Hutschienengehäuse 1050Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:105.0 mm (6 module)Label dimensions:41.0 x 100.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 36Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 1050Maßzeichnung

 Hutschienengehäuse 700Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:70.0 mm (4 Module)Label dimensions:41.0 x 65.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 24Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 700Maßzeichnung

 NanoDMX USB InterfaceThe NanoDMX USB Interface is an "adapter-cable" which allows an easy controlling of DMX-capable devices via PC.By using the USB-port no power supply is neccessary.Each interface is equipped with a micro-controller serving the values for all 512 channels andgenerating a DMX-signal without loading the PC.To run this NanoDMX USB Interface with an existing software a virtual COM-Port will be applied.This allows that the data transfer takes place such by using a conventionally serial interface.This interface will be supported inter alia:DMX-ConfiguratorFreeStyler (3rd Generation interface)DMXControl V2PC_DimmerIP-SymconTLC (Theater Light Control)Light@NightVVVVMagicQLumiDMX Specifications  Voltage power:5V / 250mA over USBPC Connection:USB 1.1 / USB 2.0DMX Output:512 channels fast mode: 44 frames/sec slow mode: 33 frames/secConnection:3 pin XLR-female connectorCable length:ca. 1mUSB-Driver:CDC-driver (virtual Com Port)Operation system:Windows 7, Windows 8/8.1 Product DownloadsNanoDMX USB InterfaceBedienungsanleitung NanoDMX USB InterfaceUser Manual NanoDMX USB InterfaceUSB Driver Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

 Schrittmotortreiber BRIDGEThe stepper motor driver BRIDGE can be used to connect external stepper motor drivers to the DMX-Stepper-Control.The signals STEP, DIR and ENABLE are bridged by the stepper motor driver BRIDGE to the motor connectionand can thus be used for the control of an external stepper motor driver.Can be used together with our DMX-Stepper-Control.For detailed information, please refer to the instructions for the DMX-Stepper-Control. Technische Daten  Motordriver:none (EXTERNAL)  Connection:2x 8 pin row  Dimensions:15,2mm x 20,3mm  Delivery:1x EXTERNAL DRIVER BRIDGE with presoldered pin row Product DownloadsSchrittmotortreiber BRIDGEBedienungsanleitung Schrittmotortreiber BRIDGEUser Manual

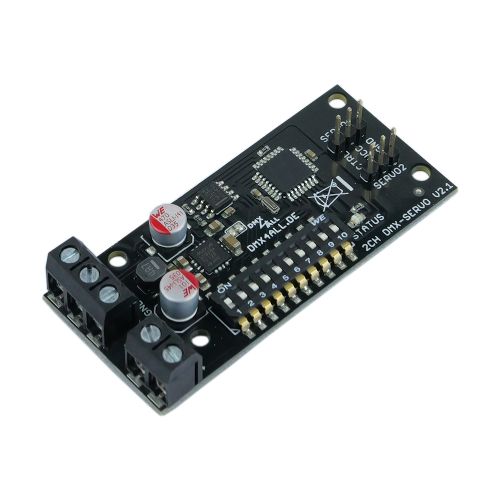

 DMX-Servo-Control 2The DMX-Servo-Control 2 is designed for controlling of two servos via DMX.Two ServosThe DMX Servo Control 2 has two servo ports. Each can be controlled via one DMX channel.Servos with 5V up to 12V DC can be usedThe supply voltage of the DMX-Servo-Control 2 is between 5V and 12V. Servos with a supply voltage within this range can be connected directly.Adjustable Servo control signalThe controlling occurs via an adjustable pulse width.Compact DesignThe design and the compact construction allows an installation of this small assembly in areas that do not offer much space.LED-DisplayThe integrated LED is a multifunctional display for showing the current device status.DMX AddressingThe DMX addressing is settable via a 10-position DIP switch.RDM SupportThe DMX Servo Control 2 allows configuration via RDM over DMX. Specifications  Power supply:5-12V DC / 50mA without connected servo  Protocol:DMX512 RDM  Servo voltage:5-12V DC (corresponds to the supply voltage)  Servo-Power:max. 3A in sum for both servos  DMX-Channels:2 Channels  Connection:Screw terminals/pin header  Dimensions:30mm x 67 mm Product DownloadsDMX-Servo-Control 2Bedienungsanleitung DMX-Servo-Control 2User Manual Application NotesDC-Motor Steuerung per DMXAppNote DC motor control with DMXAppNote

 DMX-Universal-Demux8 outputs with open-collector driverThere are 8 outputs with open collector output driver for controlling external devices.Voltages from 12V up to 24VThe DMX-Universal-Demux operates with supply voltages from 12V up to 24V.Different operation modesBy jumper the operating mode of the DMX-Universal-Demux can be selected.Available are the operation modes Threshold / Binär / PWM / Servo / Strobo.Controllable via DMXThe DMX-Universal-Demux is controlled by DMX and uses 1 or 8 DMX channels depending on the operating mode.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD)or to change to a predefined value in case of DMX signal failure.RDM supportThe DMX-Universal-DMX allows the configuration via RDM or DMX.LED status displayThe LED status display shows the DMX reception.DIN rail housing availableThe DIN rail housing 700 is available as an accessory for the DMX-Universal-Demux. Specifications  Supply voltage:7-24V DC  Current consumption:40mA@12V / 35mA@24V (without load)  Protocol:DMX512 RDM  DMX channels:1 or 8 channels (depending on adjusted mode)  Output:8 open-collector outputs max. 500mA  DMX-FAIL:HOLD / 0-100%  Operation mode:Threshold (switches at 50%) Binary (8-Bit) PWM (~175Hz) Servo Strobo Monostable 1 Second  Connection:Screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-Universal-DemuxBedienungsanleitung DMX-Universal-DemuxUser Manual

 DMX-Player XSThe DMX-Player XS is a DMX StandAlone device.The scenes created with the DMX-Configurator can be loaded on the device via RS232.The stored scenes can be replayed without a computer. An application in live operation with a connected PC is possible too. By the easy using an application in decoration and presentation areas will be possible.  Specifications  Power supply:7-12V DC / 50mA  PC-connection:RS 232 !!! USB-RS232 adapter should be with FTDI chip !!!  DMX-output:512 channels  Program memory:8 kByte for one light scene 5 pin screw terminal  Dimensions:29,2 x 82 mm Product DownloadsDMX-Player XSBedienungsanleitung DMX-Player XSUser Manual Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 Kabelset DCable set to connect external controlling elements. Compatible with: - DMX-Player S- DMX-Player L Specifications  Implementation:AWG26  Connection:20 pin male  Length:~ 25cm
