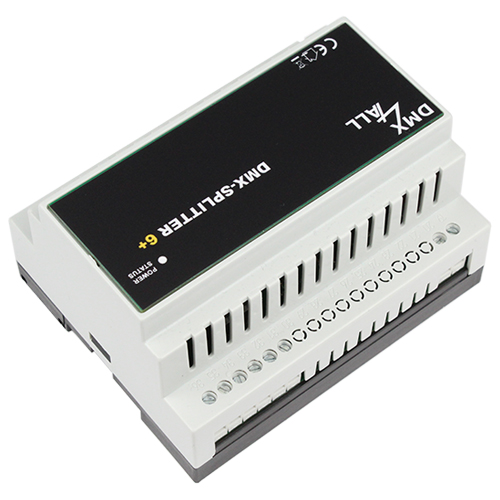

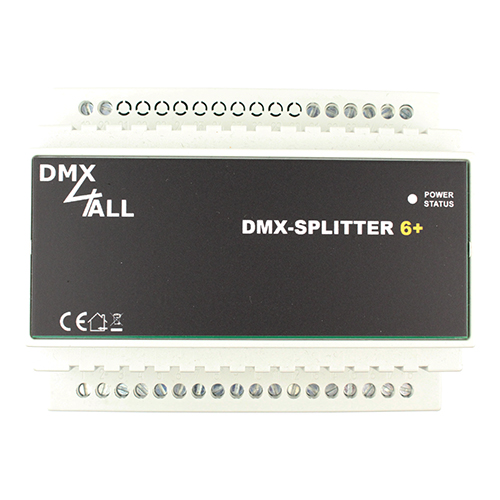

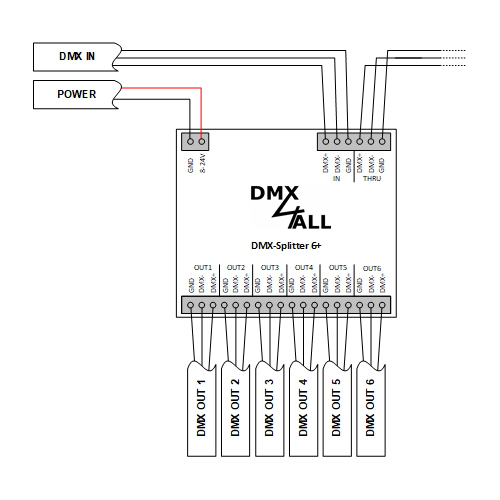

DMX-Splitter 6+

 DMX-RELAIS 8 INRUSH+The DMX-RELAIS 8 INRUSH+ is designed for several control tasks.8 potential free switching outputsThe DMX-RELAIS 8 INRUSH has 8 potential free switching outputs (Closer / NO) up to 8A switching capacity.Switching contact for direct and alternating voltageThe relay interface is suitable to direct current (DC) or alternating current (AC).DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD) orto adopt a predefined value if the DMX signal fails.RDM supportThe DMX-RELAIS 8 INRUSH+ allows the configuration via RDM or DMX.Free RDM softwareFor setting the parameters via RDM, our free RDM Configurator softwareis available for download on our website www.dmx4all.de.Lockable device settingsThe RDM parameters Lock Pin and Lock State allow or prohibit changingsaved RDM parameters to prevent unauthorized changes.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address,operating mode and DMX FAIL behavior via RDM.Touch-ControlThe DMX-RELAIS 8 INRUSH+ is designed with 3 touch fields for operation and a 7-segment display.RGB-Status displayVia a RGB status display the DMX reception is shown.Mute able LED-DisplayThe LED-Display at the DMX-RELAIS 8 INRUSH+ can be switched off via RDM command or time-controlled,so that no disturbing light sources are present during operation.Several operation modesThe DMX-RELAIS 8 INRUSH+ offers various operation modes. Specifications  Power supply:12-24V DC (300mA @ 12V / 200mA @ 24V)  Protocol:DMX512 RDM  DMX-Channels:up to 8 DMX-channels  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second  Output:8 potential-free switching output (closer / NO) each max. 8A 165A@20ms Switch-on peak current  Display:7 segment display RGB LED  TOUCH-Control:3 touch buttons  Connectors:screw terminals  Dimensions:105mm x 90mm x 60mm Product DownloadsDMX-RELAIS 8 INRUSH+Bedienungsanleitung DMX-RELAIS 8 INRUSH+User Manual

 DMX-Servo-Control 2The DMX-Servo-Control 2 is designed for controlling of two servos via DMX.Two ServosThe DMX Servo Control 2 has two servo ports. Each can be controlled via one DMX channel.Servos with 5V up to 12V DC can be usedThe supply voltage of the DMX-Servo-Control 2 is between 5V and 12V. Servos with a supply voltage within this range can be connected directly.Adjustable Servo control signalThe controlling occurs via an adjustable pulse width.Compact DesignThe design and the compact construction allows an installation of this small assembly in areas that do not offer much space.LED-DisplayThe integrated LED is a multifunctional display for showing the current device status.DMX AddressingThe DMX addressing is settable via a 10-position DIP switch.RDM SupportThe DMX Servo Control 2 allows configuration via RDM over DMX. Specifications  Power supply:5-12V DC / 50mA without connected servo  Protocol:DMX512 RDM  Servo voltage:5-12V DC (corresponds to the supply voltage)  Servo-Power:max. 3A in sum for both servos  DMX-Channels:2 Channels  Connection:Screw terminals/pin header  Dimensions:30mm x 67 mm Product DownloadsDMX-Servo-Control 2Bedienungsanleitung DMX-Servo-Control 2User Manual Application NotesDC-Motor Steuerung per DMXAppNote DC motor control with DMXAppNote

 DMX-DSI/DALI-Interface 8This DMX-DSI/DALI-Interface 8 controls electronic ballast with DSI or DALI-interface.8 output signals direct on clamp.Each output will be controlled via a DMX-channel.The switching between DSI- and DALI-operation occurs via a switch for all outputs.  Specifications  Power supply:12-24V DC / 100mA  Input:8 DMX-channels  Output:8x DSI or DALI each output controlled via one DMX-channel (broadcast)  Connection:Screw terminals  Dimensions:64,2 x 82 mm Product DownloadsDMX-DSI/DALI-Interface 8Bedienungsanleitung DMX-DSI/DALI-Interface 8User Manual

 Adam Hall DMX-Kabel (Meterware)The Adam Hall 4 STAR D 234 is perfectly suited for transmission of DMX signals.Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances,thanks to its bigger cross-section. This highly flexible cable is easy to wind,and thanks to its larger diameter also very robust and therefore also well suitedfor hard road applications.- Adam Hall 4 Star "Standard" Series- Highly flexible, easy to reel- Good shielding thanks to dense copper spiral shielding- Larger inner conductor of 2 x 0.34 mm²- PVC jacket of 6.5 mm diameterDelivery as a section (yard goods) or 100m on a drum. Technische Daten  Type:DMX & AES/EBU Cable  Color:Black  Overall diameter:6,5 mm  AWG:22  Center conductor cross section:0,34mm²  Center conductor material:OFC  Number of internal conductors:2  Shield:Tin-plated copper braided shield  Line surge impedance:120 Ohm  Temperature range:-20 - +70°C  Application:DMX  Sales unit:Sold by the meter as a section or 100 meters on drum  Manufacturer:Adam Hall

 Sommer Cable DMX-Kabel 110 Ohm (Meterware)Das DMX-Kabel ist eine hervorragende Leitung zur Übertragung von Digitalsignalenim 110 Ω AES/EBU und DMX Datenformat. Es besitzt eine Schirmung aus einem aluminiumbedampften Vlies und einem Cu-Spiralwendelschirm mit 100 % Bedeckung.Es ist dadurch sehr gut gegen elektrische Einflüse geschüzt.Vorteile:- Optimale Schirmung durch die Verwendung eines dichten Cu-Wendelschirms + AL/PT-Folie bzw. AL-Vlies- Kompakt und dadurch platzsparendAnwendung:- Professionelle Studio- und Mikrofontechnik- Verbindung von Effektgeräten und Steuereinheiten, bei denen ein Return-Signal benötigt wird- Industrie- und Medizintechnik- Professionelle MIDI-Technik, Überspielkabel- High-End Verbindung von HiFi-Geräten- Steuerung von Licht- und Scanneranlagen und DisplaysLieferung als Abschnitt (Meterware) oder 100m auf Trommel. Technische Daten  Eigenschaften:Digital 110 Ω AES / EBU OFC hochreines Kupfer  Anwendung:DMX  Farbe:Schwarz  Signalübertragung:symmetrisch  Aufbau:(2LI2Y0,22mm²)(ST)DY  Bauform:Rund  Durchmesser:5 mm  Verkaufseinheit:Meterware als Abschnitt oder 100 Meter auf Trommel  BPVo-Euroklasse:Fca  Hersteller:Sommer Cable

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO
