DMX-DSI/DALI-Interface 8

€95.08*

Content: 1 Stck.

Prices incl. VAT plus shipping costs

32 at stock.

Das Versandversprechen gilt nur für Artikel, die im Online Shop als DMX4ALL GmbH - DMX und RDM-Technik Made in Germany

angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).

Delivery time: 1-3 days

Piece

Product number: 90-0268

Manufacturer: DMX4ALL GmbH

Manufacturer product number: 90-0268

Weight: 0.125 kg

Delivery time: 1-3 days

Our benefits

Direct from the manufacturer
dispatch within 24 hours
Made in Germany
technical support

Our payment methods:

Product information "DMX-DSI/DALI-Interface 8"

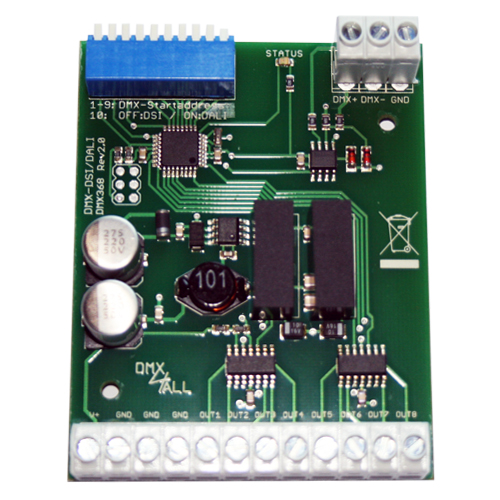

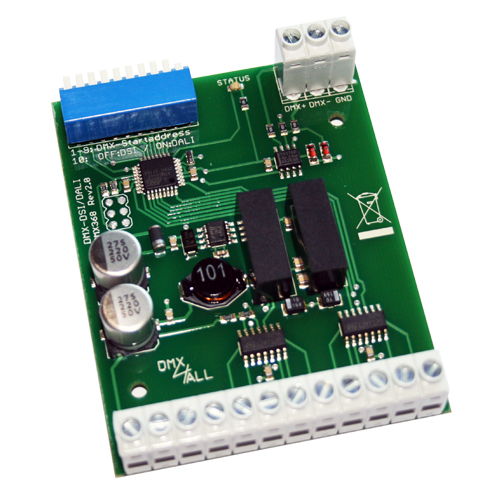

DMX-DSI/DALI-Interface 8

This DMX-DSI/DALI-Interface 8 controls electronic ballast with DSI or DALI-interface.

8 output signals direct on clamp.

Each output will be controlled via a DMX-channel.

The switching between DSI- and DALI-operation occurs via a switch for all outputs.

Specifications


Power supply:	12-24V DC / 100mA

Input:	8 DMX-channels

Output:	8x DSI or DALI
	each output controlled via one DMX-channel (broadcast)

Connection:	Screw terminals

Dimensions:	64,2 x 82 mm

Product Downloads

DMX-DSI/DALI-Interface 8
Bedienungsanleitung
DMX-DSI/DALI-Interface 8
User Manual

Manufacturer "DMX4ALL GmbH"

Wir bieten
professional space with a human face

Die DMX4ALL GmbH ist ein Ingenieurbüro mit dem Produktschwerpunkt der Licht- und Steuerungs- technik basierend auf dem ARTNET,DMX512 und RDM Protokoll. Der Familienbetrieb entwickelt und produziert seit 2004 elektronische Schaltungen für Clubs, Bühne und Beleuchtung. Die Produktpalette ist mit den Bedürfnissen der Kunden gewachsen und reicht heute vom einfachen DMX-Dekoder über verschiedene Abspieler und ArtNet PoE Interfaces bis hin zu modernen LED-Dimmern Stepper und innovativen LED Pixel-Kontrollern.

Related links of the manufacturer

We recommend the following for this product:

Module enclosure 700 for DIN-rail

Hutschienengehäuse 700Module housing for M36-DIN-standard rail. Specifications Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:70.0 mm (4 Module)Label dimensions:41.0 x 65.0 mmFlammability:in confomity with UL94-VO Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 24Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 700Maßzeichnung

Product number: 50-0061

Delivery time: 1-3 days

€10.91*

MEANWELL HDR-15-12 (12V/1,25A/15W)

MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

Product number: 50-0121

Delivery time: 1-3 days

€22.99*

MEANWELL HDR-60-12 (12V/4,5A/54W)

MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

Product number: 50-0122

Delivery time: 1-3 days

€23.53*

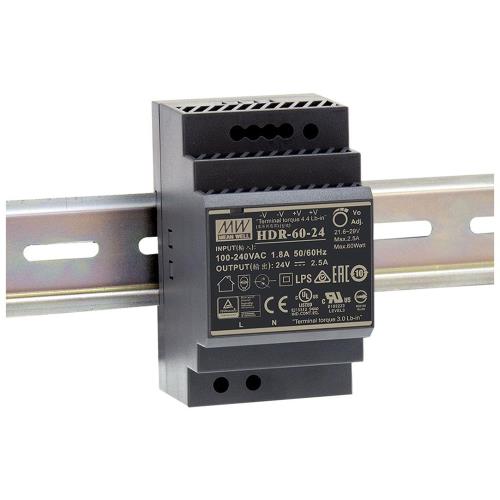

MEANWELL HDR-60-24 (24V/2,5A/60W)
