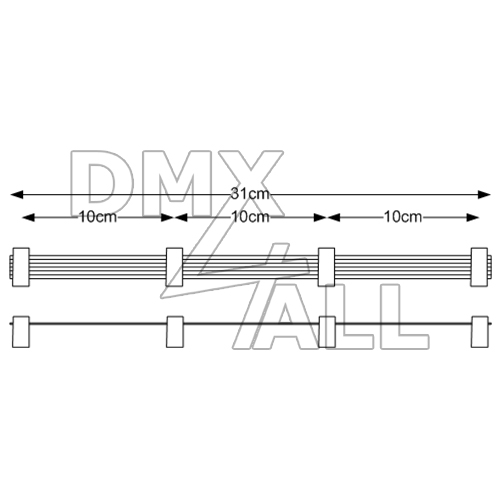

Cable for TWI Extension 4fold

 TWI Analog ExtensionThe TWI Analog Extension is an additional module available for DMX-Player L MK2to regulate the brightness or speed via a potentiometer.The jumper specifies whether brightness or speed is to be controlled.Several additional modules can be connected to the TWI-Connection, so with one TWI Analog Connectionthe brightness can be controlled and with another TWI-Connection the speed is adjustable. Specifications  Power supply:5V DC via TWI-Connection  Connection:10-pin header for TWI  Potentiometer-Connection:3 pin screw terminal RM5  Resolution:256 values  Dimensions:38mm x 16mm Product DownloadsTWI Analog ExtensionBedienungsanleitung TWI Analog ExtensionUser Manual

 TWI Programmdisplay ExtensionThe TWI program display extension is an add-on module thatdisplays the currently running program.Furthermore there are 2 buttons for UP and DOWN to select the program. Specifications  Power supply:5V DC / 50mA  Display:4-digit 7-segment display  Program selection:2 buttons (UP/DOWN)  Connection:10-pin header for TWI  Dimensions:60mm x 30mm Product DownloadsTWI program display extensionBedienungsanleitung TWI program display extensionUser Manual

 DMX-Player L MK2The ArtNet-DMX STAGE-PROFI 1.1 is a compact ArtNet (DMX over Ethernet) interface whichcan be used for ArtNet to DMX or DMX to ArtNet. With a standard RJ45 network connector the connection to the ArtNet is made.DMX direction selectableThe DMX direction can be switched depending on use (ArtNet to DMX or DMX to ArtNet).Adjustable DMX-FramerateIn DMX OUTPUT mode, the DMX framerate is adjustable so that this interface is compatible with "slow" DMX devices.ArtNet Merge-FunctionTwo ArtNet sources are output with LTP (Latest) or HTP (Highest) merged on the DMX output.Muteable LED indicator/strong>The LED indicators on the ArtNet-DMX STAGE-PROFI 1.1 are muteable by ArtNet command (AcLedMute) or time-controlled.This is helpful to disturbing "points of light" especially on stages.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and compact designArtNet DMX STAGE-PROFI 1.1 is designed with a 3-pin Neutrik metal XLR connector inside a compact aluminum body.Use together with WiFi componentsIn conjunction with a WiFi-bridge the ArtNet-DMX STAGE-PROFI 1.1 can be integrated into standard WiFi networks.As WiFi-bridge we suggest: TP-Link MiniRouter TL-WR702N oder TP-Link Nano Router TL-WR802NFirmware-Update-FunctionIn order to take advantage of future features, the ArtNet-DMX STAGE-PROFI 1.1 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceArtNet DMX STAGE-PROFI 1.1 has another TCP communication interface that is compatible with the LAN-DMX STAGE-PROFI.This interface uses the DMX4ALL-commands via TCP packets. Specifications  Power supply:7–24 V (~45mA @ 12V / ~22mA @ 24V)  Output:DMX signal with 512 channels  Inputs:             Connection:         Program memory:1MByte internal FLASH or optional MicroSD Card (not included)  Control:external switches / matrix    Functions:       Dimensions:64,2mm x 82mm Product DownloadsDMX-Player L MK2Bedienungsanleitung DMX-Player L MK2User Manual DMX-Player L MK2USB Driver 32 & 64bit - Version 6.0.0.0 DMX-Player L MK2Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

 SD-Player 8The SD-Player 8, in the following only called ArtNet Player X,is the first Stand-Alone Controller from DMX4ALL, offered in different model versions.Depending on the needed application, the ArtNet Player X is available in different designs and functionalities.As usual, the ArtNet Player X is also quickly ready for use in DMX4ALL manner and remains intuitiveand user-friendly despite numerous and new functions in the handling.This is possible by the well-structured user interface of the device's own web interface, available for the settings.An overview of the current status is provided by the integrated RGB LED.Whether as a board version or as compact ready-made device with comfortable touch operation, the ArtNet Player Xcan be used to play lighting programs from SD card. Different file formats can be used, which can be created withthe DMX Configurator or used as TPM2 files from freely available software.With up to 4 universes, a maximum of 2048 channels can be output via the network with just one ArtNet Player X.Even in larger installations, handling across several devices remains easy and clear thanks to Master-Slave operation.The ArtNet Player X offers the possibility to execute programs comfortably time-controlled. Up to 4 configurable timerscan be defined individually. For each timer one or several days can be assigned as well as the start time.Furthermore, the playback duration can be set optionally.The current time is needed for the correct processing the timers. This setting is done either via the device's ownweb interface, the optionally available DCF77 Key with DCF77 sensor or according to the ArtNet specificationvia network-based ArtTimeSync packages. DCF77 allows an automatic adjustment to summer / winter time.The configurable digital inputs integrated in the ArtNet Player X allow operation by remote pushbuttons,making additional devices obsolete. Designed as a LongDistance inputs, even larger distances do not cause anyproblems when mounting the switching elements.The ArtNet Player X is convincing and combines a multitude of useful and innovative functions undera top-hat rail housing in its space-saving, compact design.Replay up to 4 DMX UniversesThe ArtNet Player X can output up to 4 DMX universes via Art-Net.Output via Art-NetThe DMX universes to be output can be output via Art-Net.Synchronization of sveral devicesIf more DMX universes are needed, several ArtNet Player X can be synchronized.Two galvanically separate DMX connectionsOn the ArtNet Player X there are 2 galvanically isolated DMX connections,one DMX-OUT and one DMX-IN.Remote-FunctionThe ArtNet Player X has a configurable remote function. Remote control ispossible via DMX, Art-Net, HTTP request or DMX4ALL Commands.8 LongDistance inputs8 configurable digital inputs are available for connecting buttons or switches.The inputs are designed as LongDistance Inputs, so the switching elements can also be installed in greater distance.Switchable LED DisplayThe LED displays on the ArtNet Player X can be switched off by ArtNet command or time-controlled,to avoid disturbing "light spots " especially on stage.RGB-FilterA quick and uncomplicated change of the defined color in the program is allowed by the RGB filter.The selected colors can be filtered as needed without editing the previously created program.Firmware-Update-FunctionThe firmware update function enables to use always the free, current device software.Different data files for lighting programsThe ArtNet Player X plays the lighting programs from the SD card.The DMX4ALL program files as well as TPM2 or TPM2NET can be used as data formats.Easy ConfigurationFast and uncomplicated configuration is possible at any time from a PC, smartphone or tablet,due to the user-friendly configuration via any web browser.DIN rail housing availableThe DIN rail housing 700 is available as accessory for the ArtNet Player X.Free SoftwareFor creating the programs our free software DMX-Configurator can be used, which is availablein the current FREE version as download on our website www.dmx4all.de. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connections:RJ45 Ethernet Screw terminals  Ethernet:10 Mbit/s | 100 Mbit/s  Art-Net™ / sACN:4 universes up to 2048 channels  DMX2x galvanically isolated 1x DMX OUTPUT: DMX512 1x DMX INPUT: DMX512  Device-Sync:Synchronisation of several devices  Remote-Options:DMX Art-Net™ HTTP-Request DMX4ALL Commands  Digital Input:8 configurable Long Distance-Inputs  Timer:Up to 4 configurable timer for executing programs  SD Card:microSD up to 16GB  Playback format:DMX4ALL program files TPM2 files TPM2NET files  Status display:RGB-LED, network status LEDs all disengageable  Features:RGB-Filter Firmware-Update-Function Silent without a fan  Optional Equipment:DCF77 receiver  Dimension:62mm x 88mm x 29mm Product DownloadsSD-Player 8Bedienungsanleitung SD-Player 8User Manual SD-Player 8Firmware SD-Player 8Sample Configuration Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual
