DCF77 Key

 DCF77 SensorThe DCF77 Sensor is a receiver of the DCF77 radio clock time signal.The DCF antenna is tuned to the DCF77 time transmitter near Frankfurt.Based on the output signal, time and date can be determined to the second withthe help of an external analysis unit.A suitable installation housing with IP protection is available as accessory for mounting. Specifications  Power supply:5-24V DC  Output:Received DCF77 signal  Receive frequency:77,5 kHz  Connections:screw terminals 3pin  Working temperature:-10°C up to 45°C  Dimension:66mm x 66mm Product DownloadsDCF77 SensorBedienungsanleitung DCF77 SensorUser Manual

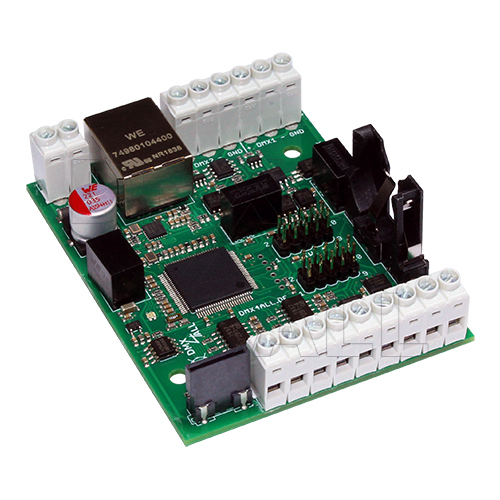

 DMX-Player L MK2The ArtNet-DMX STAGE-PROFI 1.1 is a compact ArtNet (DMX over Ethernet) interface whichcan be used for ArtNet to DMX or DMX to ArtNet. With a standard RJ45 network connector the connection to the ArtNet is made.DMX direction selectableThe DMX direction can be switched depending on use (ArtNet to DMX or DMX to ArtNet).Adjustable DMX-FramerateIn DMX OUTPUT mode, the DMX framerate is adjustable so that this interface is compatible with "slow" DMX devices.ArtNet Merge-FunctionTwo ArtNet sources are output with LTP (Latest) or HTP (Highest) merged on the DMX output.Muteable LED indicator/strong>The LED indicators on the ArtNet-DMX STAGE-PROFI 1.1 are muteable by ArtNet command (AcLedMute) or time-controlled.This is helpful to disturbing "points of light" especially on stages.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.For easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and compact designArtNet DMX STAGE-PROFI 1.1 is designed with a 3-pin Neutrik metal XLR connector inside a compact aluminum body.Use together with WiFi componentsIn conjunction with a WiFi-bridge the ArtNet-DMX STAGE-PROFI 1.1 can be integrated into standard WiFi networks.As WiFi-bridge we suggest: TP-Link MiniRouter TL-WR702N oder TP-Link Nano Router TL-WR802NFirmware-Update-FunctionIn order to take advantage of future features, the ArtNet-DMX STAGE-PROFI 1.1 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceArtNet DMX STAGE-PROFI 1.1 has another TCP communication interface that is compatible with the LAN-DMX STAGE-PROFI.This interface uses the DMX4ALL-commands via TCP packets. Specifications  Power supply:7–24 V (~45mA @ 12V / ~22mA @ 24V)  Output:DMX signal with 512 channels  Inputs:             Connection:         Program memory:1MByte internal FLASH or optional MicroSD Card (not included)  Control:external switches / matrix    Functions:       Dimensions:64,2mm x 82mm Product DownloadsDMX-Player L MK2Bedienungsanleitung DMX-Player L MK2User Manual DMX-Player L MK2USB Driver 32 & 64bit - Version 6.0.0.0 DMX-Player L MK2Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment
