Product information "HUB75E Dot-Matrix Control"
HUB75E Dot-Matrix Control |

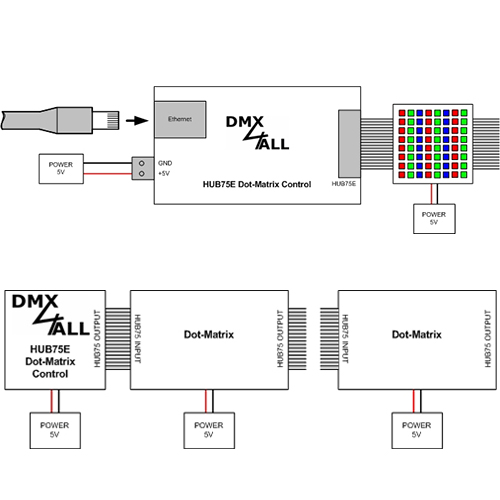

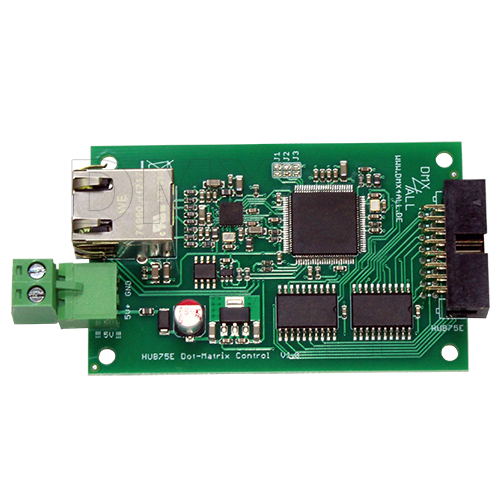

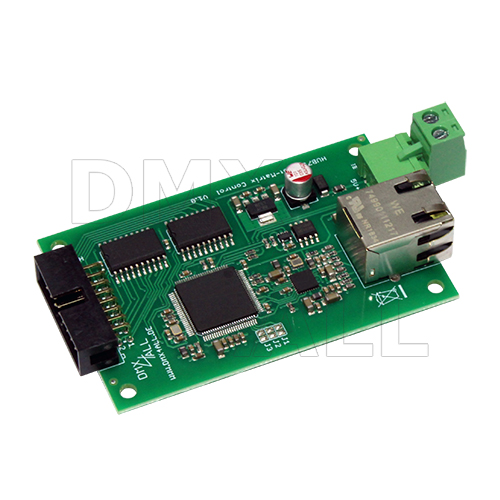

The HUB75E Dot-Matrix Control is a controller for controlling several Dot-Matrix-Displays.
Up to 5440 RGB-Pixel
Up to 5440 RGB pixels can be controlled by the HUB75E Dot-Matrix Control.
Adjustable Dot-Matrix Parameter
The parameters for the dot matrix are adjustable. So, different dot-matrix
displays can be controlled via the HUB75E Dot-Matrix Control.
Art-Net™ or TPM2.net
The data transfer occurs per Art-Net™ or TPM2.net.
Muteable Status-LEDs
The LED-Display on the HUB75E Dot-Matrix Control is disengageable via ArtNet-Command (AcLedMute)
or via time control. This is very helpful on stages to avoid disturbing “light points”.
Easy Configuration
A user friendly configuration via a web browser allows a fast and uncomplicated setting
of all parameters. No special software is necessary, a standard web browser is enough.
So, the configuration is possible any time by PC, Smartphone or tablet.
For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.
The network settings can be leaved unchanged and the IP can be configured without any problems.
Combinable with WiFi-Components
In connection with a WLAN-Bridge the HUB75E Dot-Matrix Control can be integrated in a WLAN-Network.
Firmware-Update-Function
To use future functions the HUB75E Dot-Matrix Control provides a Firmware-Update-Function.
This can be started from a web browser, so no direct access to the device is necessary!
This Interface will be supported from:
- Madrix - LED Lighting Control Solutions
- DMX-Configurator
- Jinx!
- or any other software with ArtNet-output
Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd.
Specifications |
Power supply: | 5V DC (200mA@5V) |
Connection: | Ethernet: RJ45 |
Power: pin screw clamp | |
HUB75E: 16pin connector | |
Data Fail: | Hold |
Blackout | |
Saved Picture | |
Dot-Matrix Parameter: | Panel number (1-10) |
Panel width (32, 64, 96, 128) | |
Panel height (8, 16, 32, 64) | |
Panel Scan Rate (1/4, 1/8, 1/16, 1/32) | |
Panel RGB Groups (1, 2) | |
Color depth (3-24 Bit) | |
Protocol: | Art-Net™ 4 (max 32 universes) |
TPM2.net (max 16384 channels) | |
Color sequence: | RGB |
User Picture: | User configurable output which is outputted |
after power on or after data fail | |
Status LED: | Green: Ethernet-Connection available |
Yellow: Data are transferred | |
Dimensions: | 80mm x 50,5mm (without screw clamps) |
Delivery includes: | 1x HUB75E Dot-Matrix Control |
1x Screw connection clamps 2 pin | |
1x Quick guide german / english |
