RGB HUB75 MatrixPanel P3 64x64

Product information "RGB HUB75 MatrixPanel P3 64x64"

kategorie-head.png RGB HUB75 MatrixPanel P3 64x64

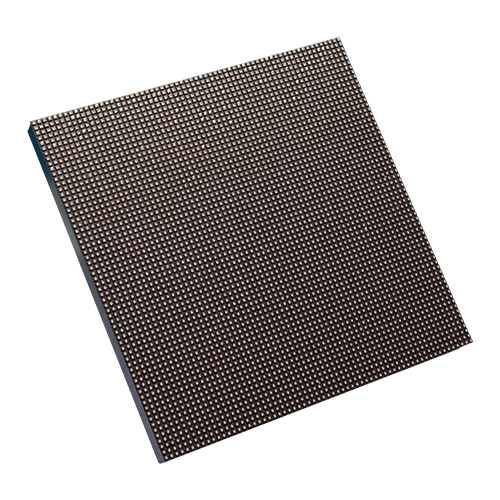

The RGB HUB75 MatrixPanel P3 64x64 is a standard HUB75 matrix panel
with 64x64 pixels with a pixel pitch of 3mm.

Each LED consists of a red, green and blue LED.
This enables individual RGB control of each individual LED.

The HUB75 MatrixPanels can be strung together.
However, the maximum number of pixels must be observed by the HUB75 controller.


The control can e.g. with these devices:

  • HUB75E Dot-Matrix Control




kategorie-head.png Specifications

Power supply:5V DC

Pixel count, height:64

Pixel count, width:64

Scan-Rate:1/32

RGB-Groups (Data Lines):2 (6)

Pixel pitch:3mm

Medium Power:700 W/m²

LED:4096x RGB (3in1)

Connection:HUB75E + POWER

Dimensions:192mm x 192mm

Delivery includes:1x RGB HUB75 MatrixPanel P3 64x64
 1x HUB75 data cable
 1x Power cable
 1x Quick guide german / english


kategorie-head.png Product Downloads
Manufacturer "DIVERSE"
Related links of the manufacturer

We recommend the following for this product:

HUB75E Dot-Matrix Control
 HUB75E Dot-Matrix ControlThe HUB75E Dot-Matrix Control is a controller for controlling several Dot-Matrix-Displays.Up to 5440 RGB-PixelUp to 5440 RGB pixels can be controlled by the HUB75E Dot-Matrix Control.Adjustable Dot-Matrix ParameterThe parameters for the dot matrix are adjustable. So, different dot-matrixdisplays can be controlled via the HUB75E Dot-Matrix Control.Art-Net™ or TPM2.netThe data transfer occurs per Art-Net™ or TPM2.net.Muteable Status-LEDsThe LED-Display on the HUB75E Dot-Matrix Control is disengageable via ArtNet-Command (AcLedMute)or via time control. This is very helpful on stages to avoid disturbing “light points”.Easy Configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible any time by PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems. Combinable with WiFi-ComponentsIn connection with a WLAN-Bridge the HUB75E Dot-Matrix Control can be integrated in a WLAN-Network.Firmware-Update-FunctionTo use future functions the HUB75E Dot-Matrix Control provides a Firmware-Update-Function.This can be started from a web browser, so no direct access to the device is necessary!This Interface will be supported from:Madrix - LED Lighting Control SolutionsDMX-ConfiguratorJinx!or any other software with ArtNet-output Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC (200mA@5V)  Connection:Ethernet: RJ45 Power: pin screw clamp HUB75E: 16pin connector  Data Fail:Hold Blackout Saved Picture  Dot-Matrix Parameter:Panel number (1-10) Panel width (32, 64, 96, 128) Panel height (8, 16, 32, 64) Panel Scan Rate (1/4, 1/8, 1/16, 1/32) Panel RGB Groups (1, 2) Color depth (3-24 Bit)  Protocol:Art-Net™ 4 (max 32 universes) TPM2.net (max 16384 channels)  Color sequence:RGB  User Picture:User configurable output which is outputted after power on or after data fail  Status LED:Green: Ethernet-Connection available Yellow: Data are transferred  Dimensions:80mm x 50,5mm (without screw clamps)  Delivery includes:1x HUB75E Dot-Matrix Control 1x Screw connection clamps 2 pin 1x Quick guide german / english Product DownloadsHUB75E Dot-Matrix ControlBedienungsanleitung HUB75E Dot-Matrix ControlUser Manual HUB75E Dot-Matrix ControlFirmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note
Product number: 90-3680

DMX4ALL GmbH - DMX-Technik Made in Germany
Delivery time: 5-8 Wochen

€149.00*
