MEANWELL HDR-150-12 (12V/11,3A/135,6W)
€35.64*
3 available
Delivery time: on stock (1 day)
- Direct from the manufacturer
- dispatch within 24 hours on weekdays
-
Made in Germany -
Made in Europe - technical support
PayPal
Pay Later
SEPA direct debit
Pay upon invoice
Google Pay
Apple Pay
Credit or debit card
Bancontact
eps
iDEAL
OXXO supported by Paypal
Przelewy24
BLIK
Multibanco
MyBank
Paid in advance
Cash on delivery
Bar
Invoice plus payment extension fee
EC Kartenzahlung Zahlung bei Abholung
Kredit- oder Debitkarte bei Abholung Product information "MEANWELL HDR-150-12 (12V/11,3A/135,6W)"
 MEANWELL HDR-150-12 (12V/11,3A/135,6W) |
- Direct assembly on DIN Rail
- Enclosed case, Touch-guard screw terminals
- Universal input
- Overload protection, current limiting, auto recovery
- Protections: short circuit, over load, over voltage
- Low no load power consumption
- Power-on LED display
- Insulation Class II
- Manufactor: MEANWELL
- Manufactor order code: HDR-150-12
Note:
These power supplies are considered as a component that has to be installed in a final equipment.
| Specifications |
| Input Type: | 1-Phase / Single Phase |
| Input Voltage Range: | 85VAC to 264VAC | 120VDC to 370VDC |
| Frequency Range: | 47~63Hz |
| Output Voltage: | 12VDC |
| Output Current: | 0...11,3A |
| Output Power: | 135,6W |
| Open Frame/Enclosed: | Enclosed |
| Isolation Voltage: | 3kVrms |
| Inrush Current max.: | 70A |
| Rated Output Power: | 105...135% |
| Operating Temperature Range: | -30°C to +70°C |
| Unit Weight: | 310g |

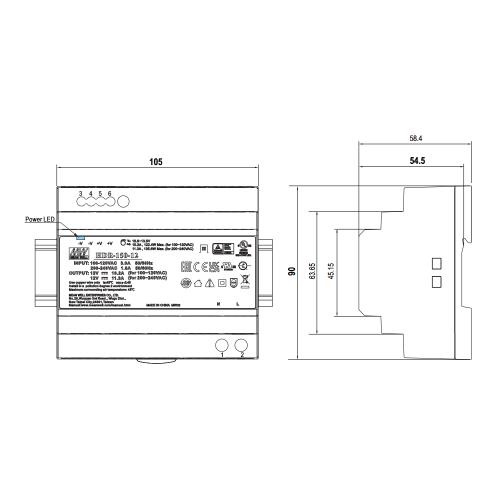

| Length/Width/Height: | 54.5mm/105mm/90mm |
