Blechschraube Kreuzschlitz 2.2x6.5mm 10erSelf-tapping screw slot 2.2 x 6.5 mm, 10 pcs Specifications  Diameter:2.2mmDimensions:(Ø x L) 2.2mm x 6.5mmDrive:Cross-recessShank:Without shankLength:6.5mmMaterial:Galvanised steelTip style:Raised head

 Schrauben 2,9x6,5mm für Hutschienengehäuse 10erScrew slot 2.9 x 6.5 mm, 10 pcsCompatible with: - DIN-rail Module enclosure 350- DIN-rail Module enclosure 350 flat- DIN-rail Module enclosure 700- DIN-rail Module enclosure 1050 Specifications  Diameter:2.9mmDimensions:(Ø x L) 2.2mm x 6.5mmDrive:Cross-recess Z (Pozidriv)Shank:Without shankLength:6.5mmMaterial:Galvanised steelTip style:Raised head

 Wandhalter für HutschienengehäuseWall mounting bracket(2 pieces) Specifications  Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CFlammability:in conformity with UL94-VO

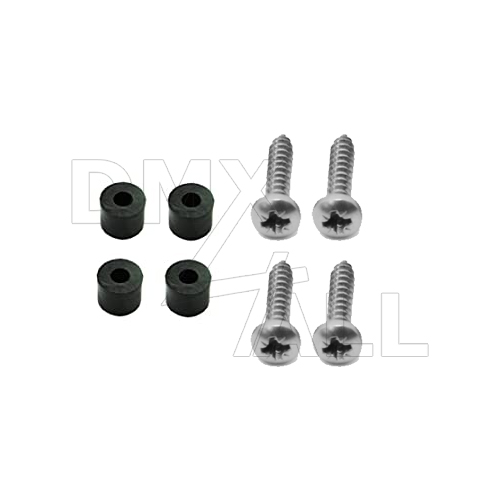

 Montageset für Installations-Gehäuse TK PS 99-6-mMontageset für Installations-Gehäuse TK PS 99-6-m Technische Daten  Inhalt:4x Abstandshalter 4x Schraube

 Hutschienengehäuse 350 flatModule housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:35.0 mm (2 Module)Label dimensions:60.0 x 30.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 5Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 350 flatDimensional drawing

 Hutschienengehäuse 350Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:35.0 mm (2 Module)Label dimensions:41.0 x 30.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 5Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 350Maßzeichnung

 Hutschienengehäuse 700Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:70.0 mm (4 Module)Label dimensions:41.0 x 65.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 24Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 700Maßzeichnung

<table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DIY-Board 350</strong></span></td></tr></table><br>Mit dem DIY-Board 350 können eigene Schaltungen wie z.B. Sicherungsplatinen realisiert werden.<br><br>Das DIY-Board dient als universelle Leiterplatte und kann nach<br>Belieben mit Komponenten und Verbindungen bestückt werden.<br><br>Die Löcher der Lochrasterfläche sind im RM2,54 das bedeutet im 2,54mm Raster angeordnet.<br><br>Um Kabel mit den auf dem Board verbauten Komponenten zu verbinden,<br>können bei Bedarf die beiliegenden Schraubklemmen in die dafür vorgesehenen Bohrungen<br>eingelötet werden (ober- bzw. unterhalb der X1-X10 Beschriftung am Leiterkartenrad).<br>Die beschrifteten Kontakte X1-X10 sind dann mit den danebenliegenden Schraubklemm-Kontakten verbunden.<br><br>Die Größe des Boards erlaubt die Montage in einem Hutschienengehäuse 350<br>oder Hutschienengehäuse 350 flat (als Zubehör erhältlich).<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br><!-- Technische Daten --><table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Technische Daten</strong></span></td></tr></table><table border="0" cellspacing="1" cellpadding="1"><tr><td width="300">&nbsp;</td><td width="500">&nbsp;</td></tr><tr><td>Abmessungen:</td><td>82mm x 29,2mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Leiterkartendicke:</td><td>1,6mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Leiterkartenfarbe:</td><td>Schwarz</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Kupferdicke:</td><td>35um</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Material:</td><td>FR-4</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Rastermaß:</td><td>RM 2,54 (2,54mm)</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Lochdurchmesser:</td><td>1mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Ausführung:</td><td>Punktraster, zweiseitig, durchkontaktiert und bleifrei</td></tr></table><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Produkt Downloads</strong></span></td></tr></table><div id="dmx4all-buttons"><a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/diy_board_350.pdf" target="_blank">DIY-Board 350<br><span><span class="german-lang">Bedienungsanleitung</span></span></a><br><a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/diy_board_350.pdf" target="_blank">DIY-Board 350<br><span><span class="english-lang">User Manual</span></span></a></div>

<table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Installations-Gehäuse 94x94x57 Spelsberg TK PS 99-6-m</strong></span></td>  </tr></table><br>The TK - PS series has a high protection rating of IP 66, can be sealed as standard and is available with smooth side walls or with metric knockouts. No subsequent drilling or milling is required - simply knock out the knockouts with a screwdriver and install the screw connections. The material is very easy to work with for individual openings in smooth side walls. The housings are scratch-resistant. They are characterized by a high level of flexibility, e.g. through the range of accessories and the many fastening options inside the box, the adapted standard rails and the mounting plates. The lids are available in either gray or transparent. The wall fastening options in the box base and below the lid screws round off the wide range of possible uses.<br><br><br><!-- Specifications --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" border="0" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Specifications</strong></span></td>  </tr></table><table border="0" cellspacing="1" cellpadding="1">  <tr>    <td width="300">&nbsp;</td>    <td width="500">&nbsp;</td>  </tr>  <tr>    <td>Specifications:</td>    <td>With pre-stamping 7x M16/20</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Material:</td>    <td>Polystyrol (EPS)</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Length:</td>    <td>94 mm</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Width:</td>    <td>94 mm</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Hight:</td>    <td>57 mm</td>  </tr></table><br>

 DIY-Board 700The DIY-Board 700 can be used to realize your own circuits for example as fuse boards.The DIY board is a universal circuit board and can be equipped with components and connections as needed.The holes of the breadboard are arranged in RM2.54, which means in 2.54mm grid.To connect cables with the components installed on the board, the enclosed screw terminalscan be soldered into the holes provided if required (above or below the X1-X24 labeling on the PCB wheel).The labeled contacts X1-X24 are connected to the screw terminal contacts next to them.The size of the board allows mounting in a top-hat rail housing 700 (available as accessories). Specifications  Dimensions:82mm x 64,2mm  Circuit board thickness:1,6mm  Circuit board color:Black  Copper thickness:35um  Material:FR-4  Grid dimension:RM 2,54 (2,54mm)  Hole diameter:1mm  Design:Dot matrix, double-sided, connected through and lead-free Product DownloadsDIY-Board 700Bedienungsanleitung DIY-Board 700User Manual

 Hutschienengehäuse 1050Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:105.0 mm (6 module)Label dimensions:41.0 x 100.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 36Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 1050Maßzeichnung

 DIY-Board 1050The DIY-Board 1050 can be used to realize your own circuits for example as fuse boards.The DIY board is a universal circuit board and can be equipped with components and connections as needed.The holes of the breadboard are arranged in RM2.54, which means in 2.54mm grid.To connect cables with the components installed on the board, the enclosed screw terminalscan be soldered into the holes provided if required (above or below the X1-X36 labeling on the PCB wheel).The labeled contacts X1-X36 are connected to the screw terminal contacts next to them.The size of the board allows mounting in a top-hat rail housing 1050 (available as accessories). Specifications  Dimensions:82mm x 99mm  Circuit board thickness:1,6mm  Circuit board color:Black  Copper thickness:35um  Material:FR-4  Grid dimension:RM 2,54 (2,54mm)  Hole diameter:1mm  Design:Dot matrix, double-sided, connected through and lead-free Product DownloadsDIY-Board 1050Bedienungsanleitung DIY-Board 1050User Manual

 HAMMOND 1455C801Aluminum housing 1455C801 Specifications  Manufacturer:Hammond  Manufacturer part number:1455C801  Dimension (LxWxH):80 mm x 54 mm x 23 mm  Material:Aluminium  Color:Clear (Anodize) Produkt DownloadsDatasheetUser Manual

 HAMMOND 1455CF801Aluminum housing 1455CF801 Specifications  Manufacturer:Hammond  Manufacturer part number:1455CF801  Dimension (LxWxH):80 mm x 74 mm x 23 mm  Material:Aluminium  Color:Clear (Anodize) Produkt DownloadsDatasheetUser Manual

 HAMMOND 1455D801BKAluminum housing 1455D801BK Specifications  Manufacturer:Hammond  Manufacturer part number:1455D801BK  Dimension (LxWxH):80 mm x 45 mm x 25 mm  Material:Aluminium  Color:black Produkt DownloadsDatasheetUser Manual

 Alugehäuse 1455C801 CUT1Aluminum housing 1455C801 milled and machined for assembly of DMX LED dimmer 4. Specifications  Manufacturer:Hammond  Dimension (LxWxH):80mm x 54mm x 23mm  Material:Aluminium  Color:gray  Production:suitable for DMX-LED-Dimmer 4
