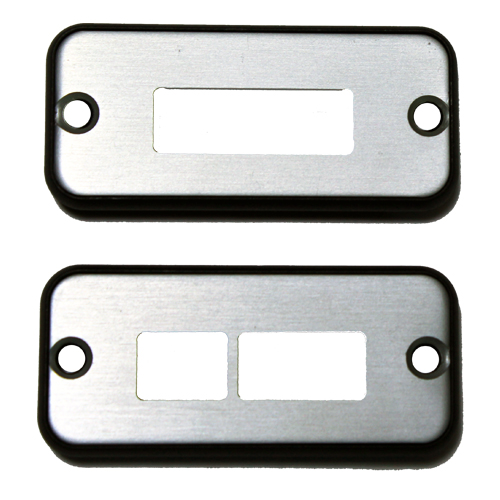

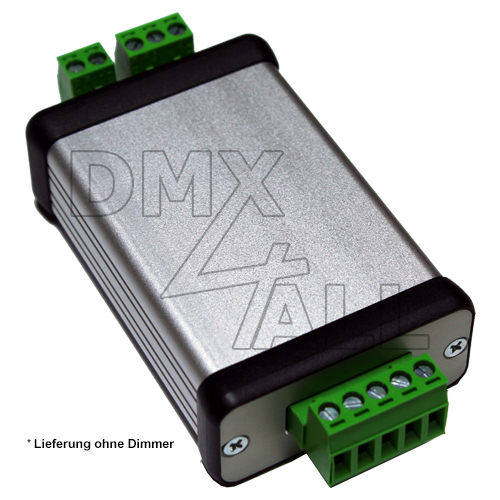

Alu-Housing 1455C801 CUT1

 ArtNet-LED-Dimmer 4 MK2The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 54mm x 23mm DMX4ALL Commands  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2Bedienungsanleitung ArtNet-LED Dimmer 4 MK2User Manual ArtNet-LED Dimmer 4 MK2Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-LED-Dimmer 4 MK2+The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.High quality and compact design The ArtNet-LED-Dimmer 4+ MK2 is manufactured with removable clamps.Furthermore, the ArtNet LED Dimmer 4+ MK2 is mounted in a compact aluminum housing.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA (=LED voltage)  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:R/G/B + W screw terminals max. 10A with common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250 Hz  Dimensions:115mm x 74mm x 23mm  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2+Bedienungsanleitung ArtNet-LED Dimmer 4 MK2+User Manual ArtNet-LED Dimmer 4 MK2+Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

 ArtNet-LED-Dimmer 6The ArtNet Dimmer 6 is a compact LED-Dimmer with 6 seperate LED-outputs.These can be used for RGB/ RGB+W / RGB + W WW or for single color stripes.High Power OutputsEach output can drive a current up to 10A.So it is possible to connect a maximum load on ecah output of 120W (12V) or 240W (24V).16 Million ColorsWith the RGB-LED-Stripe up to 16 million colours can be adjusted.By using an additional single color white stripe it is possible to makecolor neutral illuminations or pastel colours.NEW: User Configurable Color ProgrammsThe ArtNet-LED Dimmer 6 has also 10 user configurable color programms whichcan be defined via the webbrowsr or the Android App „DMX4ALL Remote“.User-friendly ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.Power Supply for WiFi BridgeIn addition the ArtNet-Dimmer 6 has a USB connector providing a power supplywith 5V/500mA for external devices e.x. a WiFi-bridge.As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802NControll with AppThe controll of this device is possible by using the free Android-App "DMX Remote".Firmware-Update-FunctionIn order to take advantage of future features, the ArtNet-LED-Dimmer 6 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe ArtNet-LED-Dimmer 6 has another TCP communication interface.This interface uses the DMX4ALL-commands via TCP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:12-24V DC / 100mA  LED voltage:12-24V DC (no AC voltage !)  Connection:RJ45 Ethernet  LED-connection:6 outputs max. 10A per output (in total 60A) common anode (+)  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  PWM-Frequency:250Hz / 500Hz / 1000Hz / 2000 Hz  Dimensions:64,2 x 82 x 20 mm  Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 6Bedienungsanleitung ArtNet-LED Dimmer 6User Manual ArtNet-LED Dimmer 6Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Devolopment

 DMX-LED-Dimmer X9The DMX-LED-Dimmer X9 is especially designed for controlling RGB LED-Stripes.The dimmer has 9 PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9 has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9 operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9 can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.RDM supportThe DMX-LED-Dimmer X9 allows configuration by RDM via DMX.LED-State DisplayThe DMX state is indicated via the LED status.Stand-Alone FunctionAs an alternative to DMX control, internal color sequences can be called upvia the address switch without external DMX control.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without connected LED load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-controlling  DMX-FAIL:Hold / 0%-100%  Output:9 PWM-signal with 8Bit-resolution Common supply voltage  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  PWM-Frequency:244 Hz  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Product DownloadsDMX-LED-Dimmer X9Bedienungsanleitung DMX-LED-Dimmer X9User Manual

 DMX-LED-Dimmer X9HRThe DMX-LED-Dimmer X9HR is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs)or one master dimmer per RGB group. The global master dimmer is fixed atDMX address 1 and can be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR allows configuration by RDM via DMX.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.LED-State DisplayThe DMX state is indicated via the LED status.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR offers a firmware update function.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9HR. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-Mode 18 channels with 16Bit-Mode + optional Master-Dimmer-Channels  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Output:9 PWM-signal common supply voltage anode (PLUS)  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Produkt DownloadsDMX-LED-Dimmer X9HRBedienungsanleitung DMX-LED-Dimmer X9HRUser Manual DMX-LED-Dimmer X9HRUSB Driver (ab V2.2)Version 6.0.0.0 DMX-LED-Dimmer X9HRFirmware (ab V2.2) Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual
