DMX-RELAIS 2 INRUSH

€70.58*

Content: 1 Stck.

Over 100 available

Das Versandversprechen gilt nur für Artikel, die im Online Shop als DMX4ALL GmbH - DMX und RDM-Technik Made in Germany

angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).

Delivery time: 1-3 days

Piece

Product number: 90-2002

Manufacturer: DMX4ALL GmbH

Manufacturer product number: 90-2002

Weight: 0.2 kg

Delivery time: 1-3 days

Our benefits

Direct from the manufacturer
dispatch within 24 hours
Made in Germany
technical support

Our payment methods:

Product information "DMX-RELAIS 2 INRUSH"

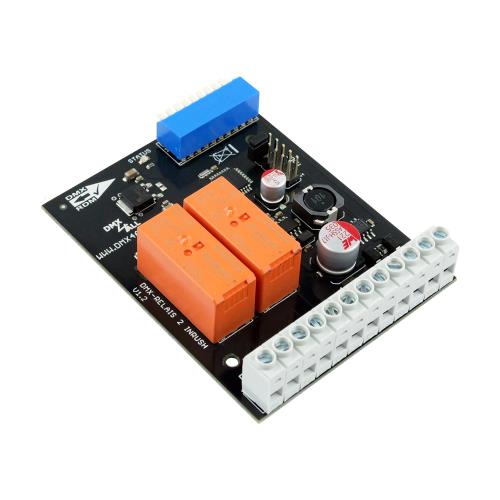

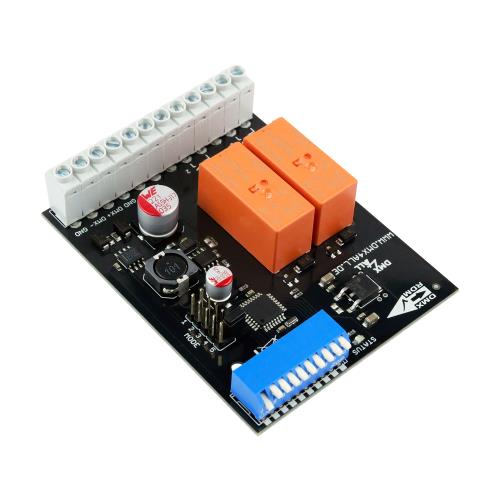

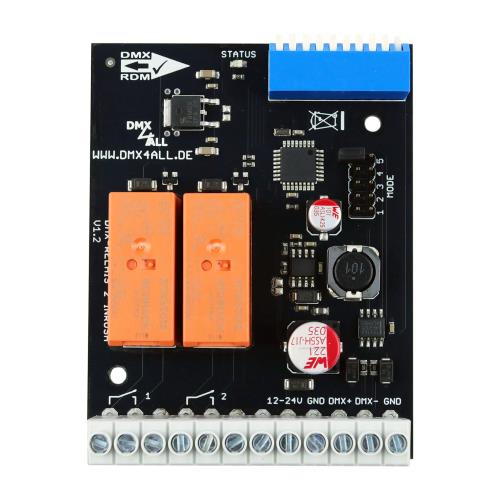

DMX-RELAIS 2 INRUSH

The DMX-RELAIS 2 INRUSH is designed for several control tasks.

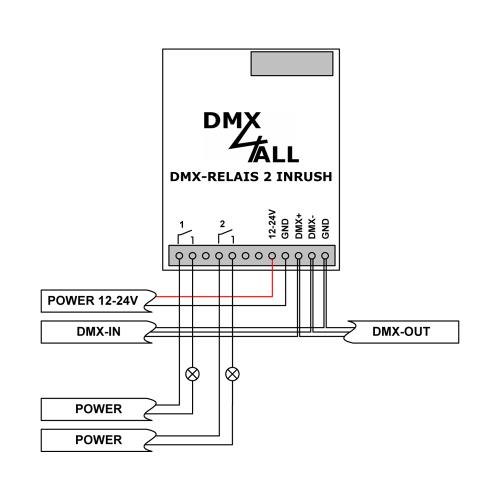

Two potential free switching outputs
2 potential free switching outputs (closer / NO)
up to 8A switching capacity are available.

Switching contact for direct and alternating voltage
The INRUSH version is suitable for control direct or alternating voltage.

For voltages from 12V up to 24V
The DMX-Relais 2 INRUSH works with supply voltages from 12V up to 24V DC.

DMX FAIL-Function
An adjustable DMX FAIL function offers the option to hold
the current state (HOLD) or to adopt a predefined value if the DMX signal fails.

RDM support
The DMX-Relais 2 INRUSH allows the configuration via RDM or DMX.

Several operating modes
The DMX-Relais 2 INRUSH offers several operating modes which can be set via jumper or RDM.

Top hat rail mounting available
Suitable for the DMX-Relais 2 INRUSH the DIN rail housing 700 is available as accessory.

Specifications


Power supply:	12-24V DC
	150mA@12V / 100mA@24V

Protocol:	DMX512
	RDM

DMX channels:	1 or 2 channels

Output:	2 switching contacts
	(165A/20ms Switch-on peak current)
	DC: max. 8A/250V~ (resistive loads)
	DC: According to the max. DC load graph

DMX-FAIL:	Hold / 0-100%

Operation modes:	Hysteresis 127/128
	Hysteresis 0/1
	Hysteresis 100/150
	Exclusive
	Monostable 1Second
	FogControl

Connectors:	screw terminals

Dimensions:	64,2mm x 82mm

Product Downloads

DMX-RELAIS 2 INRUSH
Bedienungsanleitung
DMX-RELAIS 2 INRUSH
User Manual

Manufacturer "DMX4ALL GmbH"

Wir bieten
professional space with a human face

Die DMX4ALL GmbH ist ein Ingenieurbüro mit dem Produktschwerpunkt der Licht- und Steuerungs- technik basierend auf dem ARTNET,DMX512 und RDM Protokoll. Der Familienbetrieb entwickelt und produziert seit 2004 elektronische Schaltungen für Clubs, Bühne und Beleuchtung. Die Produktpalette ist mit den Bedürfnissen der Kunden gewachsen und reicht heute vom einfachen DMX-Dekoder über verschiedene Abspieler und ArtNet PoE Interfaces bis hin zu modernen LED-Dimmern Stepper und innovativen LED Pixel-Kontrollern.

Related links of the manufacturer

We recommend the following for this product:

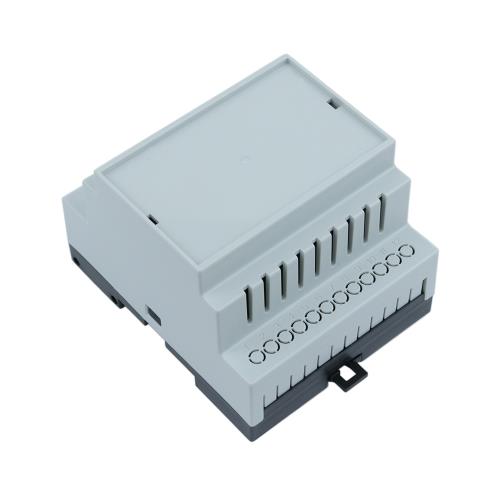

Module enclosure 700 for DIN-rail

Hutschienengehäuse 700Module housing for M36-DIN-standard rail. Specifications Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:70.0 mm (4 Module)Label dimensions:41.0 x 65.0 mmFlammability:in confomity with UL94-VO Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 24Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 700Maßzeichnung

Product number: 50-0061

Delivery time: 1-3 days

€10.91*

Power supply:

MEANWELL HDR-15-12 (12V/1,25A/15W)

MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

Product number: 50-0121

Delivery time: 1-3 days

€22.99*

MEANWELL HDR-15-24 (24V/0,63A/15,2W)

MEANWELL HDR-15-24 (24V/0,63A/15,2W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-24 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...0,63AOutput Power:15,2WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

Product number: 50-0126

Delivery time: 1-3 days

€19.95*

MEANWELL HDR-150-12 (12V/11,3A/135,6W)

MEANWELL HDR-150-12 (12V/11,3A/135,6W)- Direct assembly on DIN Rail- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit, over load, over voltage- Low no load power consumption- Power-on LED display- Insulation Class II- Manufactor: MEANWELL- Manufactor order code: HDR-150-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...11,3AOutput Power:135,6WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:70ARated Output Power:105...135%Operating Temperature Range:-30°C to +70°CUnit Weight:310gLength/Width/Height:54.5mm/105mm/90mm Product DownloadsHDR-60Datasheet

Product number: 50-0123

Delivery time: 1-3 days

€35.64*

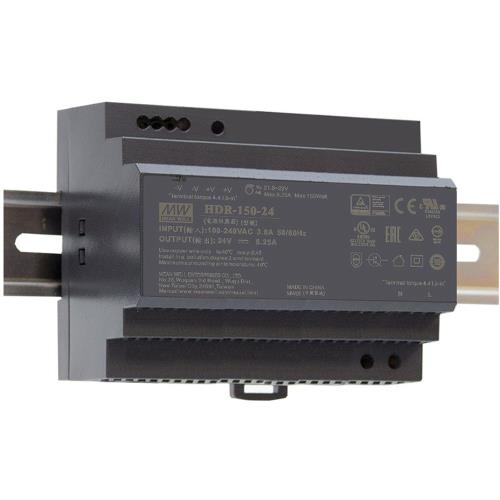

MEANWELL HDR-150-24 (24V/6,25A/150W)

MEANWELL HDR-150-24 (24V/6,25A/150W)- Direct assembly on DIN Rail- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit, over load, over voltage- Low no load power consumption- Power-on LED display- Insulation Class II- Manufactor: MEANWELL- Manufactor order code: HDR-150-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...6.25AOutput Power:150WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:70ARated Output Power:105...135%Operating Temperature Range:-30°C to +70°CUnit Weight:310gLength/Width/Height:54.5mm/105mm/90mm Product DownloadsHDR-60Datasheet

Product number: 50-0127

Delivery time: 1-3 days

€35.64*

MEANWELL HDR-60-12 (12V/4,5A/54W)

MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

Product number: 50-0122

Delivery time: 1-3 days

€23.53*

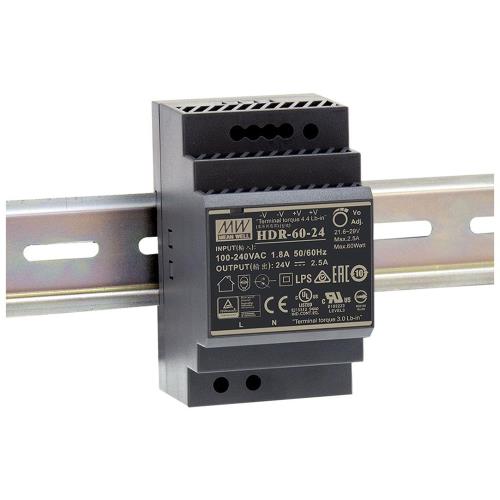

MEANWELL HDR-60-24 (24V/2,5A/60W)

MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

Product number: 50-0124

Delivery time: 1-3 days

€29.99*

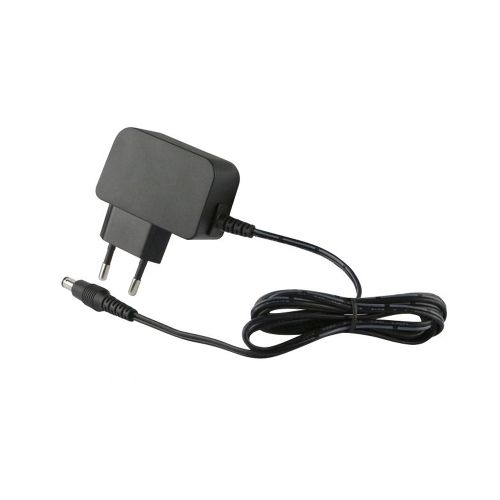

Plug-in power supply 12V 0,63A

Stecker-Schaltnetzteil 12V 0,63A- Plug-in switching power supply with europlug- Universal input- Protections: short circuit/over load- Insulation Class II- Low no load power consumption- Meets DOE VI- Manufactor: HN-Power- Product name: HNP06-120L6 Specifications Output voltage:12V Output current, max:0,63A (0...0,63A) Input Voltage:90...264V AC (47...63Hz) Input Inrush Current, Max.:30A No Load Power Consumption, Max.:0,075W Operating Temperature:-10...+40°C Cable Length:1,5m Output Plug:2,1x5,5mm Produkt DownloadsHNP06-120L6Datasheet

Product number: 50-0171

Delivery time: 1-3 days

€8.52*
