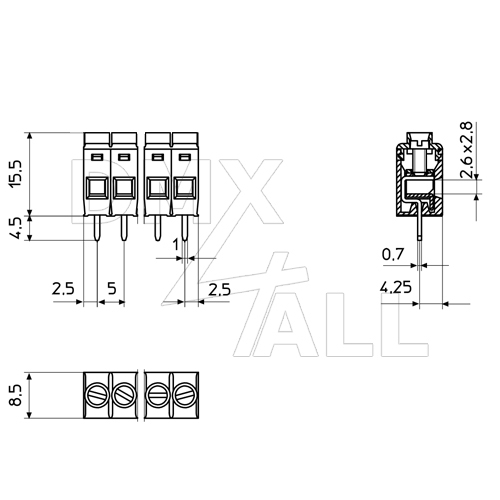

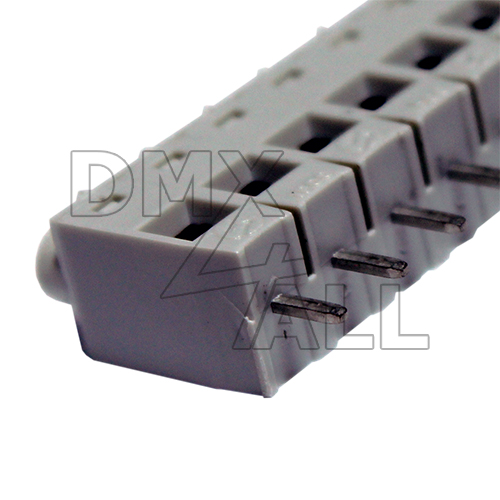

PCB Terminal 36

 Hutschienengehäuse 1050Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:105.0 mm (6 module)Label dimensions:41.0 x 100.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 36Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 1050Maßzeichnung

 Hutschienengehäuse 350Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:35.0 mm (2 Module)Label dimensions:41.0 x 30.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 5Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 350Maßzeichnung

 Hutschienengehäuse 350 flatModule housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:35.0 mm (2 Module)Label dimensions:60.0 x 30.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 5Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 350 flatDimensional drawing

 Hutschienengehäuse 700Module housing for M36-DIN-standard rail. Specifications  Top Material:LexanColour:grey (RAL 7035)Max. Temperature:100°CInstallation wide:70.0 mm (4 Module)Label dimensions:41.0 x 65.0 mmFlammability:in confomity with UL94-VO  Base Material:norylColour:black (RAL 7021)Max. Temperaturr:100°CTerminal:max. 24Montage:DIN-standard rail (EN50022)Flammability:in conformity with UL94-VO Product DownloadsModule enclosure 700Maßzeichnung

 DIY-Board 1050The DIY-Board 1050 can be used to realize your own circuits for example as fuse boards.The DIY board is a universal circuit board and can be equipped with components and connections as needed.The holes of the breadboard are arranged in RM2.54, which means in 2.54mm grid.To connect cables with the components installed on the board, the enclosed screw terminalscan be soldered into the holes provided if required (above or below the X1-X36 labeling on the PCB wheel).The labeled contacts X1-X36 are connected to the screw terminal contacts next to them.The size of the board allows mounting in a top-hat rail housing 1050 (available as accessories). Specifications  Dimensions:82mm x 99mm  Circuit board thickness:1,6mm  Circuit board color:Black  Copper thickness:35um  Material:FR-4  Grid dimension:RM 2,54 (2,54mm)  Hole diameter:1mm  Design:Dot matrix, double-sided, connected through and lead-free Product DownloadsDIY-Board 1050Bedienungsanleitung DIY-Board 1050User Manual

<table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DIY-Board 350</strong></span></td></tr></table><br>Mit dem DIY-Board 350 können eigene Schaltungen wie z.B. Sicherungsplatinen realisiert werden.<br><br>Das DIY-Board dient als universelle Leiterplatte und kann nach<br>Belieben mit Komponenten und Verbindungen bestückt werden.<br><br>Die Löcher der Lochrasterfläche sind im RM2,54 das bedeutet im 2,54mm Raster angeordnet.<br><br>Um Kabel mit den auf dem Board verbauten Komponenten zu verbinden,<br>können bei Bedarf die beiliegenden Schraubklemmen in die dafür vorgesehenen Bohrungen<br>eingelötet werden (ober- bzw. unterhalb der X1-X10 Beschriftung am Leiterkartenrad).<br>Die beschrifteten Kontakte X1-X10 sind dann mit den danebenliegenden Schraubklemm-Kontakten verbunden.<br><br>Die Größe des Boards erlaubt die Montage in einem Hutschienengehäuse 350<br>oder Hutschienengehäuse 350 flat (als Zubehör erhältlich).<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br><!-- Technische Daten --><table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Technische Daten</strong></span></td></tr></table><table border="0" cellspacing="1" cellpadding="1"><tr><td width="300">&nbsp;</td><td width="500">&nbsp;</td></tr><tr><td>Abmessungen:</td><td>82mm x 29,2mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Leiterkartendicke:</td><td>1,6mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Leiterkartenfarbe:</td><td>Schwarz</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Kupferdicke:</td><td>35um</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Material:</td><td>FR-4</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Rastermaß:</td><td>RM 2,54 (2,54mm)</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Lochdurchmesser:</td><td>1mm</td></tr><tr><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>Ausführung:</td><td>Punktraster, zweiseitig, durchkontaktiert und bleifrei</td></tr></table><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1"><tr><td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Produkt Downloads</strong></span></td></tr></table><div id="dmx4all-buttons"><a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/diy_board_350.pdf" target="_blank">DIY-Board 350<br><span><span class="german-lang">Bedienungsanleitung</span></span></a><br><a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/diy_board_350.pdf" target="_blank">DIY-Board 350<br><span><span class="english-lang">User Manual</span></span></a></div>

 DIY-Board 700The DIY-Board 700 can be used to realize your own circuits for example as fuse boards.The DIY board is a universal circuit board and can be equipped with components and connections as needed.The holes of the breadboard are arranged in RM2.54, which means in 2.54mm grid.To connect cables with the components installed on the board, the enclosed screw terminalscan be soldered into the holes provided if required (above or below the X1-X24 labeling on the PCB wheel).The labeled contacts X1-X24 are connected to the screw terminal contacts next to them.The size of the board allows mounting in a top-hat rail housing 700 (available as accessories). Specifications  Dimensions:82mm x 64,2mm  Circuit board thickness:1,6mm  Circuit board color:Black  Copper thickness:35um  Material:FR-4  Grid dimension:RM 2,54 (2,54mm)  Hole diameter:1mm  Design:Dot matrix, double-sided, connected through and lead-free Product DownloadsDIY-Board 700Bedienungsanleitung DIY-Board 700User Manual
