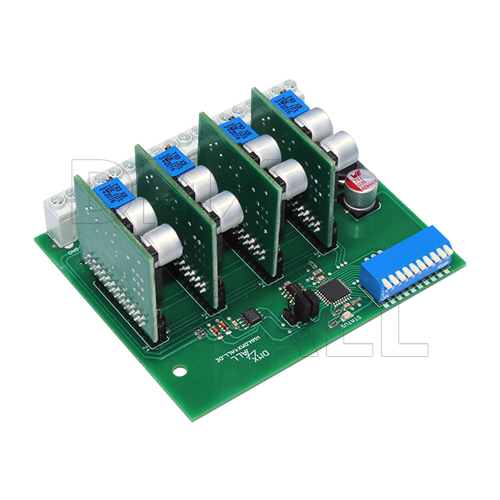

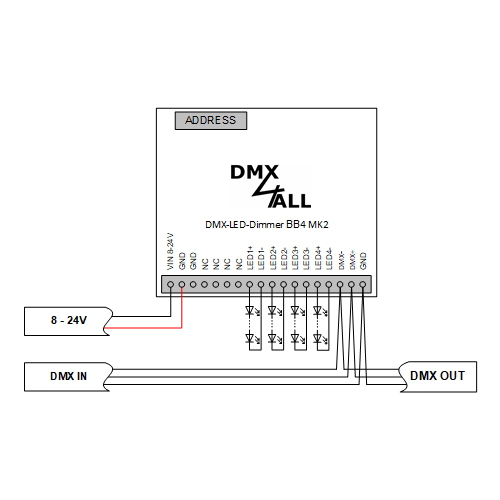

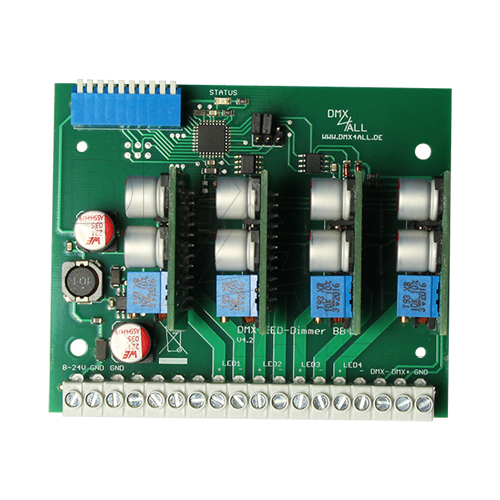

DMX-LED-Dimmer BB4

 ArtNet-LED-Dimmer CC4The ArtNet-LED-Dimmer CC4 is designed for controlling LEDs,which are operated with constant current and works with up to 48V DC.4 Outputs with selectable constant current modulesSeveral constant current modules with different output currents to insert are available.The constant current modules are available as accessory and not included in delivery.For power supply from 12V up to 48VThe ArtNet-LED-Dimmer CC4 works with a power supply of 12V up to 48V.DMX or Art-Net™The ArtNet-LED-Dimmer CC4 can be controlled via DMX or ArtNet (DMX over Ethernet).Which signal is used prior can be selected.DMX-FAIL FunctionA DMX-FAIL-Function, which can be activated optionally, leaves the status unchangedin case of a DMX-Signal failure, turns off the output OFF (0%) or ON (100%).Disengageable LED-DisplaysThe LED-Displays at the ArtNet-LED-Dimmer CC4 can be disengaged viaArtNet-Command (AcLedMute) or time controlled. This is very helpfulto avoid disturbing “lights points” e.g. on stage.10 User defined Color Changes / ProgramsThe ArtNet-LED-Dimmer CC4 offers 10 user defined color changes.These can be created via a web browser or via the Android App „DMX4ALL Remote“.Test Function for Service PurposesFor test and service purposes it is possible to switch on the single outputs viathe web interface. So each output can be checked without an external control.Easy ConfigurationAn user friendly configuration via web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, anytime the configuration is possible from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Firmware-Update-FunctionTo use future functions the ArtNet-LED-Dimmer CC4 offers a Firmware-Update-Function.The update can be started from a web browser, so no direct access to the device is necessary! Specifications  Power supply:9-48V DC / 150mA@12V; 80mA/24V; 60mA@48V (Current consumption without LED-Driver)  Ethernet:RJ45 (Art-Net™)  DMX:3pin screw terminal  DMX-Kanäle4 Channels (without master dimmer) 5 Channels (with master dimmer)  DMX-FAIL:HOLD / ALL OFF / ALL ON  Masterdimmer:activatable  Output:4 current regulated output (8 bit controlled) (Output current depends on the LED driver module)  PWM-Frequency:244 Hz  USB connector:5V / 500mA for power supply external devices (e.g. WLAN-Bridge)  Dimensions:99mm x 82mm  Constant current modules:Constant current LED-Driver LDD-H(available as an accessory)Constant current LED-Driver NLDD-H Product DownloadsArtNet-LED-Dimmer CC4Bedienungsanleitung ArtNet-LED-Dimmer CC4User Manual ArtNet-LED-Dimmer CC4Firmware

 DMX-LED-Dimmer CC1The DMX-LED-Dimmer CC1 is designed for controlling LEDs, which are operated with constant current and works with up to 48V DC.Output with selectable constant current modulesDifferent constant current modules with different output currents are available for connection.The constant current modules are available as accessories and are not included in the scope of delivery.Power supply from 12V up to 48VThe DMX-LED Dimmer CC1 works with supply voltages from 12V to 48V.0% to 100%The connected LEDs can be dimmed via PWM of 0% up to 100%.DMX FAIL-FunctionAn adjustable DMX FAIL-Function offers the option to hold the current state (HOLD)or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-LED-Dimmer CC1 the configuration via RDM or DMX.Top hat rail mounting availableSuitable for the DMX-LED-Dimmer CC1 the DIN rail housing 350 is available as accessory. Specifications  Power supply:9-48V DC 20mA@12V; 11mA/24V; 6mA@48V (without LED driver)  Protocol:DMX512 / RDM  DMX channels1 DMX channel  DMX-FAIL:HOLD / 0-100%  Output:1 current regulated output (8 bit controlled) (Output current depends on the LED driver module)  PWM-Frequency:244 Hz  Dimensions:29,2mm x 82mm Product DownloadsDMX-LED-Dimmer CC1Bedienungsanleitung DMX-LED-Dimmer CC1User Manual

 DMX-LED-Dimmer CC4The DMX-LED-Dimmer CC4 is designed for controlling LEDs, which are operatedwith constant current and works with up to 48V DC.4 outputs with choose able constant current modulesDifferent constant current modules with different output currents are available for plug-on.The constant current modules are available as accessories and are not included in the scope of delivery.For voltages from 12V up to 24VThe DMX-LED-Dimmer CC4 works with supply voltages from 12V up to 24V DC.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD)or to adopt a predefined value if the DMX signal fails.LED state displayThe DMX state is indicated via the LED status.DMX-MasterdimmerOptionally an additional DMX channel can be activated as master dimmer.0% up to 100% dimmableThe connected LEDs are dimmed from 0% up to 100% via PWM.RDM supportThe DMX-LED-Dimmer CC4 allows configuration by RDM via DMX.Top-hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9HR.Together with the top-hat rail housing 1050, the interface is optimally suited for control cabinet installation. Specifications  Power supply:9-48V DC / 20mA@12V; 11mA/24V; 6mA@48V (without LED driver)  Output voltage:Depends on the constant current module used  Output current:Depends on the constant current module used  Protocol:DMX512 RDM  DMX-Channels:4 / 5 channels  DMX-FAIL:HOLD / ALL OFF / ALL ON  Masterdimmer:can be enabled  PWM-Frequency:244 Hz  Connections:Screw terminals  Dimensions:99mm x 82mm Product DownloadsDMX-LED-Dimmer CC4Bedienungsanleitung DMX-LED-Dimmer CC4User Manual

 DMX STAGE-PROFI 1.1 RDM (XLR3)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programsThe internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.RDM-Editor The internal RDM editor in the web interface allows you to view the RDM devicesand edit the parameters Device Name, DMX Start Address and Personality.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR3  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAMDMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR3)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR3)User Manual DMX STAGE-PROFI 1.1 RDM (XLR3)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR3)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR3)Firmware Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 DMX STAGE-PROFI 1.1 RDM (XLR5)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programsThe internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.RDM-Editor The internal RDM editor in the web interface allows you to view the RDM devicesand edit the parameters Device Name, DMX Start Address and Personality.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:5V DC via attached external power supply  Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR5  Ethernet:10 Mbit/s | 100 Mbit/s  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™ (switchable on/off)  ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR5)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR5)User Manual DMX STAGE-PROFI 1.1 RDM (XLR5)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR5)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR5)Firmware Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 DMX UNIVERSE DR1.1 RDMThe DMX UNIVERSE DR1.1 RDM is a compact bidirectional Ethernet Gateway whichcan be used for Art-Net™/TPM2/sACN to DMX/RDM or DMX to Art-Net™.With a standard RJ45 network connector the connection to the ArtNet is made.DMX direction selectableThe DMX direction can be switched depending on use.Adjustable DMX-FramerateIn DMX OUTPUT mode, the DMX framerate is adjustable so that this interface is compatible with "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™, which enables connected RDM devices to be configured via Art-Net™ with the appropriate software.Free RDM-SoftwareTo set parameters via RDM our free software RDM-Configurator is available as download on our website www.dmx4all.de .Muteable LED indicatorThe LED indicators on the DMX UNIVERSE DR1.1 RDM are muteable by Art-Net™ command (AcLedMute) or time-controlled.This is helpful to disturbing "points of light" especially on stages.DHCPThe DMX UNIVERSE DR1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programsThe internal programs make the DMX UNIVERSE DR1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy Webbrowser-ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.RDM-Editor The internal RDM editor in the web interface allows you to view the RDM devicesand edit the parameters Device Name, DMX Start Address and Personality.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.Compact designThe DMX UNIVERSE DR1.1 RDM is designed for mounting in a 350mm DIN rail housing.Use together with WiFi componentsIn conjunction with a WiFi-bridge the DMX UNIVERSE DR1.1 RDM can be integrated into standard WiFi networks.Firmware-Update-FunctionIn order to take advantage of future features, the DMX UNIVERSE DR1.1 RDM has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe DMX UNIVERSE DR1.1 RDM has another communication interface that is compatible withthe LAN-DMX STAGE-PROFI. This interface uses the DMX4ALL commands via TCP or UDP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications  Power supply:8-24V DC (150mA@12V; 100mA@24V)  Connection:Ethernet: RJ45 Power/DMX: Screw terminal  DMX:Selectable: - 512 channels OUT - 512 channels IN  DMX-Framerate:Adjustable (5 - 44 fps)  RDM:RDM via Art-Net™  Data Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM  DMX-IN Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES  Protocol:Art-Net™ TPM2 sACN (Unicast) DMX4ALL commands (as well as the LAN-DMX STAGE-PROFI)  Internal program:User-configurable stand-alone program  Status LED:Green: Ethernet Connection Yellow: Datatransfer  Dimensions:29,2mm x 82mm Product DownloadsDMX UNIVERSE DR1.1 RDMBedienungsanleitung DMX UNIVERSE DR1.1 RDMUser Manual DMX UNIVERSE DR1.1 RDMEthernet VCP Driver 32 & 64bit - Version 1.10 DMX UNIVERSE DR1.1 RDMFirmware DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers Software & ToolsDMX4ALL Software PackDMX / RDM / IP ConfiguratorWindows 32 & 64bit DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

 Adam Hall DMX-Kabel (Meterware)The Adam Hall 4 STAR D 234 is perfectly suited for transmission of DMX signals.Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances,thanks to its bigger cross-section. This highly flexible cable is easy to wind,and thanks to its larger diameter also very robust and therefore also well suitedfor hard road applications.- Adam Hall 4 Star "Standard" Series- Highly flexible, easy to reel- Good shielding thanks to dense copper spiral shielding- Larger inner conductor of 2 x 0.34 mm²- PVC jacket of 6.5 mm diameterDelivery as a section (yard goods) or 100m on a drum. Technische Daten  Type:DMX & AES/EBU Cable  Color:Black  Overall diameter:6,5 mm  AWG:22  Center conductor cross section:0,34mm²  Center conductor material:OFC  Number of internal conductors:2  Shield:Tin-plated copper braided shield  Line surge impedance:120 Ohm  Temperature range:-20 - +70°C  Application:DMX  Sales unit:Sold by the meter as a section or 100 meters on drum  Manufacturer:Adam Hall

 Sommer Cable DMX-Kabel 110 Ohm (Meterware)Das DMX-Kabel ist eine hervorragende Leitung zur Übertragung von Digitalsignalenim 110 Ω AES/EBU und DMX Datenformat. Es besitzt eine Schirmung aus einem aluminiumbedampften Vlies und einem Cu-Spiralwendelschirm mit 100 % Bedeckung.Es ist dadurch sehr gut gegen elektrische Einflüse geschüzt.Vorteile:- Optimale Schirmung durch die Verwendung eines dichten Cu-Wendelschirms + AL/PT-Folie bzw. AL-Vlies- Kompakt und dadurch platzsparendAnwendung:- Professionelle Studio- und Mikrofontechnik- Verbindung von Effektgeräten und Steuereinheiten, bei denen ein Return-Signal benötigt wird- Industrie- und Medizintechnik- Professionelle MIDI-Technik, Überspielkabel- High-End Verbindung von HiFi-Geräten- Steuerung von Licht- und Scanneranlagen und DisplaysLieferung als Abschnitt (Meterware) oder 100m auf Trommel. Technische Daten  Eigenschaften:Digital 110 Ω AES / EBU OFC hochreines Kupfer  Anwendung:DMX  Farbe:Schwarz  Signalübertragung:symmetrisch  Aufbau:(2LI2Y0,22mm²)(ST)DY  Bauform:Rund  Durchmesser:5 mm  Verkaufseinheit:Meterware als Abschnitt oder 100 Meter auf Trommel  BPVo-Euroklasse:Fca  Hersteller:Sommer Cable

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet
