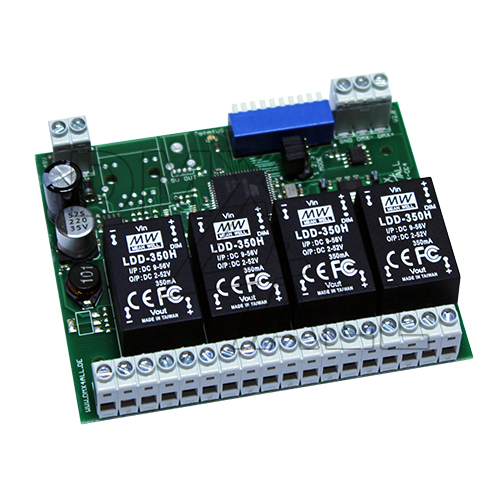

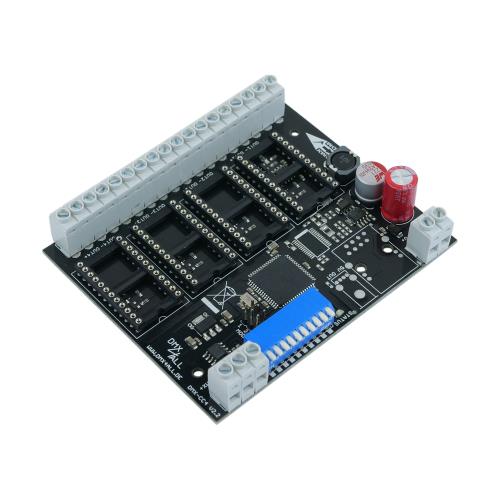

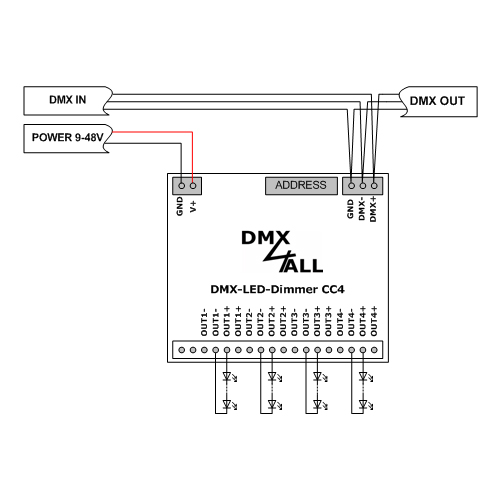

DMX-LED-Dimmer CC4

 DMX-LED-Dimmer CC1The DMX-LED-Dimmer CC1 is designed for controlling LEDs, which are operated with constant current and works with up to 48V DC.Output with selectable constant current modulesDifferent constant current modules with different output currents are available for connection.The constant current modules are available as accessories and are not included in the scope of delivery.Power supply from 12V up to 48VThe DMX-LED Dimmer CC1 works with supply voltages from 12V to 48V.0% to 100%The connected LEDs can be dimmed via PWM of 0% up to 100%.DMX FAIL-FunctionAn adjustable DMX FAIL-Function offers the option to hold the current state (HOLD)or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-LED-Dimmer CC1 the configuration via RDM or DMX.Top hat rail mounting availableSuitable for the DMX-LED-Dimmer CC1 the DIN rail housing 350 is available as accessory. Specifications  Power supply:9-48V DC 20mA@12V; 11mA/24V; 6mA@48V (without LED driver)  Protocol:DMX512 / RDM  DMX channels1 DMX channel  DMX-FAIL:HOLD / 0-100%  Output:1 current regulated output (8 bit controlled) (Output current depends on the LED driver module)  PWM-Frequency:244 Hz  Dimensions:29,2mm x 82mm Product DownloadsDMX-LED-Dimmer CC1Bedienungsanleitung DMX-LED-Dimmer CC1User Manual

 ArtNet-LED-Dimmer CC4The ArtNet-LED-Dimmer CC4 is designed for controlling LEDs,which are operated with constant current and works with up to 48V DC.4 Outputs with selectable constant current modulesSeveral constant current modules with different output currents to insert are available.The constant current modules are available as accessory and not included in delivery.For power supply from 12V up to 48VThe ArtNet-LED-Dimmer CC4 works with a power supply of 12V up to 48V.DMX or Art-Net™The ArtNet-LED-Dimmer CC4 can be controlled via DMX or ArtNet (DMX over Ethernet).Which signal is used prior can be selected.DMX-FAIL FunctionA DMX-FAIL-Function, which can be activated optionally, leaves the status unchangedin case of a DMX-Signal failure, turns off the output OFF (0%) or ON (100%).Disengageable LED-DisplaysThe LED-Displays at the ArtNet-LED-Dimmer CC4 can be disengaged viaArtNet-Command (AcLedMute) or time controlled. This is very helpfulto avoid disturbing “lights points” e.g. on stage.10 User defined Color Changes / ProgramsThe ArtNet-LED-Dimmer CC4 offers 10 user defined color changes.These can be created via a web browser or via the Android App „DMX4ALL Remote“.Test Function for Service PurposesFor test and service purposes it is possible to switch on the single outputs viathe web interface. So each output can be checked without an external control.Easy ConfigurationAn user friendly configuration via web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, anytime the configuration is possible from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Firmware-Update-FunctionTo use future functions the ArtNet-LED-Dimmer CC4 offers a Firmware-Update-Function.The update can be started from a web browser, so no direct access to the device is necessary! Specifications  Power supply:9-48V DC / 150mA@12V; 80mA/24V; 60mA@48V (Current consumption without LED-Driver)  Ethernet:RJ45 (Art-Net™)  DMX:3pin screw terminal  DMX-Kanäle4 Channels (without master dimmer) 5 Channels (with master dimmer)  DMX-FAIL:HOLD / ALL OFF / ALL ON  Masterdimmer:activatable  Output:4 current regulated output (8 bit controlled) (Output current depends on the LED driver module)  PWM-Frequency:244 Hz  USB connector:5V / 500mA for power supply external devices (e.g. WLAN-Bridge)  Dimensions:99mm x 82mm  Constant current modules:Constant current LED-Driver LDD-H(available as an accessory)Constant current LED-Driver NLDD-H Product DownloadsArtNet-LED-Dimmer CC4Bedienungsanleitung ArtNet-LED-Dimmer CC4User Manual ArtNet-LED-Dimmer CC4Firmware

 DMX-Relais/Analog 4The DMX-Relais/Analog 4 is designed for switching loads of several kinds.Four potential free contacts with up to 8A switching power are available.Additional four analog outputs with 0-10V or 1-10V can be used to control systems with analog inputs.This relay outputs are suitable for switching DC or AC voltage.A DMX FAIL function hold the relays and analog states unchanged or switch off at a loss of DMX signal. Specifications  Power supply:12-24V DC / 250mA  Input:4 up to 12 DMX-channels  Output:4 switching contacts (close) each max. 8A / 250V~ (165A/20ms Switch-on peak current) 4x analog output 0-10V / 1-10V  DMX-FAIL:Hold / Off  Connectors:screw terminals  Dimensions:99 x 82mm Product DownloadsDMX-Relais/Analog 4Bedienungsanleitung DMX-Relais/Analog 4User Manual

 DMX-LED-Dimmer X9HRThe DMX-LED-Dimmer X9HR is especially designed for controlling RGB LED-Stripes.The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9HR has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9HR operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9HR can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.DMX-Master DimmerOptionally, another DMX channel can be activated as Master Dimmer (all outputs)or one master dimmer per RGB group. The global master dimmer is fixed atDMX address 1 and can be used as system master dimmer.Adjustable dimming curveThe dimming curves can be configured individually for each output.RDM supportThe DMX-LED-Dimmer X9HR allows configuration by RDM via DMX.SubDevice-ModeIn SubDevice mode, each output is assigned its own DMX address and DMX FAIL behavior via RDM.LED-State DisplayThe DMX state is indicated via the LED status.Firmware-Update-FunctionTo use future functions, the DMX-LED-Dimmer X9HR offers a firmware update function.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9HR. Specifications  Power supply:7-24V DC 80mA@12V / 100mA@24V (without load)  LED voltage:7-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:9 channels with 8Bit-Mode 18 channels with 16Bit-Mode + optional Master-Dimmer-Channels  Masterdimmer:None / Global / RGB / System  DMX-FAIL:Hold / 0%-100%  8bit ModePWM-Frequency 488 Hz with LookUp-Table 2 kHz or 4 kHz without LookUp-Table  16bit ModePWM-Frequency 488 Hz without LookUp-Table  Output:9 PWM-signal common supply voltage anode (PLUS)  Output current:max. 10A each output In sum 90A with all GND connections  Output power:9x 120W (12V) / 9x 240W (24V)  Energy-Save output:Control output for switching off the load power supply units  StandAlone function:9 internal StandAlone programs  Connections:Screw terminals  Dimensions:99mm x 82 mm Produkt DownloadsDMX-LED-Dimmer X9HRBedienungsanleitung DMX-LED-Dimmer X9HRUser Manual DMX-LED-Dimmer X9HRUSB Driver (ab V2.2)Version 6.0.0.0 DMX-LED-Dimmer X9HRFirmware (ab V2.2) Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual

 WAGO 221-2411 DurchgangsverbinderWith the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The 1-way through connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Number of poles:1  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-2411  Manufactor:WAGO

 WAGO 221-412 Verbindungsklemme 2With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:2 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-412  Manufactor:WAGO

 WAGO 221-413 Verbindungsklemme 3With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:3 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-413  Manufactor:WAGO

 WAGO 221-415 Verbindungsklemme 5With the 221 series connection terminal, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The connection terminals can be opened particularly easily and quickly.Thanks to the specially designed operating lever, only minimal effort is required to open the 221.The connection is made completely without tools.In addition, the recessed grips on the side prevent slipping and ensure that the terminal is easy to hold while connecting the conductors.With the small connection terminal up to 4 mm², all types of conductors with different cross-sections can be clamped quickly and easily.The connectors connect fine-stranded conductors from 0.14 to 4 mm² as well as single and multi-wire conductors from 0.2 to 4 mm².The large connection area allows you to connect different types of conductors and bridge large differences in cross-section. Specifications  Type:Connection terminal  Assembly:5 conductors  Rated current:32A  Cross section flexible (max.):4 mm²  Cross section flexible (min.):0.14 mm²  Cross section rigid (max.):4 mm²  Cross section rigid (max.):0.2 mm²  Part number:221-415  Manufactor:WAGO

 WAGO 221-500 BefestigungsadapterWith the 221 series, WAGO enables tool-free wiring for all types of conductors.Clear handling and space-saving design make every application child's play.Simple, quick and safe handling.The mounting carrier is suitable for 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²). Specifications  Type:Mounting carrier  Suitable:for 2-, 3- and 5-conductor 221 Series Splicing Connectors  Mounting type:DIN-35 rail Screw mount  Color:Orange  Part number:221-500  Manufactor:WAGO

 MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-48 (48V/1,25A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-48Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:48VDCOutput Current:0...1,25AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet
