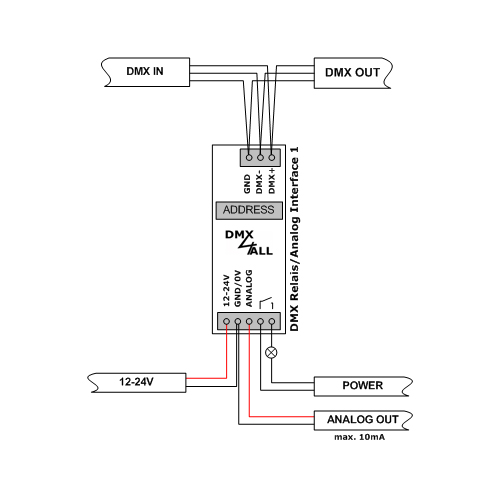

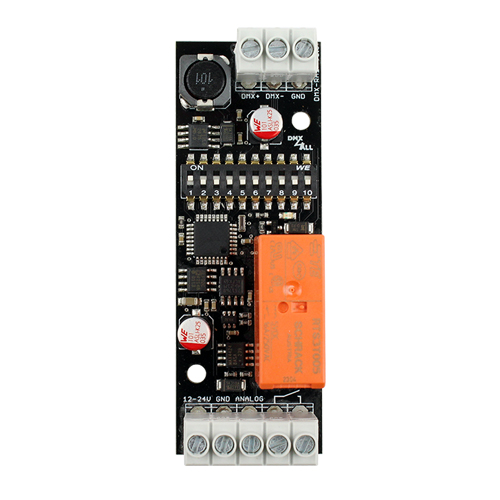

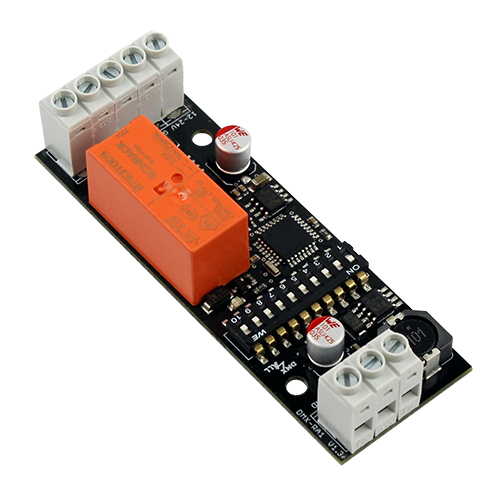

DMX-Relais/Analog 1

 ArtNet-Relais/Analog 4The ArtNet Relais/Analog Interface 4 is designed for switching loads of several kinds.4 relay and 4 analog outputsFour potential free contacts with up to 8A switching power are available.Additional four analog outputs with 0-10V or 1-10V can be used to control systems with analog inputs.DMX or Art-NetThe ArtNet Relais/Analog Interface 4 can controlled by a DMX signal or by an Art-Net (DMX over Ethernet) signal.DMX-HOLD functionA DMX-HOLD function can be activated. Then, the state of the relay and analog outputs is hold after losing the DMX signal. User-friendly ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.Power Supply for WiFi BridgeIn addition the ArtNet Relais/Analog Interface 4 has a USB connector providing a power supplywith 5V/500mA for external devices e.x. a WiFi-bridge.As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802NControll with AppThe controll of this device is possible by using the free Android-App "DMX Remote".Firmware-Update-FunctionIn order to take advantage of future features, the ArtNet Relais/Analog Interface 4 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe ArtNet Relais/Analog Interface 4 has another TCP communication interface.This interface uses the DMX4ALL-commands via TCP packets. Specifications  Power supply:12-24V DC / 250mA  Ethernet:RJ45  Input:4 up to 12 DMX-channels  Output:4 switching contacts each max. 8A / 250V~ (165A/20ms Switch-on peak current) 4x analog output 0-10V / 1-10V  DMX-FAIL:Hold / Off  Connectors:screw terminals  USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge)  Dimensions:99 x 82mm  Protocol:Art-Net ™ DMX4ALL Commands Product DownloadsArtNet-Relais/Analog Interface 4Bedienungsanleitung ArtNet-Relais/Analog Interface 4User Manual ArtNet-Relais/Analog Interface 4Firmware

 DMX-Analog 0-10V 1-KanalThe DMX-Analog Interface 1-Channel is optimized to control a 0-10V or 1-10V device, e.g. an electronic balast. The output output can be set to 0-10V or 1-10V analog signal.With one DMX channel the output is controlled in 256 steps. Specifications  Power supply:12V DC / 50mA  Input:DMX512 / 1 channel  DMX-Fail:Hold / Off / On  Mode::0-10V or 1-10V selectable  Output:1x Analog-Output  256 Steps (DMX-Value 0-255 -> Analogvoltage 0/1-10V)  Output current:max. 10mA  Dimensions:30 x 70 mm Product DownloadsDMX-Analog 0-10V 1 channelBedienungsanleitung DMX-Analog 0-10V 1 channelUser Manual

 DMX-Analog 0-10V 8-KanalThe DMX 0-10V Interface is especially designed to switch not-DMX-suitable devices with an analog input.On the output 8 analog signals with 0-10V output voltage are available.Each output is controllable via a DMX-channel and divided in 256 steps.A output driver on each channel allows loads up to 10mA. Specifications  Power supply:12-24V DC  Current consumption:50mA@12V; 40mA@24V (without connected load)  Protocol:DMX512 RDM  DMX channels:8 channels  DMX-FAILHold / 0-100%  Output:8 outputs with driver each max. 10mA  Resolution:256 steps (8-Bit), linear  Connections:screw terminals  Dimensions:64mm x 82 mm Product DownloadsDMX-Analog 0-10V 8-KanalBedienungsanleitung DMX-Analog 0-10V 8 channelUser Manual

 DMX-Relais/Analog 4The DMX-Relais/Analog 4 is designed for switching loads of several kinds.Four potential free contacts with up to 8A switching power are available.Additional four analog outputs with 0-10V or 1-10V can be used to control systems with analog inputs.This relay outputs are suitable for switching DC or AC voltage.A DMX FAIL function hold the relays and analog states unchanged or switch off at a loss of DMX signal. Specifications  Power supply:12-24V DC / 250mA  Input:4 up to 12 DMX-channels  Output:4 switching contacts (close) each max. 8A / 250V~ (165A/20ms Switch-on peak current) 4x analog output 0-10V / 1-10V  DMX-FAIL:Hold / Off  Connectors:screw terminals  Dimensions:99 x 82mm Product DownloadsDMX-Relais/Analog 4Bedienungsanleitung DMX-Relais/Analog 4User Manual

 Litze 10m BlauInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:blue  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m GelbInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:yellow  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m GrünInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:green  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m RotInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:red  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m SchwarzInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:black  Outer diameter:~ 1,1 mm  Length:10m

 Litze 10m WeißInsulated 1-wire copper wire 0,14mm².Delivery: 10m ring. Specifications  Implementation:1-wire, insulated , multistrand (18x 0.1 mm)  Typ:Copper wire, flexible  Color:white  Outer diameter:~ 1,1 mm  Length:10m

 MEANWELL HDR-15-12 (12V/1,25A/15W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Enclosed case, Touch-guard screw terminals - Universal input - Overload protection, current limiting, auto recovery - Protections: short circuit/over load/over voltage - Power-on LED display - Low no load power consumption - Manufactor: MEANWELL - Manufactor order code: HDR-15-12 Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...1,25AOutput Power:15WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:45ARated Output Power:110...145%Operating Temperature Range:-30°C to +70°CUnit Weight:78gLength/Width/Height:54.5mm/17.5mm/90mm Product DownloadsHDR-15Datasheet

 MEANWELL HDR-60-12 (12V/4,5A/54W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-12Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:12VDCOutput Current:0...4.5AOutput Power:54WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet

 MEANWELL HDR-60-24 (24V/2,5A/60W)- Small, staircase rail power supply, compact design, fanless design- Suitable for mounting on DIN standard mounting rails TS35/7 or TS35/15- Complies with the EU standard DIN EN 43880- Enclosed case, Touch-guard screw terminals- Universal input- Overload protection, current limiting, auto recovery- Protections: short circuit/over load/over voltage- Power-on LED display- Low idle power consumption- Insulation class II- Manufactor: MEANWELL- Manufactor order code: HDR-60-24Note:These power supplies are considered as a component that has to be installed in a final equipment. Specifications  Input Type:1-Phase / Single PhaseInput Voltage Range:85VAC to 264VAC | 120VDC to 370VDCFrequency Range:47~63HzOutput Voltage:24VDCOutput Current:0...2,5AOutput Power:60WOpen Frame/Enclosed:EnclosedIsolation Voltage:3kVrmsInrush Current max.:30A/115VAC | 60A/230VACRated Output Power:105...160%Operating Temperature Range:-30°C to +70°CUnit Weight:190gLength/Width/Height:54.5mm/52.5mm/90mm Product DownloadsHDR-60Datasheet
