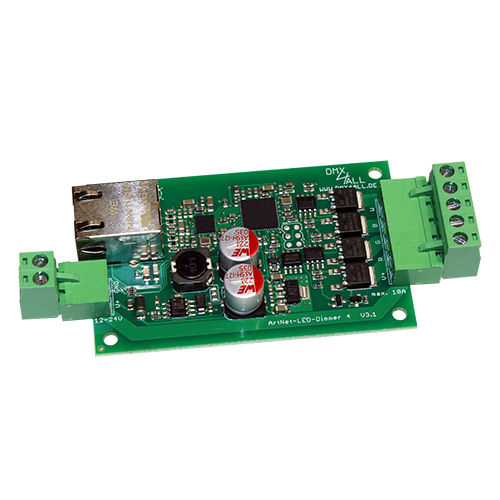

ArtNet-LED-Dimmer 4 MK2The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:12-24V DC / 100mA (=LED voltage) LED voltage:12-24V DC (no AC voltage !) Connection:RJ45 Ethernet LED-connection:R/G/B + W screw terminals max. 10A with common anode (+) USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge) PWM-Frequency:250 Hz Dimensions:115mm x 54mm x 23mm DMX4ALL Commands Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2Bedienungsanleitung ArtNet-LED Dimmer 4 MK2User Manual ArtNet-LED Dimmer 4 MK2Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

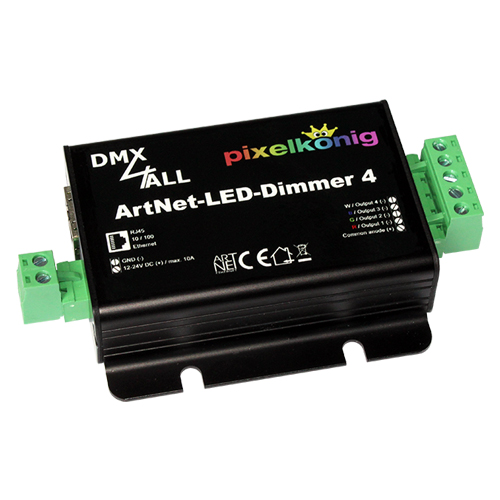

ArtNet-LED-Dimmer 4 MK2+The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.High quality and compact design The ArtNet-LED-Dimmer 4+ MK2 is manufactured with removable clamps.Furthermore, the ArtNet LED Dimmer 4+ MK2 is mounted in a compact aluminum housing.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:12-24V DC / 100mA (=LED voltage) LED voltage:12-24V DC (no AC voltage !) Connection:RJ45 Ethernet LED-connection:R/G/B + W screw terminals max. 10A with common anode (+) USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge) PWM-Frequency:250 Hz Dimensions:115mm x 74mm x 23mm Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2+Bedienungsanleitung ArtNet-LED Dimmer 4 MK2+User Manual ArtNet-LED Dimmer 4 MK2+Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note

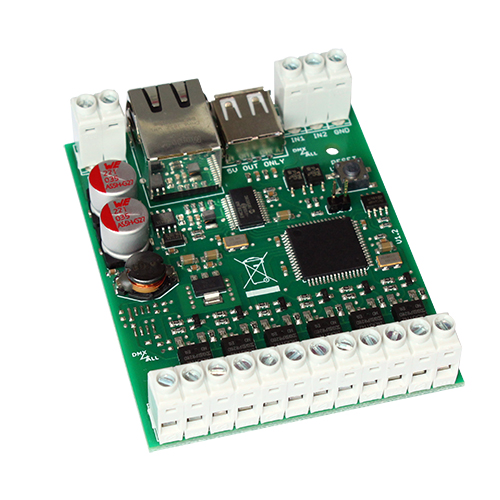

ArtNet-LED-Dimmer 6The ArtNet Dimmer 6 is a compact LED-Dimmer with 6 seperate LED-outputs.These can be used for RGB/ RGB+W / RGB + W WW or for single color stripes.High Power OutputsEach output can drive a current up to 10A.So it is possible to connect a maximum load on ecah output of 120W (12V) or 240W (24V).16 Million ColorsWith the RGB-LED-Stripe up to 16 million colours can be adjusted.By using an additional single color white stripe it is possible to makecolor neutral illuminations or pastel colours.NEW: User Configurable Color ProgrammsThe ArtNet-LED Dimmer 6 has also 10 user configurable color programms whichcan be defined via the webbrowsr or the Android App „DMX4ALL Remote“.User-friendly ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.Power Supply for WiFi BridgeIn addition the ArtNet-Dimmer 6 has a USB connector providing a power supplywith 5V/500mA for external devices e.x. a WiFi-bridge.As WLAN-bridge we suggest: TP-Link TL-WR702N or TP-Link TL-WR802NControll with AppThe controll of this device is possible by using the free Android-App "DMX Remote".Firmware-Update-FunctionIn order to take advantage of future features, the ArtNet-LED-Dimmer 6 has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe ArtNet-LED-Dimmer 6 has another TCP communication interface.This interface uses the DMX4ALL-commands via TCP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:12-24V DC / 100mA LED voltage:12-24V DC (no AC voltage !) Connection:RJ45 Ethernet LED-connection:6 outputs max. 10A per output (in total 60A) common anode (+) USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge) PWM-Frequency:250Hz / 500Hz / 1000Hz / 2000 Hz Dimensions:64,2 x 82 x 20 mm Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 6Bedienungsanleitung ArtNet-LED Dimmer 6User Manual ArtNet-LED Dimmer 6Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Devolopment
Product number:
90-3106
Manufacturer:
DMX4ALL GmbH
Delivery time: 1-3 days
€236.81*
