DMX-Splitter 4
€98.75*
47 available
Delivery time: on stock (1 day)
- Direct from the manufacturer
- dispatch within 24 hours on weekdays
-
Made in Germany -
Made in Europe - technical support
PayPal
Pay Later
SEPA direct debit
Pay upon invoice
Google Pay
Apple Pay
Credit or debit card
Bancontact
eps
iDEAL
OXXO supported by Paypal
Przelewy24
BLIK
Multibanco
MyBank
Paid in advance
Cash on delivery
Bar
Invoice plus payment extension fee
EC Kartenzahlung Zahlung bei Abholung
Kredit- oder Debitkarte bei Abholung Product information "DMX-Splitter 4"

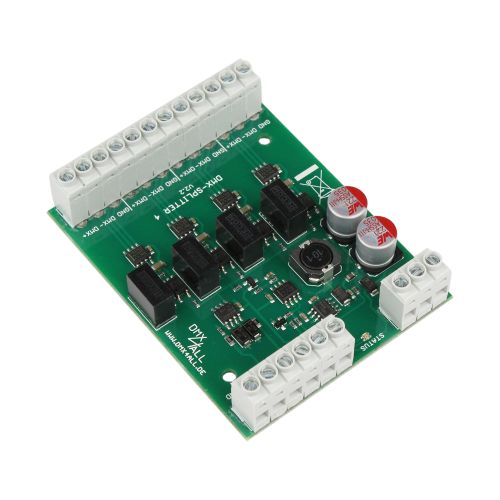

 DMX-Splitter 4 |

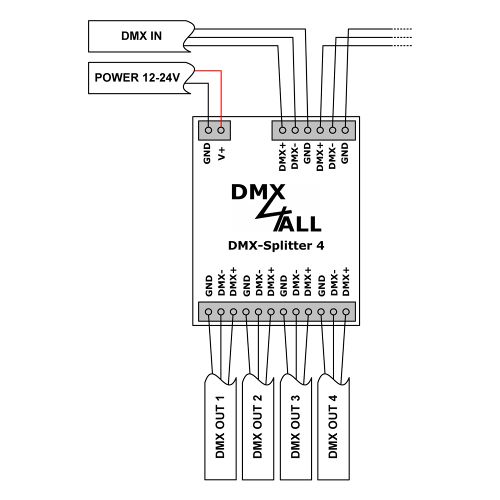

The DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which provides
these at four galvanically isolated outputs.
4 galvanically isolated outputs
The DMX-Splitter 4 is a compact DMX-Divider with one DMX-Input signal which provides
these at four galvanically isolated outputs.
Extremely light construction
Extremely light DC/DC converters are used for galvanic isolation.
Power supply via one power supply unit
The power supply occurs via one power supply unit.
The voltage range is between 8V up to 24V.
Compact design for top hat rail mounting
The DMX-Splitter 4 is suitable for installation in top hat rail mountings
with a width of 7cm due to its small size.
LED-Display
Two LEDs show clearly the current operation mode.
Top hat rail mounting available
Suitable for the DMX Splitter 4 the DIN rail housing 700 is available as accessory.
| Specifications |
| Power supply: | 8-24V DC |
| (350mA@12V; 200mA@24V) | |
| Input: | 512 channels |
| Output: | 4x 512 channels |
| galvanically isolated | |
| Connections: | screw terminals |
| Dimensions: | 64,2mm x 82mm |
| Product Downloads |
