DMX TwinPOE AP RDM

€195.00*

Content: 1 Stck.

14 at stock.

Das Versandversprechen gilt nur für Artikel, die im Online Shop als DMX4ALL GmbH - DMX und RDM-Technik Made in Germany

angezeigt werden und Zahlungseingang per PayPal vorrausgesetzt.
Versand nur werktags von Montag bis Freitag (bis 13:00 Uhr) (nicht am Samstag, Sonntag und Feiertag).

Delivery time: 1-3 days

Piece

Product number: 90-4512

Manufacturer: DMX4ALL GmbH

Manufacturer product number: 90-4512

Weight: 0.3 kg

Delivery time: 1-3 days

Our benefits

Direct from the manufacturer
dispatch within 24 hours
Made in Germany
technical support

Our payment methods:

Product information "DMX TwinPOE AP RDM"

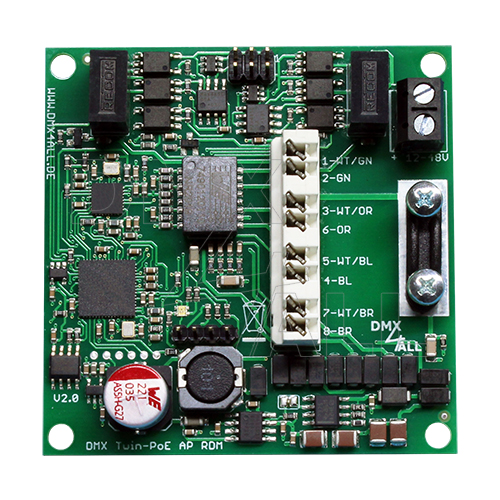

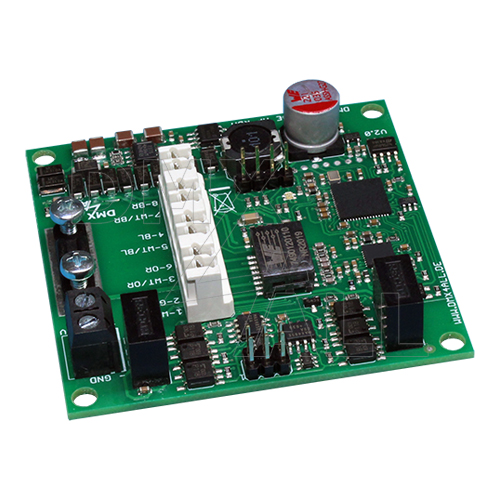

DMX TwinPOE AP RDM

The DMX TwinPOE AP RDM is a compact ethernet interface (DMX via Ethernet),
which can be used for Art-Net™/TPM2/sACN to DMX/RDM or DMX to Art-Net™.

Two galvanically separated DMX Universes
The DMX TwinPOE AP RDM offers two separated DMX connections which can be used as DMX-OUT or DMX-IN.

Settable DMX frame rate
In the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.

RDM via Art-Net™
Supports RDM via Art-Net™ and thus enables connected RDM devices
to be configured via Art-Net™ using corresponding software.

Multi-color LED display
The LED-Display at the DMX TwinPOE AP RDM can be switched off via Art-Net™-Command (AcLedMute)
or time controlled. This is very helpful to avoid disturbing “light points” on stage.

LSA-PLUS Quick connection technology
The LSA insulation displacement technology allows the individual wires to be
attached quickly (e.g. for network installation cables).

Easy Configuration
A user-friendly configuration via web browser allows a fast and uncomplicated setting
of all parameters. No special software is necessary, a standard web browser is enough.
So, the configuration is possible any time from PC, Smartphone or tablet.
Compact design
The DMX TwinPOE AP RDM with a size of 66mm x 66mm is suitable for
installation in the optionally available wall-mounted housing.

Art-Net™ Merge-Function
Two Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.

Firmware-Update-Function
To be able to use future functions, DMX TwinPOE AP RDM offers a firmware update function.
This can be started from the web browser, so no access to the device is necessary!

DMX4ALL communication interface
The DMX TwinPOE AP RDM has an additional communication interface that uses DMX4ALL commands via TCP or UDP.

Surface housing available
A surface-mounted housing suitable for the DMX TwinPOE AP RDM is available as an accessory.

Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd.

Specifications


Power supply:	PoE with IEEE 802.af
	or 8-48V DC
	(200mA@12V; 110mA@24V; 65mA@48V)

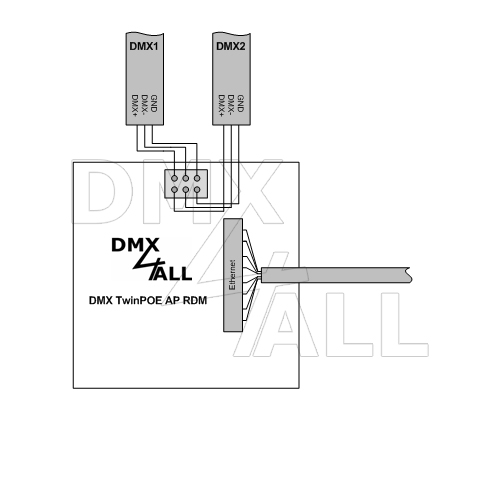

Connection:	Ethernet: LSA-PLUS connection
	Power: Screw terminals
	DMX: Pin header RM2,54

DMX:	adjustable each DMX connection:
	- 512 channels OUT
	- 512 channels IN

DMX-Framerate:	adjustable (5 - 44 fps)

RDM	RDM via Art-Net™ on-/off switchable

DATA FAIL (DMX-OUT):	HOLD last data
	CLEAR all to 0%
	SET all to 100%
	NO OUTPUT
	DEFAULT VALUES
	INTERNAL PROGRAM

DMX-IN FAIL (DMX-IN):	NO DATA
	HOLD last data
	CLEAR all to 0%
	SET all to 100%

Protocol:	Art-Net™
	TPM2
	sACN (Unicast)
	DMX4ALL commands

Internal program:	User configurable Stand-Alone program

LED-Display:	Multi-Color-LED (RGB)

Dimensions:	66mm x 66mm

Product Downloads

DMX TwinPOE AP RDM
Bedienungsanleitung
DMX TwinPOE AP RDM
User Manual
DMX TwinPOE AP RDM
Ethernet VCP Driver 32 & 64bit - Version 1.10
DMX TwinPOE AP RDM
Firmware

Software & Tools

DMX-Configurator V2
Windows 32 & 64bit
DMX-Configurator V2
Bedienungsanleitung
DMX-Configurator V2
User Manual
IP Configurator (ArtNet Produkte)
Windows 32 & 64bit
IP Configurator
Anwendungshinweis
IP Configurator
Application Note
