DMX-LED-Dimmer XS3
€44.99*
7 available
Delivery time: on stock (1 day)
- Direct from the manufacturer
- dispatch within 24 hours on weekdays
-
Made in Germany -
Made in Europe - technical support
PayPal
Pay Later
SEPA direct debit
Pay upon invoice
Google Pay
Apple Pay
Credit or debit card
Bancontact
eps
iDEAL
OXXO supported by Paypal
Przelewy24
BLIK
Multibanco
MyBank
Paid in advance
Cash on delivery
Bar
Invoice plus payment extension fee
EC Kartenzahlung Zahlung bei Abholung
Kredit- oder Debitkarte bei Abholung Product information "DMX-LED-Dimmer XS3"
 DMX-LED-Dimmer XS3 |
The DMX-LED-Dimmer XS3 is designed to control RGB or
single-colour LED-Stripes with 12V or 24V.
3 Outputs
The DMX-LED-Dimmer XS3 has three outputs to connect LEDs. All outputs
are designed at the same, so single-colour or RGB LEDs can be connected.
High Power Outputs
The outputs can drive a current up to 2A.
So it is possible to connect a maximum load of 72W (12V) / 144W (24V).
0% up to 100% dimmable
The connected LEDs are dimmed via PWM from 0% up to 100%.
For voltages from 12V up to 24V
The DMX-LED-Dimmer XS3 runs with a power supply from 12V up to 24V.
DMX-FAIL Function
An adjustable DMX-FAIL Function offers the option to get, in case of
lost DMX signal, the current state (HOLD) or assuming a preset value.
DMX-Master dimmer
Optionally, another DMX channel can be activated as master dimmer (all outputs).
RDM support
The DMX-LED-Dimmer XS3 allows configuration by RDM via DMX.
All parameters can be set with the RDM Configurator.
Stand-Alone-Function
The DMX-LED-Dimmer XS3 has a user-programmable Stand-Alone-Function,
to replay an internal program.
LED-Status-Display
The DMX receiving is indicated via the LED status display.
| Specifications |
| Power supply: | 12-24V DC |
| 50mA without load | |
| LED voltage: | 12-24V DC (no AC voltage !) |
| Protocol: | DMX512 |
| RDM | |
| DMX channels: | 3 / 4 / 5 channels depend on Personality |
| DMX-FAIL: | Hold / 0%-100% / Stand-Alone |
| Output: | 3 PWM-Signals with 8 Bit resolution |
| Common supply voltage | |
| Output current: | max. 2A per output |
| max. 6A in sum for all outputs | |
| Output power: | 3x 24W (12V) / 3x 48W (24V) |
| PWM-Frequency: | 244 Hz |
| StandAlone-Function: | User-defined light program |
| Connections: | Solder pads |
| Dimensions: | 12mm x 40mm |
| Product Downloads |
DMX4ALL GmbH
Reiterweg 2A
Germany
WEEE DE37841650
+49 2327 2204600
kontakt@dmx4all.de
WarningPlease note that all installation, service and maintenance work may only be carried out by qualified specialists.
Attention, the appliance is not a toy and must not be allowed to fall into the hands of children.
Waste disposalElectrical and electronic products must not be disposed of with household waste. At the end of its service life, the product must be disposed of in accordance with the applicable legal regulations and local conditions.
We recommend the following for this product:

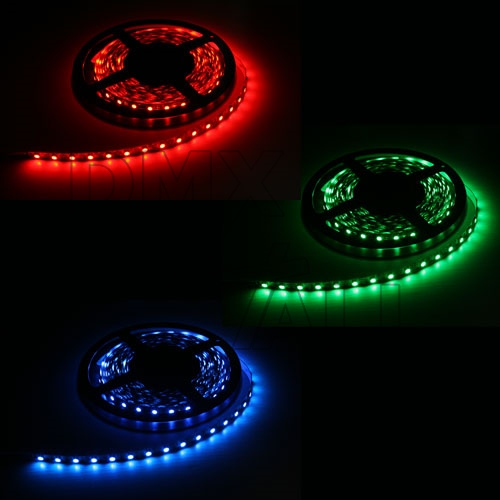

LED-Stripe RGB 12V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used. Colour: Red / Green / Blue - assembled with 300 RGB SMD-LEDs. Specifications Power supply:12V DC / Common Anode (+)Power consumption:max. 14,4 W/mLED Type:SMD5050 R:500-650MCD G:1200-1350MCD B:350-500MCDLED view angle:120°Design:self-adhesive backside 300x RGB LED (60LEDs/m) divisible each 3 LEDs / 5cm delivery on plastic reelLength:5mWide:10mm
Delivery time: on stock (1 day)
LED-Stripe RGB 24V 5m 30WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used. Colour: Red / Green / Blue - assembled with 150 RGB SMD-LEDs. Specifications Power supply:24V DC / Common Anode (+) Power consumption:max. 7,2 W/m LED Type:SMD5050 LED view angle:120° Design:self-adhesive backside 150x RGB LED (30LEDs/m) divisible each 3 LEDs / 10cm delivery on plastic reel Length:5m Wide:10mm
Delivery time: on stock (1 day)
LED-Stripe RGBA 24V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used. Colour: Red / Green / Blue / Amber in one LED !!!Assembled with 300 RGBA SMD-LEDs on 5m. Specifications Power supply:24V DC / Common Anode (+) Power consumption:max. 19,2 W/m LED Type:SMD5050 RGBA LED view angle:120° Design:self-adhesive backside 300x RGBA LED (60LEDs/m) divisible each 6 LEDs / 10cm delivery on plastic reel Length / Wide:5m / 12mm
No longer available
LED-Stripe RGBW 24V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used. Colour: Red / Green / Blue / Coolwhite in one LED (4-in-1) !!!Assembled with 300 RGBW SMD-LEDs on 5m. Specifications Power supply:24V DC / Common Anode (+) max. Power consumption:19,2 W/m LED Type:SMD5050 RGBW (4-in-1) CCT:6000-6500K LED view angle:120° Design:self-adhesive backside 300x RGBW LED (60 LEDs/m) divisible each 6 LEDs / 10cm delivery on plastic reel Length / Wide:5m / 12mm
Delivery time: on stock (1 day)
LED-Stripe RGBWW 24V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used. Colour: Red / Green / Blue / Warm-White in one LED (4-in-1) !!!Assembled with 300 RGBWW SMD-LEDs on 5m. Specifications Power supply:24V DC / Common Anode (+) max. Power consumption:19,2 W/m LED Type:SMD5050 RGBWW (4-in-1) CCT:2800-3200K LED view angle:120° Design:self-adhesive backside 300x RGBWW LED (60 LEDs/m) divisible each 6 LEDs / 10cm delivery on plastic reel Length / Wide:5m / 12mm
Delivery time: on stock (1 day)
LED-Stripe WHITE 2800-3200K 12V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used.Colour: Warm-White - assembled with 300 3Chip SMD-LEDs. Specifications Power supply:12V= Power consumption:up to 6A Power per meter:14,4W Color:Warm-White Angle of radiation per LED:120° Lumen per LED:10-15 Design:adhesive back side 300x SMD LED (SMD5050) devisible each 3 LEDs / 5cm delivery on plastic reel Length:5m Wide:10mm
Delivery time: on stock (1 day)
LED-Stripe WHITE 8000-10000K 12V 5m 60WSAn easy installation due to optimal flexibility and with a self-adhesive backside the stripes stick to almost each surface.Ideal for room and scenery lighting.Due to the low dimensions an application is possible where usual standard-illuminant can not be used.Colour: White - assembled with 300 3Chip SMD-LEDs. Specifications Power supply:12V= Power consumption:up to 6A Power per meter:14,4W Color:White Angle of radiation per LED:120° Lumen per LED:10-15 Design:adhesive back side 300x SMD LED (SMD5050) devisible each 3 LEDs / 5cm delivery on plastic reel Length:5m Wide:10mm
Delivery time: on stock (1 day)
DMX STAGE-PROFI 1.1 RDM (XLR3)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:5V DC via attached external power supply Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR3 Ethernet:10 Mbit/s | 100 Mbit/s DMX:Selectable: - 512 channels OUT - 512 channels IN DMX-Framerate:Adjustable (5 - 44 fps) RDM:RDM via Art-Net™ (switchable on/off) ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAMDMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP Internal program:User-configurable stand-alone program Status LED:Green: Ethernet Connection Yellow: Datatransfer Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR3)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR3)User Manual DMX STAGE-PROFI 1.1 RDM (XLR3)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR3)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR3)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual
Delivery time: on stock (1 day)

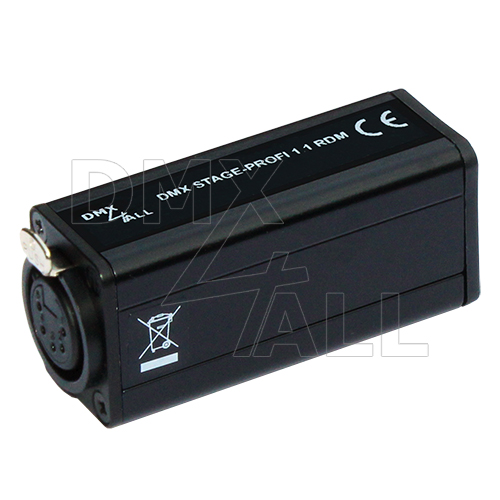

DMX STAGE-PROFI 1.1 RDM (XLR5)The DMX STAGE-PROFI 1.1 RDM is a compact bidirectional Ethernet Gateway (DMX via Ethernet), whichcan be used for Art-Net™ / TPM2 / USB to DMX / sACN to DMX / RDM or DMX to Art-Net™.Via a standard RJ45 net work connection the connection to ethernet net work occurs.Switchable DMX directionThe DMX direction can be switched according to usage.Settable DMX frame rateIn the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is compatible to "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™ and thus enables connected RDM devices to be configured via Art-Net™ using corresponding software.Muteable LED displayThe LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-Net™-Command (AcLedMute)or time controlled. This is very helpful to avoid disturbing “light points” on stage.DHCPThe DMX STAGE-PROFI 1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX STAGE-PROFI 1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.High quality and Compact DesignThe DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection metal design and cased in an aluminium housing.Art-Net™ Merge-FunctionTwo Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the DMX output.Combinable with WiFi componentsIn combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be integrated into WLAN net works.Firmware update functionTo use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-Function.This can be started with any web browser, so no direct access to the device is necessary!DMX4ALL Communication-InterfaceThe DMX STAGE-PROFI 1.1 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:5V DC via attached external power supply Connection:RJ45 Ethernet USB Mini-B Neutrik® XLR5 Ethernet:10 Mbit/s | 100 Mbit/s DMX:Selectable: - 512 channels OUT - 512 channels IN DMX-Framerate:Adjustable (5 - 44 fps) RDM:RDM via Art-Net™ (switchable on/off) ArtDmx Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM DMX Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES Protocol:Art-Net™ (downwards compatiblel) Ethernet-VCP (Virtual COM Port) USB-VCP (Virtual COM Port) TPM2 sACN (Unicast) DMX4ALL-Commands via TCP, UDP, VCP Internal program:User-configurable stand-alone program Status LED:Green: Ethernet Connection Yellow: Datatransfer Dimensions:75mm x 26mm x 35 mm Produkt DownloadsDMX STAGE-PROFI 1.1 RDM (XLR5)Bedienungsanleitung DMX STAGE-PROFI 1.1 RDM (XLR5)User Manual DMX STAGE-PROFI 1.1 RDM (XLR5)Ethernet VCP Driver 32 & 64bit - Version 1.10 DMX STAGE-PROFI 1.1 RDM (XLR5)USB VCP Driver 32 & 64bit - Version 42.0.1.0 DMX STAGE-PROFI 1.1 RDM (XLR5)Firmware Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual
Delivery time: on stock (1 day)
DMX UNIVERSE DR1.1 RDMThe DMX UNIVERSE DR1.1 RDM is a compact bidirectional Ethernet Gateway whichcan be used for Art-Net™/TPM2/sACN to DMX/RDM or DMX to Art-Net™.With a standard RJ45 network connector the connection to the ArtNet is made.DMX direction selectableThe DMX direction can be switched depending on use.Adjustable DMX-FramerateIn DMX OUTPUT mode, the DMX framerate is adjustable so that this interface is compatible with "slow" DMX devices.RDM via Art-Net™Supports RDM via Art-Net™, which enables connected RDM devices to be configured via Art-Net™ with the appropriate software.Free RDM-SoftwareTo set parameters via RDM our free software RDM-Configurator is available as download on our website www.dmx4all.de .Muteable LED indicatorThe LED indicators on the DMX UNIVERSE DR1.1 RDM are muteable by Art-Net™ command (AcLedMute) or time-controlled.This is helpful to disturbing "points of light" especially on stages.DHCPThe DMX UNIVERSE DR1.1 RDM has a DHCP function for automatic addressing in the network.Internal stand-alone programs The internal programs make the DMX UNIVERSE DR1.1 RDM a stand-alone device. The programs can be calledup via the web interface, when the device is switched on, or when Art-Net™ data is missing.Easy Webbrowser-ConfigurationA user-friendly configuration via a web browser allows a fast and uncomplicated setting of all parameters.No special software is required, a normal web browser is sufficient. Thus, the configuration at any timefrom your PC, smartphone or tablet device.DMX-Monitor The DMX monitor is available via the web interface. This means that the current DMX valuescan be displayed and checked simultaneously without any additional software.DMX-Fader The DMX fader is available via the web interface. This allows the DMX values to be output to be set without additional software.Easy Network ConfigurationFor easy setting of the IP-address, we provide the IP Configurator as a PC tool or Android app available for free.This allows you to leave the network settings unchanged and can easily configure the IP.Compact designThe DMX UNIVERSE DR1.1 RDM is designed for mounting in a 350mm DIN rail housing.Use together with WiFi componentsIn conjunction with a WiFi-bridge the DMX UNIVERSE DR1.1 RDM can be integrated into standard WiFi networks.Firmware-Update-FunctionIn order to take advantage of future features, the DMX UNIVERSE DR1.1 RDM has a firmware update function.This can be launched from the browser so that no access to the device is necessary!DMX4ALL-Command interfaceThe DMX UNIVERSE DR1.1 RDM has another communication interface that is compatible withthe LAN-DMX STAGE-PROFI. This interface uses the DMX4ALL commands via TCP or UDP packets. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:8-24V DC (150mA@12V; 100mA@24V) Connection:Ethernet: RJ45 Power/DMX: Screw terminal DMX:Selectable: - 512 channels OUT - 512 channels IN DMX-Framerate:Adjustable (5 - 44 fps) RDM:RDM via Art-Net™ Data Fail:HOLD last data(DMX-OUT)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES INTERNAL PROGRAM DMX-IN Fail:HOLD last data(DMX-IN)CLEAR all to 0% SET all to 100% NO OUTPUT DEFAULT VALUES Protocol:Art-Net™ TPM2 sACN (Unicast) DMX4ALL commands (as well as the LAN-DMX STAGE-PROFI) Internal program:User-configurable stand-alone program Status LED:Green: Ethernet Connection Yellow: Datatransfer Dimensions:29,2mm x 82mm Product DownloadsDMX UNIVERSE DR1.1 RDMBedienungsanleitung DMX UNIVERSE DR1.1 RDMUser Manual DMX UNIVERSE DR1.1 RDMEthernet VCP Driver 32 & 64bit - Version 1.10 DMX UNIVERSE DR1.1 RDMFirmware DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual IP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note RDM Configurator (ArtNet Produkte)Windows 32 & 64bit RDM ConfiguratorBedienungsanleitung RDM ConfiguratorUser Manual
Delivery time: on stock (1 day)
You might also be interested in:
ArtNet-LED-Dimmer 4 MK2The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:12-24V DC / 100mA (=LED voltage) LED voltage:12-24V DC (no AC voltage !) Connection:RJ45 Ethernet LED-connection:R/G/B + W screw terminals max. 10A with common anode (+) USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge) PWM-Frequency:250 Hz Dimensions:115mm x 54mm x 23mm DMX4ALL Commands Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2Bedienungsanleitung ArtNet-LED Dimmer 4 MK2User Manual ArtNet-LED Dimmer 4 MK2Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note
Delivery time: on stock (1 day)
ArtNet-LED-Dimmer 4 MK2+The ArtNet-LED-Dimmer 4 MK2 is a compact LED-Dimmer controlling 4 separate LED outputs.These can be used for RGB+W or for single, single-colored LED-Stripes.The LEDs connection occurs via removable screw clamps.Via a RJ45-Connection occurs the connection to Ethernet (ArtNet net work).High Power OutputsThe outputs can drive a current of 10A.So, a load of maximum 120W (12V) or rather 240W (24V) results.10 user defined color changes/programsThe ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes.These can be created via the web browser or the Android App „DMX4ALL Remote“.Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 MK2 are disengageablevia ArtNet-Command (AcLedMute) or time-controlled.Most of all this is very helpful on stages to avoid disturbing “light-points”.Easy configuration A user friendly configuration via a web browser allows a fast and uncomplicated settingof all parameters. No special software is necessary, a standard web browser is enough.So, the configuration is possible every time from PC, Smartphone or tablet.For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-App for free.The network settings can be leaved unchanged and the IP can be configured without any problems.Controlling via browser or App with Colorwheel / Slider The output control is available via an integrated web interface with a Colorwheel.Alternatively each other app which supports Art-Net can be used.High quality and compact design The ArtNet-LED-Dimmer 4+ MK2 is manufactured with removable clamps.Furthermore, the ArtNet LED Dimmer 4+ MK2 is mounted in a compact aluminum housing.Firmware-Update-Function To use future functions the ArtNet-LED-Dimmer 4 MK2 offers a Firmware-Update-Function.This can be started from a web browser, so that no direct access to the device is necessary!DMX4ALL Communication-Interface The ArtNet-LED-Dimmer 4 MK2 has a further TCP-Communication-Interface.This interface uses the DMX4ALL-Commands with TCP-Commands via TCP-Packages to Port 10001. Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd. Specifications Power supply:12-24V DC / 100mA (=LED voltage) LED voltage:12-24V DC (no AC voltage !) Connection:RJ45 Ethernet LED-connection:R/G/B + W screw terminals max. 10A with common anode (+) USB-connection:5V / 500mA for power supply external devices (e.g. WLAN-bridge) PWM-Frequency:250 Hz Dimensions:115mm x 74mm x 23mm Protocol:Art-Net 3 ™ DMX4ALL Commands Product DownloadsArtNet-LED Dimmer 4 MK2+Bedienungsanleitung ArtNet-LED Dimmer 4 MK2+User Manual ArtNet-LED Dimmer 4 MK2+Firmware Software & ToolsIP Configurator (ArtNet Produkte)Windows 32 & 64bit IP ConfiguratorAnwendungshinweis IP ConfiguratorApplication Note
Delivery time: on stock (1 day)
DMX-LED-Dimmer MaxiRGBThe DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes. Specifications Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe! LED voltage:12-24V DC (no AC voltage !) DMX Input:DMX512 / 3 channels LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply PWM resolution:256 steps (8-Bit), linear PWM frequency:~240 Hz StandAlone function:9 internal StandAlone-programs Connectors:Solder points Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGBBedienungsanleitung DMX-LED-Dimmer MaxiRGBUser Manual
Delivery time: on stock (1 day)
DMX-LED-Dimmer MaxiRGB (SR)The DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes.SR-Version: With screw connectors Specifications Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe! LED voltage:12-24V DC (no AC voltage !) DMX Input:DMX512 / 3 channels LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply PWM resolution:256 steps (8-Bit), linear PWM frequency:~240 Hz StandAlone function:9 internal StandAlone-programs Connectors:Screw connectors Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGB (SR)Bedienungsanleitung DMX-LED-Dimmer MaxiRGB (SR)User Manual
Delivery time: on stock (1 day)

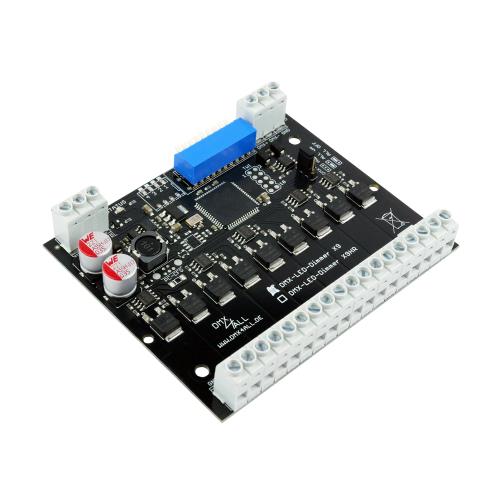

DMX-LED-Dimmer X9The DMX-LED-Dimmer X9 is especially designed for controlling RGB LED-Stripes.The dimmer has 9 PWM-Outputs (3xRGB) independently controllable via DMX.9 OutputsThe DMX-LED-Dimmer X9 has 9 outputs to which LEDs can be connected.All outputs are designed in the same way so single color, RGB or RGBW LEDs can be connected.High Power OutputsThe outputs can drive a current up to 10A.So it is possible to connect a maximum load of 120W (12V) / 240W (24V)0% bis 100% dimmableThe connected LEDs are dimmed by PWM from 0% to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer X9 operates with supply voltages from 12V up to 24V. The LED voltage canbe different per output so that one DMX-LED-Dimmer X9 can control different LED systems.DMX-FAIL FunctionAn adjustable DMX FAIL function offers the option to get in case of lostDMX signal the current state (HOLD) or assuming a preset value.RDM supportThe DMX-LED-Dimmer X9 allows configuration by RDM via DMX.LED-State DisplayThe DMX state is indicated via the LED status.Stand-Alone FunctionAs an alternative to DMX control, internal color sequences can be called upvia the address switch without external DMX control.Top hat rail housing availableThe top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer X9. Specifications Power supply:7-24V DC 80mA@12V / 100mA@24V (without connected LED load) LED voltage:7-24V DC (no AC voltage !) Protocol:DMX512 RDM DMX channels:9 channels with 8Bit-controlling DMX-FAIL:Hold / 0%-100% Output:9 PWM-signal with 8Bit-resolution Common supply voltage Output current:max. 10A each output In sum 90A with all GND connections Output power:9x 120W (12V) / 9x 240W (24V) PWM-Frequency:244 Hz Energy-Save output:Control output for switching off the load power supply units StandAlone function:9 internal StandAlone programs Connections:Screw terminals Dimensions:99mm x 82 mm Product DownloadsDMX-LED-Dimmer X9Bedienungsanleitung DMX-LED-Dimmer X9User Manual
