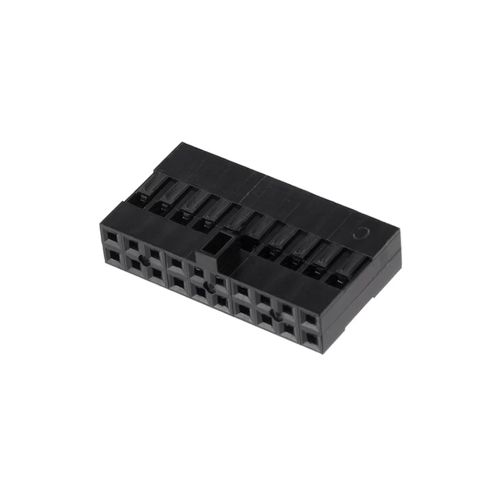

Leergehäuse 2x10pol RM2,54 schwarzThe empty housing is suitable for cables with crimp contacts. Specifications  Version:Empty housing  Color:Black  Number of poles:20 (2x10)  RM:2,54mm  Contents:1 pcs

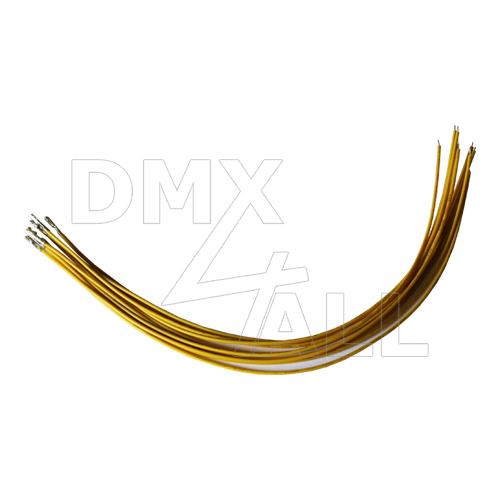

 Specifications  Version:Cable with crimp contact  Color:Yellow  Length:~ 20cm  Contents:10 pcs

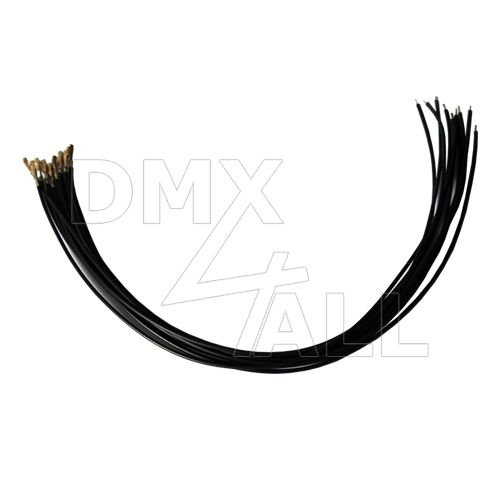

 Specifications  Version:Cable with crimp contact  Color:Black  Length:~ 20cm  Contents:10 pcs

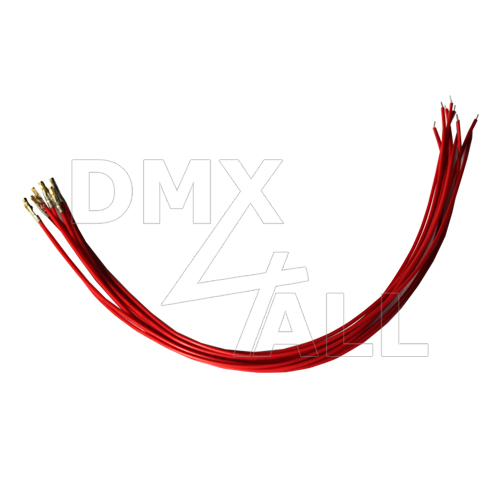

 Specifications  Version:Cable with crimp contact  Color:Red  Length:~ 20cm  Contents:10 pcs

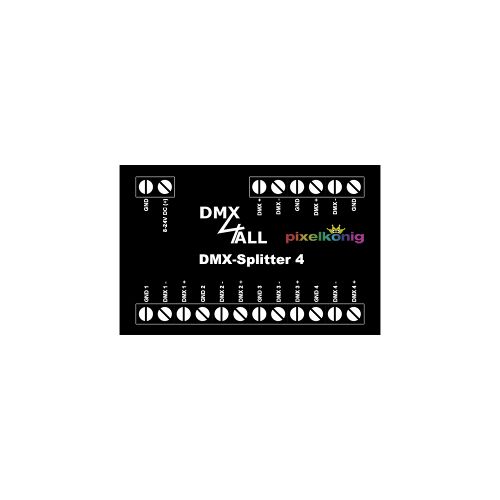

 Gehäuseaufkleber DMX-Splitter 4Housing sticker suitable for the DIN rail housing 700. Specifications  Format:65 x 41 mm  Material:PVC film (0,07 mm)  Glue:transparent, permanently adhesive, repositionable  Finishing:Polymer PVC film matt (0,075 mm)

 Gehäuseaufkleber DMX-MergerHousing sticker suitable for the DIN rail housing 700. Specifications  Format:65 x 41 mm  Material:PVC film (0,07 mm)  Glue:transparent, permanently adhesive, repositionable  Finishing:Polymer PVC film matt (0,075 mm)

 Gehäuseaufkleber SD-Player 8Housing sticker suitable for the DIN rail housing 350 flat. Specifications  Format:29 x 59 mm  Material:PVC film (0,07 mm)  Glue:transparent, permanently adhesive, repositionable  Finishing:Polymer PVC film matt (0,075 mm)

 Gehäuseaufkleber DMX-IEC62386 GatewayHousing sticker suitable for the DIN rail housing 350 flat. Specifications  Format:29 x 59 mm  Material:PVC film (0,07 mm)  Glue:transparent, permanently adhesive, repositionable  Finishing:Polymer PVC film matt (0,075 mm)

 Gehäuseaufkleber DMX-LED-Dimmer X9Housing sticker suitable for the DIN rail housing 1050. Specifications  Format:100 x 41 mm  Material:PVC film (0,07 mm)  Glue:transparent, permanently adhesive, repositionable  Finishing:Polymer PVC film glossy (0,075 mm)

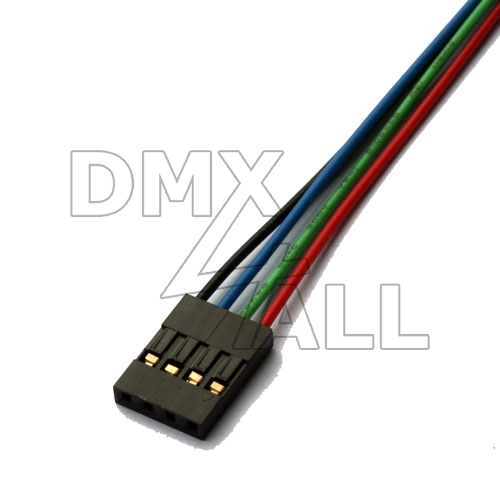

 Kabel C - 100cmCable to connect the RGB-outputs of the DMX-LED-Dimmer 16xRGB.Compatible with: - DMX-Dimmer 16xRGB Specifications  Implementation:26AWG  Connection:4 pin female  Length:~ 100cm

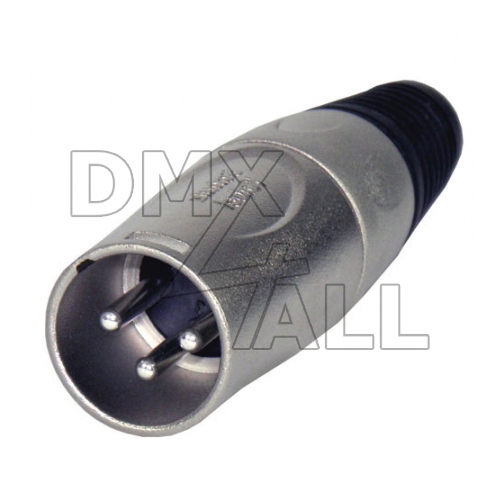

 DMX-Abschlusswiderstand 3polA DMX termination resistor will be plugged in the final DMX-device to avoid disruptions by reflections. Specifications  Connector type:3-pol XLR Male  Termination resistor110Ohm with integrated 110Ohm reseistor

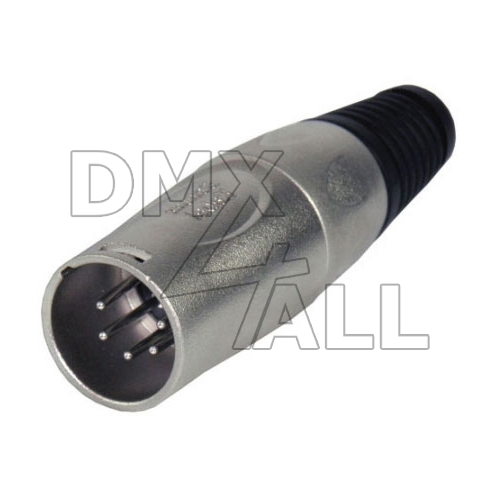

 DMX-Abschlusswiderstand 5polA DMX termination resistor will be plugged in the final DMX-device to avoid disruptions by reflections. Specifications  Connector type:5-pin XLR Male  Termination resistor110Ohm

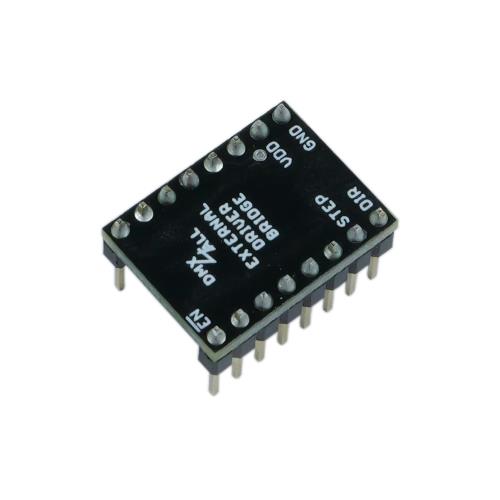

 Schrittmotortreiber BRIDGEThe stepper motor driver BRIDGE can be used to connect external stepper motor drivers to the DMX-Stepper-Control.The signals STEP, DIR and ENABLE are bridged by the stepper motor driver BRIDGE to the motor connectionand can thus be used for the control of an external stepper motor driver.Can be used together with our DMX-Stepper-Control.For detailed information, please refer to the instructions for the DMX-Stepper-Control. Technische Daten  Motordriver:none (EXTERNAL)  Connection:2x 8 pin row  Dimensions:15,2mm x 20,3mm  Delivery:1x EXTERNAL DRIVER BRIDGE with presoldered pin row Product DownloadsSchrittmotortreiber BRIDGEBedienungsanleitung Schrittmotortreiber BRIDGEUser Manual

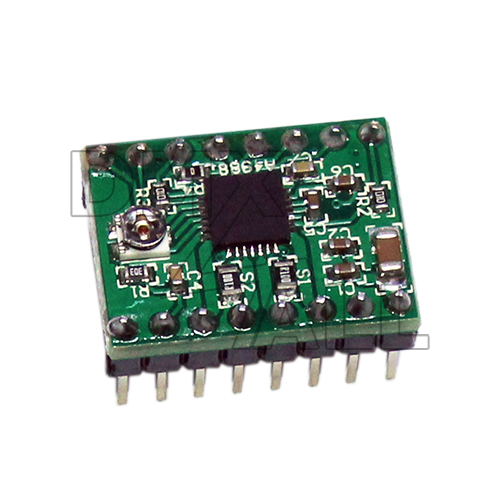

 Schrittmotortreiber A4988Der A4988 ist ein Schrittmotor Treiber mit einstellbarer Strombegrenzung und fünf verschiedenen Microschritt Betriebsarten.Der Treiber ist für Spannungen von 8-35V geeignet und kann einen Strom von 2A per Phase ansteuern.Ersatz Modul für den DMX-Stepper-Control. Technische Daten  Motortreiber:A4988  Arbeitsspannung:8-35 Volt  Arbeitsstrom:2A pro Phase   3.3V und 5V kompatible TTL Signale   Überhitzschutz  Schritte / Steps:Full, 1/2, 1/4, 1/8 und 1/16  Lieferumfang:1x A4988 Stepper Modul inkl. 1 Kühlkörper

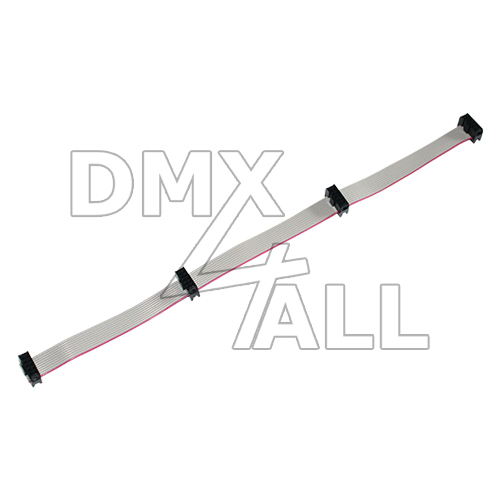

 Kabel für TWI Extension 4fachThe Cable for TWI Extension 4fold is used to distribute the TWI bus signals SDA and SCL and the +5V supply and GND.At approximately 30cm long cable are at a distance of 10cm a total of 4 post sockets available.Compatible with: - DMX-Player L MK2 (Hardware version 2.2 or higher)- TWI analog extension- TWI program ddisplay extension Specifications  Execution:Cable with 4 post sockets  Number of poles:10  Distance between connectors:~ 10cm  Length:~ 31cm

 Kabelset DCable set to connect external controlling elements. Compatible with: - DMX-Player S- DMX-Player L Specifications  Implementation:AWG26  Connection:20 pin male  Length:~ 25cm

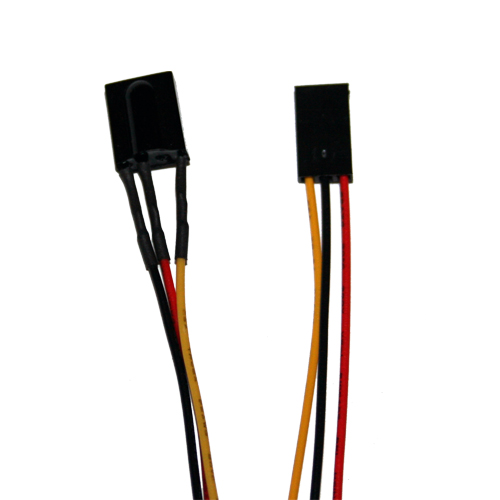

 IR-Sensor Typ ACompatible with: - DMX-Player S- DMX-LED-Dimmer 16xRGB- MADE IN GERMANY - [TAB:Specifications] Specifications  Connection:3 pin female 2,54mm connector  Length:ca. 25cm IR-Sensor Typ ACompatible with: - DMX-LED-Dimmer 16xRGB Specifications  Connection:3 pin female 2,54mm connector  Length:ca. 25cm

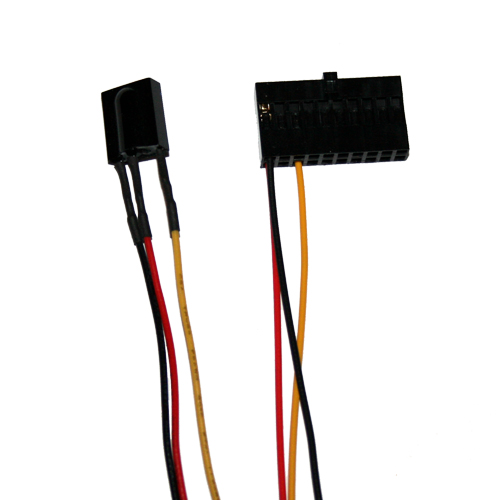

 IR-Sensor Typ BCompatible with: - DMX-Player L MK2 Specifications  Connection:20 pin female 2,54mm connector  Length:ca. 25cm

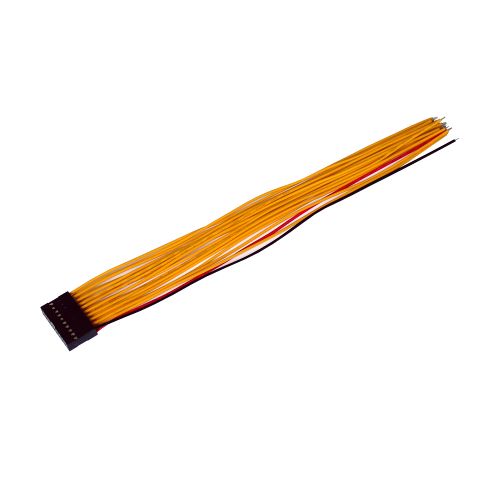

 Kabelset BKabelset für die Verkabelung des CONTROL-Anschlusses für externe Bedienelemente.Kompatibel mit:- DMX-Player L MK2 Technische Daten  Ausführung:AWG26  Anschluss:20 poliger Stecker  Länge:~ 25cm

 PixxRangeExtender 5VThe PixxRangeExtender 5V is an optimal tool to receive control signals for digital LED stripes with long signal cables.The signal lines (clock and data) are converted to an interference-insensitive signal,so that increases the range of the signal transmission.For this purpose, the PixxRangeExtender 5V only requires a receiver at the end of the signal line. Specifications  Power supply:5V from digital LED stripe  Connection:3 solder pads for signal input 4 solder pads for connection to LED stripe  Dimensions:23mm x 12mm Product DownloadsPixxRangeExtender 5VBedienungsanleitung PixxRangeExtender 5VUser Manual

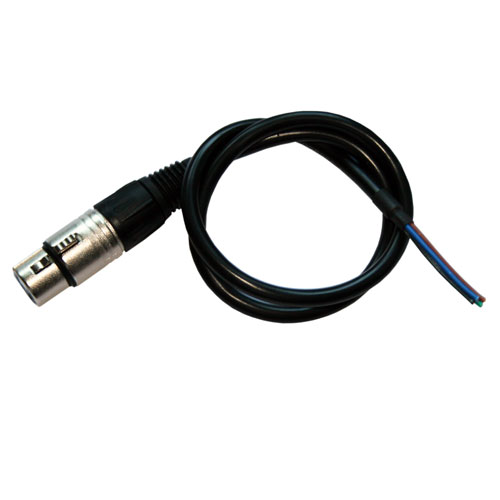

 PixxControl Kabel Open-EndCable to connect digitale LED stripes with the ArtNet Multi PixxControl. Specifications  Connection:4 pin female XLR connector / 4 unconnected cables  Length:~ 50cm Product DownloadsPixxControl Kabel Open-EndBedienungsanleitung

 DR-XLR-F3 ServiceanschlussThe DR-XLR-F3 service connector is a 3 pin XLR female connection pre-assembled for top-hat rail mounting.The assignment of the labeled screw terminals corresponds to the assignment of the XLR connection.An integrated 120Ω DMX termination resistor can be activated and deactivated via jumper. Specifications  Connection:Screw terminals XLR-Female  Design:3 pin Pre-assembled on top-hat rail housing base plate  DMX Termination resistor:120 Ohm  Dimensions:35mm x 86mm with locking clip: 35mm x 90mm Product DownloadsDR-XLRBedienungsanleitung DR-XLRUser Manual

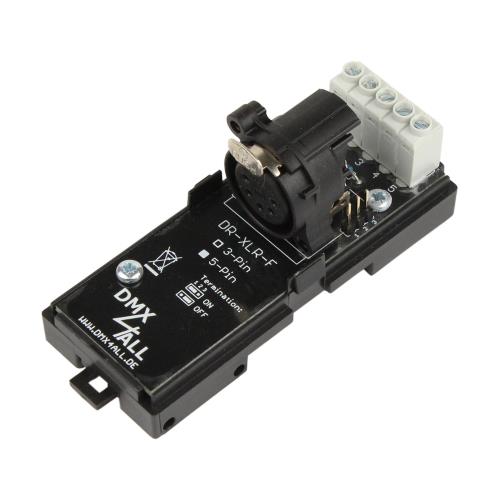

 DR-XLR-F5 ServiceanschlussThe DR-XLR-F5 service connector is a 5 pin XLR female connection pre-assembled for top-hat rail mounting.The assignment of the labeled screw terminals corresponds to the assignment of the XLR connection.An integrated 120Ω DMX termination resistor can be activated and deactivated via jumper. Specifications  Connection:Screw terminals XLR-Female  Design:5 pin Pre-assembled on top-hat rail housing base plate  DMX Termination resistor:120 Ohm  Dimensions:35mm x 86mm with locking clip: 35mm x 90mm Product DownloadsDR-XLRBedienungsanleitung DR-XLRUser Manual

<table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;DR-XLR-M3 Serviceanschluss</strong></span></td>  </tr></table><br>The DR-XLR-M3 service connector is a 3 pin XLR male connection pre-assembled for top-hat rail mounting.<br><br>The assignment of the labeled screw terminals corresponds to the assignment of the XLR connection.<br><br>An integrated 120Ω DMX termination resistor can be activated and deactivated via jumper.<br><br><br><img class="dmxmadein" src="https://www.media.dmx4all.store/images/made-in-germany.png" border="0"><br><br><br><!-- Specifications --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Specifications</strong></span></td>  </tr></table><table border="0" cellspacing="1" cellpadding="1">  <tr>    <td width="300">&nbsp;</td>    <td width="500">&nbsp;</td>  </tr>  <tr>    <td>Connection:</td>    <td>Screw terminals</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>XLR-Male</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Design:</td>    <td>3 pin</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>Pre-assembled on top-hat rail housing base plate</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>DMX Termination resistor:</td>    <td>120 Ohm</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>&nbsp;</td>  </tr>  <tr>    <td>Dimensions:</td>    <td>35mm x 86mm</td>  </tr>  <tr>    <td>&nbsp;</td>    <td>with locking clip: 35mm x 90mm</td>  </tr></table><br><!-- Produkt Downloads --><table width="800" cellspacing="1" cellpadding="1">  <tr>    <td><img src="https://www.media.dmx4all.store/images/kategorie-head.png" align="absmiddle"><span style="font-size: large;"><strong>&nbsp;Product Downloads</strong></span></td>  </tr></table><div id="dmx4all-buttons"> <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_german/dr_xlr_german.pdf" target="_blank">DR-XLR<br>    <span><span class="german-lang">Bedienungsanleitung</span></span></a>    <br>    <a class="document-button" onfocus="this.blur()" href="https://www.dmx4all.de/download/manuals_english/dr_xlr_english.pdf" target="_blank">DR-XLR<br>    <span><span class="english-lang">User Manual</span></span></a></div>

 DR-XLR-M5 ServiceanschlussThe DR-XLR-M5 service connector is a 5 pin XLR male connection pre-assembled for top-hat rail mounting.The assignment of the labeled screw terminals corresponds to the assignment of the XLR connection.An integrated 120Ω DMX termination resistor can be activated and deactivated via jumper. Specifications  Connection:Screw terminals XLR-Male  Design:5 pin Pre-assembled on top-hat rail housing base plate  DMX Termination resistor:120 Ohm  Dimensions:35mm x 86mm with locking clip: 35mm x 90mm Product DownloadsDR-XLRBedienungsanleitung DR-XLRUser Manual

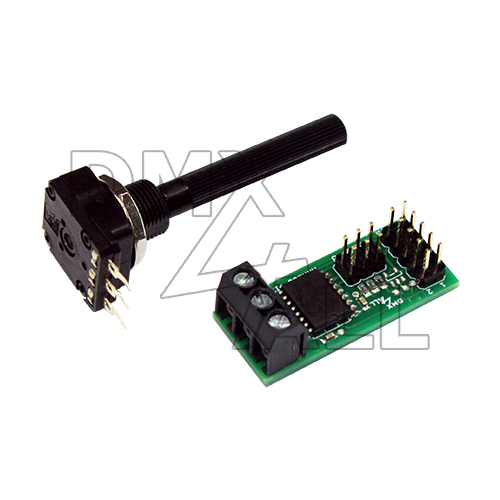

 TWI Analog ExtensionThe TWI Analog Extension is an additional module available for DMX-Player L MK2to regulate the brightness or speed via a potentiometer.The jumper specifies whether brightness or speed is to be controlled.Several additional modules can be connected to the TWI-Connection, so with one TWI Analog Connectionthe brightness can be controlled and with another TWI-Connection the speed is adjustable. Specifications  Power supply:5V DC via TWI-Connection  Connection:10-pin header for TWI  Potentiometer-Connection:3 pin screw terminal RM5  Resolution:256 values  Dimensions:38mm x 16mm Product DownloadsTWI Analog ExtensionBedienungsanleitung TWI Analog ExtensionUser Manual

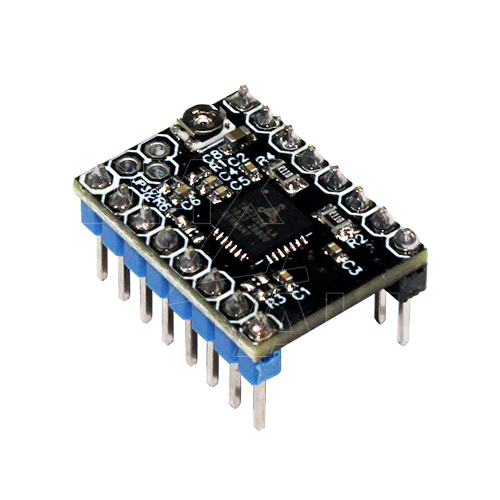

 Schrittmotortreiber TMC2208The stepper motor driver TMC2208 is compatible with the Pololu A4988.The components are mounted on the top with which a heat sink can be mounted for better heat dissipation.Can be used together with our DMX-Stepper-Control.For detailed information, please refer to the instructions for the DMX-Stepper-Control. Technische Daten  Motordriver:Trinamic TMC2208  Voltage:5,5-36 V (Stepper)Voltage:3.3V and 5V (control TTL signals)  Current:1,2A (RMS)   Overheat protection  Delivery:1x SilentStepStick with presoldered pin row 1x Heatsink

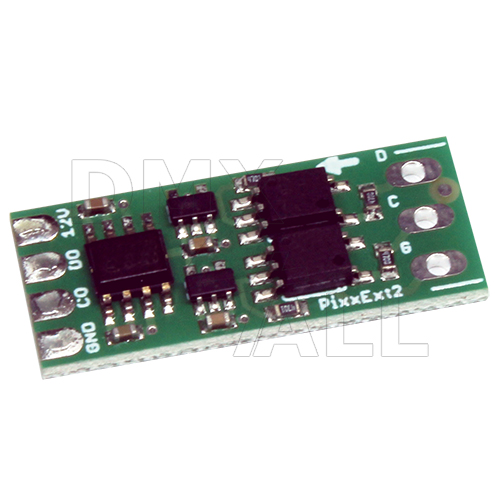

 PixxRangeExtender 12VThe PixxRangeExtender 12V is an optimal tool to receive control signals for digital LED stripes with long signal cables.The signal line(s) are converted to an interference-insensitive signal,so that increases the range of the signal transmission.For this purpose, the PixxRangeExtender 12V only requires a receiver at the end of the signal line. Specifications  Power supply:12V from digital LED stripe  Output signal:5V control signal  Connection:3 solder pads for signal input 4 solder pads for connection to LED stripe  Dimensions:29mm x 12mm Product DownloadsPixxRangeExtender 12VBedienungsanleitung PixxRangeExtender 12VUser Manual

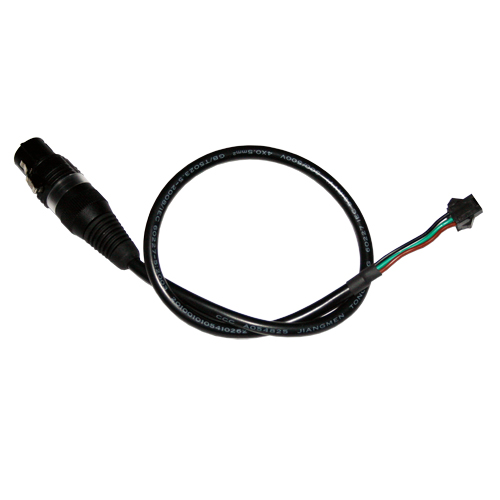

 PixxControl Kabel TYP-3Cable to connect the digitale LED stripes with the ArtNet Multi PixxControl.Compatible with: - Digital LED-Stripe LPD1886- Digital LED-Stripe APA-104- Digital LED-Stripe SK6812- Digital LED-Stripe UCS9812- Digital LED-Stripe TM1804- Digital LED-Stripe WS2811/WS2812B Specifications  Connection:4 pin female XLR connector / 3 pin female JST-SM connector  Length:~ 50cm Product DownloadsPixxControl Kabel TYP-3Bedienungsanleitung

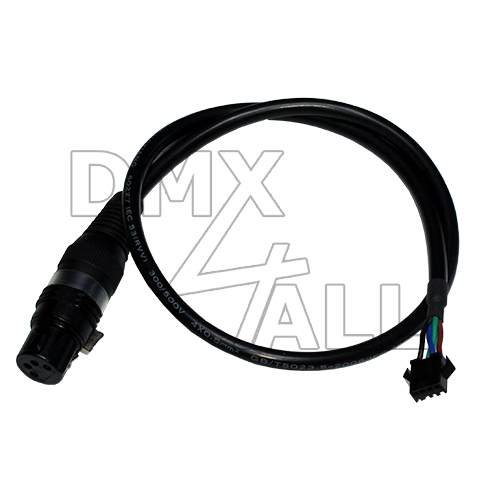

 PixxControl Kabel Typ-4 FEMALEConnection cable to connect digital LED-Stripes with the ArtNet Multi Pixxcontrol. Compatble with:- Digital LED-Stripe RGB SK9822 30BL- Digital LED-Stripe RGB SK9822 60BL Specifications  Connection:4 pin female XLR connector / 4 pin female JST SM connector  Length:~ 50cm Product DownloadsPixxControl Kabel Typ-4 FEMALEBedienungsanleitung PixxControl Kabel Typ-4 FEMALEUser Manual

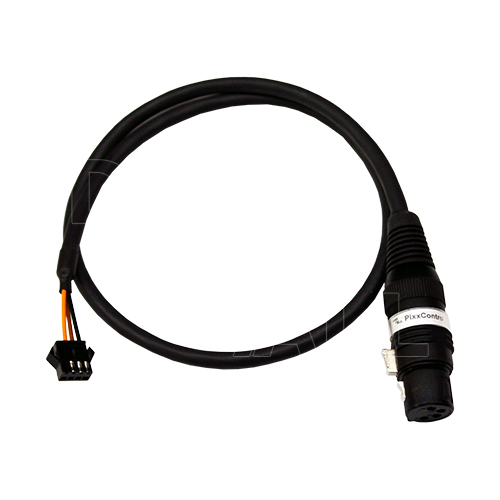

 PixxControl Kabel 4MConnection cable to connect digital LED-Stripes or screens with the ArtNet Multi Pixxcontrol. Compatble with:- Digital LED-Stripe APA102- Digital LED-Stripe LPD8806 Specifications  Connection:4 pin female XLR connector / 4 pin male JST SM connector  Length:~ 50cm Product DownloadsPixxControl Kabel 4MBedienungsanleitung PixxControl Kabel 4MUser Manual

 PixxControl Kabel 4F-LC8808Connection cable to connect digital LED-Stripes with the ArtNet Multi PixxControl. Compatble with:- Digital LED-Stripe RGB LC8808 60WS Specifications  Connection:4 pin female XLR connector / 4 pin female JST SM connector  Length:~ 50cm Product DownloadsPixxControl Kabel 4F-LC8808Bedienungsanleitung PixxControl Kabel 4F-LC8808User Manual

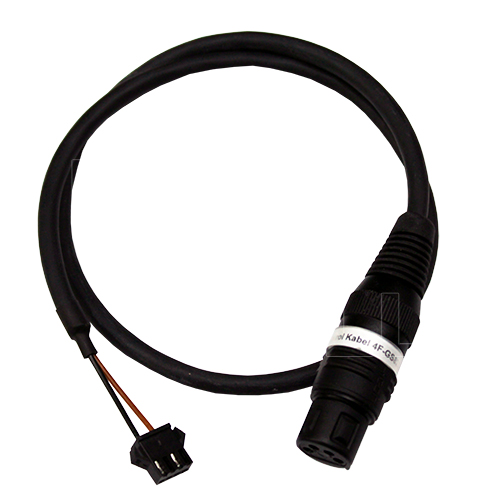

 PixxControl Kabel 4F-GS8208Connection cable to connect digital LED-Stripes with the ArtNet Multi PixxControl. Compatble with:- Digital LED-Stripe RGB GS8208 60WS Specifications  Connection:4 pin female XLR connector / 4 pin female JST SM connector  Length:~ 50cm Product DownloadsPixxControl Kabel 4F-GS8208Bedienungsanleitung PixxControl Kabel 4F-GS8208User Manual

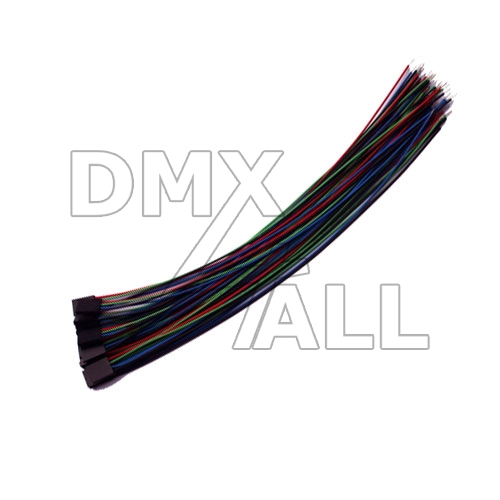

 Kabelset CCable set to connect the RGB-outputs of the DMX-LED-Dimmer 16xRGB.Included are 16 pcs. of the RGB connection cable.Compatible with: - DMX-Dimmer 16xRGB Specifications  Implementation:AWG20  Connection:4 pin male  Length:~ 25cm  Delivery:16 pcs.

 PixxControl Kabel DMXCable to connect DMX devices with 3 pin XLR to the ArtNet Multi PixxControl.For dmx devices with 5 pin XLR a additional adaptor is needed. Specifications  Connection:4 pin female XLR connector / 3 pin female XLR connector  Length:~ 50cm

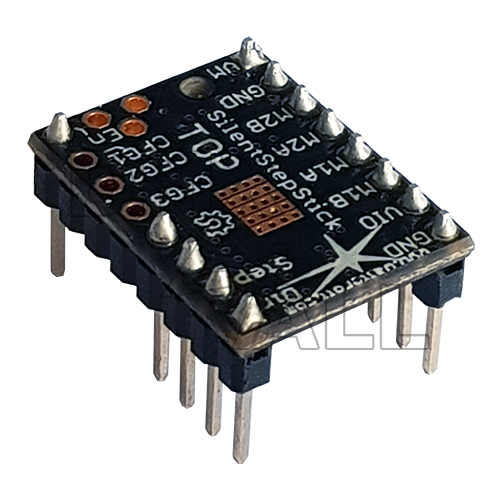

 Schrittmotortreiber TMC2100 SilentStepStickTMC SilentStepStick has a configurable microstep resolution from fullstep up to 256 microsteps.To keep it compatible with other firmware made for stepstick or Pololu board it has a configurable interpolation.Can be used together wit our DMX-Stepper-Control. Technische Daten  Motordriver:Trinamic TMC2100  Voltage:8-45 V (Stepper)Voltage:3.3V and 5V (control TTL signals)  Current:1,2A (RMS)   Overheat protection  Microstep Resolution:1...256  Delivery:1x SilentStepStick with preconfigured pin row for DMX-Stepper-Control

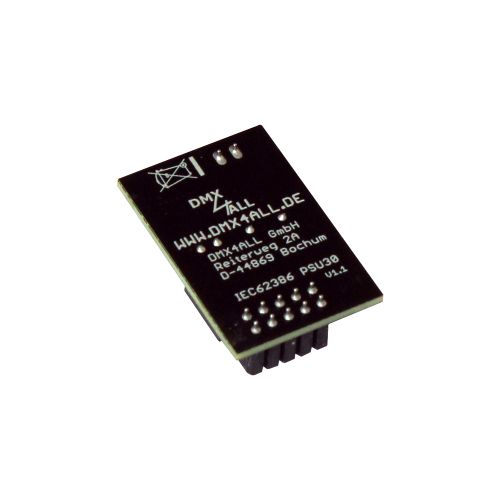

 IEC62386 PSU30The IEC62386 PSU30 BUS power supply is an accessory for the DMX-IEC62386 Gatewaywhich can supply up to 30 bus participants. There is no need for an external power supply, as the DMX-IEC62386 Gateway has anown slot for the specially developed IEC62386 PSU30 BUS power supply. Specifications  Power supply:5V DC from DMX-IEC62386 Gateway  Bus system:IEC62386  Max. output current:60mA (for 30 bus units each 2mA)  Connections:Female connector 1x2pin 2,54mm Female connector 2x5pin 2,54mm  Dimensions:23mm x 35mm Produkt DownloadsIEC62386 PSU30Bedienungsanleitung IEC62386 PSU30User Manual

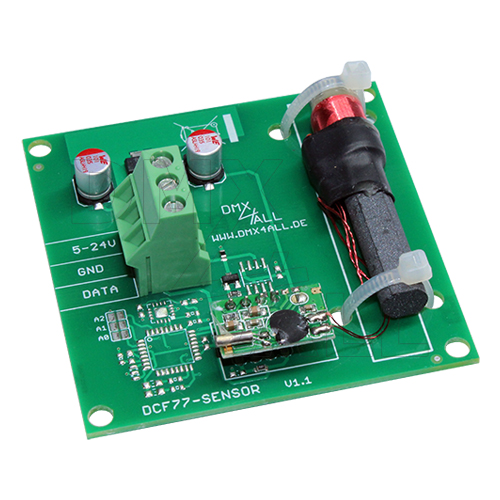

 DCF77 SensorThe DCF77 Sensor is a receiver of the DCF77 radio clock time signal.The DCF antenna is tuned to the DCF77 time transmitter near Frankfurt.Based on the output signal, time and date can be determined to the second withthe help of an external analysis unit.A suitable installation housing with IP protection is available as accessory for mounting. Specifications  Power supply:5-24V DC  Output:Received DCF77 signal  Receive frequency:77,5 kHz  Connections:screw terminals 3pin  Working temperature:-10°C up to 45°C  Dimension:66mm x 66mm Product DownloadsDCF77 SensorBedienungsanleitung DCF77 SensorUser Manual

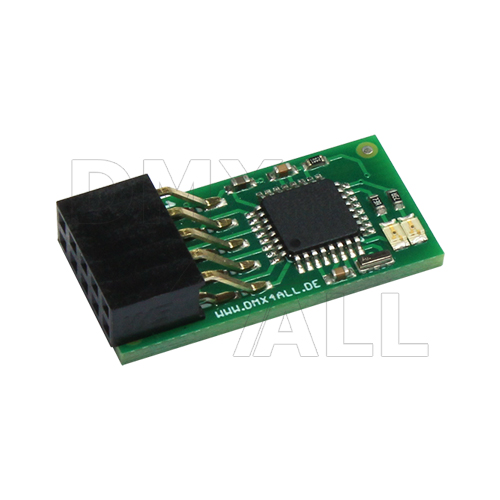

 DCF77 KeyThe DCF77 Key is a component part for the ArtNet Player X and is neededfor the analysis of the DCF77 radio clock time signal.Furthermore, the DCF77 sensor is necessary to receive the DCF77 signal.With this component the ArtNet Player X receives an exact time signal for executionof stored timers. The change between winter and summer time takes place automatically. Specifications  Power supply:5V DC from TWI bus  Bus system:DMX4ALL TWI  Protocol:DCF77  Connections:Female connector 2x5pol 2,54mm  Dimension:30mm x 15mm Product DownloadsDCF77 KeyBedienungsanleitung DCF77 KeyUser Manual

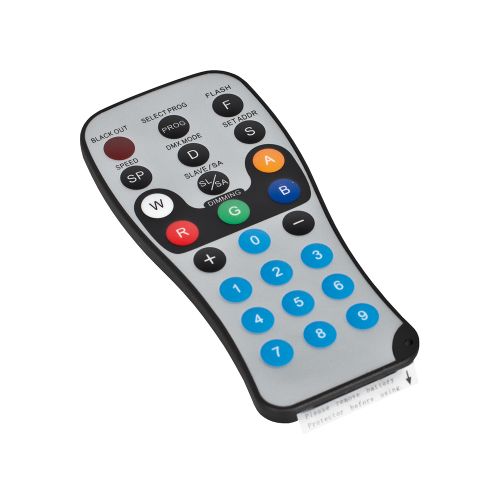

 IR Fernbedienung MK2This IR-remote control MK2 is suitable to - DMX-Player L MK2- SD-Player 8Functions according to device. Please see the device documentation.Important: When using the IR remote control MK2, the latest firmware must be used!!!! Battery CR2025 not included !!! Specifications  Power supply:3V DC via button cell CR2025 ( NOT INCLUDED )  Range:up to 10 m  Dimensions:110 x 46 x 7 mm

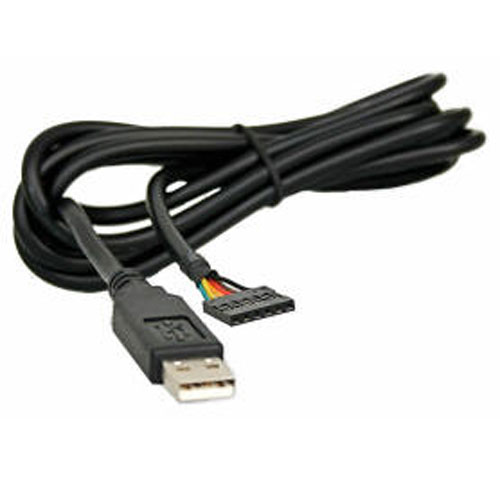

 DMX-LED-Dimmer USB-KonfigurationskabelAll DMX4ALL LED-Dimmer can be configured with this cable.Compatible with:- LED-Dimmer X9 HR (up to V2.1)- LED-Dimmer BB4- LED-Dimmer 4xRGB HR Specifications  Length:ca. 1,8m  Colour:Black Product DownloadsDMX-LED-Dimmer USB-KonfigurationskabelUSB Driver LED-Dimmer Configuration ToolWindows 32 & 64bit

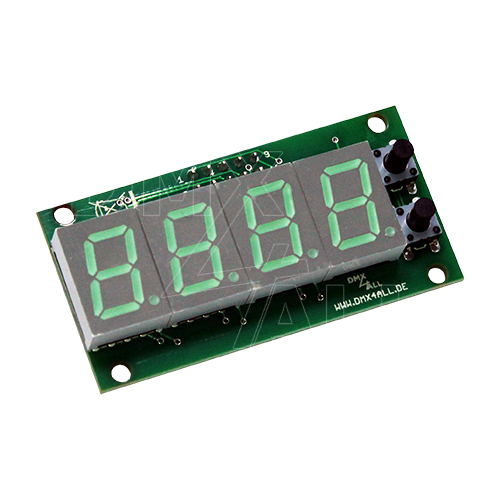

 TWI Programmdisplay ExtensionThe TWI program display extension is an add-on module thatdisplays the currently running program.Furthermore there are 2 buttons for UP and DOWN to select the program. Specifications  Power supply:5V DC / 50mA  Display:4-digit 7-segment display  Program selection:2 buttons (UP/DOWN)  Connection:10-pin header for TWI  Dimensions:60mm x 30mm Product DownloadsTWI program display extensionBedienungsanleitung TWI program display extensionUser Manual

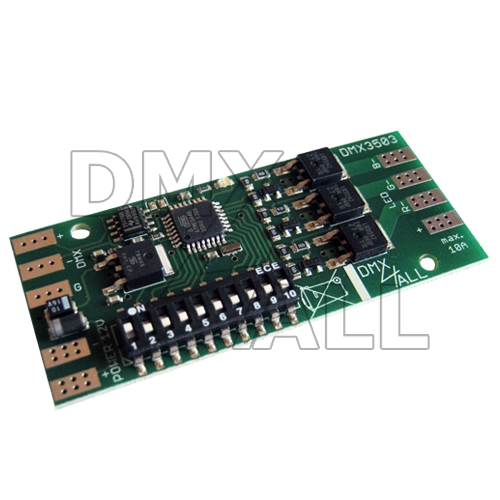

 DMX-LED-Dimmer MaxiRGBThe DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes. Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Solder points  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGBBedienungsanleitung DMX-LED-Dimmer MaxiRGBUser Manual

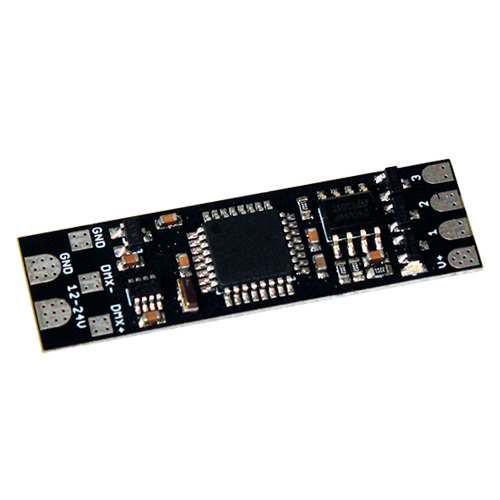

 DMX-LED-Dimmer XS3The DMX-LED-Dimmer XS3 is designed to control RGB orsingle-colour LED-Stripes with 12V or 24V.3 OutputsThe DMX-LED-Dimmer XS3 has three outputs to connect LEDs. All outputsare designed at the same, so single-colour or RGB LEDs can be connected.High Power OutputsThe outputs can drive a current up to 2A.So it is possible to connect a maximum load of 72W (12V) / 144W (24V).0% up to 100% dimmableThe connected LEDs are dimmed via PWM from 0% up to 100%.For voltages from 12V up to 24VThe DMX-LED-Dimmer XS3 runs with a power supply from 12V up to 24V.DMX-FAIL FunctionAn adjustable DMX-FAIL Function offers the option to get, in case oflost DMX signal, the current state (HOLD) or assuming a preset value.DMX-Master dimmerOptionally, another DMX channel can be activated as master dimmer (all outputs).RDM supportThe DMX-LED-Dimmer XS3 allows configuration by RDM via DMX.All parameters can be set with the RDM Configurator.Stand-Alone-FunctionThe DMX-LED-Dimmer XS3 has a user-programmable Stand-Alone-Function,to replay an internal program.LED-Status-DisplayThe DMX receiving is indicated via the LED status display. Specifications  Power supply:12-24V DC 50mA without load  LED voltage:12-24V DC (no AC voltage !)  Protocol:DMX512 RDM  DMX channels:3 / 4 / 5 channels depend on Personality  DMX-FAIL:Hold / 0%-100% / Stand-Alone  Output:3 PWM-Signals with 8 Bit resolution Common supply voltage  Output current:max. 2A per output max. 6A in sum for all outputs  Output power:3x 24W (12V) / 3x 48W (24V)  PWM-Frequency:244 Hz  StandAlone-Function:User-defined light program  Connections:Solder pads  Dimensions:12mm x 40mm Product DownloadsDMX-LED-Dimmer XS3Bedienungsanleitung DMX-LED-Dimmer XS3User Manual

 DMX-Adressmodul mit LED-DisplayThe DMX-Address module with LED-Display is a helpful additionalmodule which is grinded in the DMX-Line.The DMX-Channels can be shift up as well as down within the DMX-Universes (shiften).The usage occurs via two buttons. The operation mode as well asthe value (DMX-Address) can be adjusted. Specifications  Power supply:5V DC / 50mA  DMX-Input:512 channels  DMX-Output:up to 512 channels  DMX-Output LOAD:Driver for 32 devices (LOAD-UNITs)  Signal delay:~ 0,1µs (Adress-Mode / Shift-Down) ~ 25ms (ChannelAdd-Mode / Shift-Up)  Dimensions:60mm x 30mm Product DownloadsDMX-Adressmodul mit LED-DisplayBedienungsanleitung DMX-Adressmodul mit LED-DisplayUser Manual

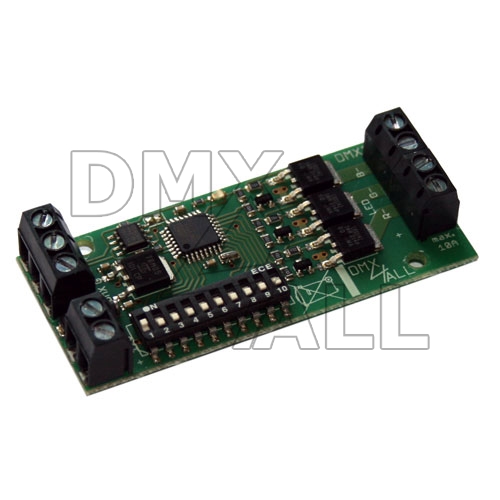

 DMX-LED-Dimmer MaxiRGB (SR)The DMX-LED-Dimmer MaxiRGB is specially designed for driving RGB LED strips with 12V or 24V.The 3 separate LED outputs that are independently controllable via DMX can beused for RGB or separate single color LED stripes.Alternatively, internal color gradients can be called without external control.The operating voltage of the DMX-LED-Dimmer MaxiRGB is also the operating voltage of the LED-Stripes.SR-Version: With screw connectors Specifications  Power supply:12-24V DC / 50mA The supply voltage must correspond to the voltage for the LED stripe!  LED voltage:12-24V DC (no AC voltage !)  DMX Input:DMX512 / 3 channels  LED Output:3x (R/G/B) max. 10A each together max. 10A with common anode (+) common power supply  PWM resolution:256 steps (8-Bit), linear  PWM frequency:~240 Hz  StandAlone function:9 internal StandAlone-programs  Connectors:Screw connectors  Dimensions:70mm x 30 mm Product DownloadsDMX-LED-Dimmer MaxiRGB (SR)Bedienungsanleitung DMX-LED-Dimmer MaxiRGB (SR)User Manual

 MiniPixx 3.5 RDMThe MiniPixx 3.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-104max. 512 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel SK6812 / SK6822max. 512 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 MiniPixx 4.5 RDMThe MiniPixx 4.5 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:5V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

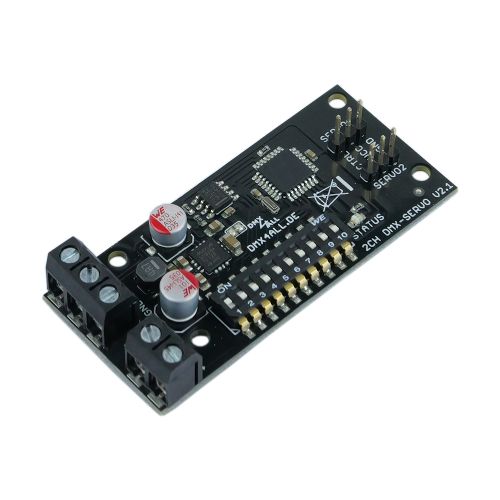

 DMX-Servo-Control 2The DMX-Servo-Control 2 is designed for controlling of two servos via DMX.Two ServosThe DMX Servo Control 2 has two servo ports. Each can be controlled via one DMX channel.Servos with 5V up to 12V DC can be usedThe supply voltage of the DMX-Servo-Control 2 is between 5V and 12V. Servos with a supply voltage within this range can be connected directly.Adjustable Servo control signalThe controlling occurs via an adjustable pulse width.Compact DesignThe design and the compact construction allows an installation of this small assembly in areas that do not offer much space.LED-DisplayThe integrated LED is a multifunctional display for showing the current device status.DMX AddressingThe DMX addressing is settable via a 10-position DIP switch.RDM SupportThe DMX Servo Control 2 allows configuration via RDM over DMX. Specifications  Power supply:5-12V DC / 50mA without connected servo  Protocol:DMX512 RDM  Servo voltage:5-12V DC (corresponds to the supply voltage)  Servo-Power:max. 3A in sum for both servos  DMX-Channels:2 Channels  Connection:Screw terminals/pin header  Dimensions:30mm x 67 mm Product DownloadsDMX-Servo-Control 2Bedienungsanleitung DMX-Servo-Control 2User Manual Application NotesDC-Motor Steuerung per DMXAppNote DC motor control with DMXAppNote

 MiniPixx 4.12 RDMThe MiniPixx 4.12 RDM is the smallest DMX controller for digital LED stripes, which is available in different versions.The individual pixels of the digital LED strip can be controlled in the simplest way via DMX.Different versionsThe MiniPixx RDM is available in 3 different versions. Depending on the LED stripe,a version 3.5 / 4.5 (5V) or 4.12 (12V) is available.170 RGB-, 128 RGBW- or 512 single color pixelBy controlling via DMX, 170 pixels (RGB), 128 pixels (RGBW) or512 pixels (single color) can be controlled individually.RDM SupportThe MiniPixx RDM allows an RDM supported configuration via DMX.Pixel-SequencerWith the pixel sequencer different effects can be generated.Only a few DMX channels are necessary to customize the settings for the effects.Small DesignDue to the small size of only 12mm x 25mm, the MiniPixx RDM can be mounted directly at the beginning of the LED stripe.Selectable LED-ChipThe LED chip used in the connected digital LED strip can be selected. This allows the use with various digital LED stripes.Settable Color ReplayThe color sequence for RGB as well as RGBW LED stripes is adjustable for universal use.SingleColor-OptionVia a DMX universe up to 512 pixels can be controlled in single color.For this, the SingleColor Option must be selected, in which each pixel needs only one channel.Settable Pixel GroupThe MiniPixx RDM supports pixel groups with an adjustable length. Each pixel group behaves like a singlepixel that is controlled via 3 DMX channels (for RGB). This way channels can be saved in longer installations.br>  Specifications  Power supply:12V / 50mA from the connected digital LED stripe  Protocol:DMX512 RDM  Output Protocol:RGB(LED type)APA-101max. 3071 Pixel APA-102max. 1534 Pixel APA-104max. 512 Pixel DycoLED PB3max. 3071 Pixel DycoLED PC5max. 192 Pixel GS8208max. 512 Pixel INK1002 / INK1003max. 512 Pixel LC8808(B)max. 512 Pixel LPD1101 / LPD6803max. 3071 Pixel LPD1886 - 8Bitmax. 512 Pixel LPD1886 12Bit (8Bit controlled)max. 341 Pixel LPD1886 12Bit (12Bit controlled)max. 341 Pixel LPD8806max. 2047 Pixel MagiarLED III flexmax. 1534 Pixel SK6812 / SK6822max. 512 Pixel SK9822max. 1534 Pixel TLS3008 8Bitmax. 558 Pixel TM1804 / TM1812 / TM1829max. 512 Pixel UCS1903 / UCS1912max. 512 Pixel UCS2903 / UCS2912max. 512 Pixel UCS9812 (8Bit controlled)max. 292 Pixel UCS9812 (16Bit controlled)max. 292 Pixel WS2801max. 2048 Pixel WS2811 / WS2812(B) / WS2813 / WS2815 / WS2818max. 512 Pixel   RGBW SK6812max. 384 Pixel TM1814max. 382 Pixel UCS2912max. 384 Pixel    Color sequence:RGB (adjustable) SingleColor red, green, blue, white RGBW with UCS2912, SK6812, TM1814  Pixel groups:1 - 127  Max. number of pixel:170 Pixel (RGB) 128 Pixel (RGBW) 512 Pixel (Single Color)  Dimensions:12mm x 25mm Product DownloadsMiniPixx RDMBedienungsanleitung MiniPixx RDMUser Manual

 DMX-LED-Dimmer CC1The DMX-LED-Dimmer CC1 is designed for controlling LEDs, which are operated with constant current and works with up to 48V DC.Output with selectable constant current modulesDifferent constant current modules with different output currents are available for connection.The constant current modules are available as accessories and are not included in the scope of delivery.Power supply from 12V up to 48VThe DMX-LED Dimmer CC1 works with supply voltages from 12V to 48V.0% to 100%The connected LEDs can be dimmed via PWM of 0% up to 100%.DMX FAIL-FunctionAn adjustable DMX FAIL-Function offers the option to hold the current state (HOLD)or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-LED-Dimmer CC1 the configuration via RDM or DMX.Top hat rail mounting availableSuitable for the DMX-LED-Dimmer CC1 the DIN rail housing 350 is available as accessory. Specifications  Power supply:9-48V DC 20mA@12V; 11mA/24V; 6mA@48V (without LED driver)  Protocol:DMX512 / RDM  DMX channels1 DMX channel  DMX-FAIL:HOLD / 0-100%  Output:1 current regulated output (8 bit controlled) (Output current depends on the LED driver module)  PWM-Frequency:244 Hz  Dimensions:29,2mm x 82mm Product DownloadsDMX-LED-Dimmer CC1Bedienungsanleitung DMX-LED-Dimmer CC1User Manual

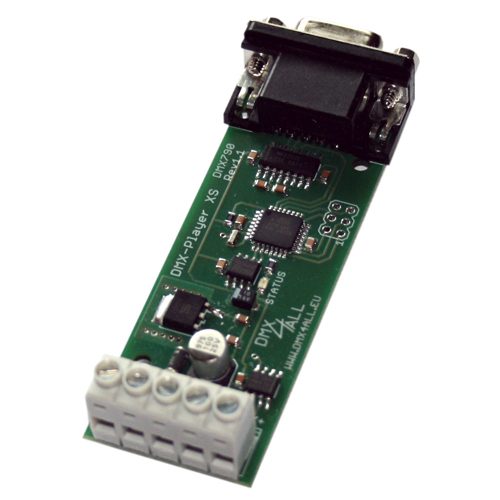

 DMX-Player XSThe DMX-Player XS is a DMX StandAlone device.The scenes created with the DMX-Configurator can be loaded on the device via RS232.The stored scenes can be replayed without a computer. An application in live operation with a connected PC is possible too. By the easy using an application in decoration and presentation areas will be possible.  Specifications  Power supply:7-12V DC / 50mA  PC-connection:RS 232 !!! USB-RS232 adapter should be with FTDI chip !!!  DMX-output:512 channels  Program memory:8 kByte for one light scene 5 pin screw terminal  Dimensions:29,2 x 82 mm Product DownloadsDMX-Player XSBedienungsanleitung DMX-Player XSUser Manual Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Third-Party Developers

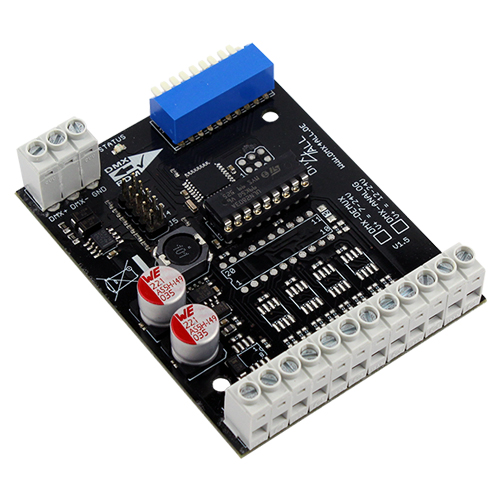

 DMX-Universal-Demux8 outputs with open-collector driverThere are 8 outputs with open collector output driver for controlling external devices.Voltages from 12V up to 24VThe DMX-Universal-Demux operates with supply voltages from 12V up to 24V.Different operation modesBy jumper the operating mode of the DMX-Universal-Demux can be selected.Available are the operation modes Threshold / Binär / PWM / Servo / Strobo.Controllable via DMXThe DMX-Universal-Demux is controlled by DMX and uses 1 or 8 DMX channels depending on the operating mode.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD)or to change to a predefined value in case of DMX signal failure.RDM supportThe DMX-Universal-DMX allows the configuration via RDM or DMX.LED status displayThe LED status display shows the DMX reception.DIN rail housing availableThe DIN rail housing 700 is available as an accessory for the DMX-Universal-Demux. Specifications  Supply voltage:7-24V DC  Current consumption:40mA@12V / 35mA@24V (without load)  Protocol:DMX512 RDM  DMX channels:1 or 8 channels (depending on adjusted mode)  Output:8 open-collector outputs max. 500mA  DMX-FAIL:HOLD / 0-100%  Operation mode:Threshold (switches at 50%) Binary (8-Bit) PWM (~175Hz) Servo Strobo Monostable 1 Second  Connection:Screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-Universal-DemuxBedienungsanleitung DMX-Universal-DemuxUser Manual

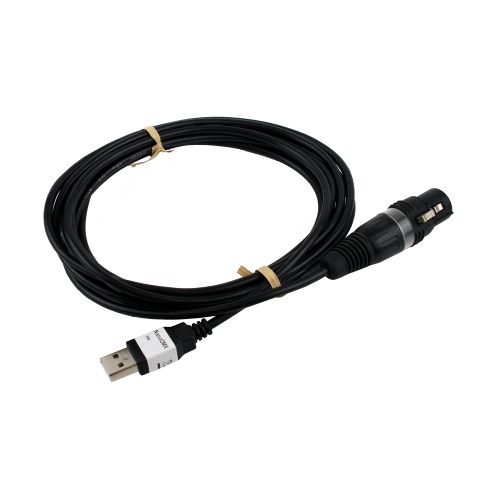

 NanoDMX USB InterfaceThe NanoDMX USB Interface is an "adapter-cable" which allows an easy controlling of DMX-capable devices via PC.By using the USB-port no power supply is neccessary.Each interface is equipped with a micro-controller serving the values for all 512 channels andgenerating a DMX-signal without loading the PC.To run this NanoDMX USB Interface with an existing software a virtual COM-Port will be applied.This allows that the data transfer takes place such by using a conventionally serial interface.This interface will be supported inter alia:DMX-ConfiguratorFreeStyler (3rd Generation interface)DMXControl V2PC_DimmerIP-SymconTLC (Theater Light Control)Light@NightVVVVMagicQLumiDMX Specifications  Voltage power:5V / 250mA over USBPC Connection:USB 1.1 / USB 2.0DMX Output:512 channels fast mode: 44 frames/sec slow mode: 33 frames/secConnection:3 pin XLR-female connectorCable length:ca. 1mUSB-Driver:CDC-driver (virtual Com Port)Operation system:Windows 7, Windows 8/8.1 Product DownloadsNanoDMX USB InterfaceBedienungsanleitung NanoDMX USB InterfaceUser Manual NanoDMX USB InterfaceUSB Driver Software & ToolsDMX-Configurator V2Windows 32 & 64bit DMX-Configurator V2Bedienungsanleitung DMX-Configurator V2User Manual DMX4ALL CommandsDMX4ALL Commands for Devolopment

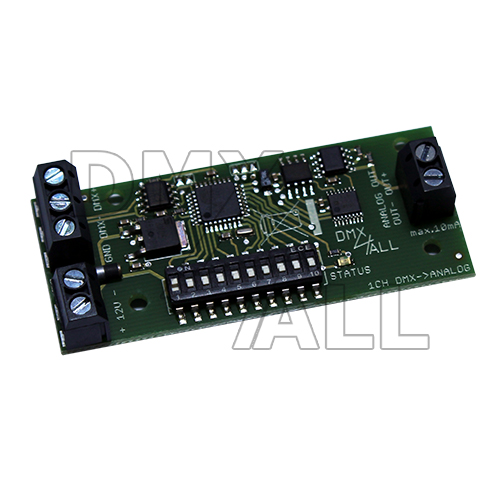

 DMX-Analog 0-10V 1-KanalThe DMX-Analog Interface 1-Channel is optimized to control a 0-10V or 1-10V device, e.g. an electronic balast. The output output can be set to 0-10V or 1-10V analog signal.With one DMX channel the output is controlled in 256 steps. Specifications  Power supply:12V DC / 50mA  Input:DMX512 / 1 channel  DMX-Fail:Hold / Off / On  Mode::0-10V or 1-10V selectable  Output:1x Analog-Output  256 Steps (DMX-Value 0-255 -> Analogvoltage 0/1-10V)  Output current:max. 10mA  Dimensions:30 x 70 mm Product DownloadsDMX-Analog 0-10V 1 channelBedienungsanleitung DMX-Analog 0-10V 1 channelUser Manual

 DMX-RELAIS 2The DMX-RELAIS 2 is designed for switching loads of several kinds.Two potential free switching outputs2 potential free switching outputs up to 8A switching capacity are available.Switch per relayThe switching contacts are designed as changeover switches and can switch resistive loads.Switching contact for direct and alternating voltageThe version is suitable to switch resistive loads using direct voltage (DC) oralternating voltage (AC).For voltages from 12V up to 24VThe DMX-Relais 2 works with supply voltages from 12V up to 24V DC.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to holdthe current state (HOLD) or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-Relais 2 INRUSH allows the configuration via RDM or DMX.Several operating modesThe DMX-Relais 2 offers several operating modes which can be set via jumper or RDM.Top hat rail mounting availableSuitable for the DMX-Relais 2 the DIN rail housing 700 is available as accessory. Specifications  Power supply:12-24V DC / 250mA (150mA@12V / 100mA@24V)  Protokoll:DMX512 RDM  DMX-Channels:1 or 2 DMX-channels  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second FogControl  Output:2 potential free switching contacts DC: max. 8A/250V~ (resistive loads) DC: According to the max. DC load graph  Connectors:screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-RELAIS 2Bedienungsanleitung DMX-RELAIS 2User Manual

 DMX-RELAIS 2 INRUSHThe DMX-RELAIS 2 INRUSH is designed for several control tasks.Two potential free switching outputs2 potential free switching outputs (closer / NO)up to 8A switching capacity are available.Switching contact for direct and alternating voltageThe INRUSH version is suitable for control direct or alternating voltage.For voltages from 12V up to 24VThe DMX-Relais 2 INRUSH works with supply voltages from 12V up to 24V DC.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to holdthe current state (HOLD) or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX-Relais 2 INRUSH allows the configuration via RDM or DMX.Several operating modesThe DMX-Relais 2 INRUSH offers several operating modes which can be set via jumper or RDM.Top hat rail mounting availableSuitable for the DMX-Relais 2 INRUSH the DIN rail housing 700 is available as accessory. Specifications  Power supply:12-24V DC 150mA@12V / 100mA@24V  Protocol:DMX512 RDM  DMX channels:1 or 2 channels  Output:2 switching contacts (165A/20ms Switch-on peak current) DC: max. 8A/250V~ (resistive loads) DC: According to the max. DC load graph  DMX-FAIL:Hold / 0-100%  Operation modes:Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second FogControl  Connectors:screw terminals  Dimensions:64,2mm x 82mm Product DownloadsDMX-RELAIS 2 INRUSHBedienungsanleitung DMX-RELAIS 2 INRUSHUser Manual

 DMX/RDM-Sensor 4The DMX/RDM-Sensor 4 is a converter with 4 signal inputs and can be used both as a DMX output device / DMX source or as an RDM device.Different Operation ModesThe DMX/RDM-Sensor 4 can be run as DMX output device (inputs to DMX channels) or RDM device (inputs to sensor values).Four Analog- or Digital InputsEach of the 4 inputs can be set independently as analog input (0-5V or 0-10V) or as digital input (Active Low or Active High).RDM SupportThe DMX/RDM-Sensor 4 can be configured via RDM using DMX.Sensor ValuesVia the RDM-Parameter SENSOR_VALUE for each of the 4 inputs the sensor values can be requested.Settable Average-FilterThe average filter can be set for each input and can be used to create an average value that compensates for fluctuations in the input signal.Settable Slope CorrectionThe output curve can be set for each input using the adjustable slope correction.Settable DMX-AddressesThe DMX addresses can be set for each input, allowing the input signal to be output on up to 8 DMX channels.Settable Device LabelThe device label can be set for each input to name each sensor uniquely via RDM.Lockable Device settingsThe RDM parameters Lock Pin and Lock State allow or avoid changing saved RDM parameters to prevent unauthorized changes.Free RDM-SoftwareFor setting the parameters via RDM, our free RDM Configurator software is available for download on our website www.dmx4all.de.Top hat rail housing availableThe top-hat rail housing 350 or the top-hat rail housing 350 flat are available as accessories for the DMX/RDM-Sensor 4. Specifications  Power supply:12-24V DC (150mA@12V / 100mA@24V)  Protocol:DMX512 RDM  Operation modes:DMX (Inputs to DMX channels) RDM (Inputs to RDM sensor values)  Inputs:4 Analog (0-10V) or Digital Inputs  Connection:Screw terminals  Dimensions:29,2mm x 82mm Product DownloadsDMX/RDM-Sensor 4Bedienungsanleitung DMX/RDM-Sensor 4User Manual

 DMX-Merger MK3 2IN/1OUTThe DMX-Merger allows an assemble of two DMX-sources.An usage will be applicable where a total control should occur with several DMX-equipment.If more than two DMX-sources will be assembled a series connection of more than one DMX-Merger is possible. The signal runtime adds in this case. The DMX-Merger assembles the both DMX-lines in a different way.To fix how to work the both inputs on the common output it is possible to adjust the operation mode. Specifications  Power supply:7-24V DC / 200mA  Input:2x 512 channels  Output:512 channels  Modes:Higest value Lowest value Last changed value Last changed universe Add of both value Combine Backup  Dimensions:64,2mm x 82 mm Product DownloadsDMX-Merger MK3 2IN/1OUTBedienungsanleitung DMX-Merger MK3 2IN/1OUTUser Manual DMX-Merger MK3 2IN/1OUTUSB Driver 32 & 64bit - Version 6.0.0.0 DMX-Merger MK3 2IN/1OUTFirmware

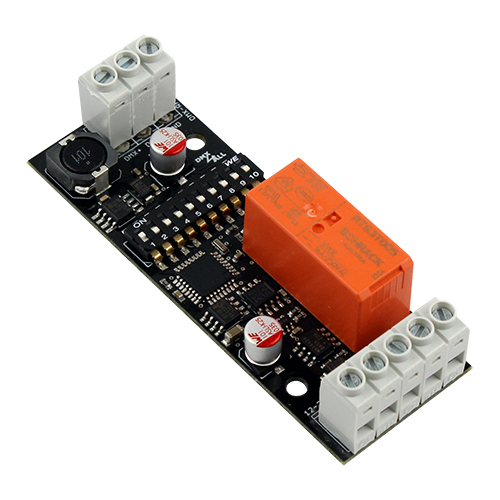

 DMX-Relais/Analog 1The DMX Relais/Analog 1 is designed for several kinds of controlling tasks.Potential free switch outputOne potential free switch output (normally open / NO) with up to 8A switching capacity is available.Switching contact for direct and alternating voltageThe switching contact is suitable for switching both direct voltage and alternating voltage.Analog control outputOne control output with 0-10V or 1-10V are available for control devices with analog input.For voltages from 12V up to 24VThe DMX Relais/Analog Interface 1 runs with supply voltages from 12 up to 24V direct voltage.DMX FAIL-FunctionAn adjustable DMX FAIL-Function offers the option to hold the current state (HOLD) or to adopt a predefined value if the DMX signal fails.RDM supportThe DMX Relais/Analog Interface 1 the configuration via RDM or DMX.Several operating modesThe DMX Relais/Analog Interface 1 offers several operating modes which can be set via jumper or RDM:- Relay + Analog 8Bit 0-10V- Relay + Analog 8Bit 1-10V- Relay + Analog 10Bit 0-10V- Relay + Analog 10Bit 1-10V- Relay & Analog 8Bit 0-10V- Relay & Analog 8Bit 1-10V- Relay & Analog 10Bit 0-10- Relay & Analog 10Bit 1-10VTop hat rail mounting availableSuitable for the DMX Relais/Analog Interface 1 the DIN rail housing 350 is available as accessory. Specifications  Power supply:12-24V DC 100mA@12V / 70mA@24V  Protocol:DMX512 / RDM  DMX channels:1 or 2 channels  Output:1 switching contact NO max. 8A / 250V~ (165A@20ms Switch-on peak current) 1x analog output 0-10V / 1-10V  DMX-FAIL:Hold / 0-100%  Connectors:screw terminals  Dimensions:29,2mm x 82mm Product DownloadsDMX-Relais/Analog 1Bedienungsanleitung DMX-Relais/Analog 1User Manual

 DMX-Audio UnitThe DMX Audio Unit is designed to play audio files in mp3 format.64 Audio FilesVia DMX up to 64 audio files can be called via one DMX channel.USB Data MediumThe MP3 audio files are stored on a USB data medium and easily exchangeable.Several Operation ModesDepending on the application, the DMX Audio Unit offers different operating modes.Either 32 or 64 audio files can be called directly or via up/down the audio files can be played back in line.Playback SINGLE PLAY / LOOP PLAY / CYCLE PLAY / PAUSE / STOPPlayMode is used to start playback, put the playback into a repeat loop or pause and stop to stop the replay.Settable Playback VolumeThe playback volume can be adjusted via a DMX channel.Settable Accoustic ColourThe acoustic colour (EQ) can be adjusted between five predefined settings.Power supply 8V up to 24VThe DMX Audio Unit can be operated with 8V up to 24V DC.DMX FAIL-FunctionAn adjustable DMX FAIL function offers the option to hold the current state (HOLD),turn off playback (OFF), or to operate a previously set state in the event of a failed DMX signal.RDM SupportThe DMX Audio Unit allows configuration via RDM over DMX.Direct access to the device is not necessary. Via RDM, the settings can be made comfortable from distance.Compact DimensionsThe compact dimension of 29,2mm x 82mm allows the installation on a top hat rail housing with only 35mm width.Top hat rail mountingThe top-hat rail housing 350 or the top-hat rail housing 350flat are available as equipment for the DMX Audio Unit. Specifications  Power supply:8-24V DC  Power consumption:100mA@12V / 70mA@24V  Protocol:DMX512 RDM  DMX channels:4 or 5 channels (depends on operation mode)  DMX-FAIL:HOLD / OFF / Perdefine  Operation modes:32Songs/PlayMode/Vol/EQ 64Songs/PlayMode/Vol/EQ SongUp/SongDown/PlayMode/Vol/EQ  Play Mode:Single Play Loop Play Cycle Play Pause Stop  Acoustic color (EQ):Normal Pop Rock Jazz Classic  Output:Line Out (R+L)  Data medium:USB stick  File format:mp3  Connections:screw terminals USB-A 3,5mm Plug  Dimensions:29,2mm x 82mm  Content:DMX-Audio Unit USB stick 4GB Quick guide german and english Produkt DownloadsDMX-Audio UnitBedienungsanleitung DMX-Audio UnitUser Manual

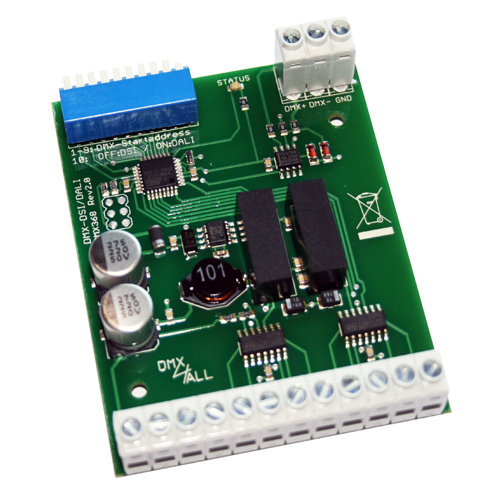

 DMX-DSI/DALI-Interface 8This DMX-DSI/DALI-Interface 8 controls electronic ballast with DSI or DALI-interface.8 output signals direct on clamp.Each output will be controlled via a DMX-channel.The switching between DSI- and DALI-operation occurs via a switch for all outputs.  Specifications  Power supply:12-24V DC / 100mA  Input:8 DMX-channels  Output:8x DSI or DALI each output controlled via one DMX-channel (broadcast)  Connection:Screw terminals  Dimensions:64,2 x 82 mm Product DownloadsDMX-DSI/DALI-Interface 8Bedienungsanleitung DMX-DSI/DALI-Interface 8User Manual

 DMX-Stepper-ControlThe DMX-Stepper-Control is designed for controlling a stepping motor (Stepper) via DMX.The extensive configuration is done via RDM.Several operating modesSeveral operating modes allow a continuous operation with variable speed or the starting of defined positions. The minimum and maximum step speed as well as the number of steps and number of positions can be set individually.RDM Support The DMX stepper control allows settings via RDM over DMX.Free RDM-SoftwareTo set the parameters via RDM, our free RDM Configurator software is available as download from our website www.dmx4all.de.Lockable Device SettingsThe RDM parameters Lock Pin and Lock State allow or avoid changings of saved RDM parameters in order to prevent unauthorized changes.Replaceable stepping motor driverThe standard Pololu A4988 step motor driver is suitable for power supplies from 8-24V and can control a current of 2A per phase.Alternatively, the stepper motor driver can also be replaced with a SilentStepStick with Trinamic TMC2100 / TMC2208 or, alternatively, an external stepper motor driver can be used with the BRIDGE stepper motor driver.Micro step operating modesThe following micro step operation modes are supported Full-Step (1/1) / Half-Step (1/2) / Quarter-Step (1/4) / Eighth-Step (1/8) / Sixteenth-Step (1/16)Left and Right End-SwitchInputs for a left and right end-switch allow the travel distance to be limited.These can optionally be deactivated after initialization.Activate / Deactivate the Step Motor DriverThe stepper motor driver can optionally be activated or deactivated via DMX.Settable Initialization processOptionally, initialization can be carried out after switching on. The number of steps left and right as well as step speed can be set for this process. The motor then moves left and right until the end switch is reached and saves this position as the initial point.Reset per DMXDuring operation the initialization process (Reset) can optionally be started via DMX. Specifications  Power supply:8-24V DC / 50 mA (without connected stepper)  Protocol:DMX512 RDM  DMX channels:1-5 DMX-channels (depending on adjusted mode)  Output driver:Pololu A4988 stepper driver (default) TMC2100 SilentStepStick (Optional accessory) TMC2208 (Optional accessory) Bridge for external Stepper Driver (Optional accessory)  Stepper-Voltage:8-24V DC (is equal to the power supply voltage)  Stepper-Current:max. 2A with Pololu A4988 stepper motor driver  Connection:Screw terminals  Dimensions:80mm x 39mm Product DownloadsDMX-Stepper-ControlBedienungsanleitung DMX-Stepper-ControlUser Manual DMX-Stepper-ControlUSB DriverVersion 6.0.0.0 DMX-Stepper-ControlFirmware
